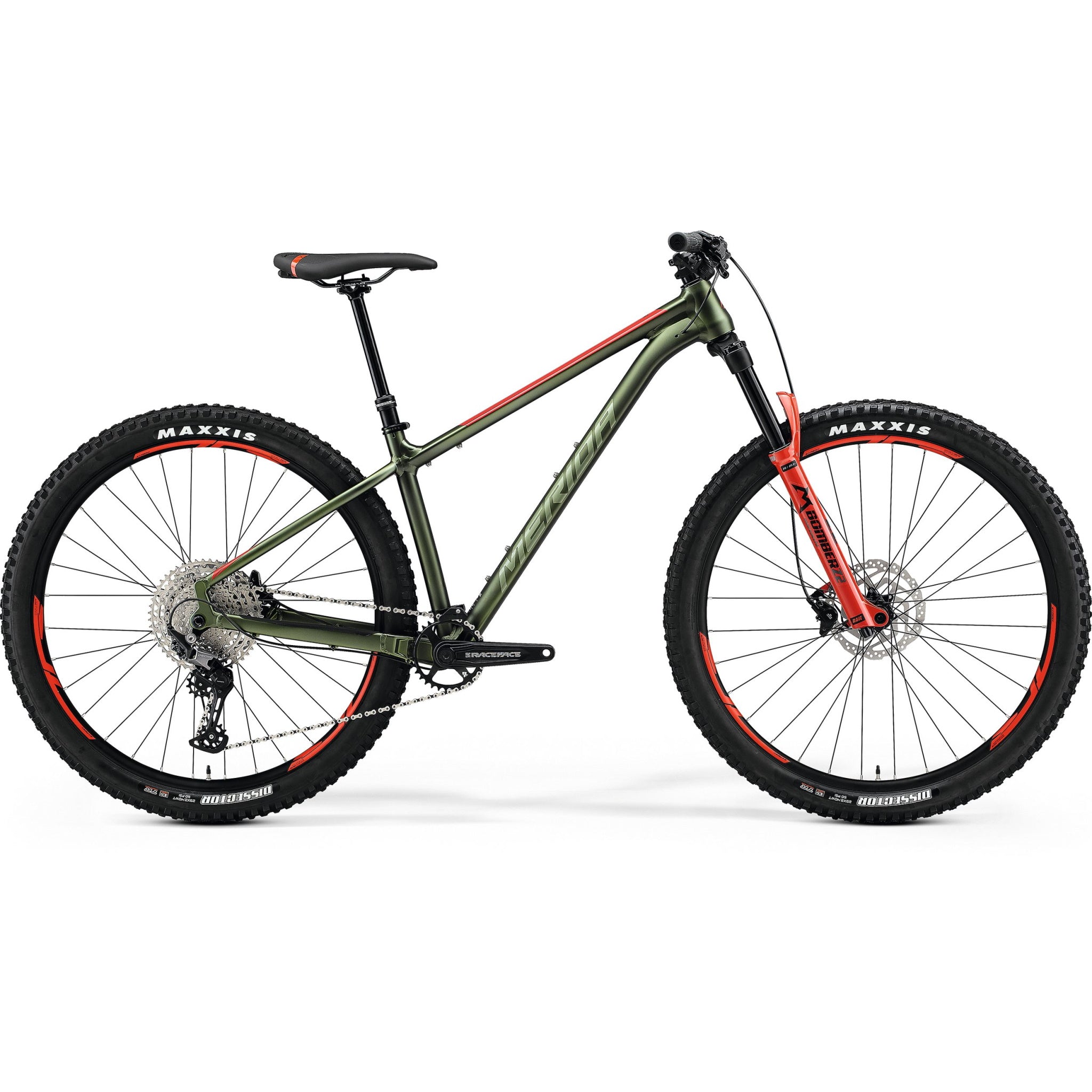

Merida Big Trail 600 Hardtail Mountain Bike Matt Fog Green/Red/Silver

Merida Big Trail 600 Hardtail Mountain Bike Matt Fog Green/Red/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Alloy Fork

140mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

To build their most successful trail hardtail ever, Merida combined a beautifully built aluminium frame, with modern trail geometry, a long travel fork, capable 29er wheels and a long travel dropper post. The long reach and slack head angle make the Big Trail 600 a solid descender even when the trail is littered with roots and rocks, and the steep seat angle and central seating position give it its impressive climbing abilities. Spec’d with Shimano’s latest iteration of the Shimano Deore Groupset the M6100, paired with matching hydraulic disc brakes and burly 180mm rotors. The Marzocchi Z2 Air fork offers 140mm of trail munching travel, while chunky 29er wheels roll on 2.4” Maxxis Dissector tyres for amazing corner grip and comfort. With cleverly integrated mounting points for accessories such as kickstand, mudguards and a rear carrier, the Big Trail is ready to take on any adventure no matter how big. The reviews are in; the Big Trail is firmly at the top of the trail hardtail game.

Key Features

Durable double butted aluminium frame
Smooth welding, internal cable routing
Modern trail bike geometry
Extremely low standover height, long travel dropper post
140mm Marzocchi Z2 fork
Shimano Deore M6100 1x12 Speed Drivetrain
Shimano Deore M6100 Hydraulic Disc Brakes
29er wheels with 2.4" trail tyres and clearance for 2.5"
Multiple fixing points for bottles and other equipment

Specifications

Product Overview

Product

Merida Big Trail 600 Hardtail Mountain Bike Matt Fog Green/Red/Silver

Brand

Merida

Parent SKU

6O6UU444

Size SKUs

MD: MEHP2237803
LG: MEHP2237814
XL: MEHP2237825
XXL: MEHP2237836

Matrix Barcodes

MD: 4710949828394
LG: 4710949828387
XL: 4710949828417
XXL: 4710949828424

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

140mm

Build

Frame

BIG.TRAIL TFS, Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket

Fork

Marzocchi Z2 Air 140mm Travel Tapered 44mm fork offset

Handlebars

MERIDA EXPERT TR Aluminium 780mm Wide 20mm Rise

Headset

MERIDA M2331

Grips

MERIDA COMP EC

Stem

MERIDA EXPERT TR Aluminium 35mm, 0° Rise, 50 mm all sizes

Bottom Bracket

Race Face BSA 68/73 – 24mm

Pedals

Not included

Saddle

MERIDA COMP SL V-mount incl. MERIDA minitool

Seat Post

MERIDA COMP TR 30.9mm 0° Setback S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA EXPERT TR 29mm Inner Width Aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Shimano MT400-B 110x15 32H, Centerlock / REAR: Shimano MT410-B 148x12 32H, Centerlock

Groupset

Crankset

Race Face Ride 32T, 170 mm-S, 175 mm-M up

Chain

KMC X12

Brakes

Shimano M4100 2 piston

Front Rotor

Shimano RT10 180mm

Rear Rotor

Shimano RT10 180mm

Shifters

REAR: Shimano Deore M6100

Rear Derailleur

Shimano Deore M6100 Shadow+

Cassette

12 Speed
