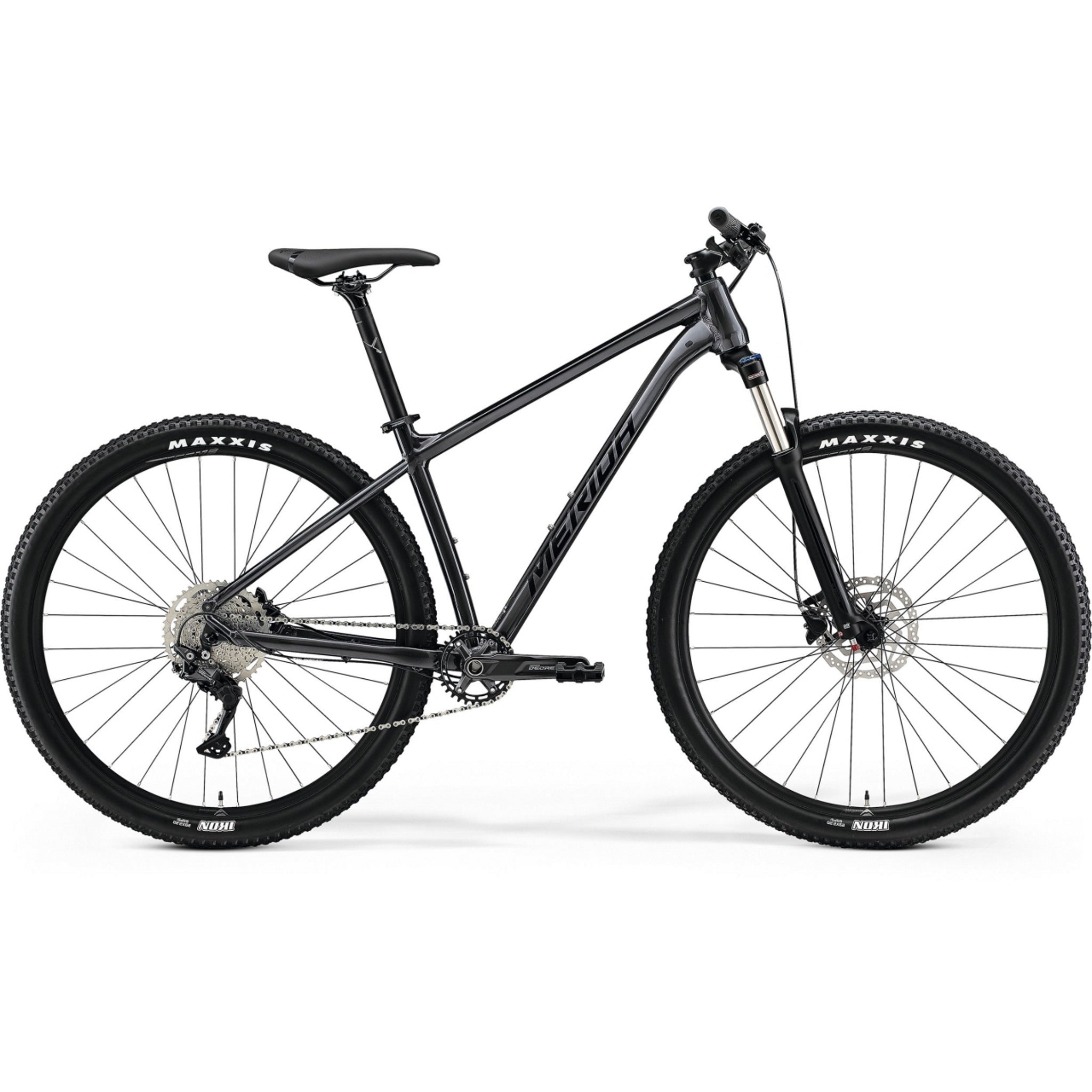

Merida Big Seven 200 Hardtail Mountain Bike Dark Silver/Black

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The ultimate modern hardtail mountain bike perfect for your next off-road adventure. The Big Seven 200 is a single chainring aluminium hardtail, featuring a 100mm Suntour XCR suspension fork, a 10-speed Shimano Deore drivetrain, powerful Tektro hydraulic disc brakes and Merida’s outstanding attention to detail. The racelite aluminium frame of the Big Seven 200 is created using a techno forming system that allows for the formation of sleek tube profiles and smooth welded joins. Internal cable routing keeps cables neatly out of the way, while integrated mounting points for fenders, a kickstand and rear carrier rack provide endless customization options as a daily commuter or bikepacking explorer. The slightly more upright riding position in comparison to the racier Big Seven models puts less strain on the lower back and also improves the visibility of what lies ahead. 27.5” wheels with 2.2” Maxxis Ikon tyres offer fantastic cornering and traction as well as fast speed pickup.

Key Features

Double butted aluminium frame with 27.5” wheels
Upright geometry for maximum control and comfort
Internal cable routing, easy access downtube exits
SR Suntour 100mm air suspension fork with lockout
Shimano Deore 1 x 10 speed drivetrain
Tektro Hydraulic disc brakes
Maxxis Ikon, 27.5 x 2.2" tyres

Specifications

Product Overview

Product

Merida Big Seven 200 Hardtail Mountain Bike Dark Silver/Black

Brand

Merida

Parent SKU

RD0VGACG

Size SKUs

MD: MEHA2200190
LG: MEHA2200191

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Silver

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

100mm

Build

Frame

BIG.SEVEN TFS III Aluminium27.5 135x9 BSA Bottom Bracket

Fork

Suntour XCR LOR Air 100mm Travel Lockout 42mm fork offset

Handlebars

MERIDA EXPERT CC Aluminium 720mm Wide 10mm Rise

Headset

MERIDA M2346 Neck

Grips

MERIDA COMP EC

Stem

MERIDA COMP CC Aluminium 31.8mm 6° Rise 50 mm all sizes

Pedals

VP VPE-891

Saddle

MERIDA COMP SL V-mount

Seat Post

MERIDA COMP CC MAT aluminium 30.9mm 0° Setback

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP CC 20mm Inner Width Aluminium

Hubs

FRONT: Shimano TX505 100x9 32H, Centerlock / REAR: Shimano TX505 135x9 32H, Centerlock

Groupset

Crankset

Shimano Deore M5100 32T 170 mm-S, 175 mm-M up

Chain

KMC X10

Brakes

Tektro M275 2 piston

Front Rotor

Shimano RT10 180mm

Rear Rotor

Shimano RT10 160mm

Shifters

Shimano Deore M4100 Rear

Rear Derailleur

Shimano Deore M5120 Shadow+

Cassette

10 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Seven 200 Hardtail Mountain Bike Dark Silver/Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Seven 200 Hardtail Mountain Bike Dark Silver/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
