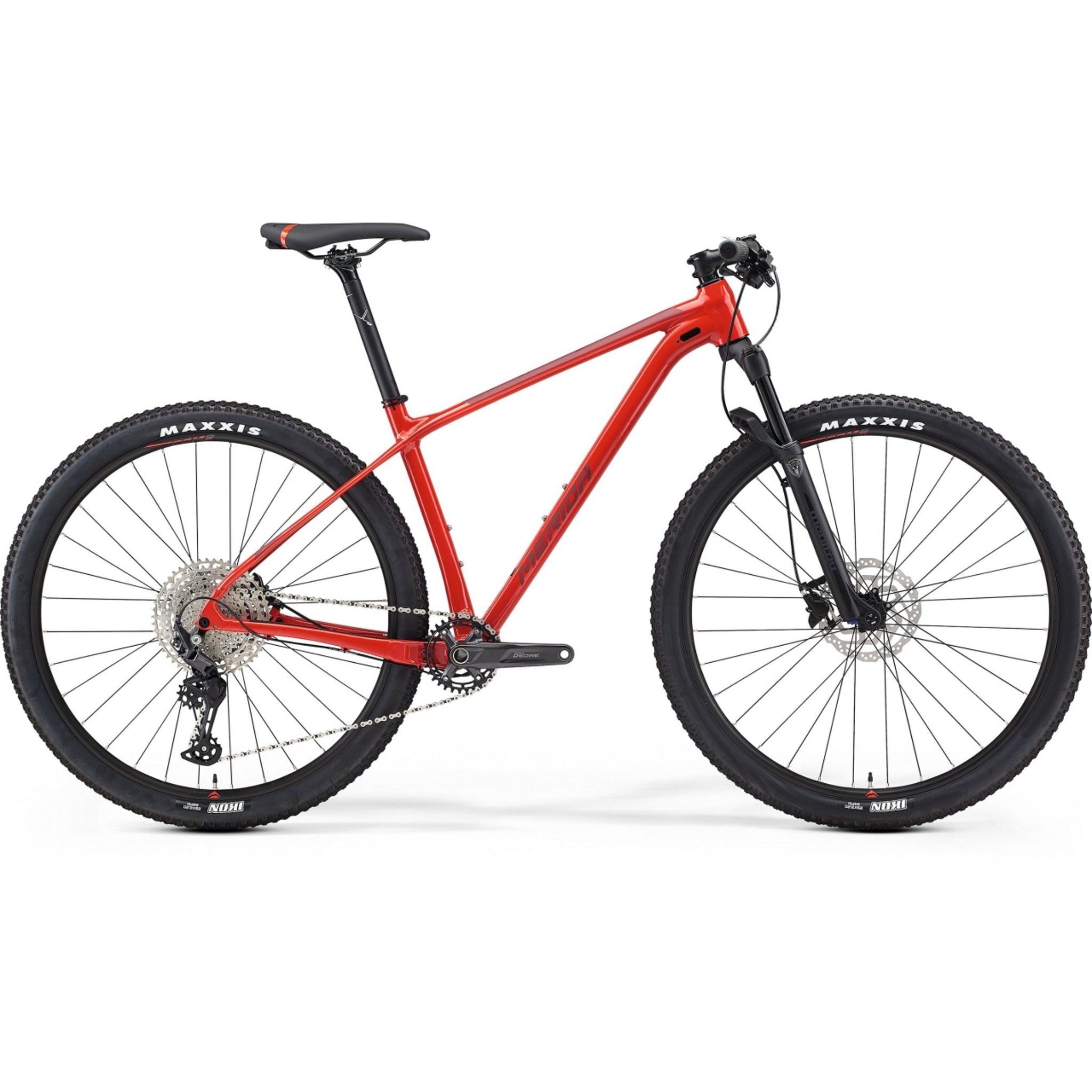

Merida Big Nine Limited Cross Country Race Bike Glossy Race Red/Matt Red

Brand: Merida

SKU: UHWI27C2

Size: XXL

XXL

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Manitou Alloy Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Merida’s Big Nine range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship. The Big Nine Limited is a lightweight aluminium hardtail that sits firmly in the Cross Country Race segment, but is equally ready for race action as it is for your next more leisurely off-road adventure. A versatile speed machine with the same marathon focused geometry as its carbon relatives, the limited could be the perfect bike for you if you start developing the racing bug. The race-proven single chainring Shimano Deore M5100 11-speed drivetrain offers a broad gear range while keeping things light and simple. The 100mm air suspended Manitou Markhor fork in combination with reliable hydraulic disc brakes keeps things comfortable and controlled. Fast rolling 29er wheels with Merida Comp rims and Shimano MT400-B hubs roll on Maxxis Ikon 2.2" tyres chosen for their versatility that offers predictable handling in a broad range of trail conditions.

Key Features

Triple butted smooth welded lightweight aluminium frame
XC and marathon focused geometry
Manitou Markhor 100mm travel fork with remote lockout
Shimano Deore M5100 11-speed drivetrain
Tektro hydraulic disc brakes
Dropper post ready frame
SMART ENTRY internal cable routing

Specifications

Product Overview

Product

Merida Big Nine Limited Cross Country Race Bike Glossy Race Red/Matt Red

Brand

Merida

Parent SKU

UI717UAY

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 11

Fork Material

Alloy

Front Travel

100mm

Build

Frame

BIG.NINE LITE Aluminium 29" 148x12 BB92 Bottom Bracket

Fork

Manitou Markhor Comp Air 100mm Travel Tapered Remote lockout 51mm fork offset

Handlebars

MERIDA EXPERT CC Aluminium 740mm Wide flat

Headset

MERIDA M2331

Grips

MERIDA COMP EC

Stem

MERIDA EXPERT CC Aluminium 31.8mm -6° Rise S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm

Bottom Bracket

Shimano MT500-PA pressfit

Saddle

MERIDA COMP SL V-mount incl. MERIDA minitool

Seat Post

MERIDA COMP CC MAT aluminium 30.9mm 0° Setback

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC 20mm Inner Width Aluminium

Hubs

FRONT: Shimano MT400-B 110x15 32H, Centerlock / REAR: Shimano MT400-B 148x12 32H, Centerlock

Groupset

Crankset

Shimano Deore M5100 32T 170 mm-S, 175 mm-M up

Chain

KMC X11

Brakes

Tektro M275 2 piston

Front Rotor

Shimano RT10 180mm

Rear Rotor

Shimano RT10 160mm

Shifters

REAR: Shimano Deore M5100

Rear Derailleur

Shimano Deore M5100 Shadow+

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine Limited Cross Country Race Bike Glossy Race Red/Matt Red we suggest the following size.

More comfort More speed

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

XXL

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Nine Limited Cross Country Race Bike Glossy Race Red/Matt Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
