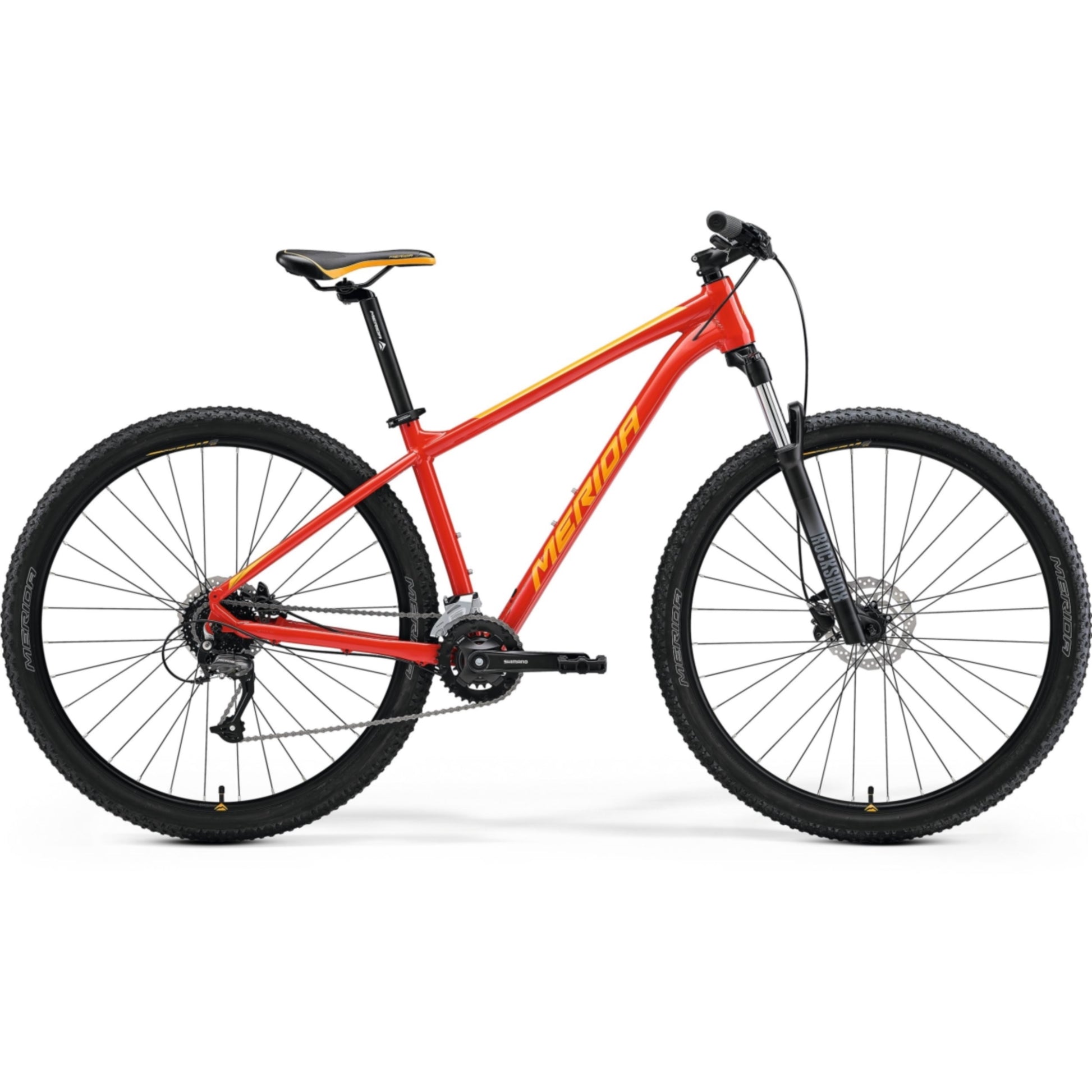

Merida Big Nine 60 2X Hardtail Mountain Bike Race Red/Orange


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: MEHA2246831 In stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Lightweight 6061 Aluminium frame, internal cable routing
  • Rock Shox Judy TK Coil 100mm front fork with lockout
  • Shimano Altus 2x9 speed drivetrain, 18 gears
  • Shimano hydraulic disc brakes
  • 29” wheels with alloy rims & 2.2” tyres
  • Integrated mounting points for mudguards, kickstand and rear rack
Merida’s Big Seven and Big Nine models showcase their enormous wealth of experience gained in almost half a century of bike production and manufacturing, a perfect symbiosis between modern frame technology, attention to detail and craftsmanship. The Big Seven 60 is a versatile rig perfect for long off-road trail sessions and urban jungle adventures alike. The latest generation aluminium frame features even slimmer tube shapes with smooth welding and premium features like internal cable routing and mounting points for accessories. The relaxed geometry offers a comfortable upright riding position and enhanced trail visibility. The 29" wheels impress with nimble handling. The 100m travel Rokshox Judy fork with lockout swallows roots and rocks, while the Shimano Altus 2x9 speed drivetrain offers a wide gear range, letting you conquer even the steepest hills with ease. Then when its time to head down, hydraulic disc brakes ensure all conditions stopping power.
Axles: FRONT: 100x9mm / REAR: 135x9mm
Bottom bracket: Shimano BB-UN100
Brakes: Shimano ST-EF505 BR-MT200 brake caliper
Chain: KMC M99
Crankset: Shimano MT101-2 36-22T 170 mm-S, 175 mm-M/XXL
Derailleur rear: Shimano RD-M370
Fork: Rock Shox Judy TK Coil 100mm suspension travel Lockout 46mm fork offset
Frame: BIG.NINE TFS III Aluminium 29" 135x9 BSA Bottom Bracket
Freewheel: Shimano Cassette CS-HG200 11-32 teeth 9 speed
Handlebar: MERIDA CC Aluminium 690mm width 15mm rise
Handlebar stem: MERIDA CC Aluminium 31.8mm diameter 6° Rise 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Headset: MERIDA M2345
Hubs: Shimano TX505 32H, Centerlock
Pedals: VP VPE-891
Rim: MERIDA CC 17mm inner width Aluminium
Rotor front: Shimano RT10 160 mm
Rotor rear: Shimano RT10 160 mm
Saddle: MERIDA Sport comfort
Season: 2022
Seat clamp: MERIDA COMP QR
Seat post: MERIDA COMP CC MAT aluminium 30.9mm 0° Setback
Tyre front: MERIDA K1080, 29x2.2", wire
Tyre rear: MERIDA K1080, 29x2.2", wire
Weight: Max Weight Limit Rider and Luggage: 135kg
Wheel size: 29"
Tyre Sizes29"29"29"29"29"
seat tube [mm]370430470510560
top tube [mm]570590610630650
chain stay length [mm]440440440440440
head tube angle [°]7070707070
seat tube angle [°]7373737373
bottom bracked drop [mm]6060606060
head tube [mm]100115130145160
fork length [mm]506506506506506
reach [mm]382398414429445
stack [mm]614628642656670
wheel base [mm]10691090111011311152
stand over height [mm]679727763800843

Merida Big Nine Bike Sizing Chart

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.

View Merida range

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
