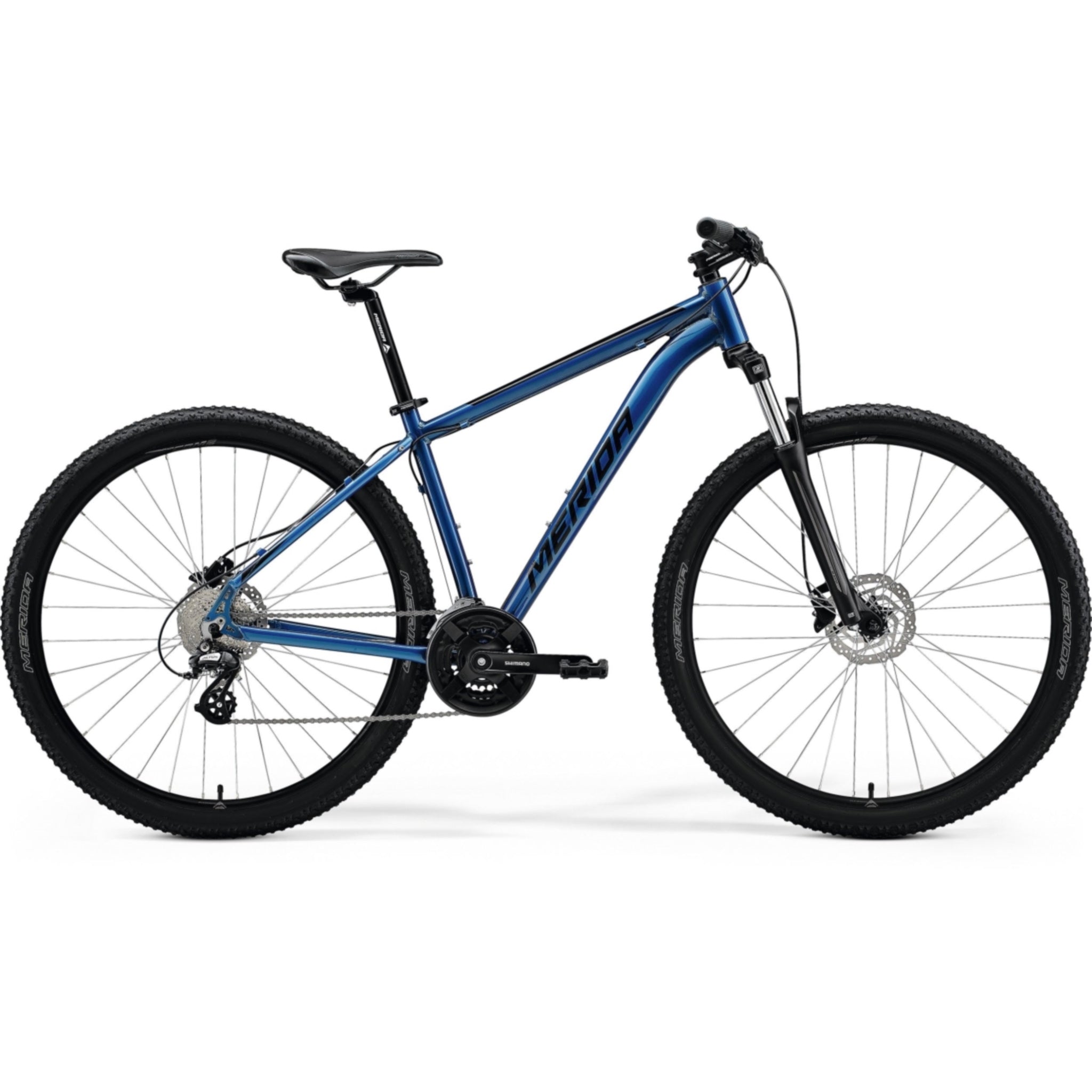

Merida Big Nine 15 Hardtail Mountain Bike Blue/Black

Brand: Merida

SKU: Select a size

Size: Select a size

LG XL XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

Shimano Tourney Groupset

3 x 8 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Merida’s Big Seven and Big Nine models showcase their enormous wealth of experience gained in almost half a century of bike production and manufacturing, a perfect symbiosis between modern frame technology, attention to detail and craftsmanship. The Big Nine 15 model is tailored to the entry level mountain biker and recreational rider, looking for an affordable rig with the best price to spec ratio available. The latest generation aluminium frame features even slimmer tube shapes, paired with a more relaxed geometry created by a shorter top tube and a higher head tube to offer a comfortable upright riding position and enhanced trail visibility. The 29" wheels impress with outstanding 'roll over' ability. The 100m travel SR Suntour fork helps to improve comfort, while the Shimano Tourney 3x8 speed drivetrain offers an extra wide gear range, letting you conquer even the steepest hills with ease. Then when its time to head down, hydraulic disc brakes ensure all conditions stopping power.

Key Features

Lightweight 6061 Aluminium frame
SR Suntour 100mm front fork
Shimano Tourney 3x8 speed drivetrain, 24 gears
Shimano hydraulic disc brakes
29” wheels with alloy rims & 2.2” tyres
Integrated mounting points for mudguards, kickstand and rear rack

Specifications

Product Overview

Product

Merida Big Nine 15 Hardtail Mountain Bike Blue/Black

Brand

Merida

Parent SKU

L0D2P7DK

Size SKUs

LG: MEHA2242547
XL: MEHA2242558
XXL: MEHA2242569

Matrix Barcodes

LG: 4710949831516
XL: 4710949831547
XXL: 4710949831554

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Fork Material

Alloy

Front Travel

100mm

Weight

Max Rider & Luggage Weight Limit: 135kg

Build

Frame

BIG.NINE SPEED, Aluminium, 29", 135x9, BSA Bottom Bracket

Fork

Suntour XCT30 Coil 100mm suspension travel

Handlebars

MERIDA CC MAT aluminium 690mm width 15mm rise

Headset

FSA NO.10

Grips

MERIDA EC

Stem

MERIDA CC MAT aluminium 31.8mm diameter 6° Rise 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

MERIDA Sport comfort

Seat Post

MERIDA CC MAT aluminium 30.9mm diameter 15mm setback

Seat Clamp

MERIDA Sport comfort

Wheels

Wheel Size

29"

Rims

MERIDA CC 17mm inner width MAT aluminium

Hubs

Shimano TX505 32H, Centerlock

Groupset

Crankset

Shimano TY301 42-34-24 teeth 170 mm-S, 175 mm-M/XXL

Chain

Sunrace M84

Brakes

Shimano ST-EF505 BR-MT200 brake caliper

Front Rotor

Shimano RT10 160 mm

Rear Rotor

Shimano RT10 160 mm

Shifters

Shimano ST-EF505

Rear Derailleur

Shimano RD-M310

Cassette

8 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Big Nine 15 Hardtail Mountain Bike Blue/Black we suggest the following size.

More comfort More speed

XXL

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

XXL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Big Nine 15 Hardtail Mountain Bike Blue/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
