Features

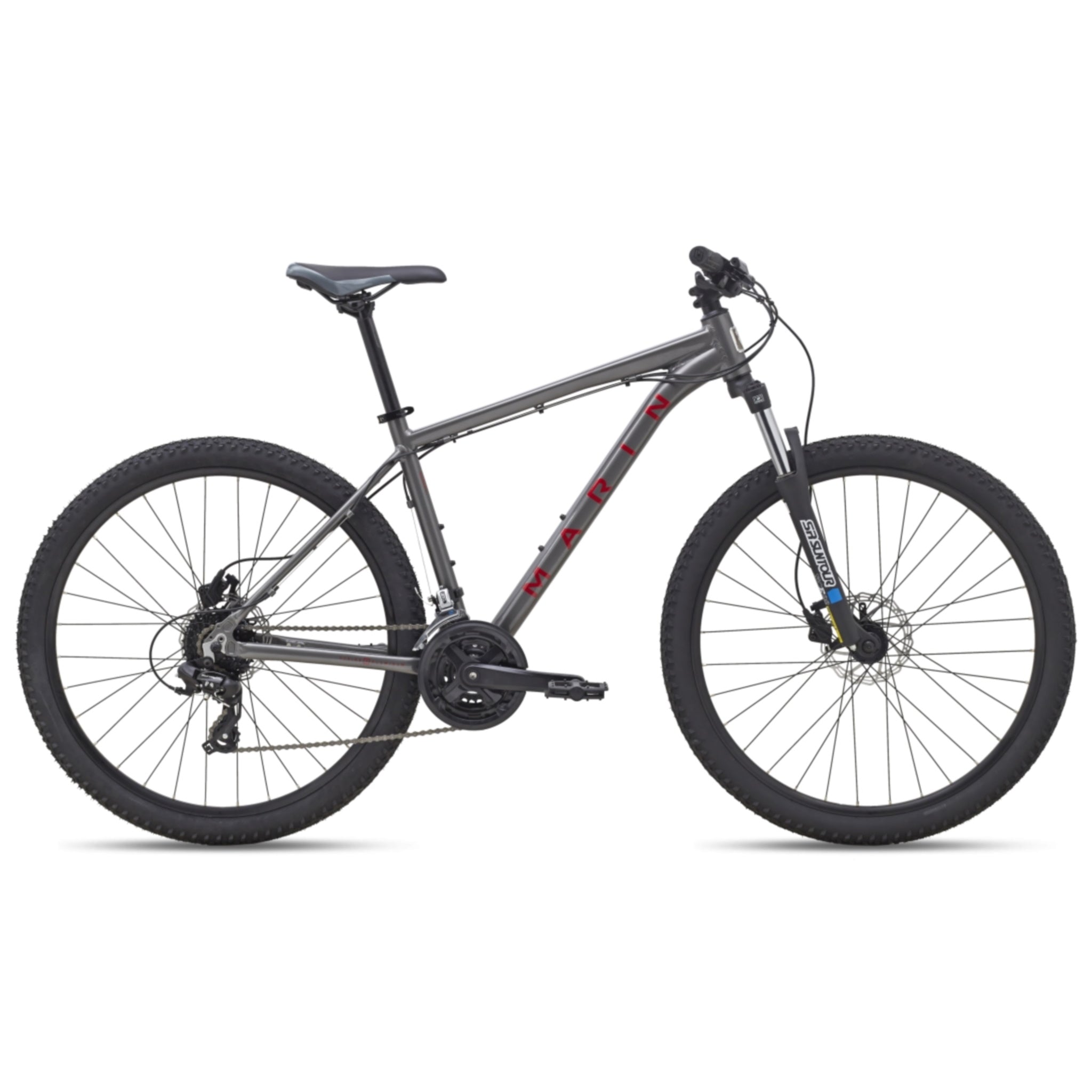

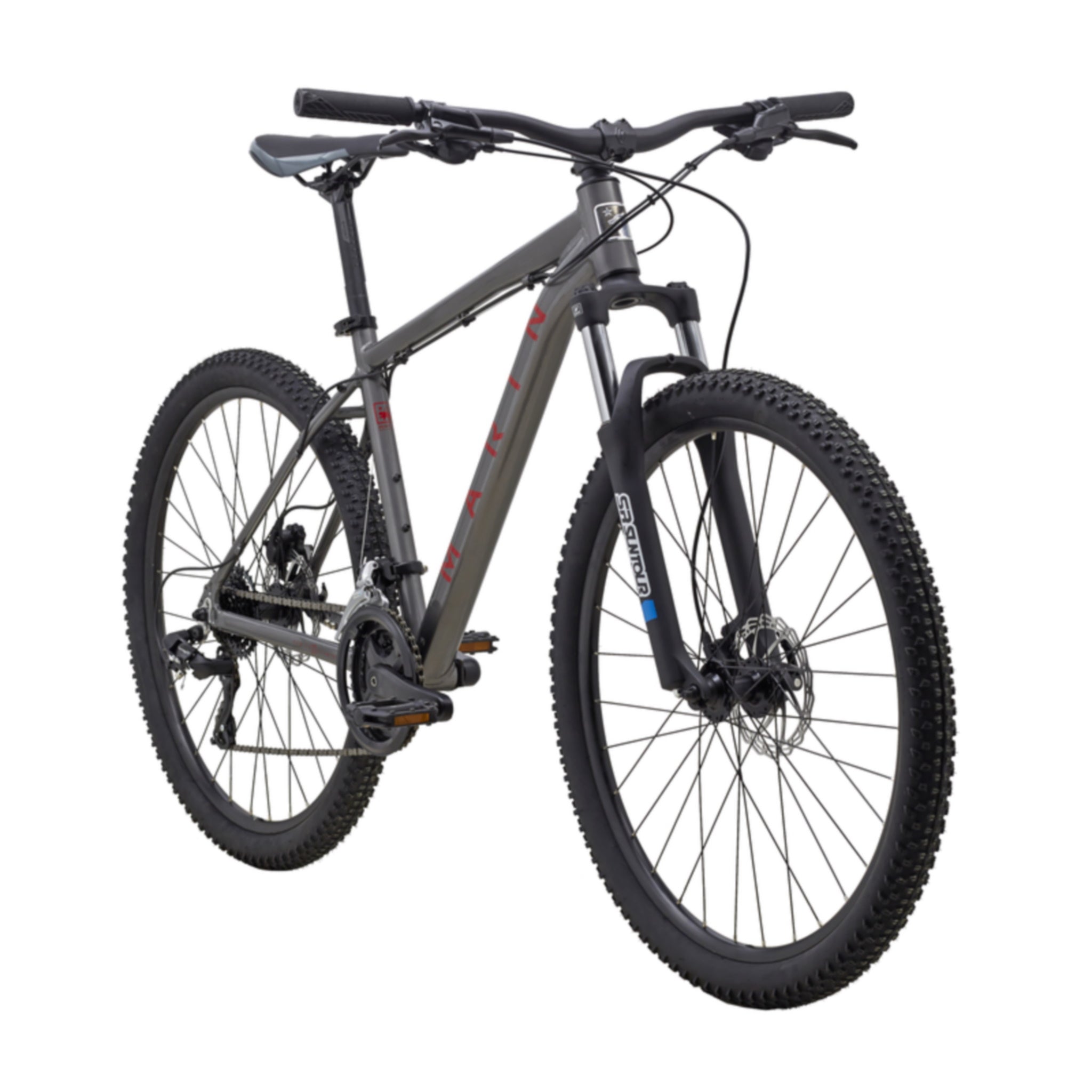

Marin Skytrail Hardtail Mountain Bike Charcoal/Red (2022)
Yours now with 4 interest free payments of
$197.25 NZD
fortnightly with
More info
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Check available shipping methods
Click & Collect Available
• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
99 Bikes Home Delivery Available
Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
- Lightweight Series 1 Alloy Frame
- Shimano Altus 3x8 speed drivetrain
- SR Suntour XCE fork with preload adjustment
- Alhonbga hydraulic disc brakes
- 27.5” wheels with 2.1” mixed terrain tyres
| Axles: | Quick Release |
|---|---|
| Bottom bracket: | Sealed Cartridge Bearings, Square Taper |
| Brakes: | Alhonga HJ-OD07, Hydraulic Disc, 160mm Rotor, Shimano M515 Pad Compatible |
| Chain: | KMC Z-7 |
| Crankset: | Forged Aluminum, 42x34x24T, 170mm |
| Derailleur rear: | Shimano RD-TX800, 8-Speed |
| Fork: | SR Suntour XCE, 100mm Travel, Preload Adjustment |
| Frame: | Series 1 6061 Aluminum, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts, Disc Brake |
| Freewheel: | Shimano Altus CS-HG200, 11-32T, 8 Speed Cassette |
| Grip: | Entity MTB |
| Handlebar: | Alloy, 20mm rise, 740mm wide |
| Handlebar stem: | Alloy, 45mm |
| Headset: | Zero Stack (ZS) Threadless, ZS 44/28.6, 44/30 |
| Hubs: | QR Alloy Hubs |
| Pedals: | Flat Platform (Included) |
| Rim: | Double-Wall Alloy Rims 32H |
| Saddle: | Entity MTB |
| Seat post: | Alloy, 27.2mm |
| Spokes: | Stainless Steel |
| Tyre front: | MTB, 27.5 x 2.1" |
| Tyre rear: | MTB, 27.5 x 2.1" |
| Wheel size: | 27.5" (650b) |
| S | M | L | |
|---|---|---|---|
| Frame Size (inch) | 16" | 18" | 20" |
| Stack | 610 | 610 | 650 |
| Reach | 383.5 | 398.5 | 417 |
| Headtube Angle | 69° | 69° | 69° |
| Headtube Length | 100 | 100 | 105 |
| Seattube Angle | 73° | 73° | 73° |
| Seattube Length | 406 | 456 | 506 |
| Toptube Effective | 570 | 585 | 605 |
| BB Height | 299 | 299 | 299 |
| BB Drop | 47 | 47 | 47 |
| Chainstay | 430 | 430 | 430 |
| Wheelbase | 1072 | 1087 | 1107 |
| Standover Height | 713 | 753 | 793 |
| Fork Offset | 46 | 46 | 46 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 740 | 740 | 740 |
| Stem Length | 45 | 45 | 45 |
| Crank Length | 170 | 170 | 170 |
All lengths in millimeters
Marin Bolinas Ridge Bike Sizing Chart
