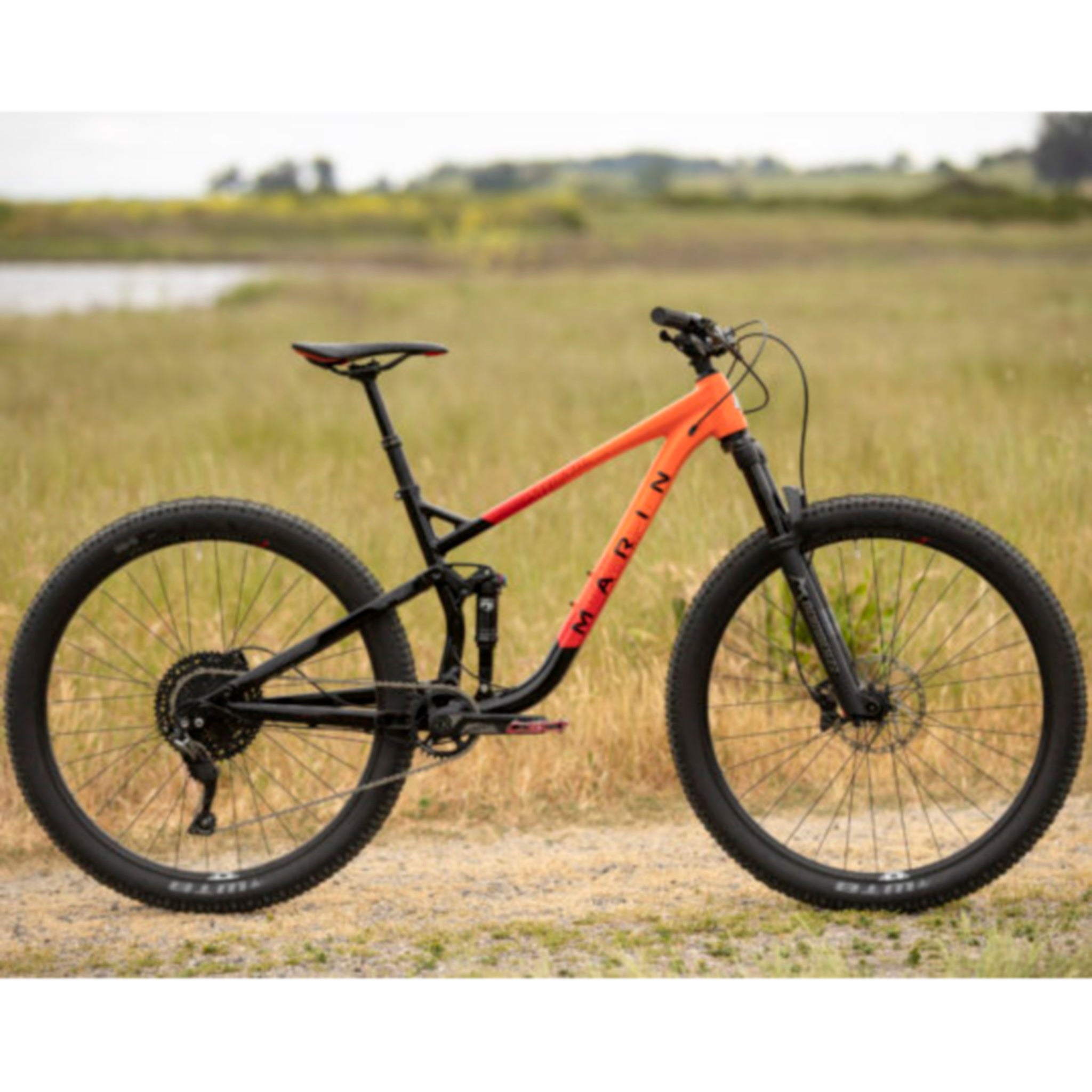

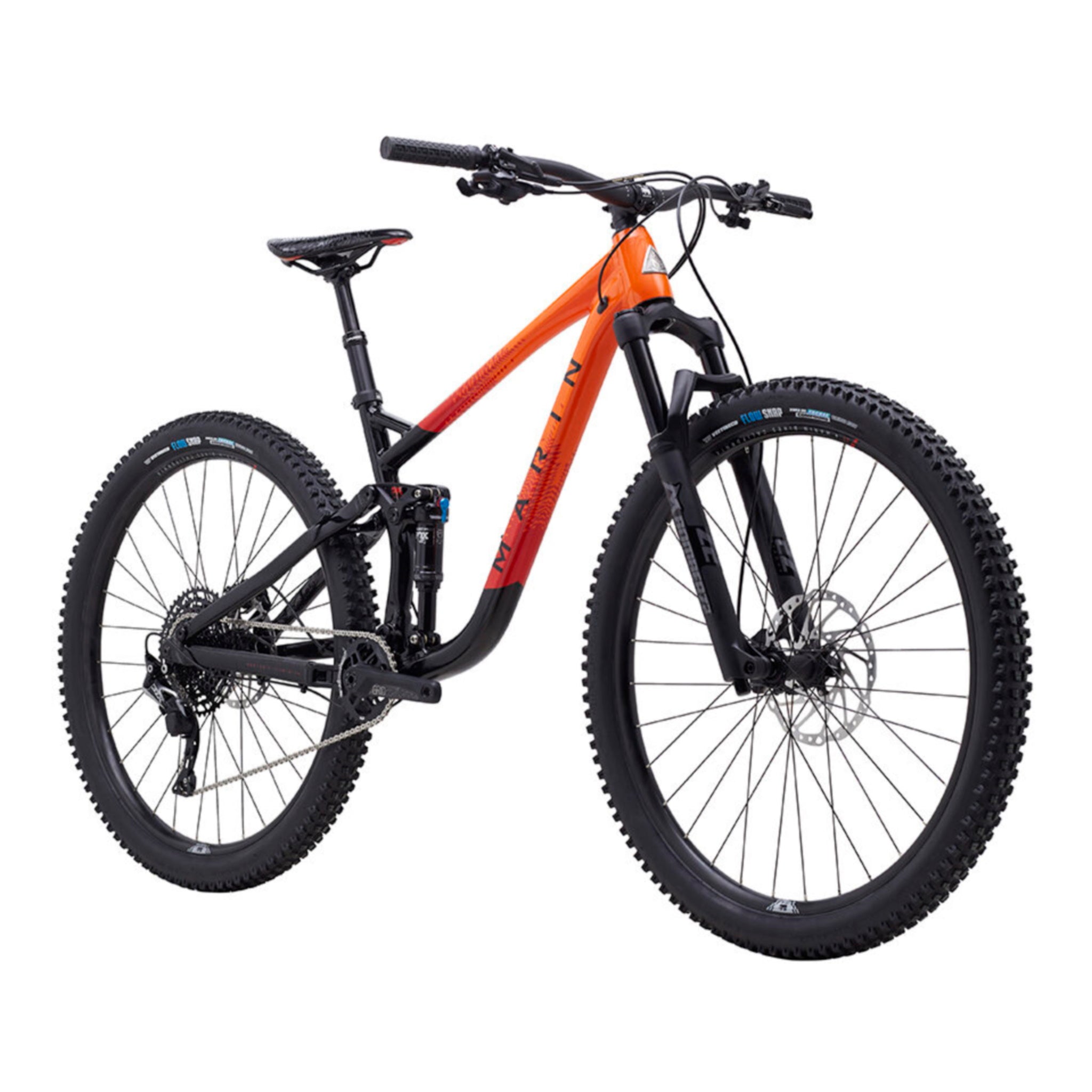

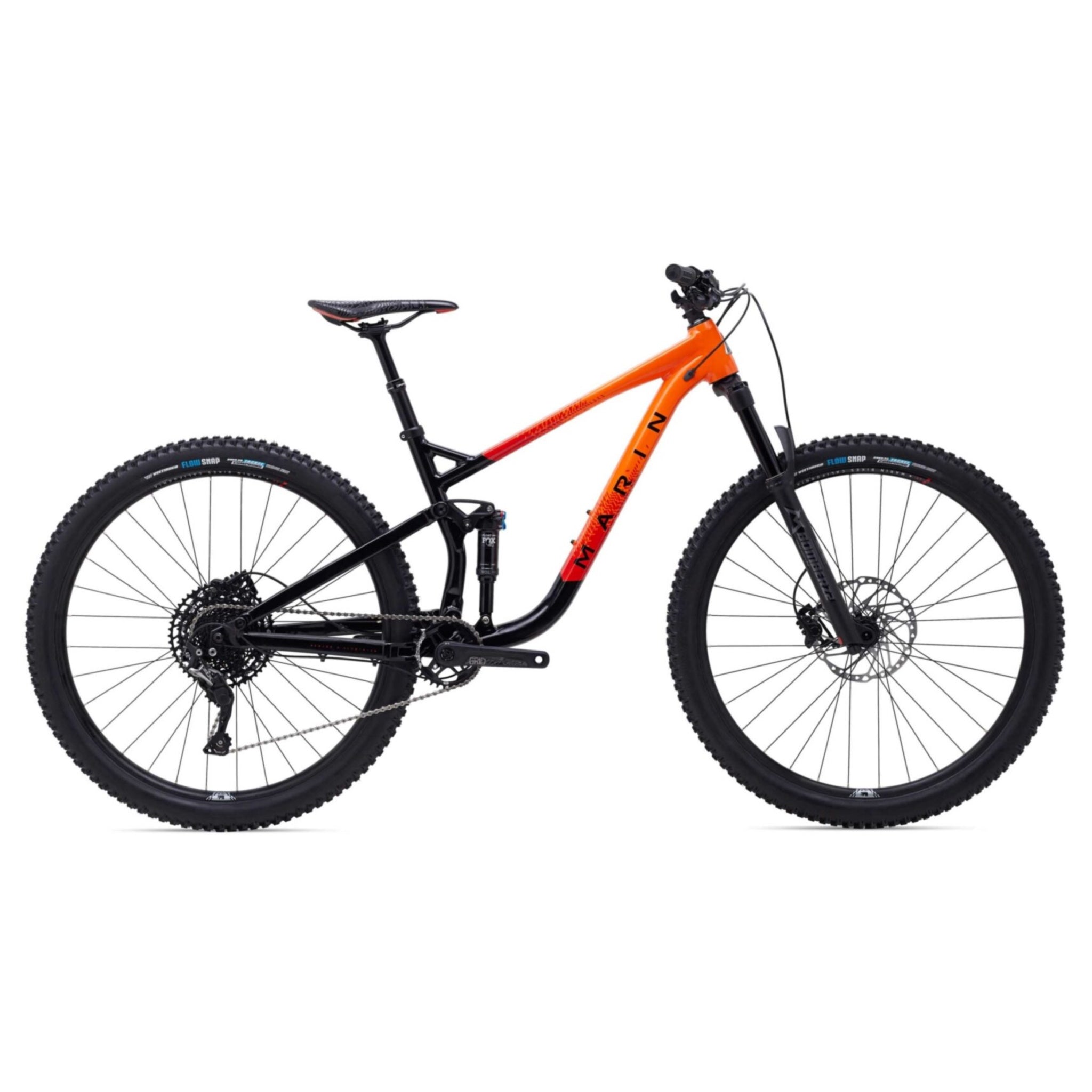

Marin Rift Zone 3 Trail Bike 29" Wheels Black/Orange

Marin Rift Zone 3 Trail Bike 29" Wheels Black/Orange

Brand: Marin

SKU: 498HVJVY

Size: LG

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marzocchi Alloy Fork

130mm Front Travel / 120mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano SLX Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Rift Zone is Marin’s most speed oriented dual suspension mountain bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail specific package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds. The Series 3 aluminum frame, with detailed forgings, highly manipulated tubes, and full internal cable routing, provides the rider with a high feature and high-performing platform. The Marzocchi Bomber Z2 130mm fork with Fox Float DPS, Performance Series shock with Marin’s acclaimed MultiTrac suspension system, enables a balanced ride capable of absorbing big hits with an efficient pedalling platform. The rocker link provides small bump sensitivity and the feeling of a long travel system on large drops and rocks. Shimano MT420, 4-Piston Hydraulic Disc Brakes with a huge 203mm front rotor and 180mm rear rotor ensure exceptional braking force.

Key Features

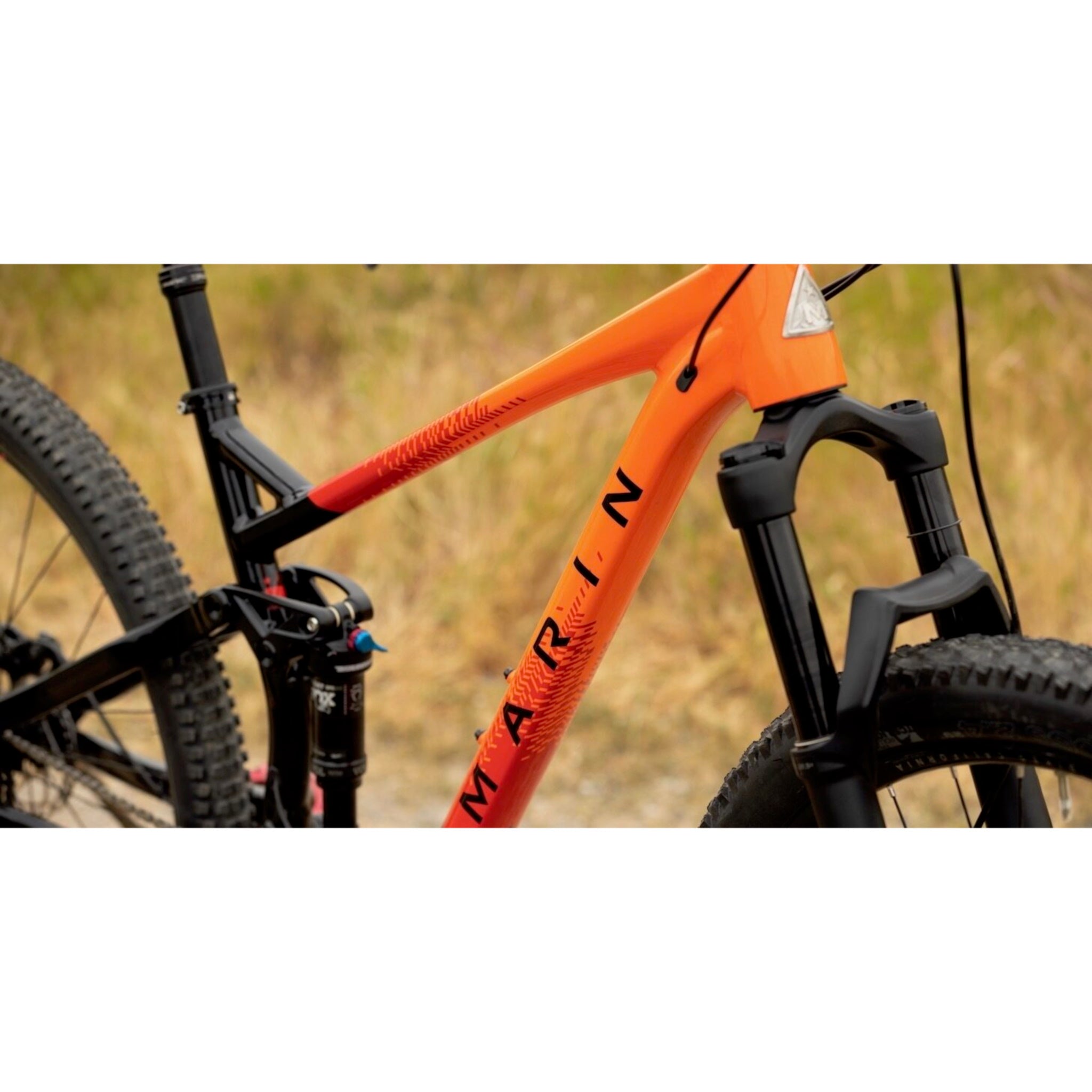

Marzocchi Bomber Z2 130mm travel fork

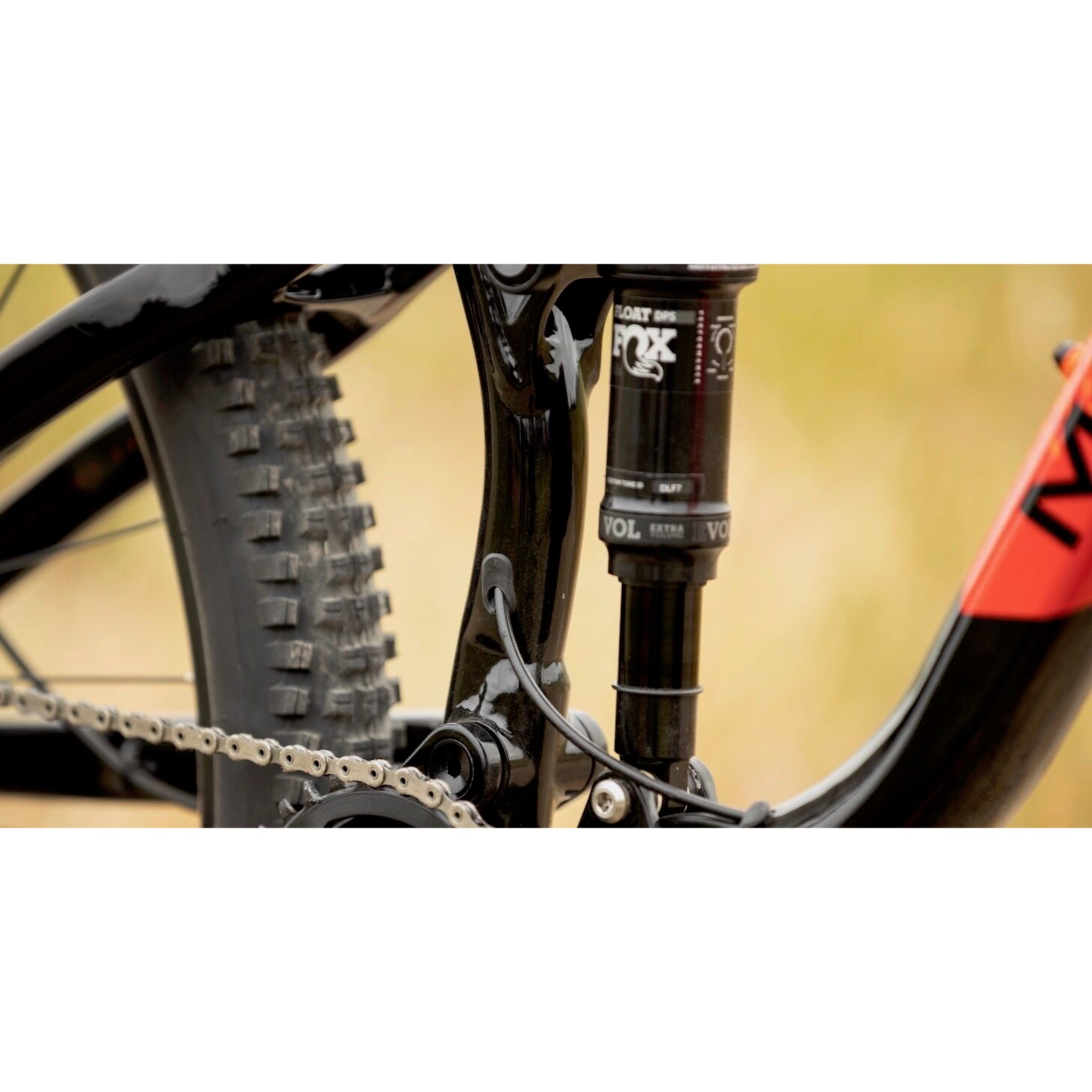

Fox Float DPS, Performance Series shock

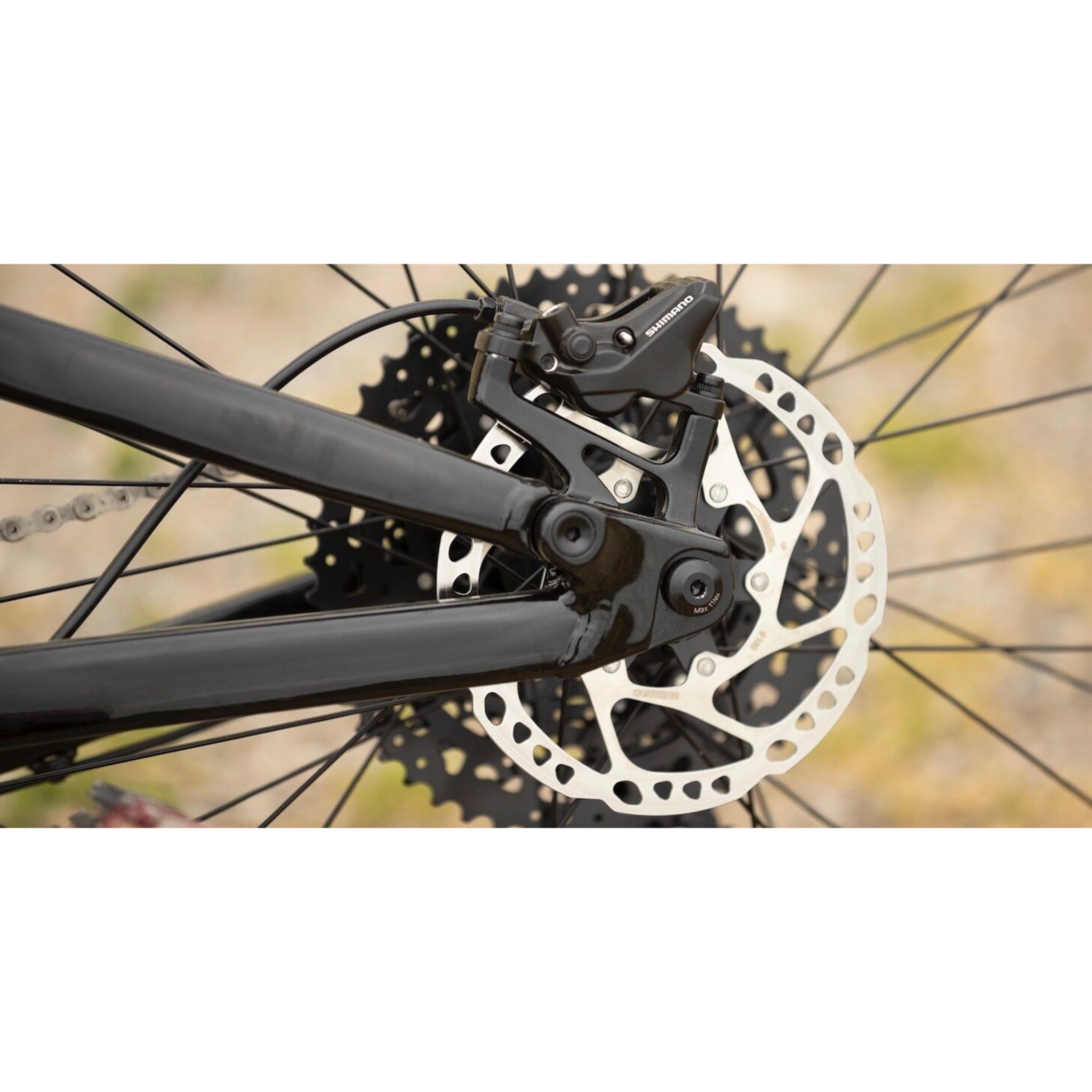

Shimano MT420, 4-Piston Hydraulic Disc Brakes
Burly 203mm Rotor front and 180mm rear
X-Fusion Manic remote control dropper post
1x12 speed drivetrain with Shimano SLX shifters
Tubeless ready 29 x 2.35 Vee Tire Co, Flow Snap tyres

Specifications

Product Overview

Product

Marin Rift Zone 3 Trail Bike 29" Wheels Black/Orange

Brand

Marin

Parent SKU

LZIKYWBC

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Orange

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

130mm

Rear Travel

120mm

Build

Frame

Series 3 6061 Aluminum Frame, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Fork

Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset

Shock

Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

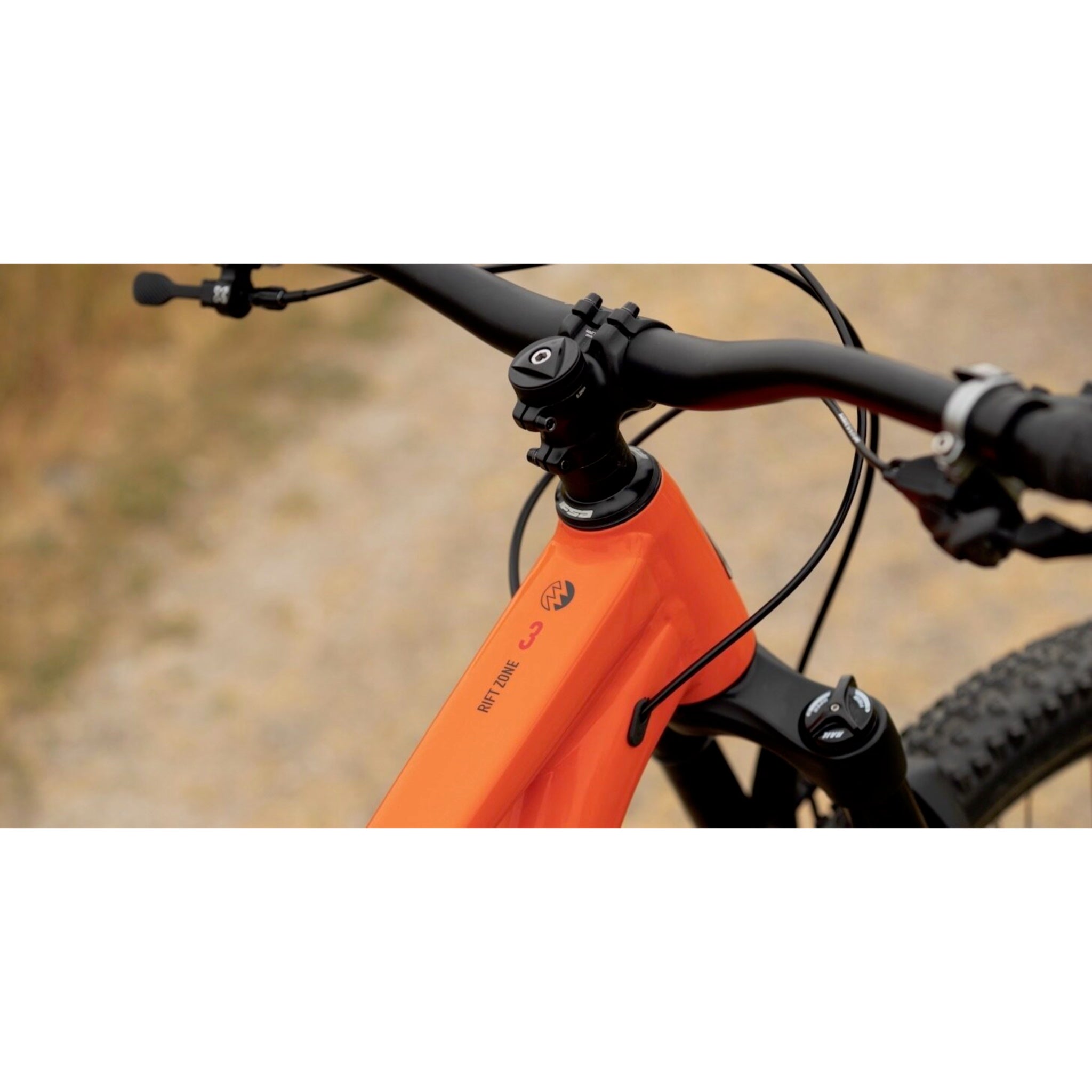

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin Single Clamp Locking

Stem

Marin 3D Forged Alloy, 35mm

Bottom Bracket

Mego EXO 73mm BSA

Saddle

Marin Speed Concept

Seat Post

X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

Wheels

Wheel Size

29"

Rims

Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible

Hubs

FRONT: Forged Alloy, 110x15mm, 32H / REAR: Forged Alloy, 148x12mm, Quad Sealed Bearings, 32H, Standard Freehub Body

Spokes

14g Black Stainless Steel

Groupset

Crankset

FSA GRID, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing

Chain

KMC X-12 Silver and Black

Brakes

Shimano MT420, 4-Piston Hydraulic Disc Brake

Front Rotor

203mm

Rear Rotor

180mm

Shifters

Shimano SLX, 12-Speed, SL-6100IR

Rear Derailleur

Shimano SLX SGS, Direct Attachment, 12-Speed

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Rift Zone 3 Trail Bike 29" Wheels Black/Orange we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Marin Rift Zone 3 Trail Bike 29" Wheels Black/Orange geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
