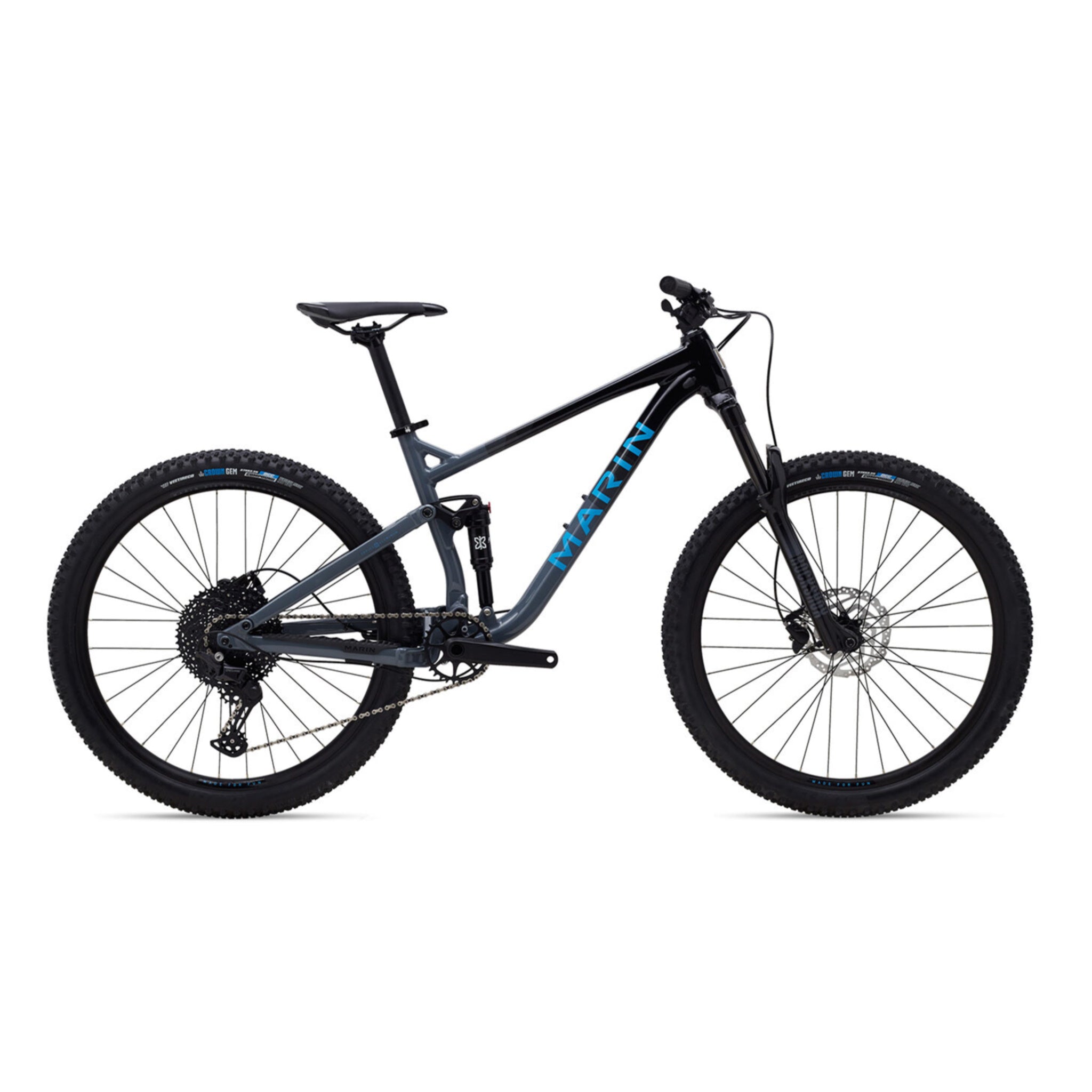

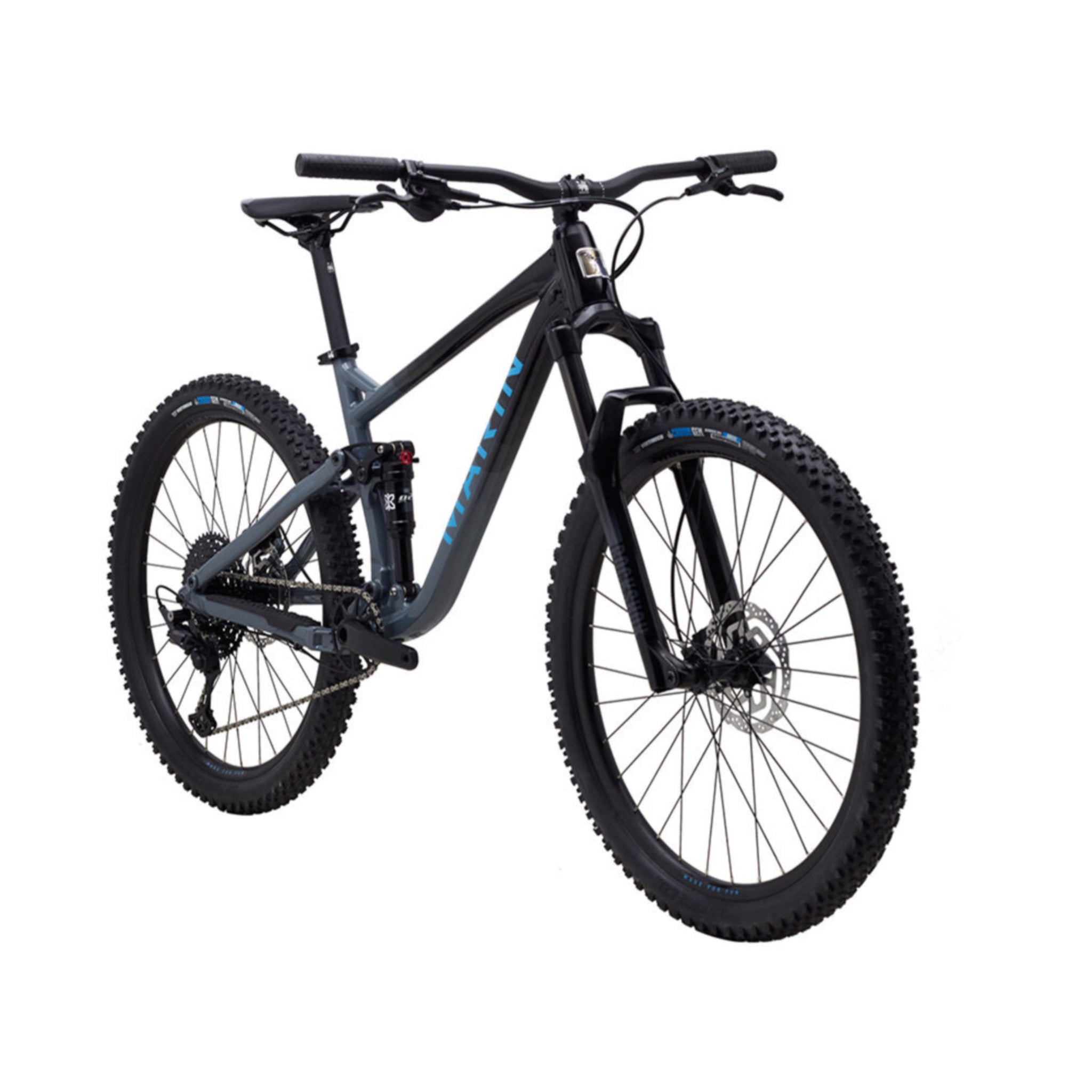

Marin Rift Zone 1 Trail Bike Black/Blue 27.5” (2022)

$2,649$2,799.99
Save $150.99
SKU: 80WWALEW

Stock:
Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Check available shipping methods

Click & Collect Available

• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store  More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

99 Bikes Home Delivery Available

Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

The Rift Zone is Marin’s most speed oriented MultiTrac bike. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds. The Rift Zone 1 features a Series 3 aluminium frame, with detailed forgings, highly manipulated tubes, and full internal cable routing through the front triangle with Marin’s all-new internal cable routing grommets, which provide a cleaner and rattle free cable set up as well as giving the rider a high-performing upgrade worthy platform. The acclaimed MultiTrac suspension system is fine-tuned to offer a balanced ride capable of absorbing big hits while maintaining an efficient pedalling platform.
Accessories: Closed 9-12 Thru-Axle QR System
Bottom bracket: External Sealed Cartridge Bearing
Brakes: Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
Chain: KMC X-11 Silver and Black
Crankset: Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Derailleur rear: Shimano Deore 11-Speed SGS, Shadow Plus, Direct Attachment
Fork: RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset
Frame: Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Freewheel: SunRace, 11-Speed, 11-51T Cassette
Grip: Marin MTN, Closed End
Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Handlebar stem: Marin 3D Forged Alloy, 35mm
Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Hubs: REAR: Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body / FRONT: Shimano HF-MT400B, 110x15mm, Centerlock
Rim: Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Saddle: Marin Speed Concept
Seat post: Marin Alloy, 30.9mm
Shock: X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom
Spokes: 14g Black Stainless Steel
Tyre front: Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Tyre rear: Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Wheel size: 27.5" (650b)

SMLXL
Stack602.6607.15611.7616.25
Reach430455480505
Headtube Angle65.5°65.5°65.5°65.5°
Headtube Length100105110115
Seattube Angle76°76°76°76°
Seattube Length390400425430
Toptube Effective580.24606.36632.51658.6
BB Height344344344344
BB Drop34343434
Chainstay425425425425
Wheelbase1158.92118612131240.1
Standover Height691.84697.1717.83721.97
Fork Offset42424242
Seatpost Diameter30.930.930.930.9
Handlebar Width780780780780
Stem Length35353535
Crank Length170175175175

Marin Rift Zone Bike Sizing Chart

Marin Rift Zone Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
