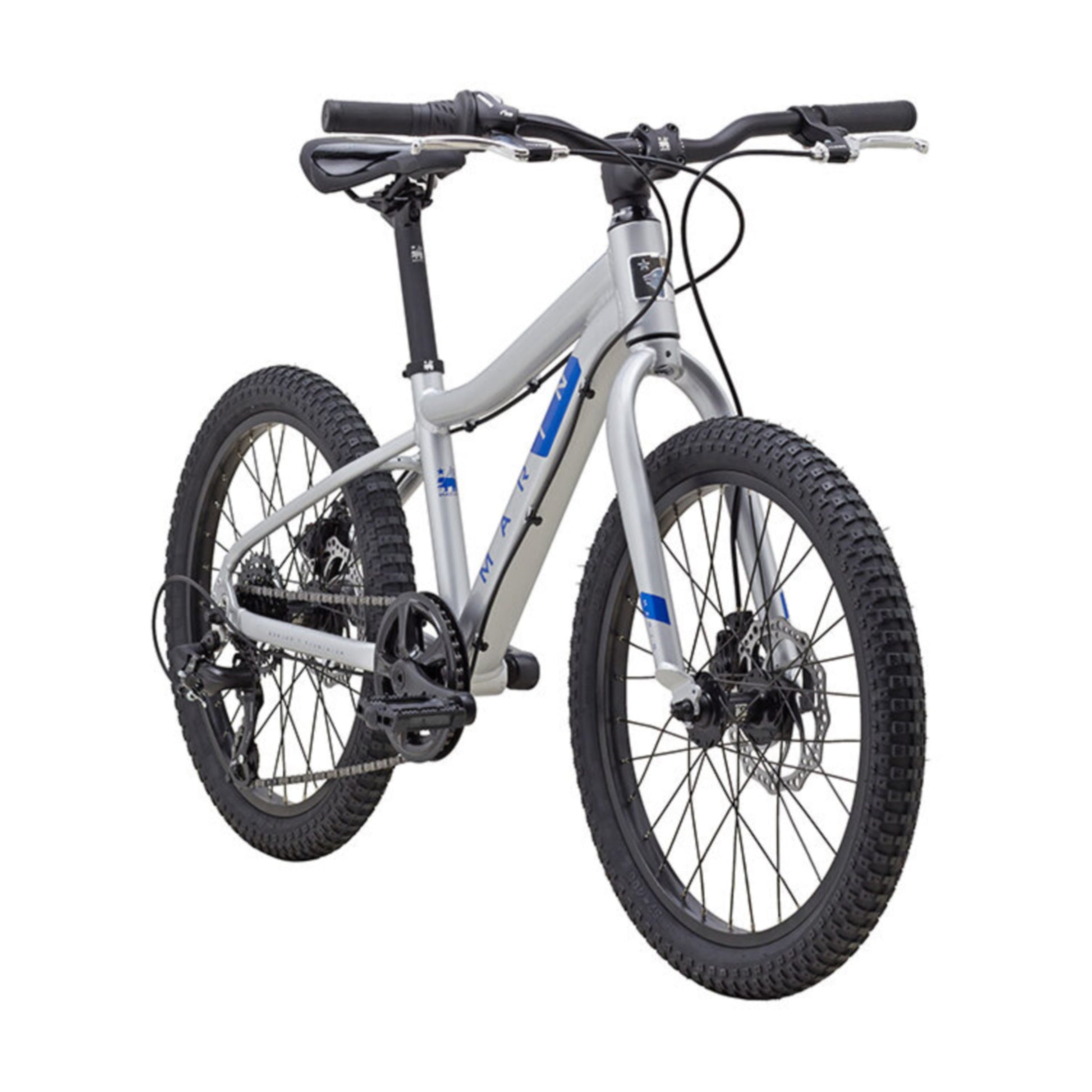

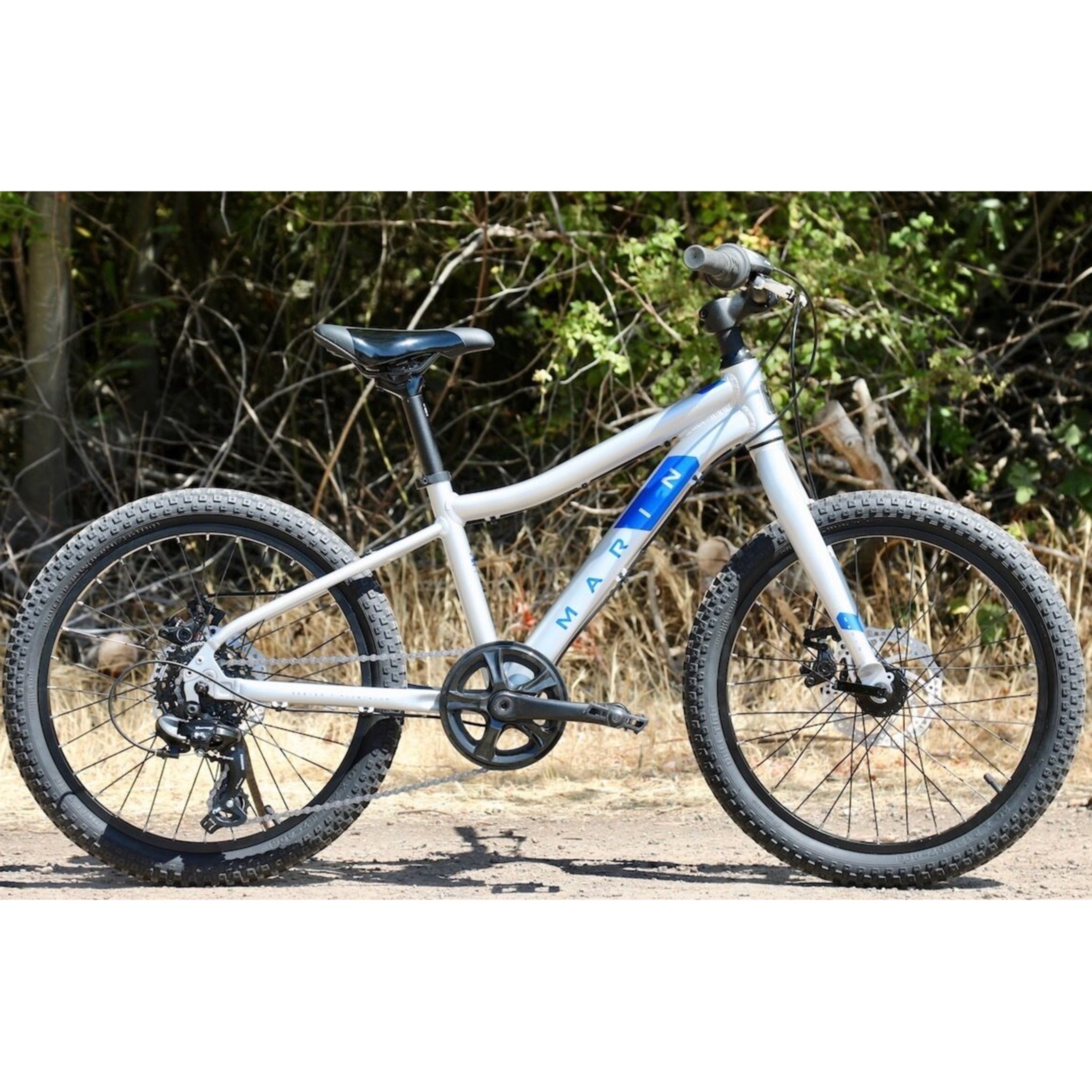

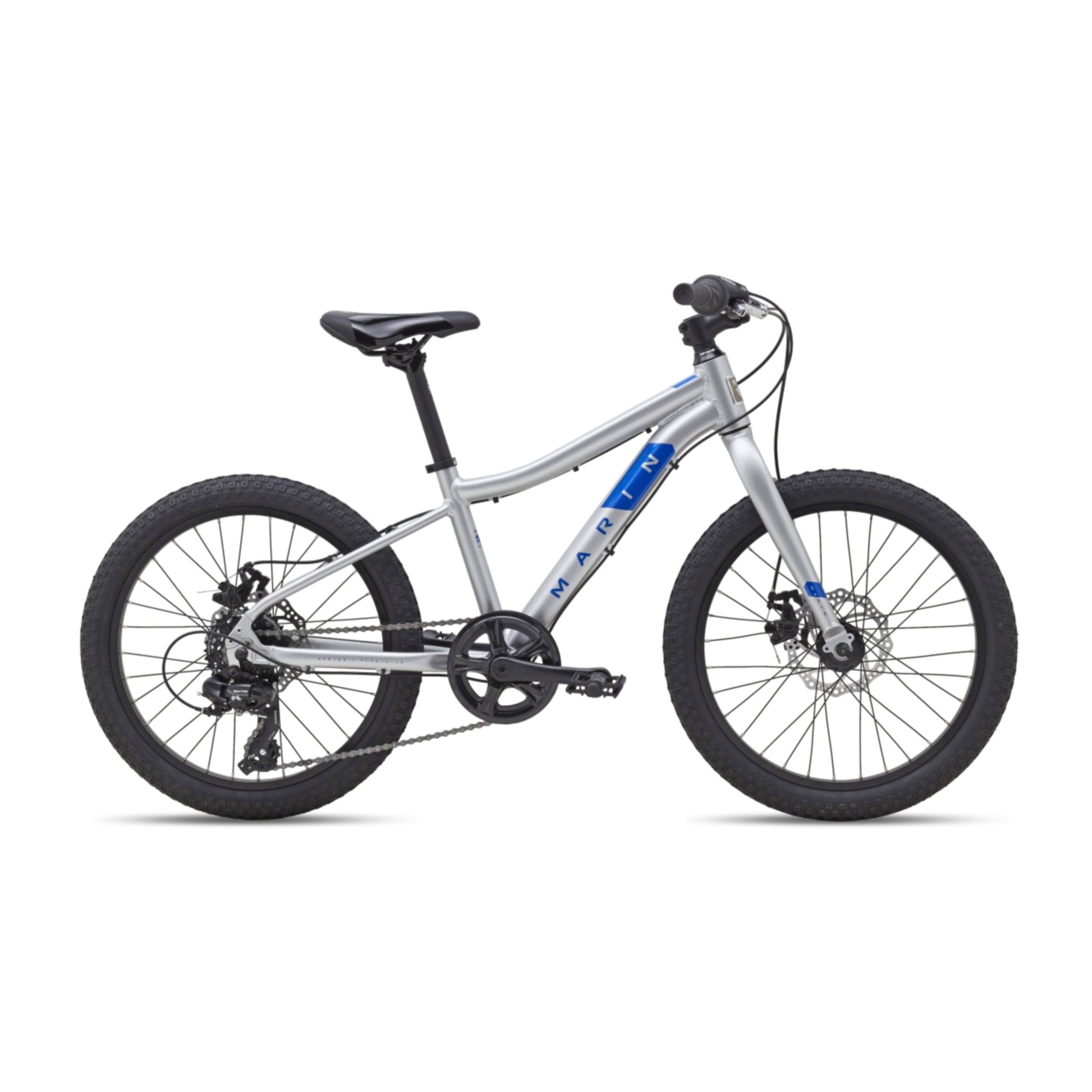

Marin Hidden Canyon 20" Kids Mountain Bike Silver/Blue

$729$799.99
Save $70.99
NEW
SKU: QYM0PY5Q

Stock:
Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Check available shipping methods

Click & Collect Available

• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store  More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

99 Bikes Home Delivery Available

Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

Key Features
  • Lightweight Series 1 6016 Alloy Frame
  • Efficient Rigid Steel Front Fork
  • Shimano Revo 1 x 7 Speed Drivetrain
  • Power CX7 Mechanical Disc Brakes
  • Double Wall Alloy Rims
  • 20” x 2.125” Multi Surface Tyres
The Hidden Canyon 20 is built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service. Built on a Lightweight series 1 6016 Aluminum frame, paired with a rigid Steel front fork, which work together to keep weight minimal while maximizing pedal efficiency. The child specific 1x7 speed Shimano Revo grip shifter and short reach brake levers provide an easy to operate package for little hands while Power CX7 Mechanical Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance. Rounding off the build is a replaceable derailleur hanger and lightweight double wall alloy rims rolling on 20” x 2.125” multi surface tyres, perfect for little shredders switching between pavement, dirt and trail.
Bottom bracket: Sealed Cartridge Bearings, Square Taper

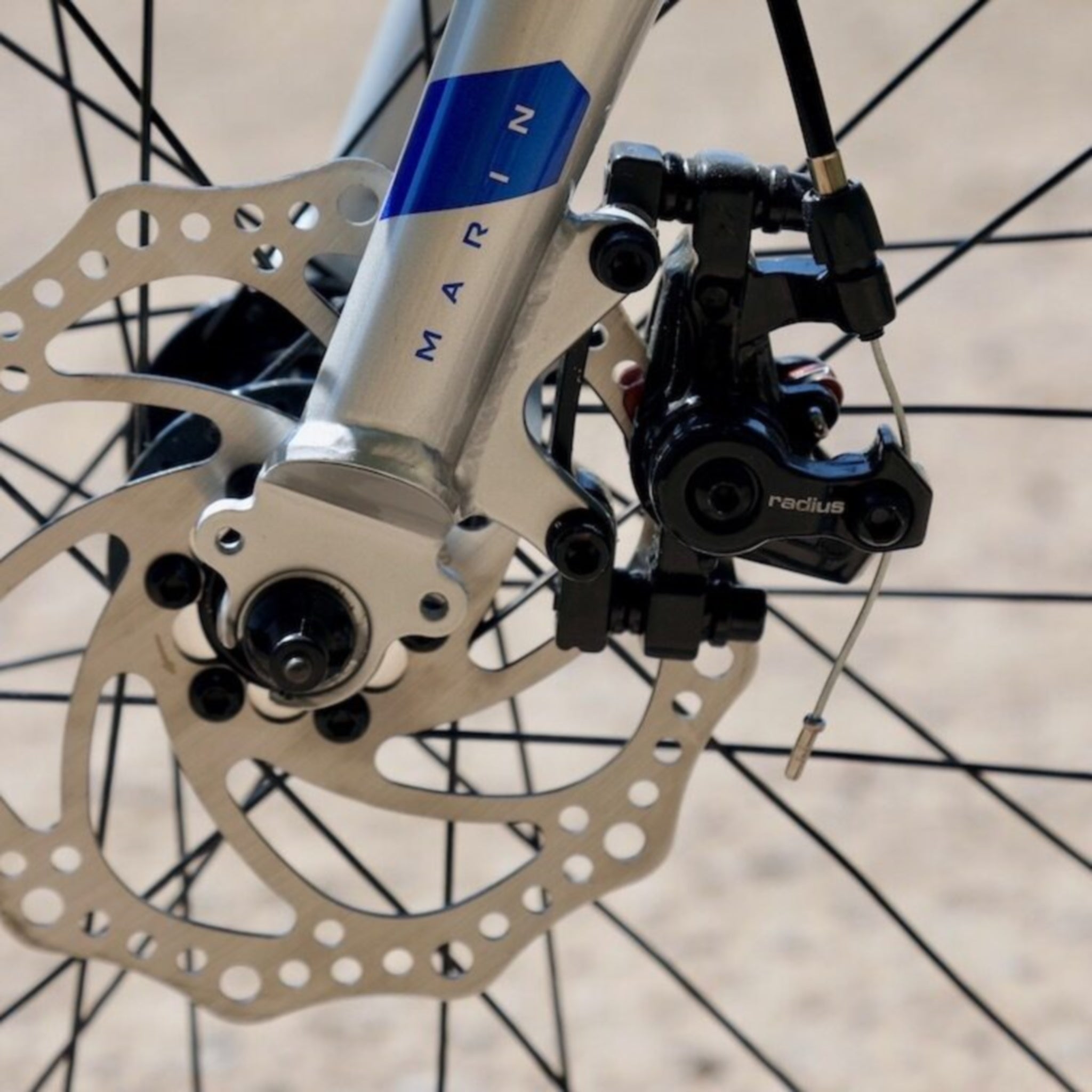

Brakes: Power CX7 Mechanical Disc, Shimano Pad Compatible
Chain: KMC Z50
Crankset: Forged Alloy, 36T, 140mm, Ring Guard
Derailleur rear: Shimano Tourney, 7-Speed
Fork: Steel Rigid Fork, 100mm Spacing, QR Lever
Frame: Series 1 6061 Aluminum, 20” Wheels, IS Seatstay Disc Mounts, 135mm Dropouts
Frame size: 12in

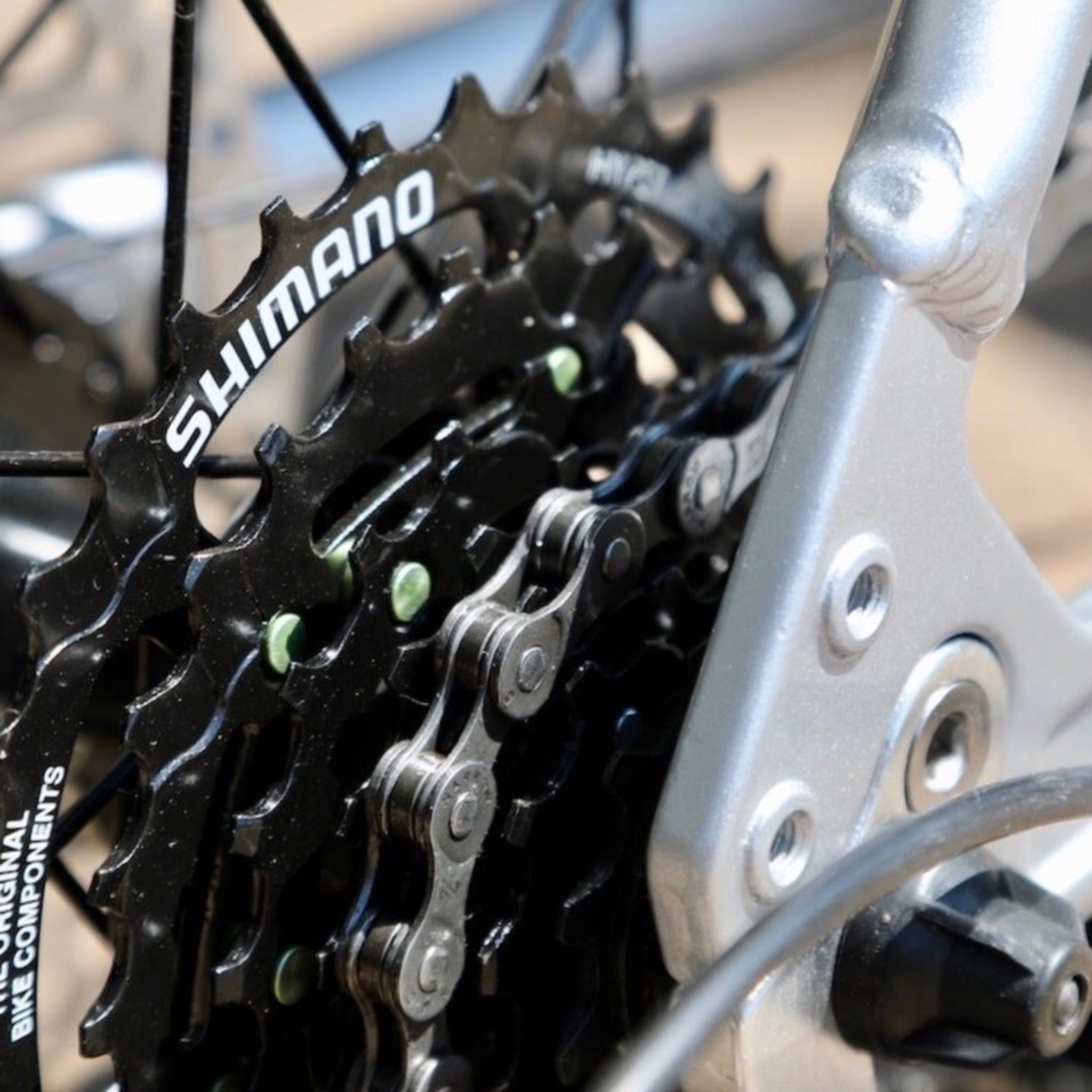

Freewheel: Shimano HG20, 12-28T Cassette
Grip: Marin Dual Density
Handlebar: Marin Riser, 30mm Rise, 590mm Width
Handlebar stem: Marin Alloy, 60mm
Headset: FSA, Threaded
Hubs: Formula, 32H
Pedals: Kids Specific Nylon
Rim: Marin, Double Wall Alloy
Rotor front: 160mm Rotor
Rotor rear: 160mm Rotor
Saddle: Marin Kids MTB
Seat post: Marin Alloy, 27.2mm
Shifters: Shimano Revo Twist 1x7-Speed
Spokes: 14g Stainless Steel
Tyre front: Multi Surface, 20”x2.125”
Tyre rear: Multi Surface, 20”x2.125”
Wheel size: 20"

ONE SIZE
Stack439.39
Reach297.66
Headtube Angle70°
Headtube Length105
Seattube Angle73°
Seattube Length308
Toptube Effective432
BB Height232
BB Drop25
Chainstay380
Wheelbase862.79
Standover Height511.66
Fork Offset33
Seatpost Diameter27.2
Handlebar Width590
Stem Length45
Crank Length140

All lengths in millimeters

Kids Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
