Marin Headlands 2 Adventure Road Bike Black/Orange (2022)

$4,699$4,999.99
Save $300.99
SKU: 2RPJBINF

Stock:
Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Check available shipping methods

Click & Collect Available

• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store  More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

99 Bikes Home Delivery Available

Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

Key Features

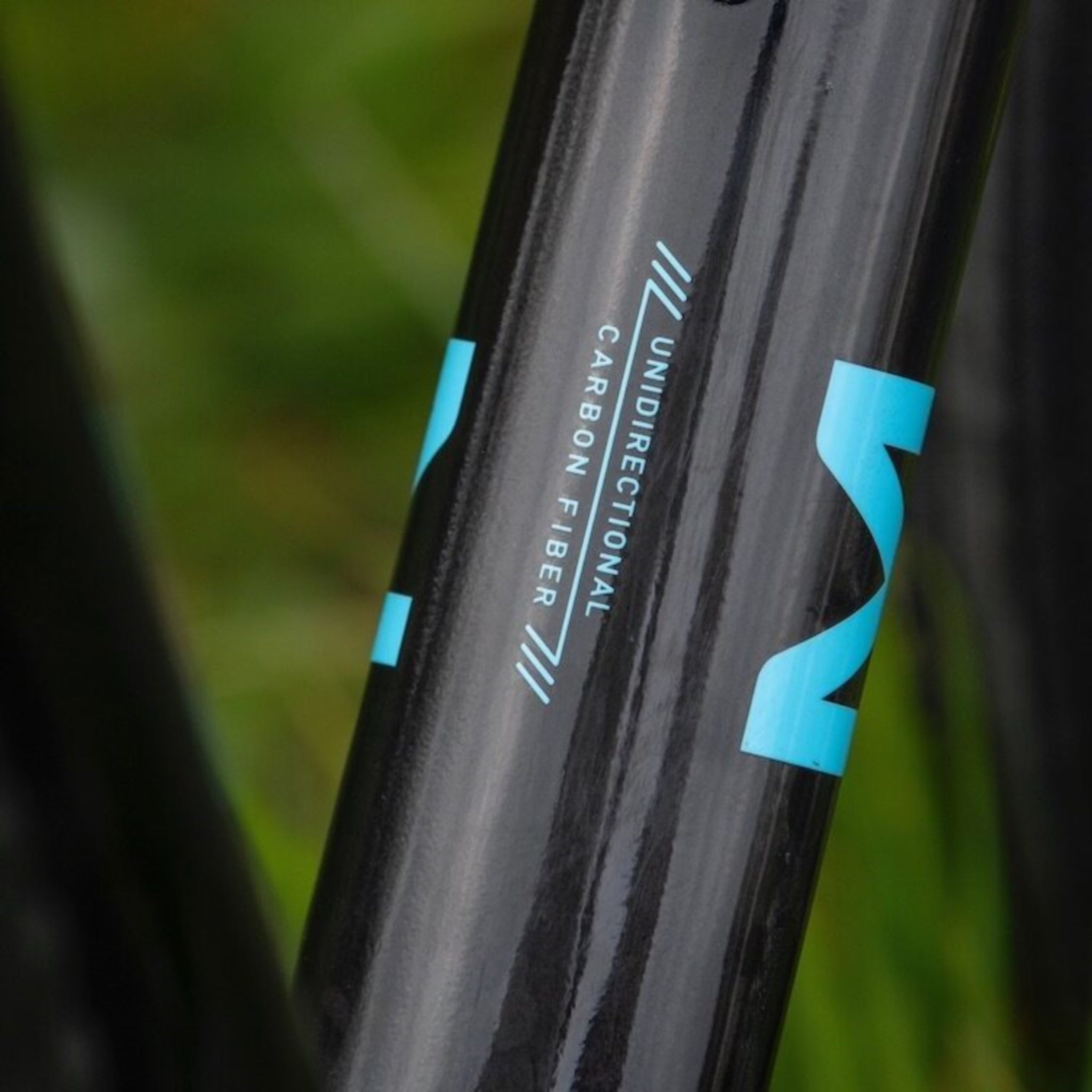

  • Unidirectional Carbon Fibre Frame, Beyond Road Geometry
  • Mudguard and Rear Carrier Mounts & Plentiful Gear Mounts
  • Marin Full Carbon Fork with Tapered Steerer
  • Shimano GRX 1x11 Seed Drivetrain
  • Shimano GRX Hydraulic Disc Brakes
  • Generous Tyre clearance up to 45mm
  • Ready routed for internal dropper post
The Headlands takes what Marin learned with their alloy Gestalt X line, and brings that spirit to an all-new, full carbon fiber frameset. Modern geometry, generous tire clearance, and sublime ride quality, all combine to make an incredibly capable, lightweight bike that’ll exceed your expectations. A full unidirectional carbon chassis is designed to meet the demands of modern gravel and endurance riders and racers. The 1x specific construction of the frame means short chainstays that have clearance of up to 45mm tires. A longer top tube and shorter stem takes cues from modern mountain bikes for control on technical off-road trails, while still maintaining a comfortable, fast, and efficient ride on flatter terrain.  Internal cable routing and multiple frame eyelets round the front triangle allow you to fit the bike with anything from water bottles and tubes to various frame, conventional rack and fender mounts also transition the Headlands into a capable winter commuter.
Axles: Bolt-On Thru-Axles F and R
Bottom bracket: FSA MegaExo Threaded
Brakes: Shimano GRX Hydraulic Disc
Chain: KMC X11
Crankset: FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle

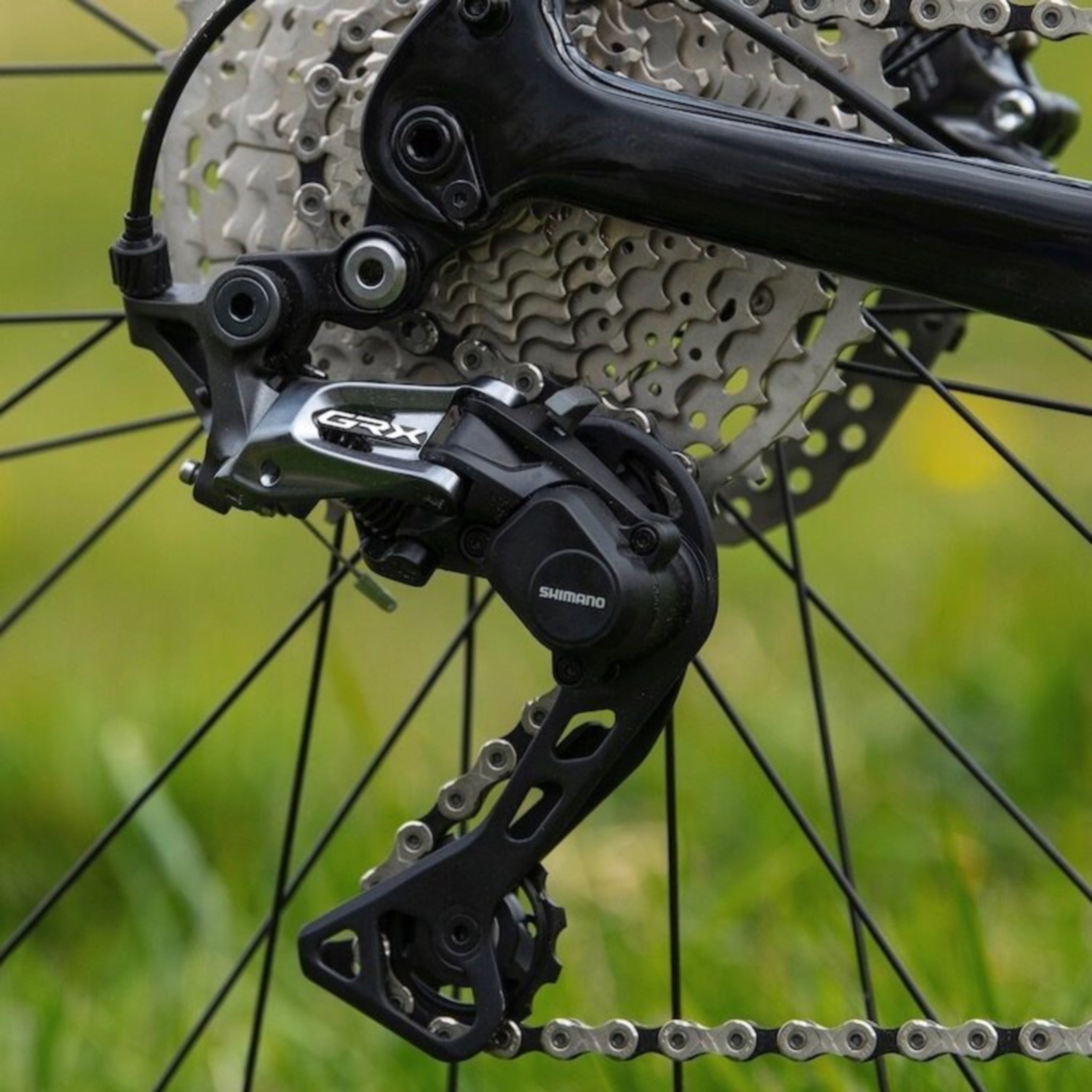

Derailleur rear: Shimano GRX RDX812 Shadow Plus w/ Clutch
Fork: Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Frame: Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
Freewheel: Shimano CSM8000, 11-Speed, 11/42T Cassette
Grip: Marin Shock Absorbing Tape
Handlebar: Marin Butted Alloy, Flat Top, Compact 12º Flared Drop, Flat Top
Handlebar stem: Marin 3D Forged Alloy
Headset: FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Hubs: Forged Aluminum Alloy, Disc, 28H
Rim: Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
Rotor front: 160mm
Rotor rear: 160mm
Saddle: Marin Beyond Road Concept Elite
Seat post: TranzX YSP38 Dropper Post, 70mm/105mm Travel, 27.2mm
Spokes: Double Butted Stainless
Tyre front: WTB Byway, Distance Plus Compound, 700Cx44mm, TCS Tubeless Compatible
Tyre rear: WTB Byway, Distance Plus Compound, 700Cx44mm, TCS Tubeless Compatible
Wheel size: 700c

49 / XS52 / SM54 / MD56 / LG58 / XL60 / XXL
Stack550.3565.7581.8600.8619.7638.7
Reach370372.8372.7386.4411.4425.8
Headtube Angle70.5°71°71.5°71.5°71.5°71.5°
Headtube Length120135150170190210
Seattube Angle74.5°74°73.5°73.5°73.5°73.5°
Seattube Length440470490510530550
Toptube Effective522535545565595615
BB Height283.5272272272272272
BB Drop767676767676
Chainstay420420420420420420
Wheelbase1010.21007.41007.71028.51059.21079.9
Standover Height711725741758775792
Fork Offset505050505050
Seatpost Diameter27.227.227.227.227.227.2
Handlebar Width420420420440440440
Stem Length606060607070
Crank Length170170175175175175

All lengths in millimeters

Marin Headlands Bike Sizing Chart

Marin Headlands Bike Sizing Chart

Marin Bikes are Made For Fun. Since the first mountain bikes bearing the Marin name debuted in 1986, the brand has been dedicated to enriching the lives of riders by making fun, high caliber bicycles, which provide years of riding enjoyment. They operate their business based on hard work, fueled by passion, and fulfilled by the satisfaction of bringing the joy of cycling to riders across the world.
