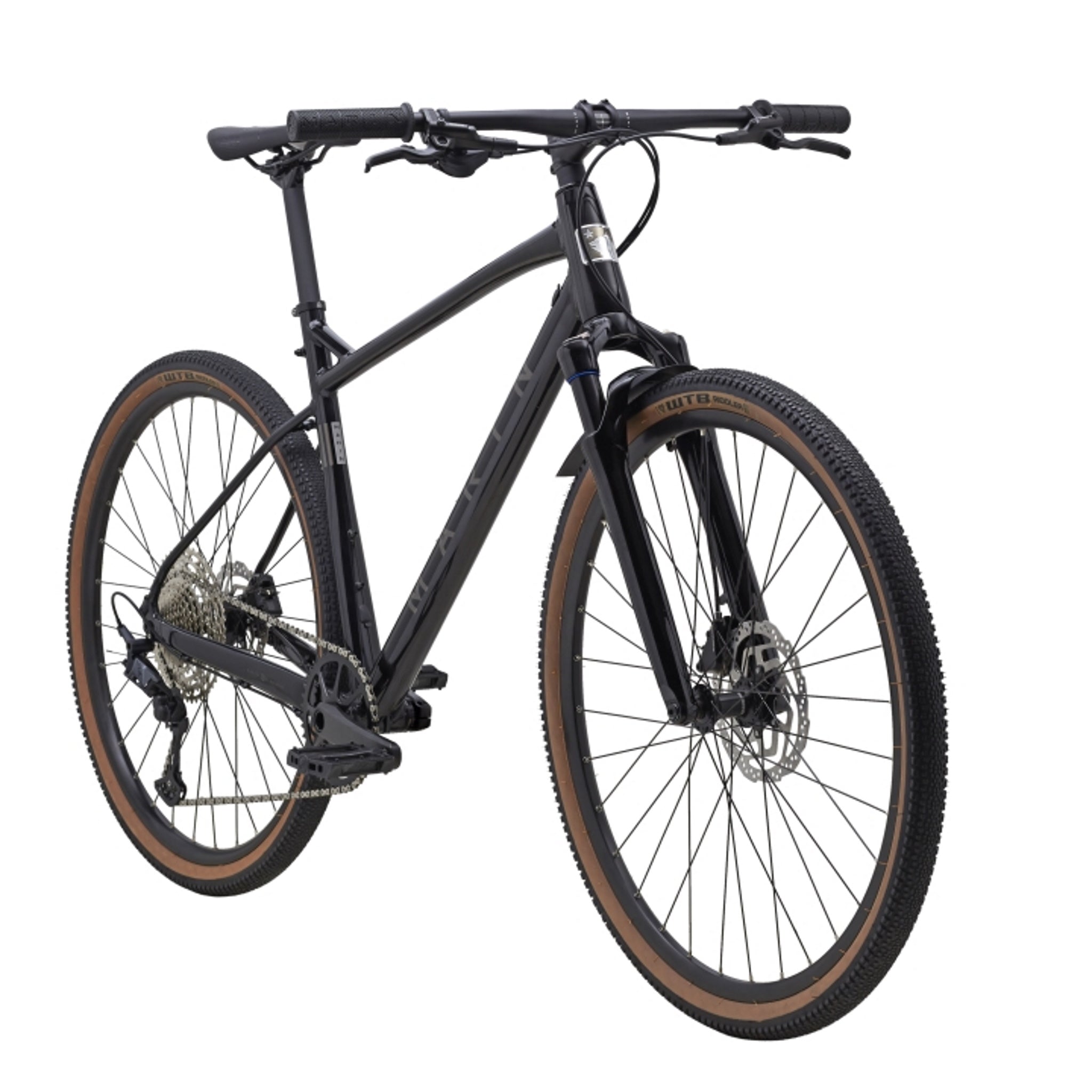

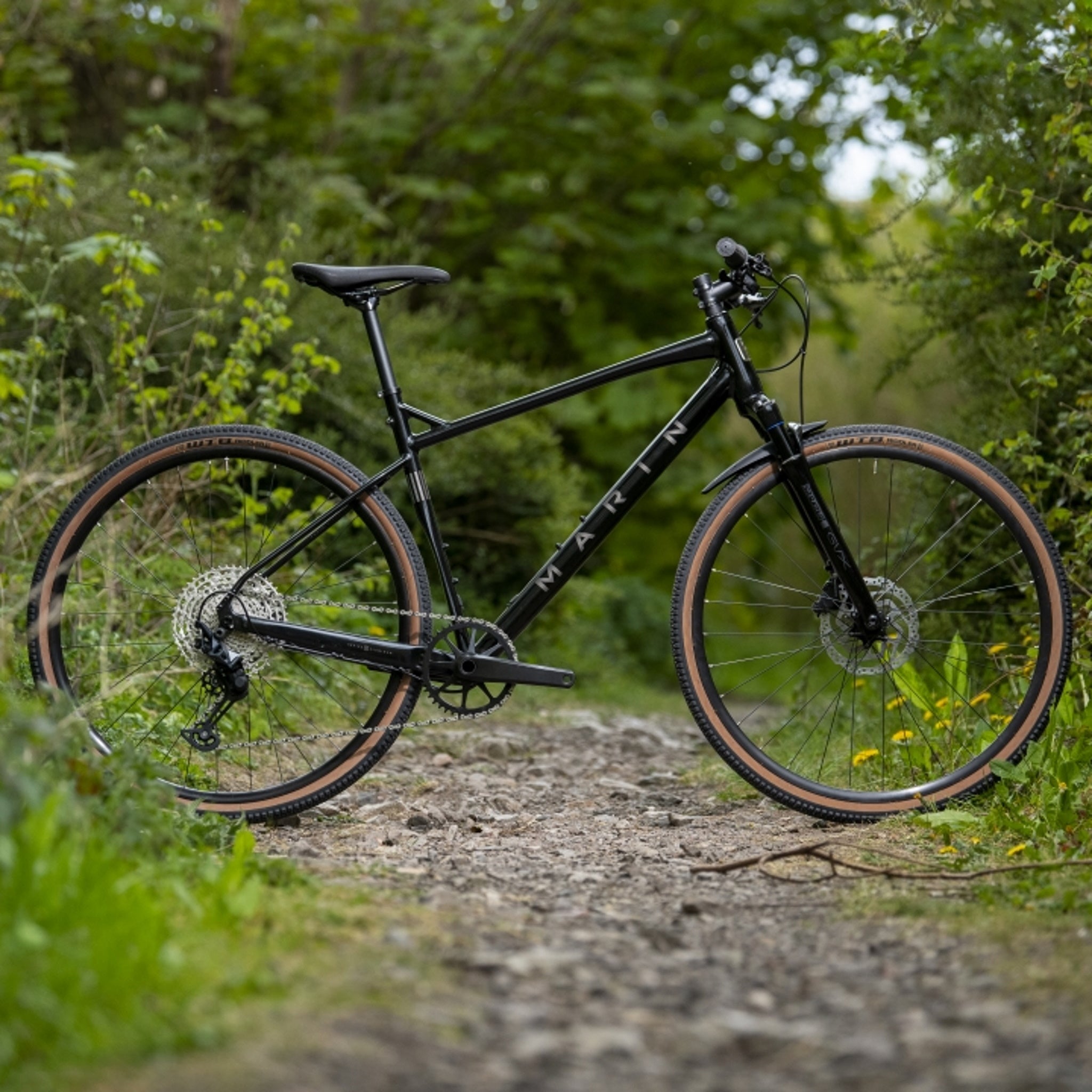

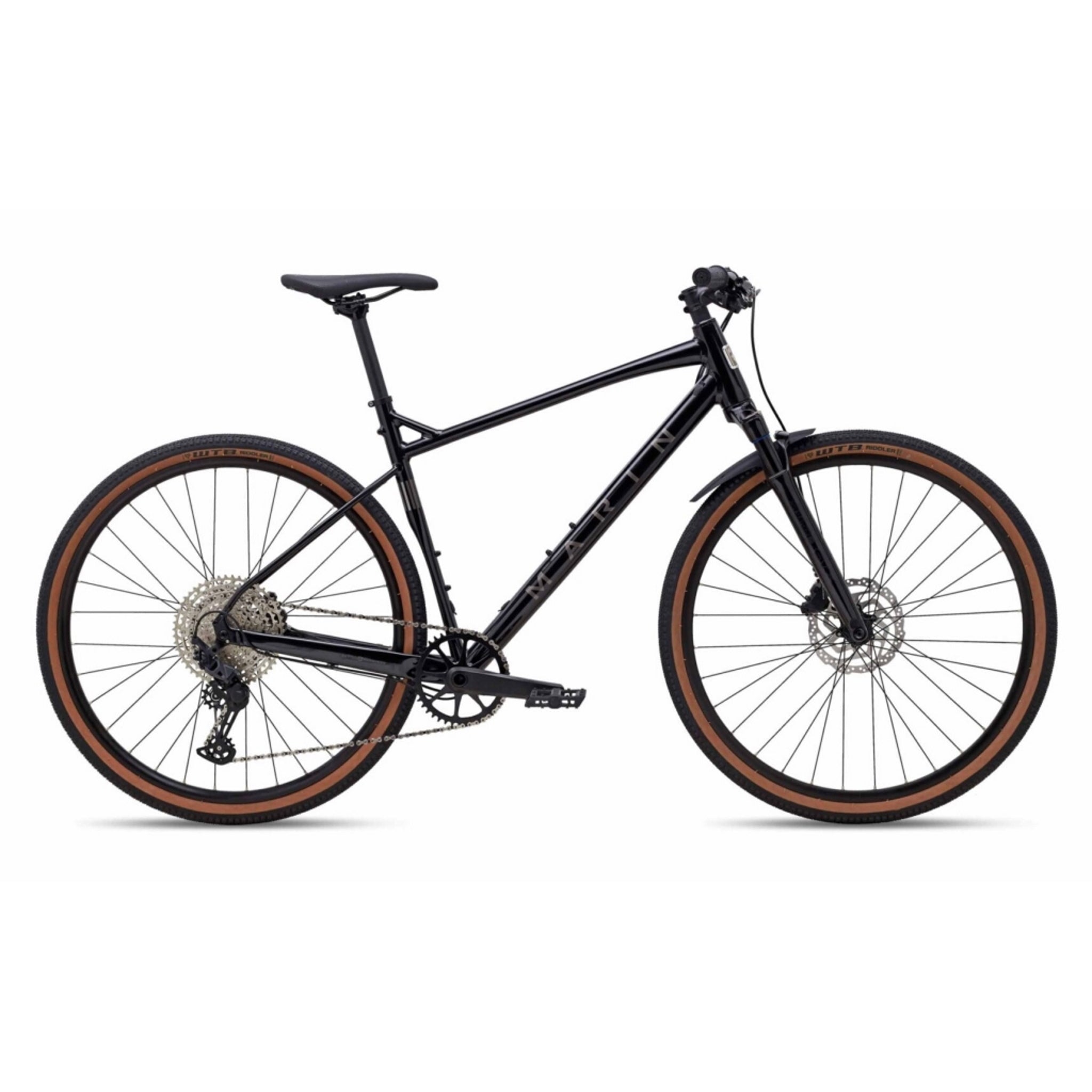

Marin DSX FS Flat Bar Gravel/Beyond Road Bike Black Grey

Marin DSX FS Flat Bar Gravel/Beyond Road Bike Black Grey

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

under 100mm Front Travel

700c Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The DSX is the mountain biker’s gravel bike with familiar hand positioning, reliable 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability. The DSX FS features a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets. The DSX comes stock with 700x45mm tires, with room for 29x2.1” knobbies. The latest flat mount disc brake standard ensures smooth, controlled stopping in all conditions with minimal maintenance. Dropper posts are quickly becoming standard fare for gravel racers and riders that spend significant time on rough surfaces, and the DSX features internal dropper post routing for easy upgrades. The DSX FS is the perfect dual sport bike, perfect for gravel riding and mixed surface commuting, for riders needing more capability to adventure on and off the road.

Key Features

Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum Frame

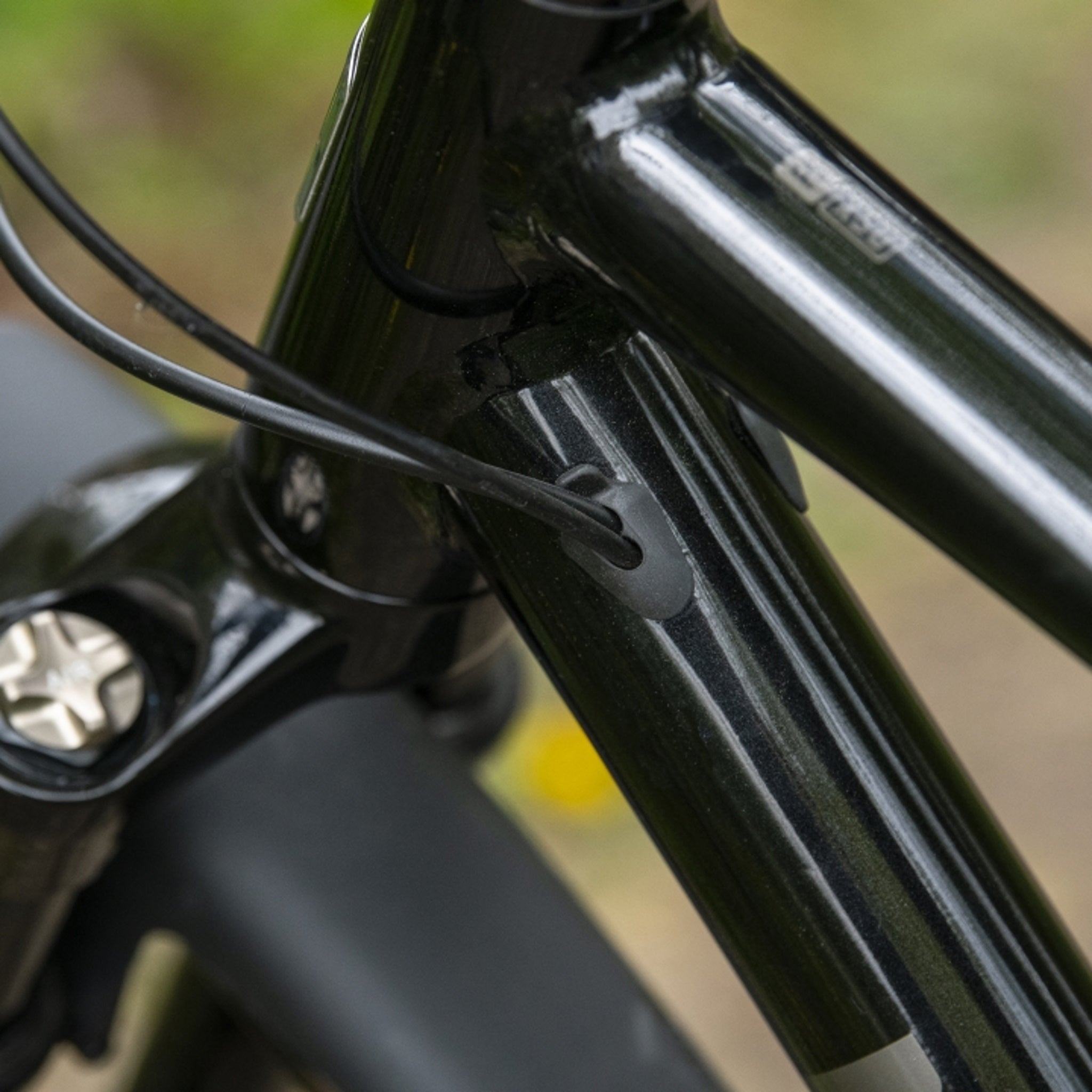

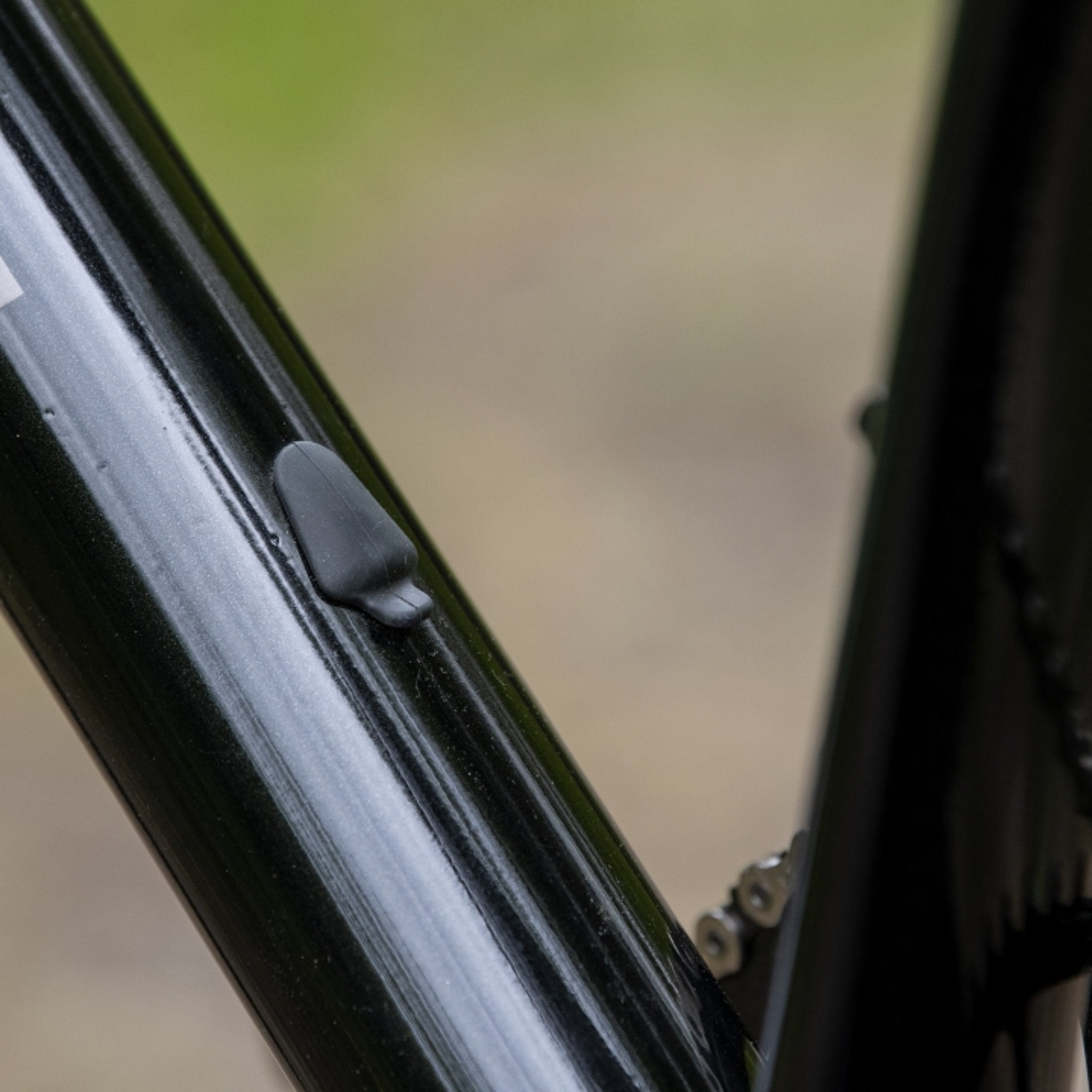

Internal Cable Routing with integrated Mudguard and Rack Mounts

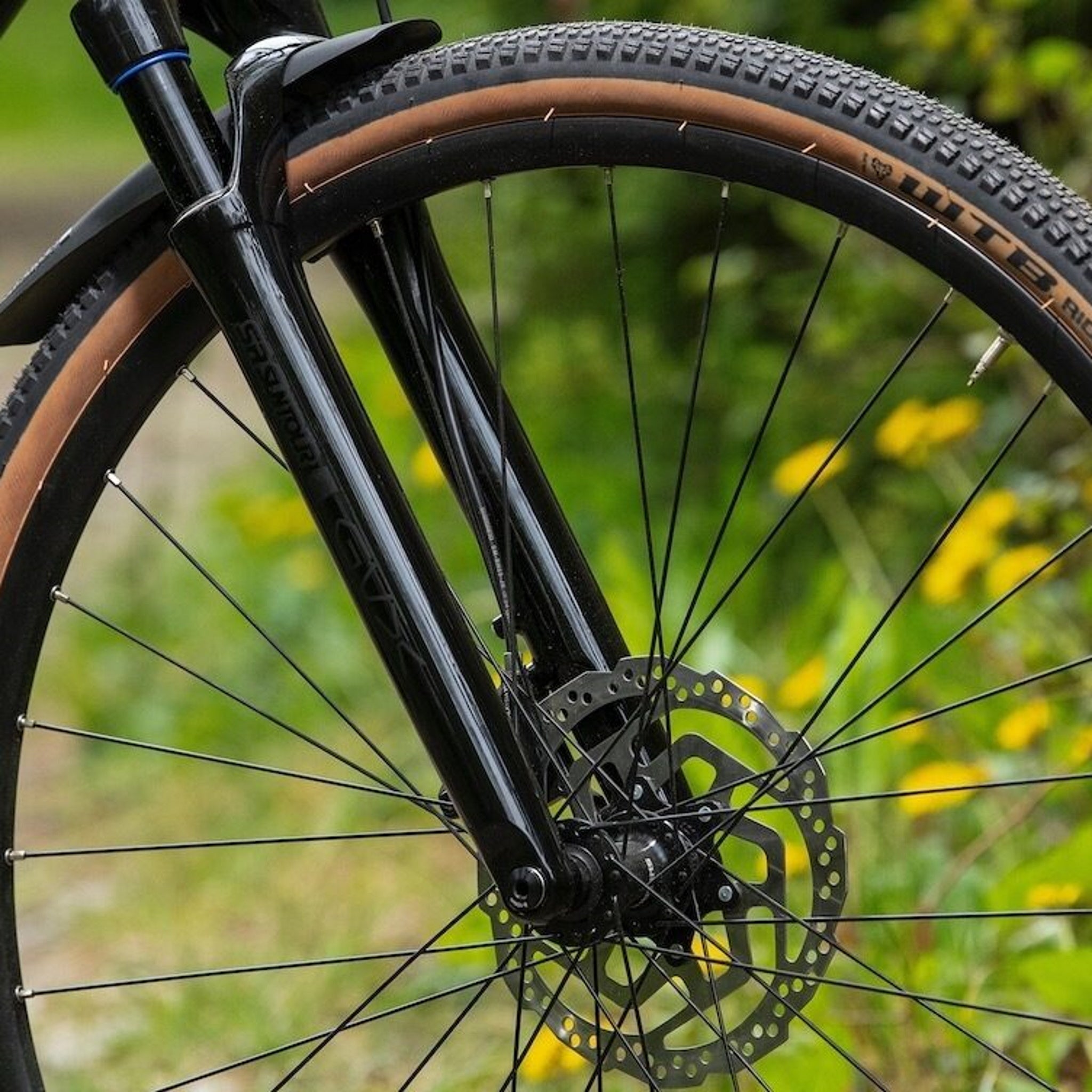

SR Suntour GVX LOR, 60mm Travel Fork
Shimano MT201/UR300 Flat Mount Hydraulic Disc Brakes
Shimano SLX/Deore 1 x 12-Speed Drivetrain
WTB Riddler 700C x 45mm Tyres, clearance for 29x2.1” knobbies

Specifications

Product Overview

Product

Marin DSX FS Flat Bar Gravel/Beyond Road Bike Black Grey

Brand

Marin

Parent SKU

ZHBK9XPU

Size SKUs

SM: MAFB2233961001
MD: MAFB2233961002
LG: MAFB2233961003
XL: MAFB2233961004

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

under 100mm

Build

Frame

Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork

SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts

Handlebars

Marin MiniRiser

Headset

FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Grips

Marin MTB

Stem

Marin 3D Forged Alloy

Bottom Bracket

Sealed Outboard Bearing

Pedals

Commute Platform

Saddle

Marin DSX

Seat Post

Marin Alloy

Wheels

Wheel Size

700c

Rims

Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

Hubs

FRONT: Forged Aluminum, 100x12mm, Disc, 32H / REAR: Shimano Forged Aluminum, 142x12mm, Microspline, Disc, 32H

Spokes

14g Black Stainless Steel

Groupset

Crankset

Forged Aluminum, 42T Steel Narrow Wide Chainring

Chain

KMC X12

Brakes

Shimano MT201/UR300 Flat Mount Hydraulic Disc

Front Rotor

180mm

Rear Rotor

160mm

Shifters

Shimano Deore 12-Speed

Rear Derailleur

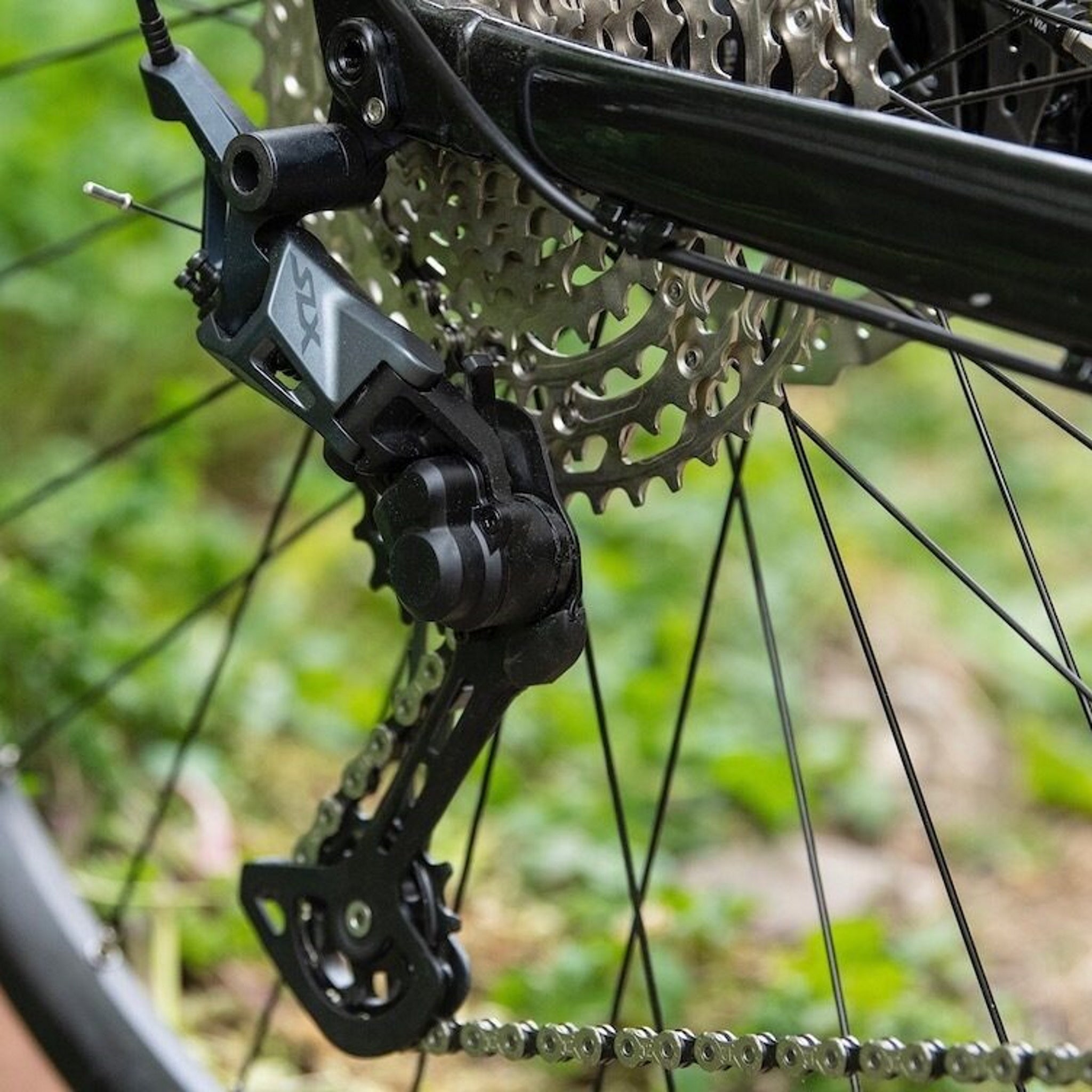

Shimano SLX 12-Speed

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin DSX FS Flat Bar Gravel/Beyond Road Bike Black Grey we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin DSX FS Flat Bar Gravel/Beyond Road Bike Black Grey geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
