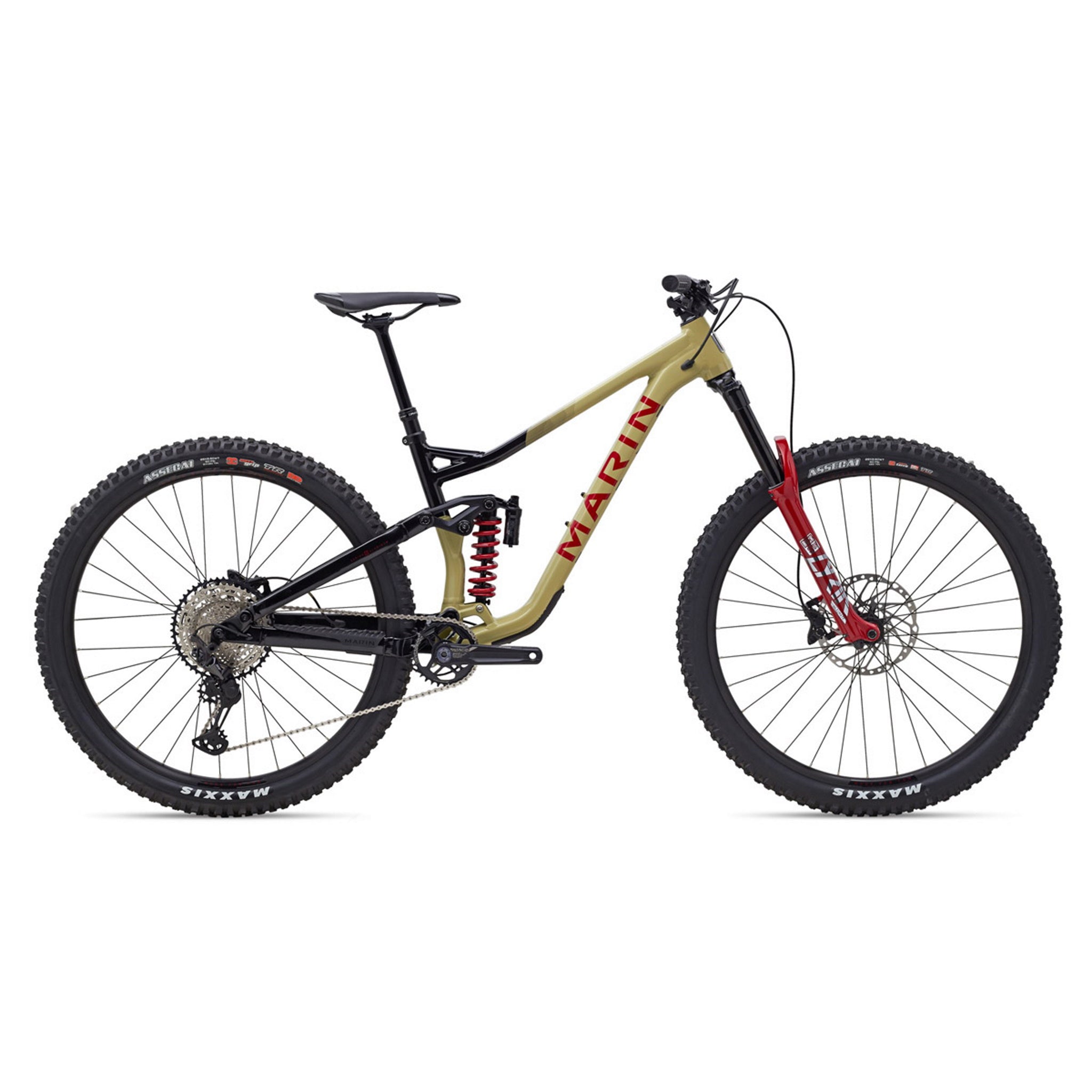

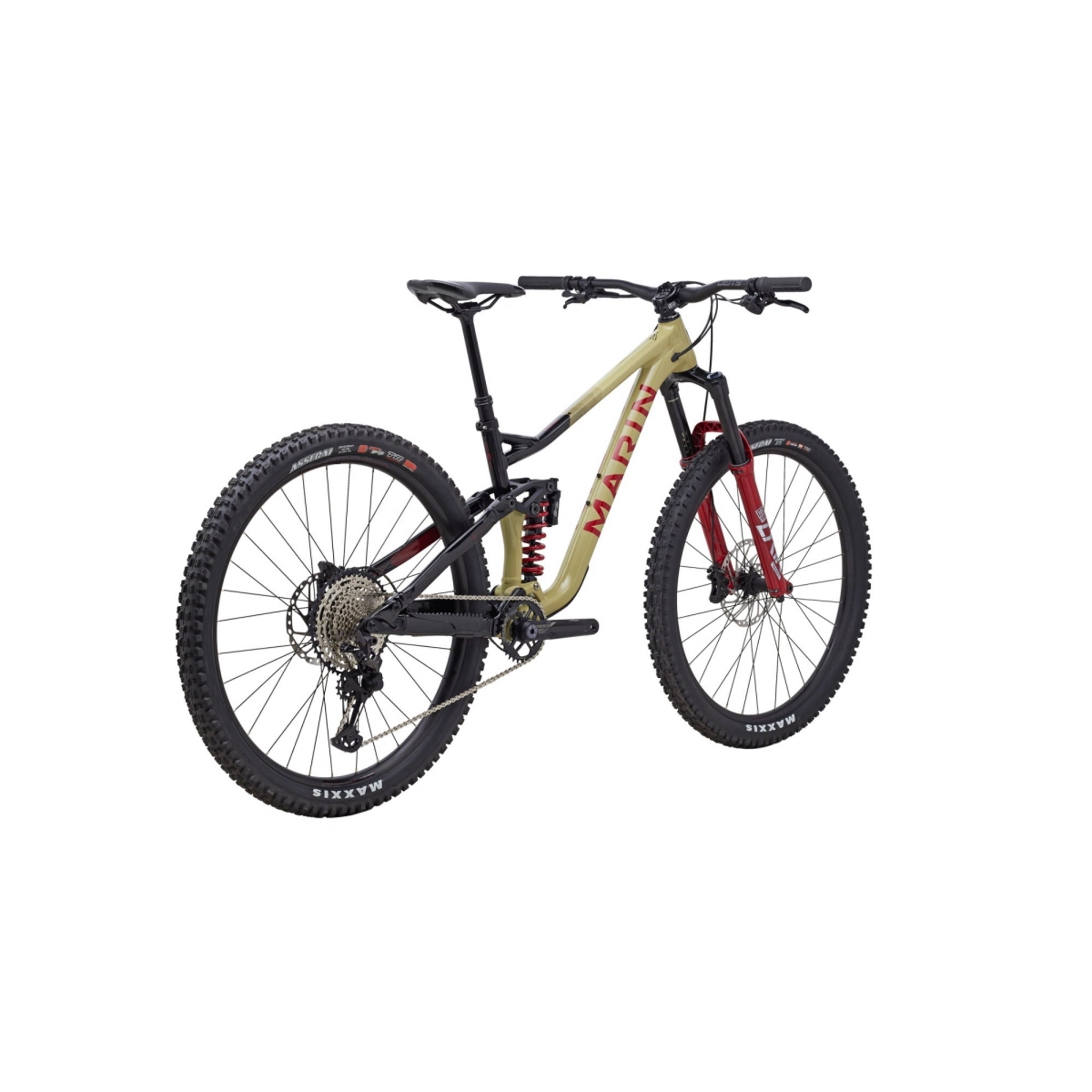

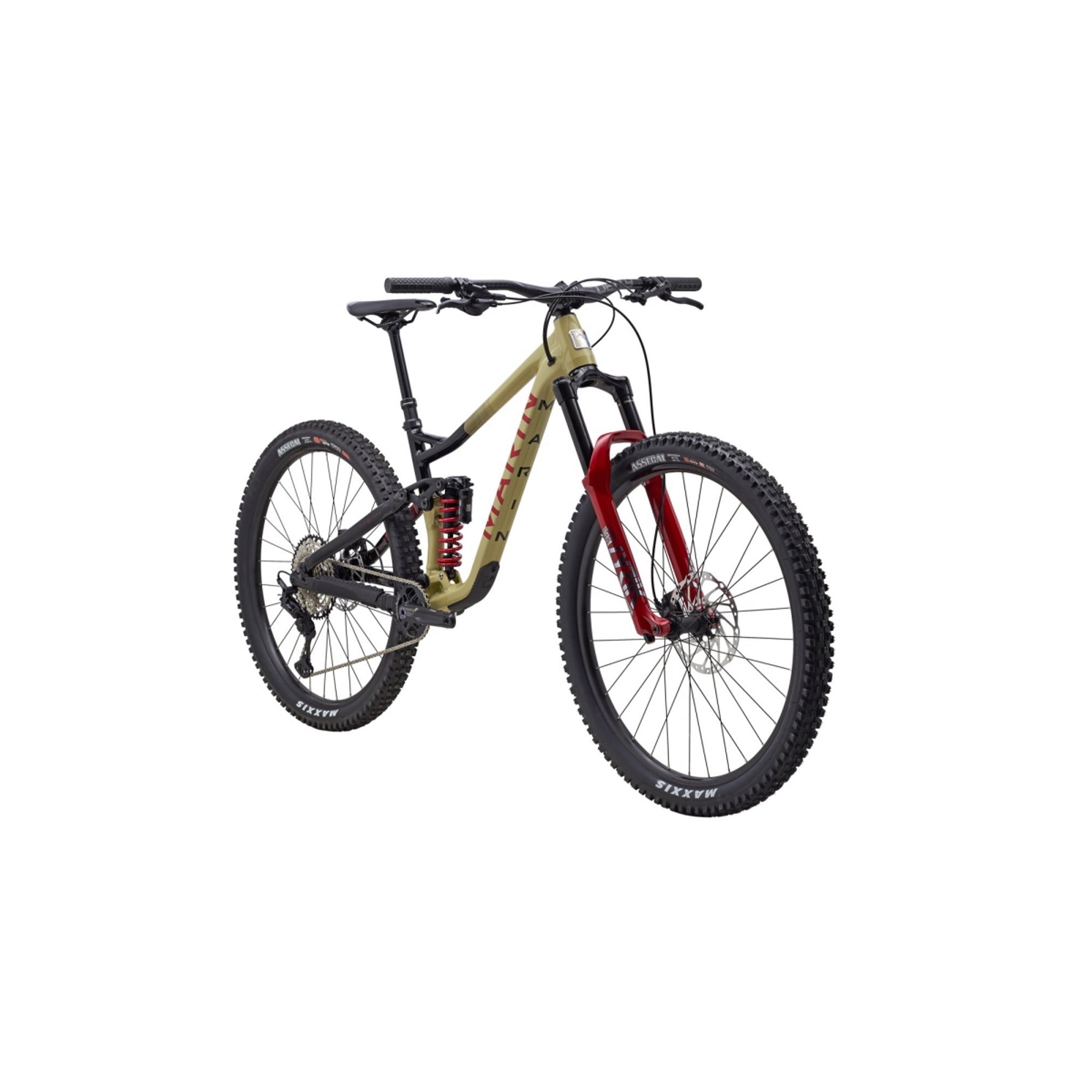

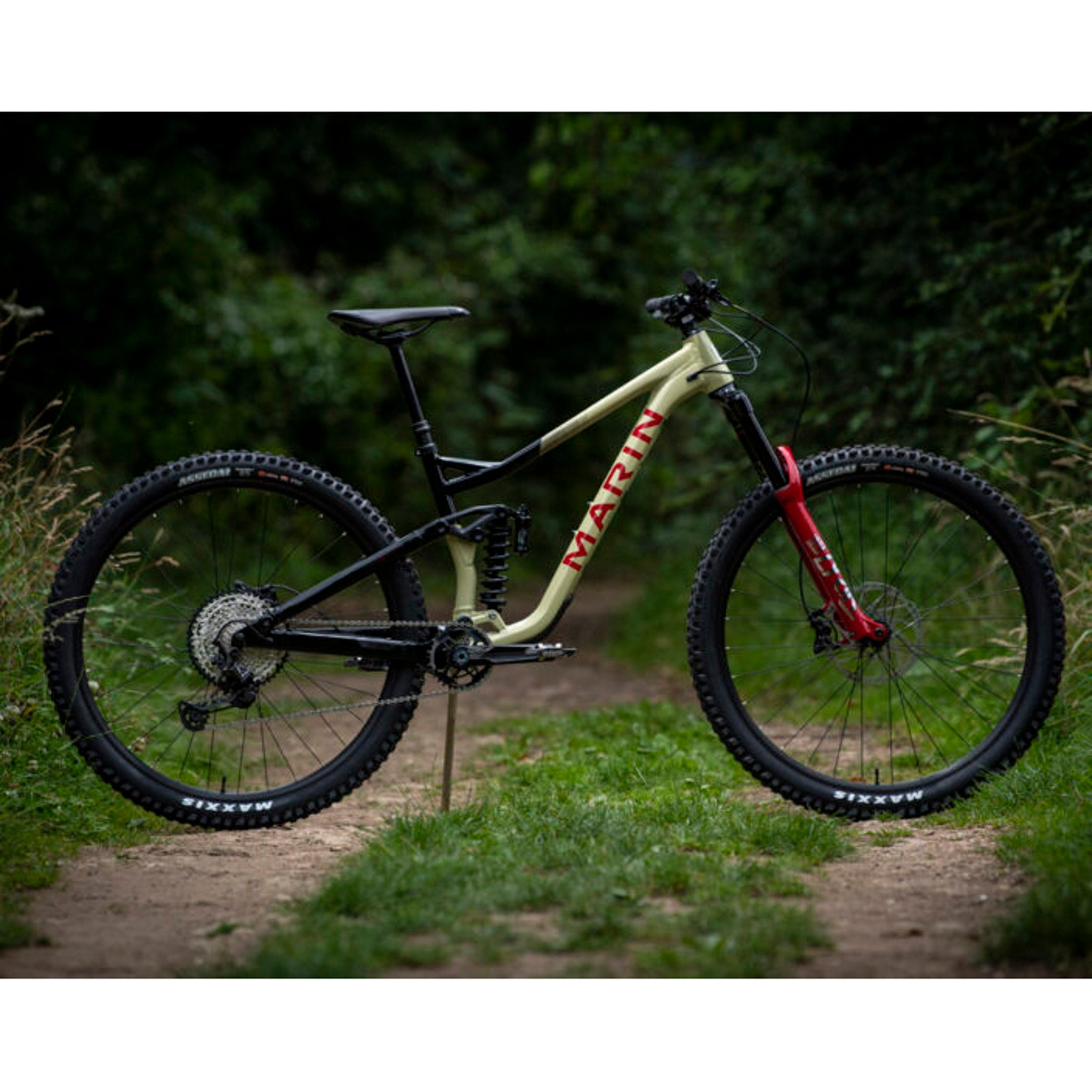

Marin Alpine Trail XR Enduro Bike Tan/Black/Red

Marin Alpine Trail XR Enduro Bike Tan/Black/Red

Brand: Marin

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

160mm Front Travel / 150mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano XT / SLX Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

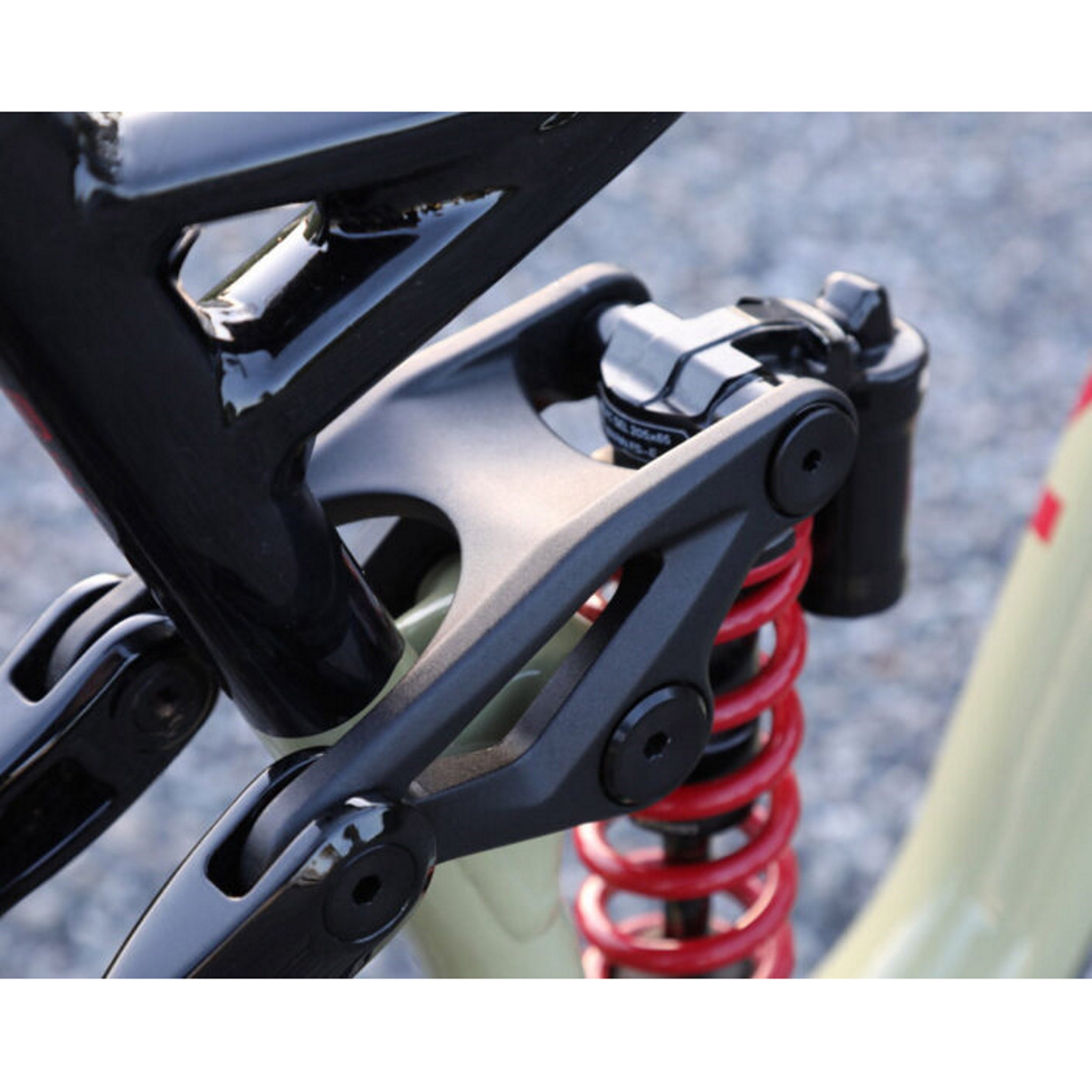

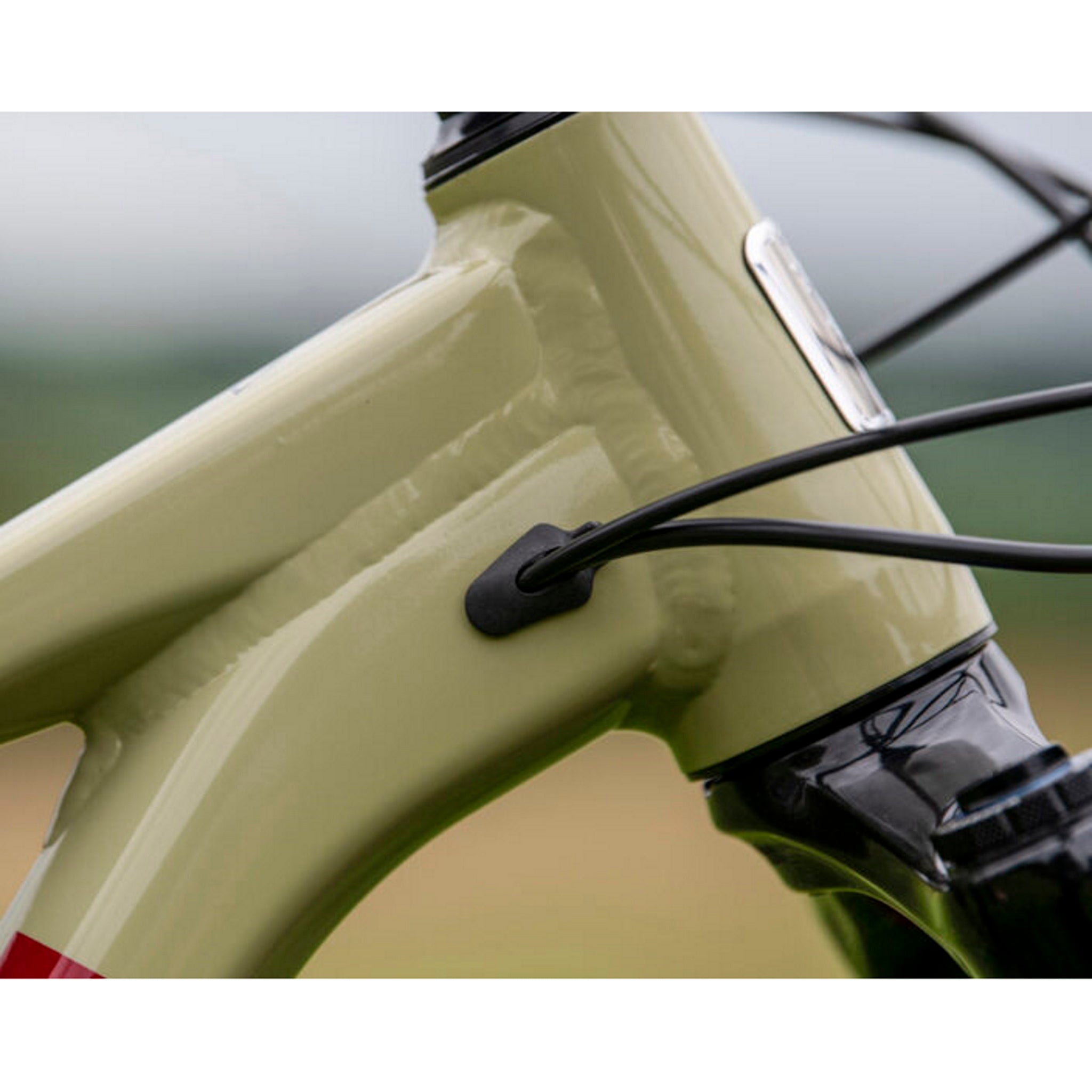

The Alpine Trail XR is for big all-mountain days were travel and geometry matter most. Built for abuse and rowdy, enduro-style riding and racing. The Series 4 6061 aluminum frame, with 29er wheels, detailed forgings, highly manipulated tubes, and full internal cable routing including an internal dropper post, gives the rider the highest-end alloy frame that Marin offers. The heart of the Alpine Trail XR is its MultiTrac suspension platform, the 160mm RockShox Lyrik Ultimate fork and 150mm Super Deluxe coil shock apply class leading performance rampaging over rock gardens, slick exposed roots, and loamy descents. The strength and stiffness of the forged one-piece rocker link keeps the rear tracking straight under demanding conditions, while allowing for maximum tire clearance and short chainstays. The Shimano SLX/XT drivetrain is paired with Shimano BR-MT420 4 piston hydro disc brakes, an FSA Gradient crankset and burly Maxxis Assegai 29x2.5” tubeless compatible tyres.

Key Features

Series 4 6061 aluminum frame
160mm RockShox Lyrik Ultimate fork
MultiTrac suspension platform
Shimano SLX/XT drivetrain
Maxxis Assegai 29x2.5" tyres

Specifications

Product Overview

Product

Marin Alpine Trail XR Enduro Bike Tan/Black/Red

Brand

Marin

Parent SKU

XPGHIWOL

Size SKUs

MD: MADA2132404002
LG: MADA2132404003

Matrix Barcodes

MD: 843346107299
LG: 843346107305

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Brown

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

160mm

Rear Travel

150mm

Build

Frame

Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Fork

RockShox Lyrik Ultimate, 29”, 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset

Shock

Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 300lb, L/XL = 450lb)

Handlebars

Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width

Headset

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin Single Clamp Locking

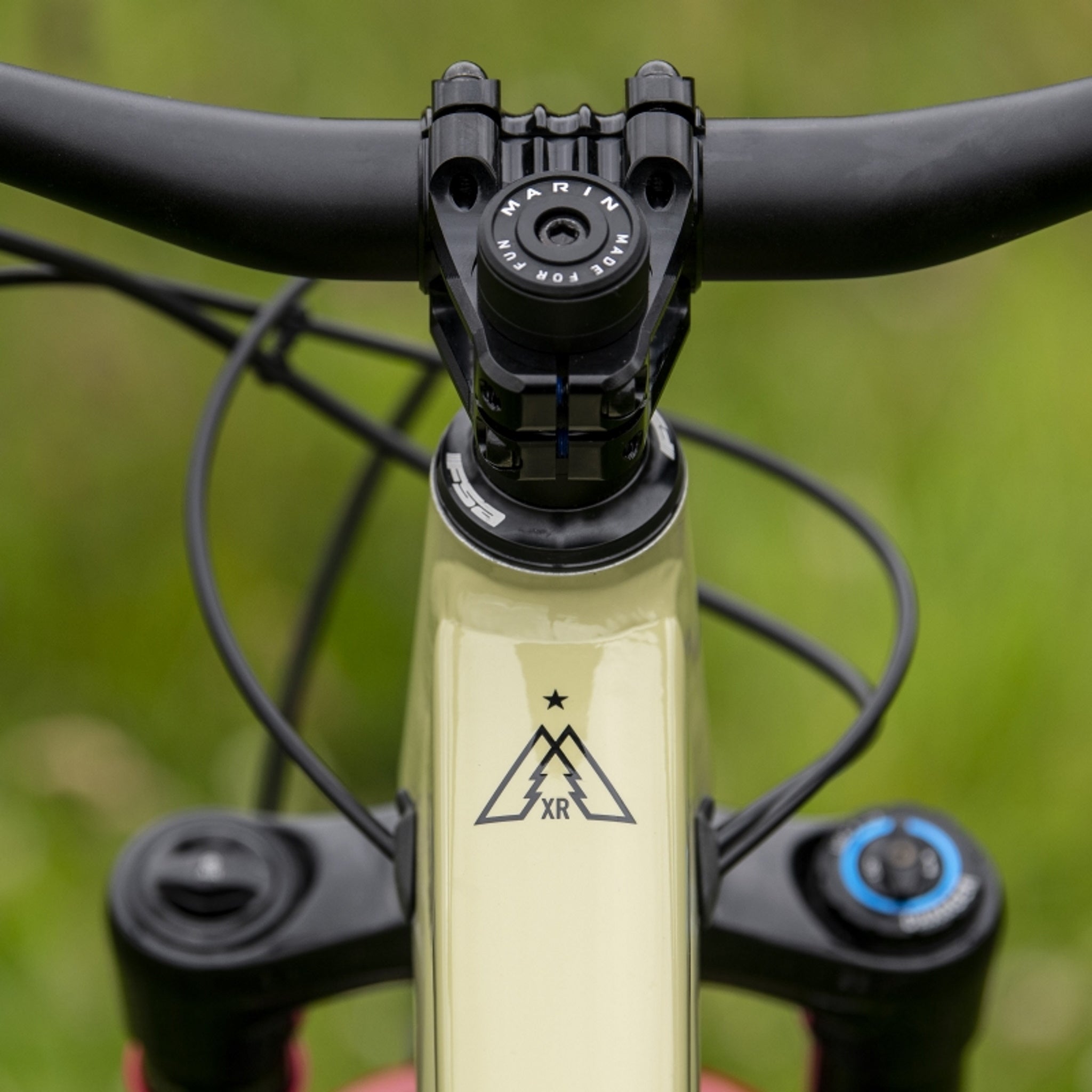

Stem

Deity Copperhead 35mm, Black Ano

Bottom Bracket

MEGAEVO BB, 73mm BSA Threaded

Saddle

Marin Speed Concept

Seat Post

X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

Accessories

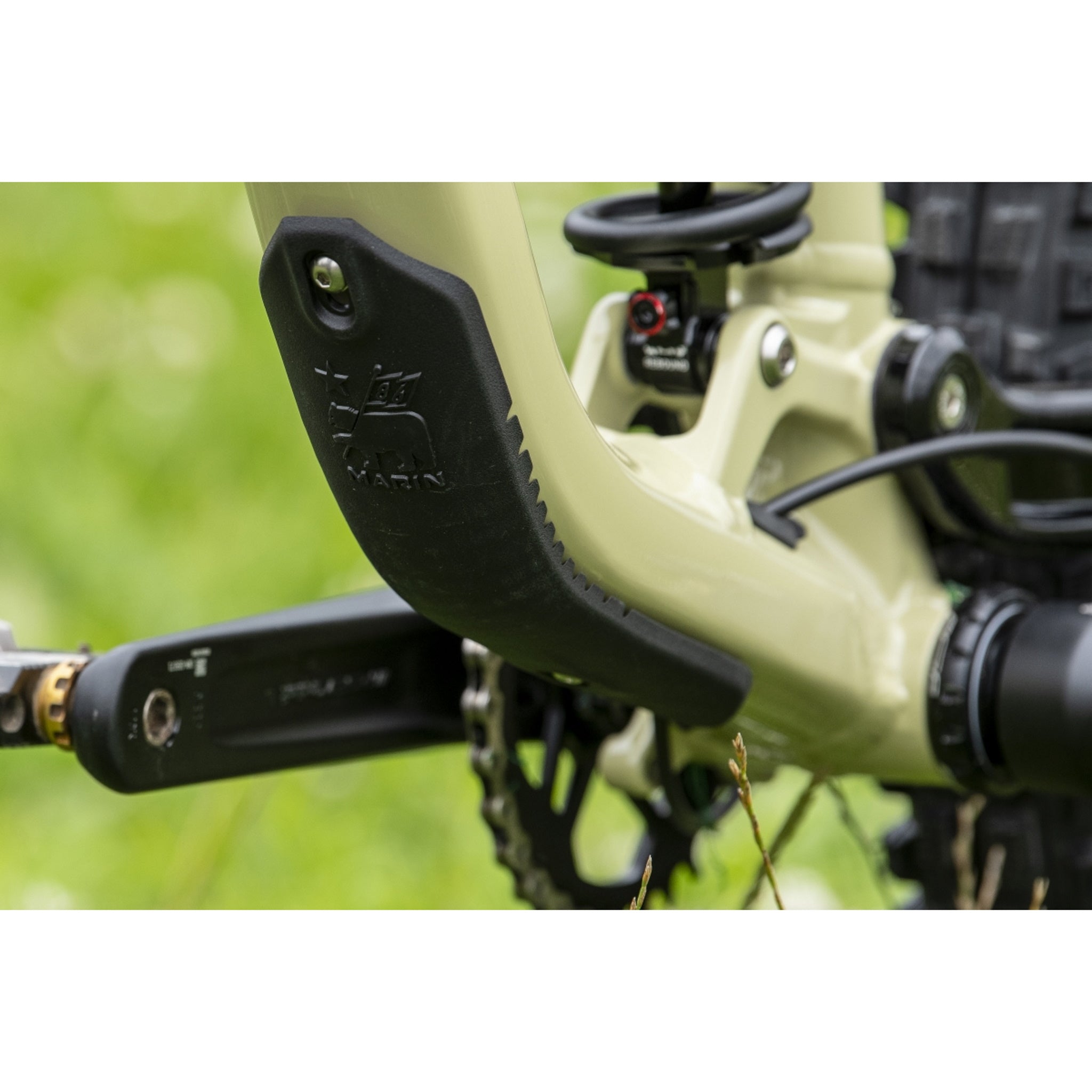

INCLUDED: Downtube Protector

Wheels

Wheel Size

29"

Rims

Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible

Hubs

FRONT: Shimano HF-MT410B, 110x15mm, Center\lock / REAR: Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body

Spokes

14g Black Stainless Steel

Groupset

Crankset

FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing

Chain

KMC X-12 Silver and Black

Brakes

Shimano BR-MT420, 4-Piston Hydraulic Disc

Front Rotor

203mm Rotor

Rear Rotor

180mm Rotor

Shifters

Shimano SLX 12-Speed, I-Spec EV

Rear Derailleur

Shimano XT 12-Speed, SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Alpine Trail XR Enduro Bike Tan/Black/Red we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin Alpine Trail XR Enduro Bike Tan/Black/Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
