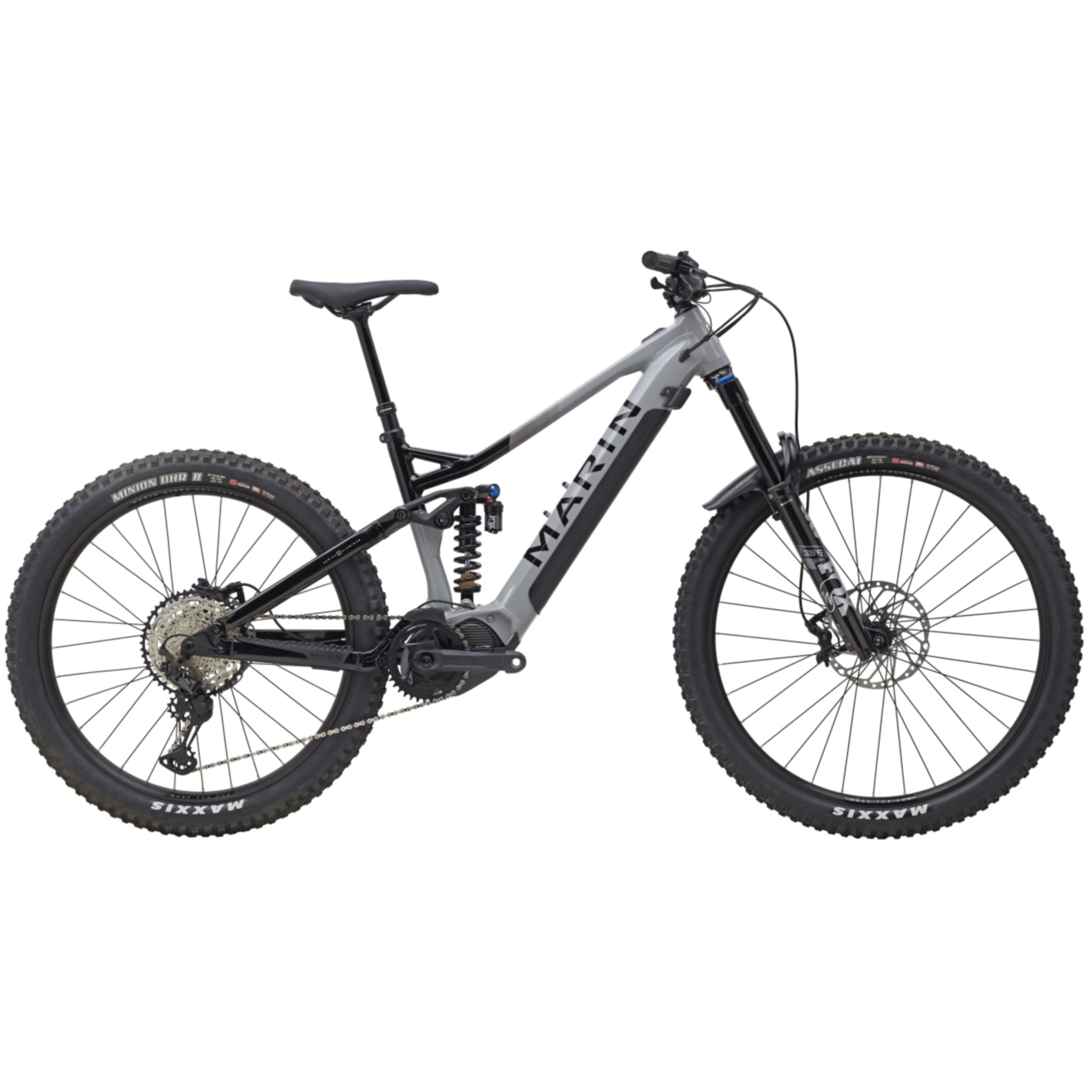

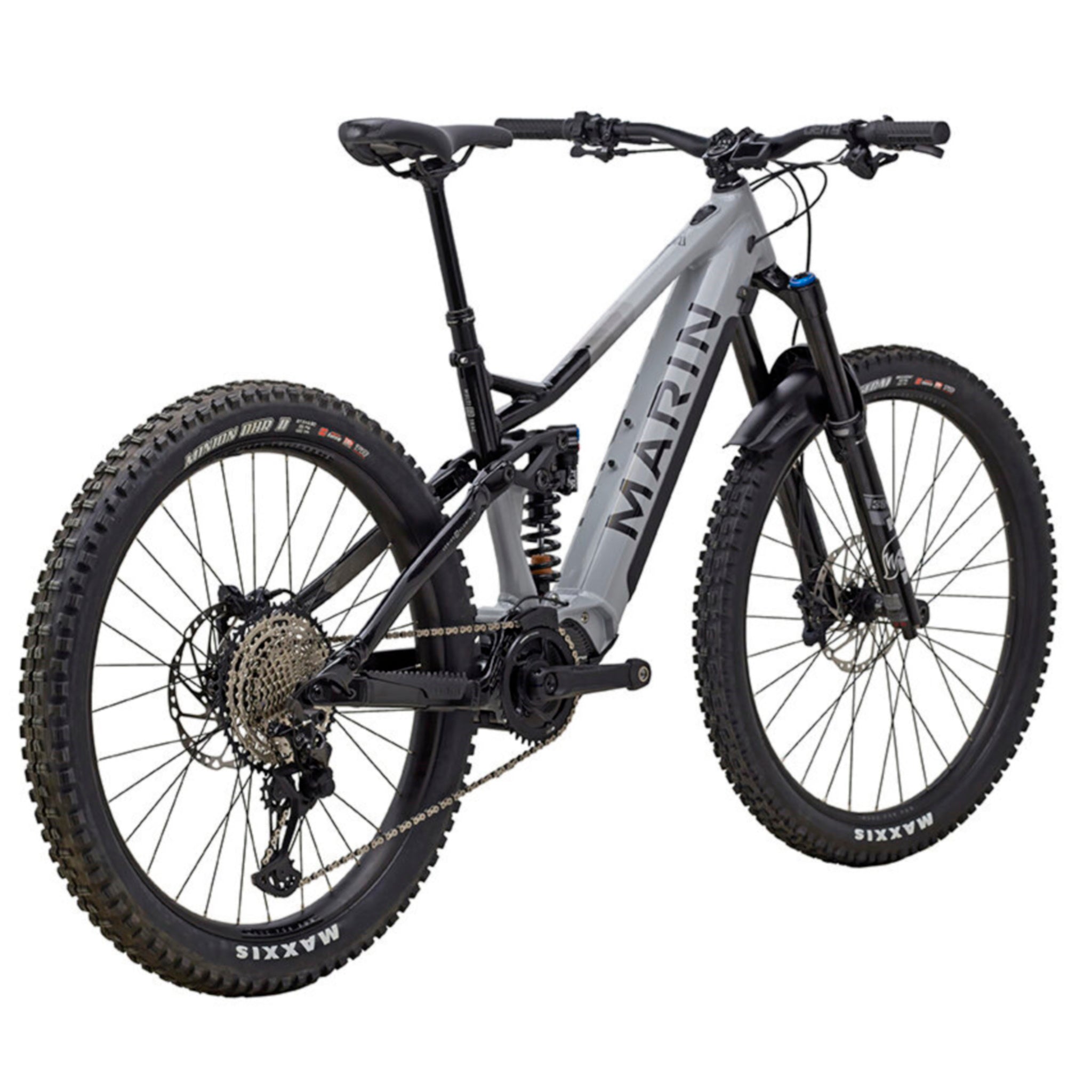

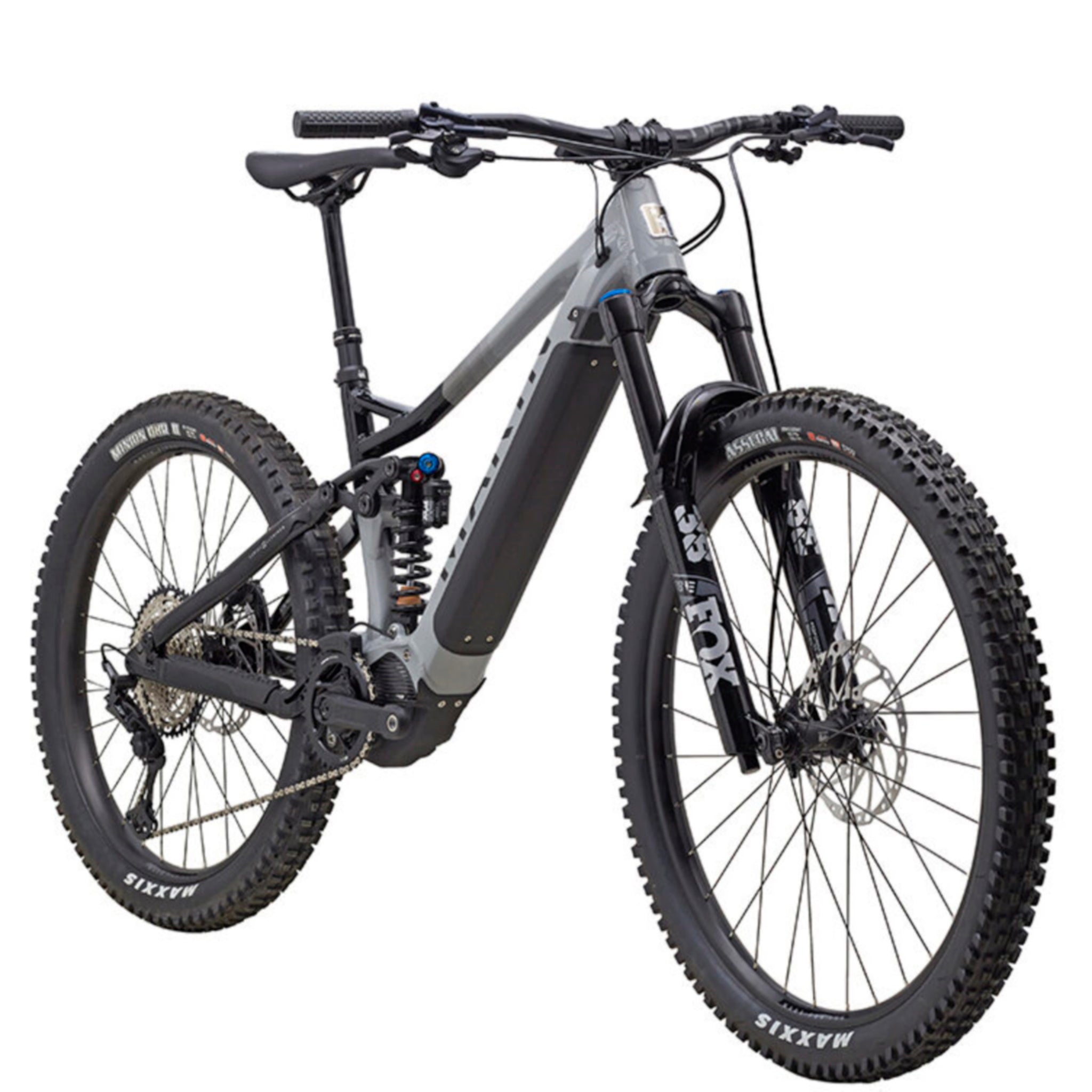

Marin Alpine Trail E2 Electric Mountain Bike 630Wh Battery Grey/Black

Marin Alpine Trail E2 Electric Mountain Bike 630Wh Battery Grey/Black

Brand: Marin

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 73 km Range

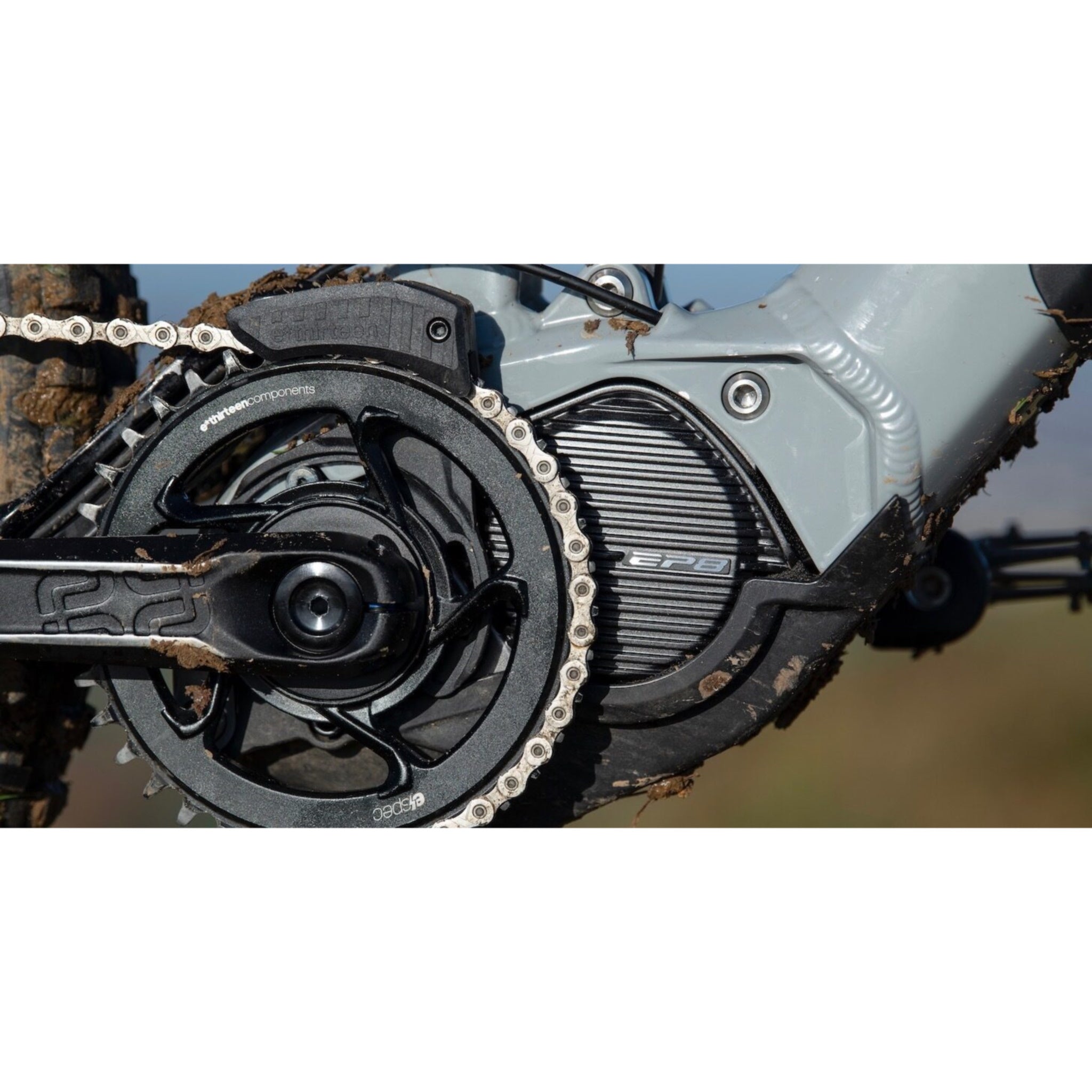

Shimano STePS EP8 Motor

Alloy Frame/ Fox Alloy Fork

160mm Front Travel / 150mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Alpine Trail E will take you further, faster, allowing you to tackle the most aggressive trails either up or down. Built upon Marin’s premium Series 4 aluminum frame, with detailed forgings, highly manipulated tube profiles and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks. The Alpine Trail E features the same proven MultiTrac suspension technology but optimized for the Shimano STEPS system and integrated with their highest performance EP8 motor and burly 630Wh battery. With this combination there is no need for platform or lockout levers, just get on and blast up the hills. The 29” front and 27.5”+ rear wheel sizes are the ideal combination for the Alpine Trail E, with larger front wheel easily rolling over most any trail obstacle and offering the best cornering traction, while the burly 27.5” x 2.8” rear setup adds playfulness and enhances acceleration and braking traction.

Key Features

New Series 4 Alloy Frame, Marin Multitrac suspension system
Shimano STEPS EP8 Drive Unit, 250W, 85Nm
Shimano BT-8036, Internal 630Wh Battery
Fox 38 Performance Elite, 160mm travel Fork
Fox Float DHX2, Performance Elite Shock
Shimano XT/SLX 12 Speed Drivetrain
Shimano SLX 4-Piston Hydraulic Disc Brakes

Specifications

Product Overview

Product

Marin Alpine Trail E2 Electric Mountain Bike 630Wh Battery Grey/Black

Brand

Marin

Parent SKU

9YFH9Z4C

Size SKUs

MD: MADA456002
LG: MADA456003

Matrix Barcodes

MD: 843346109477
LG: 843346109484

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

160mm

Rear Travel

150mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

BT-8036, Internal 630Wh

Max. Range (KMs)

Display

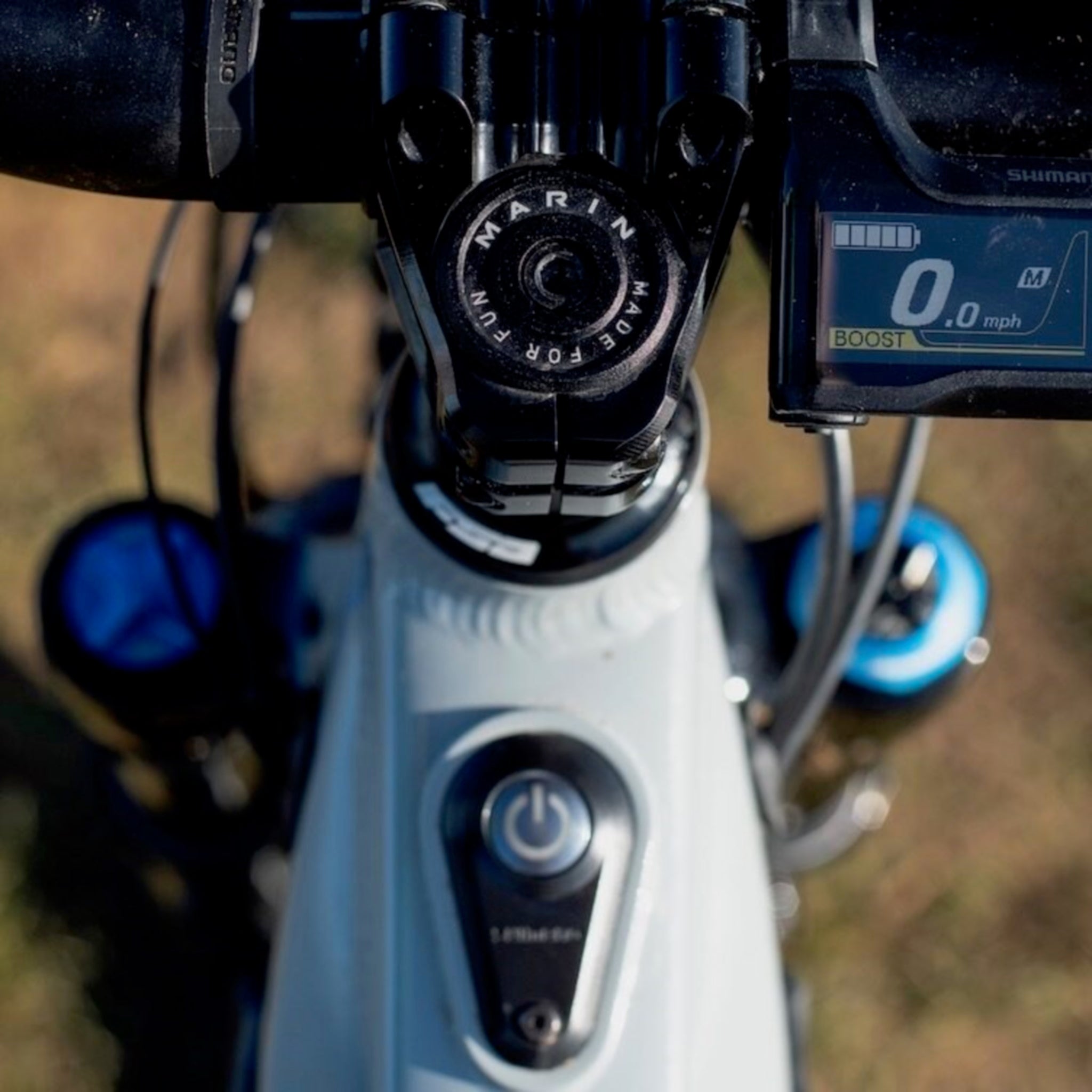

SC-E8000 Display / Switch: SW-E7000 Left Hand Switch for Assist Mode Change

Build

Frame

All New Series 4 Alloy Frame, 150mm Multitrac suspension, Integrated Battery/On-switch/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Fork

Fox 38 Performance Elite, 160mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

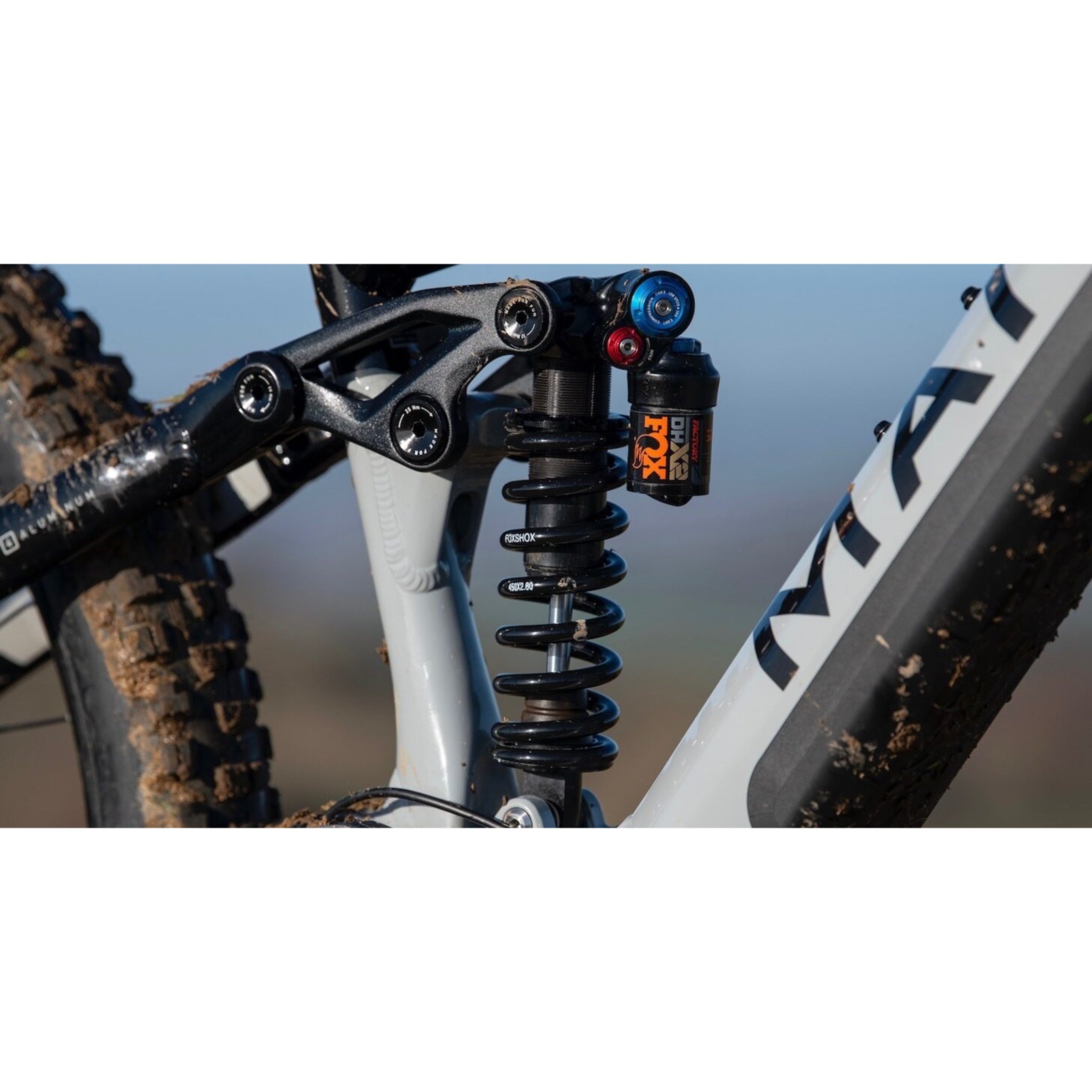

Shock

Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring = 350lb, L/XL Spring = 450lb

Handlebars

Race Face Affect R 35, 35mm Clamp, 780mm Width, 20mm Rise, 5º Up, 8º Back

Headset

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin Single Clamp Locking

Stem

Race Face Affect R 35, 50mm

Pedals

Marin MTB Plastic

Saddle

Marin E-MTB Saddle

Seat Post

X-Fusion Manic, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

Accessories

Extras: Shimano Left Hand Switch for Assist Mode Change, Shimano Battery Charger EC-E6002, Bolt-on Thru-Axle

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width; / Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width; Pinned Joint, Disc Specific, Tubeless Compatible

Hubs

Front: Shimano MT-410B, 110x15mm, Centerlock Disc, 32H / Rear: Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body

Spokes

14g Black Stainless Steel

Groupset

Crankset

e13 e*Spec Plus Crank, 165mm Length with e13 e*Spec DM Chainring 38T, e13 Plus Chainguide, Aluminum Plate

Chain

KMC E12S, E-Bike Specific Chain

Brakes

Shimano SLX 4-Piston Hydraulic Disc

Front Rotor

203mm Rotor

Rear Rotor

203mm Rotor w/ Speed Sensor

Shifters

Shimano SLX 7100 12-Speed, I-Spec EV

Rear Derailleur

Shimano XT 8100 12-Speed, SGS

Cassette

12 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
