50% Off Full Price

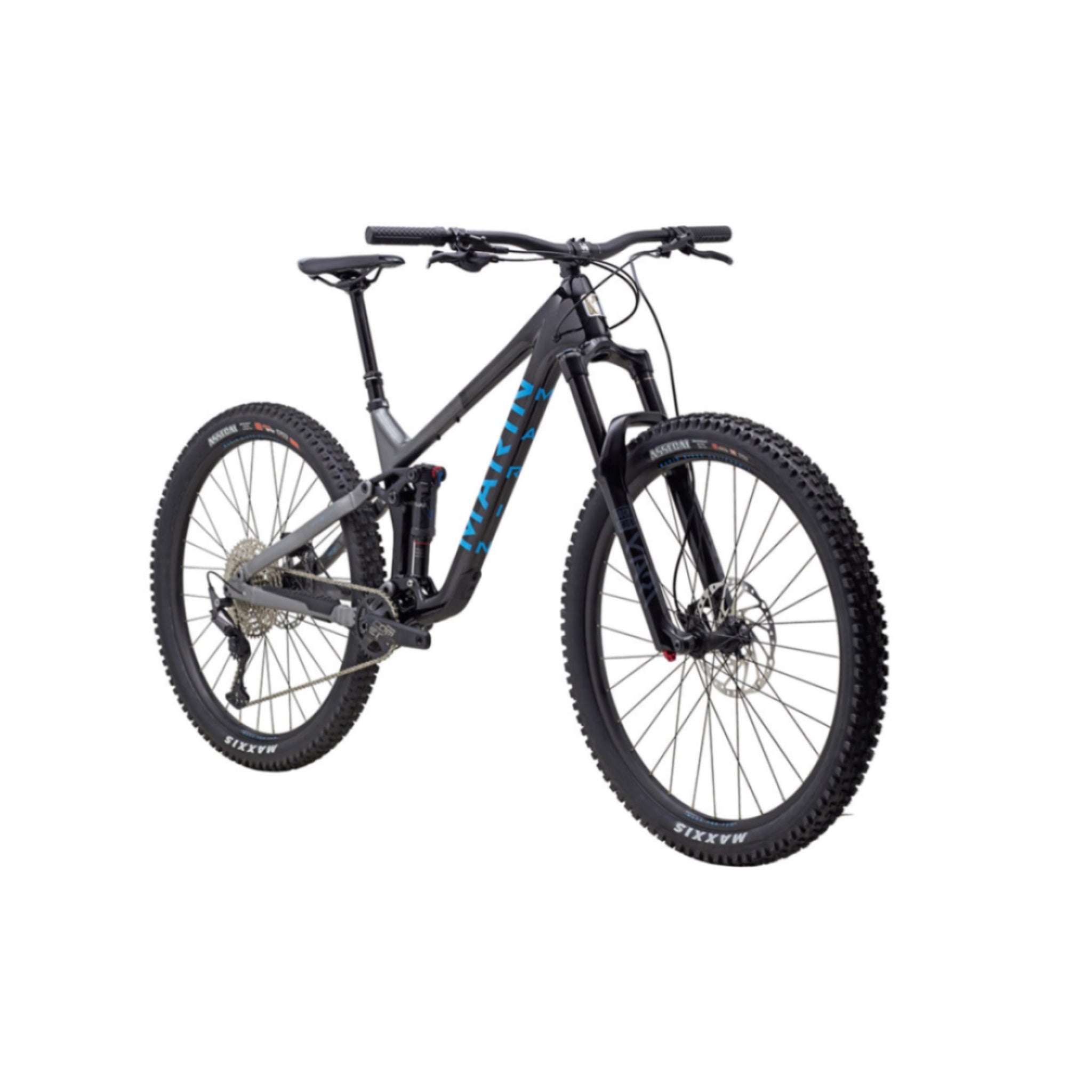

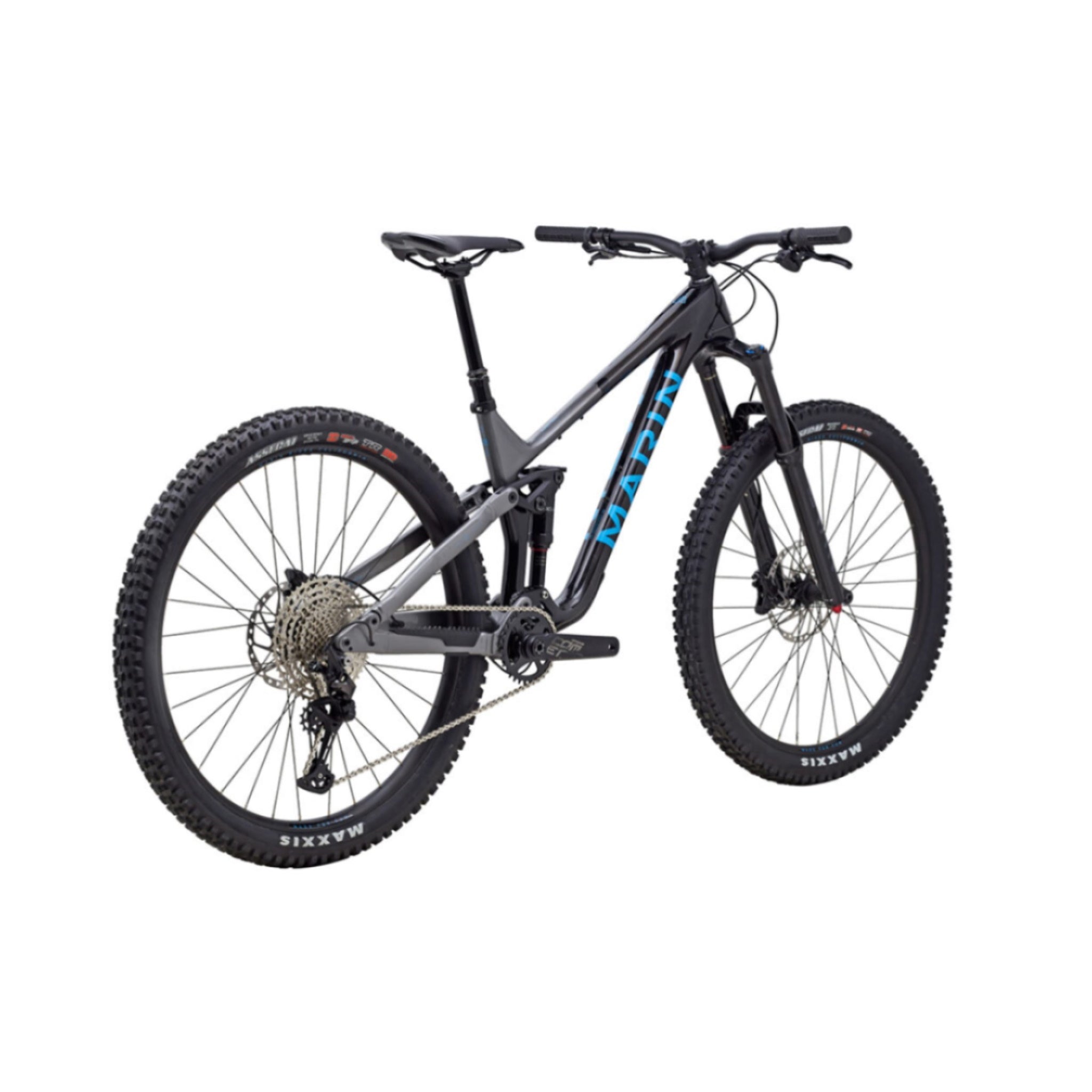

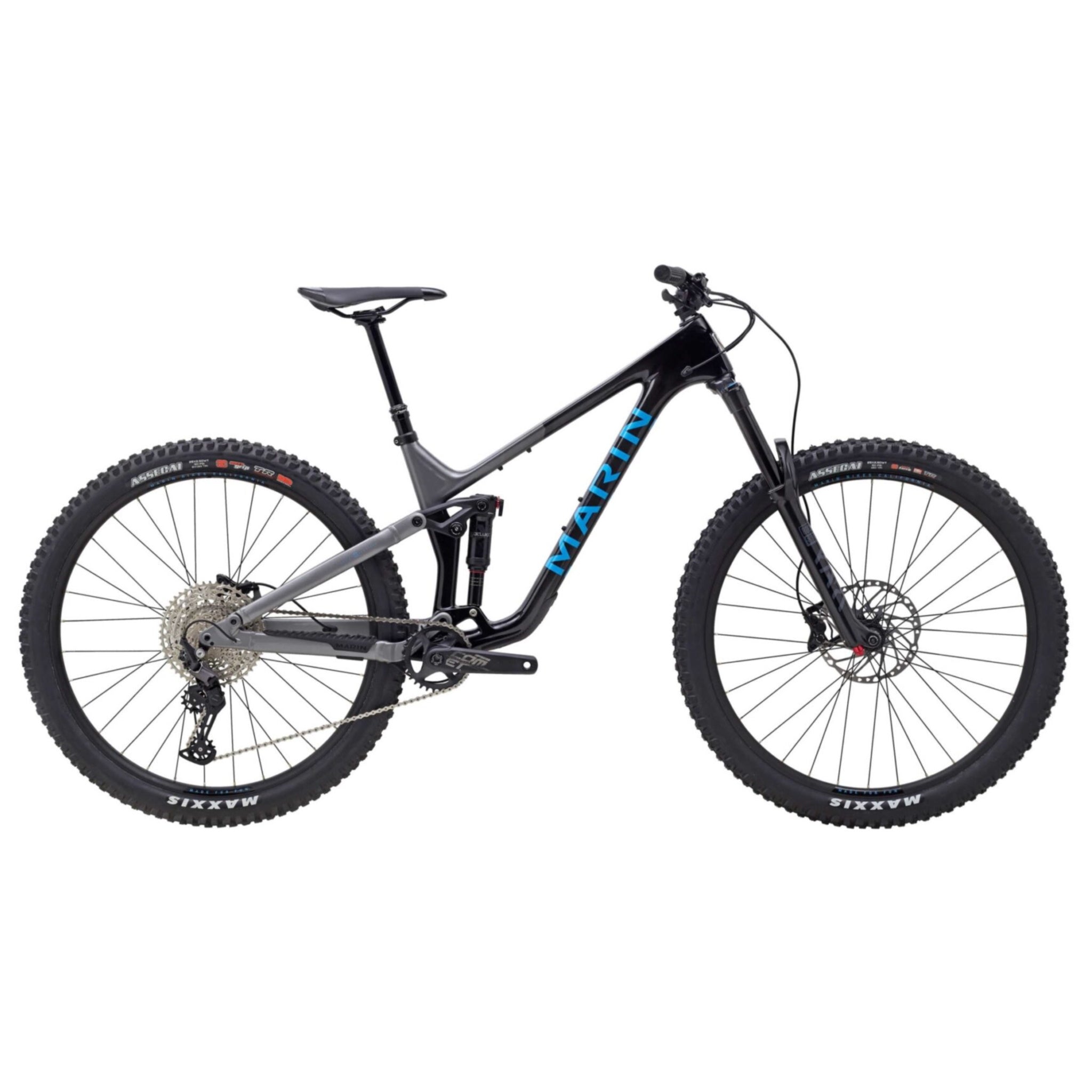

Marin Alpine Trail C1 Enduro Bike Gloss Black/Blue

Marin Alpine Trail C1 Enduro Bike Gloss Black/Blue

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Carbon/Alloy Frame/ RockShox Alloy Fork

160mm Front Travel / 150mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Alpine Trail C1 is the ultimate full suspension 29" bike built for the all-day enduro rider who deserves their downhill fun. Alpine Trail Carbon 1 features a high modulus carbon fiber and monocoque fabrication to deliver the sturdiest and most rigid Alpine Trail yet, the frames give you the complete maximum; detailed welded joints, superbly butted tubes, and completely internally routed cables. The one-piece Rocker Link with its progressive dynamics is the heart of the MultiTrac suspension system. Its extreme durability ensures maximum directional stability and the excellent damping, even in the roughest conditions. The astonishingly stable Rocker Link allowed Marin to construct the frame without a seat stay connection, and also the shortest chain stays, as well as increased space for large tyres.

Key Features

Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End
RockShox, Yari RC, Debonair 150mm Fork
Rock Shox Deluxe Select + RT, Debonair Shock
Shimano Deore 1 x 12-Speed Drivetrain
Shimano MT420, 4-Piston Hydraulic Disc Brakes
Maxxis Assegai 29 x 2.5”, MAXX TERRA, EXO+, Tubeless Ready

Specifications

Product Overview

Product

Marin Alpine Trail C1 Enduro Bike Gloss Black/Blue

Brand

Marin

Parent SKU

E199E7IW

Size SKUs

SM: MADA2132401001
MD: MADA2132401002
LG: MADA2132401003
XL: MADA2132401004

Matrix Barcodes

SM: 843346107169
MD: 843346107176
LG: 843346107183
XL: 843346107190

Year Model

2022

Product Features

Frame Material

Carbon/Alloy

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

160mm

Rear Travel

150mm

Weight

16 kg

Build

Frame

All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Fork

RockShox, Yari RC, Debonair, Rebound and Compression adjustment, 110 x 15 mm Maxle Stealth, 42 mm Offset

Shock

Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin Single Clamp Locking

Stem

Marin 3D Forged Alloy, 35mm

Bottom Bracket

Mega EXO 73mm BSA

Saddle

Marin Speed Concept

Seat Post

TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

Accessories

Bolt-On Thru-Axle, Downtube Protector

Wheels

Wheel Size

29"

Rims

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hubs

Front; Shimano HF-MT410B, 110x15mm, Centerlock Rear; Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

Spokes

14g Black Stainless Steel

Groupset

Crankset

FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Chain

KMC X-12 Silver and Black

Brakes

Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor

Front Rotor

Shimano 203mm Rotor

Rear Rotor

Shimano 180mm Rotor

Shifters

Shimano Deore, 12-Speed, SL6100-IR

Rear Derailleur

Shimano Deore, 12-Speed, SGS

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Alpine Trail C1 Enduro Bike Gloss Black/Blue we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Marin Alpine Trail C1 Enduro Bike Gloss Black/Blue geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
