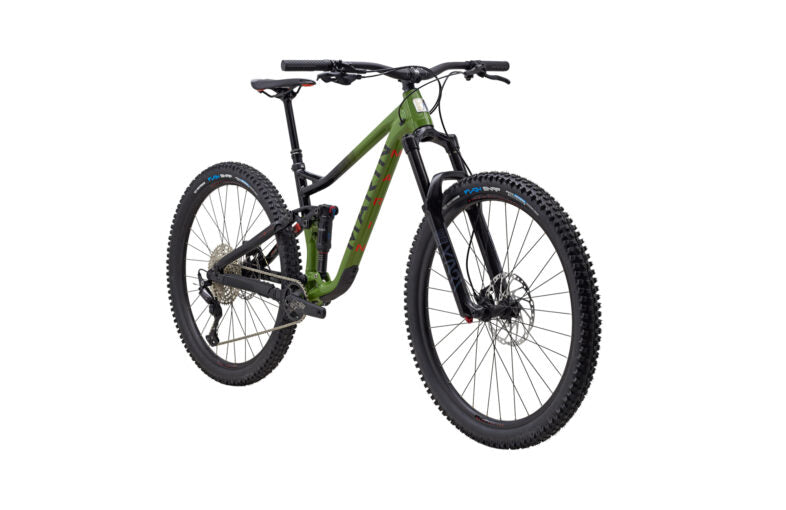

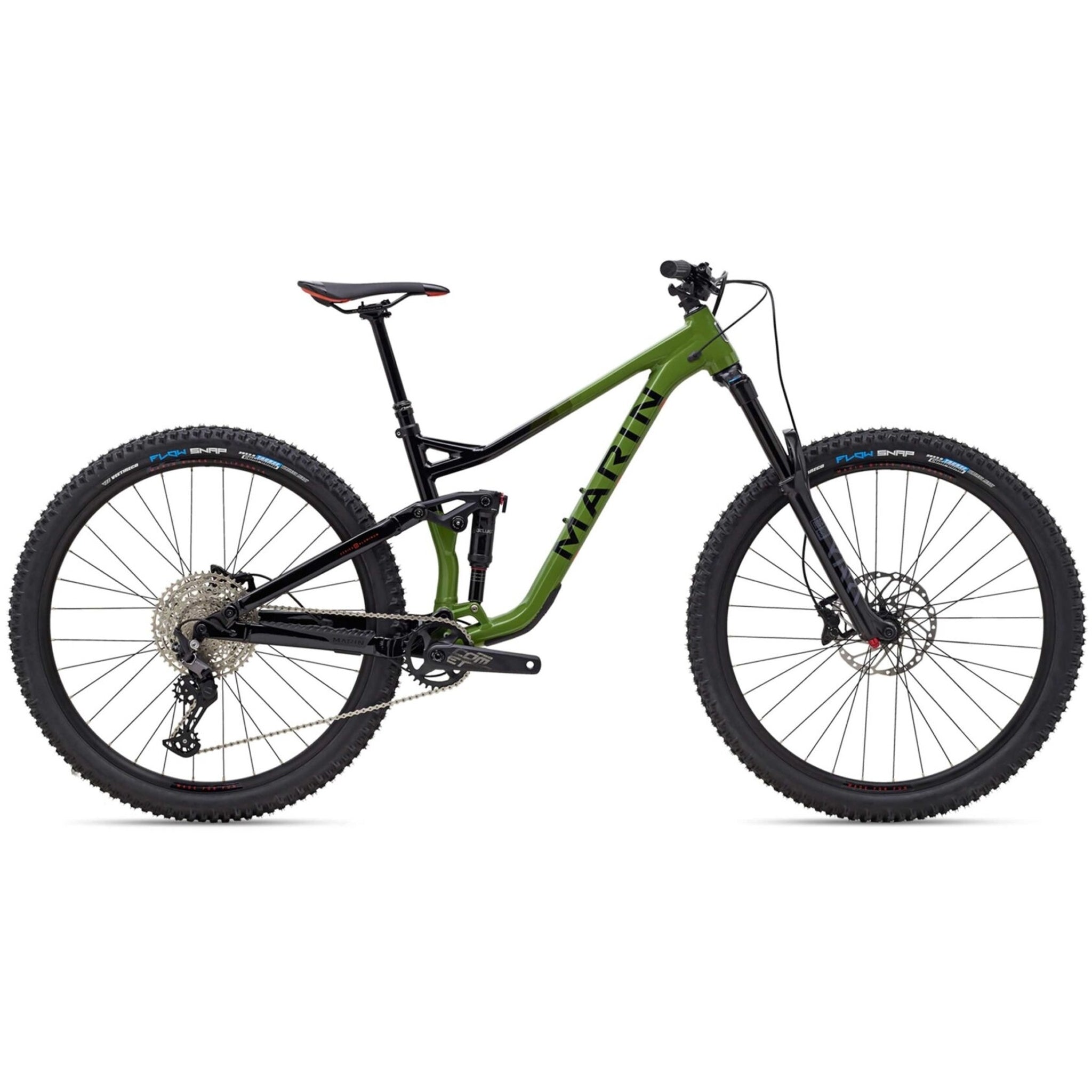

Marin Alpine Trail 7 Enduro Bike Green/Black/Orange

Marin Alpine Trail 7 Enduro Bike Green/Black/Orange

Brand: Marin

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

160mm Front Travel / 150mm Rear

29" Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Alpine Trail was built for those who enjoy rowdy enduro-style riding and big all-mountain days where travel, geometry, and durability matter most. Rolling on burly 29er wheels and capable to handling some serious abuse. The series 4 6061 aluminium frame, with detailed forgings, highly manipulated tubes, boost axle spacing and internal cable routing, including dropper post, gives the rider a high-end alloy frame, while offering the best in modern trail bike geometry through the slack 63.5 degree head tube angle, steep 78 degree seat tube angle and long reach, affording the bike great climbing abilities. The forged one-piece rocker link shock mount adds strength and stiffness keeping the bike tracking straight, providing smooth suspension under the most demanding conditions. The Alpine Trail 7 is Spec’d with a Shimano Deore 1x12 speed drivetrain, burly Shimano MT420, 4-Piston Hydraulic Disc Brakes, RockShox Yari RC, 160mm fork and Rock Shox Deluxe Select + 150mm shock.

Key Features

Durable Series 4 aluminum frame
RockShox Yari RC 160mm front suspension
RockShox Deluxe Select + RT air shock 150mm
Shimano Deore 12-speed drivetrain
Powerful Shimano 4-piston hydraulic brakes
Vee Tire Flow Snap tubeless tires

Specifications

Product Overview

Product

Marin Alpine Trail 7 Enduro Bike Green/Black/Orange

Brand

Marin

Parent SKU

8EY2SSAF

Size SKUs

SM: MADA2132403001
MD: MADA2132403002
LG: MADA2132403003
XL: MADA2132403004

Matrix Barcodes

SM: 843346107244
MD: 843346107251
LG: 843346107268
XL: 843346107275

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

160mm

Rear Travel

150mm

Build

Frame

Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Fork

RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Compression and Rebound Adjustment, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset

Shock

Rock Shox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin Single Clamp Locking

Stem

Marin 3D Forged Alloy, 35mm

Bottom Bracket

External Sealed Cartridge Bearing

Saddle

Marin Speed Concept

Seat Post

TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm

Accessories

Downtube Protector

Wheels

Wheel Size

29"

Rims

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hubs

FRONT: Shimano HF-MT410B, 110x15mm, Centerlock / REAR: Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

Spokes

14g Black Stainless Steel

Groupset

Crankset

FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Chain

KMC X-12 Silver and Black

Brakes

Shimano MT420, 4-Piston Hydraulic Disc Brake

Front Rotor

203mm Rotor

Rear Rotor

180mm Rotor

Shifters

Shimano Deore, 12-Speed, SL-7100R

Rear Derailleur

Shimano Deore SGS, Shadow Plus, Direct Attachment, 12-Speed

Cassette

12 Speed
