47% Off Full Price

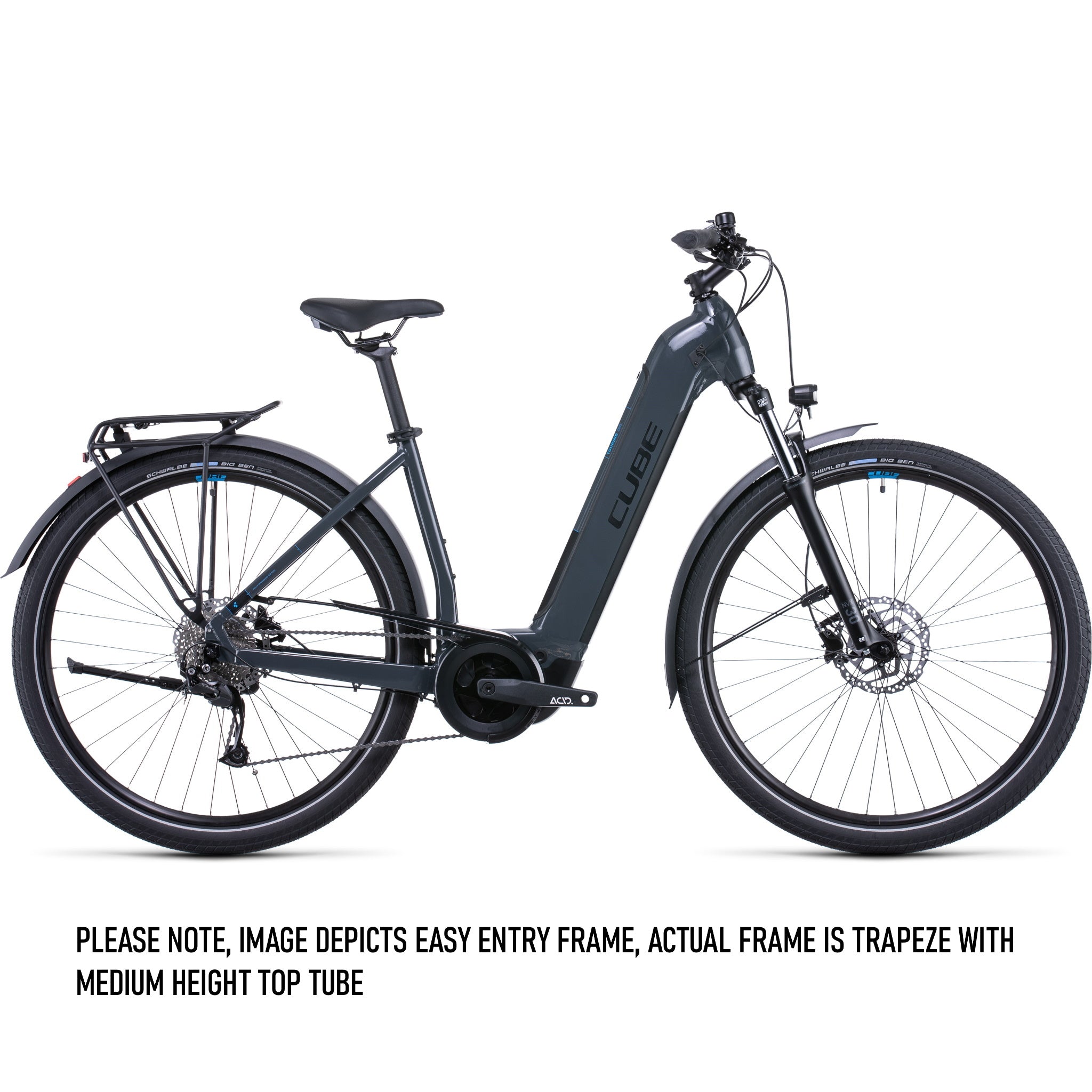

Cube Touring Hybrid One 500 Electric Bike Trapeze Grey 'n' Blue

Brand: Cube

SKU: Select a size

Size: Select a size

XS SM

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills / 65 Nm Torque

Up to 70 km Range

Bosch Performance Gen 3 Motor

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Built around Bosch's powerful third-generation motor and PowerTube battery, the Touring Hybrid ONE's low center of gravity ensures safe, intuitive handling. The Efficient Comfort Geometry will put you in a natural-feeling, comfortable position for any journey, whether it's a short ride to the shops or a longer route at the weekend. The powerful Bosch drive unit is elegantly integrated into the frame. Reliable, easy-to-use Shimano 9-speed gears make light work of any journey. Carrying your stuff with you is easy and safe, thanks to the included luggage carrier. Powerful hydraulic disc brakes and full-length mudguards shrug off bad weather, and the 100mm suspension fork and wide, grippy tyres make even rough city streets a pleasure to ride. Cube even included an integrated lighting system and kickstand. There's also a choice of frames, from the classic top tube design to Trapeze and Easy Entry, with a range of sizes in each, so you're sure to find the perfect fit for you.

Key Features

Aluminium Superlite Frame Gravity Casting Technology
Easy Entry Frame, Efficient Comfort Geometry
Bosch Drive Unit Performance Generation 3
Bosch PowerTube 500 Battery
Shimano 1 x 9 Speed Drivetrain
Tektro Hydraulic Disc Brakes

Specifications

Product Overview

Product

Cube Touring Hybrid One 500 Electric Bike Trapeze Grey 'n' Blue

Brand

Cube

Parent SKU

XGG6WW1E

Size SKUs

XS: 598205-TP46
SM: 598205-TP50

Matrix Barcodes

XS: 4054571420435
SM: 4054571420442

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

100mm

Weight

25.1kg / Max Rider Weight: 135kg / Max System Weight: 140kg

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Torque (Nm)

Motor Climbing Ability

Steep Hills

Battery Size (Watt-Hours)

504

Battery

Bosch PowerTube 500, Charger: Bosch 2A

Max. Range (KMs)

Display

Bosch Purion

Build

Frame

Aluminium Superlite Frame Gravity Casting Technology Easy Entry Frame, Efficient Comfort Geometry Bosch Drive Unit Performance Generation 3 Bosch PowerTube 500 Battery Shimano 1 x 9 Speed Drivetrain Tektro Hydraulic Disc Brakes

Fork

SR Suntour NVX30 Coil, 100mm

Handlebars

CUBE Comfort Trail Bar, 700mm

Headset

M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Grips

Natural Fit Comfort

Stem

CUBE Performance Stem Pro, 31.8mm

Pedals

ACID PP Trekking

Saddle

Natural Fit Sequence Comfort

Seat Post

CUBE Performance Post, 30.9mm

Seat Clamp

CUBE Varioclose, 34.9mm

Accessories

CUBEstand Cmpt Kickstand / Easy Bell / ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible

Wheels

Wheel Size

700c

Rims

CUBE EX23, 36H, Disc, Tubeless Ready

Hubs

FRONT: Shimano HB-TX505, QR, Centerlock / REAR: Shimano FH-TX505, QR, Centerlock

Groupset

Crankset

ACID E-Crank, 40T, 175mm (EE: 170mm)

Chain

KMC X9

Brakes

Tektro HD-M275 Disc brakes

Shifters

Shimano SL-M3100-R, Rapidfire-Plus

Rear Derailleur

Shimano RD-M3100-SGS, 9-Speed

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
