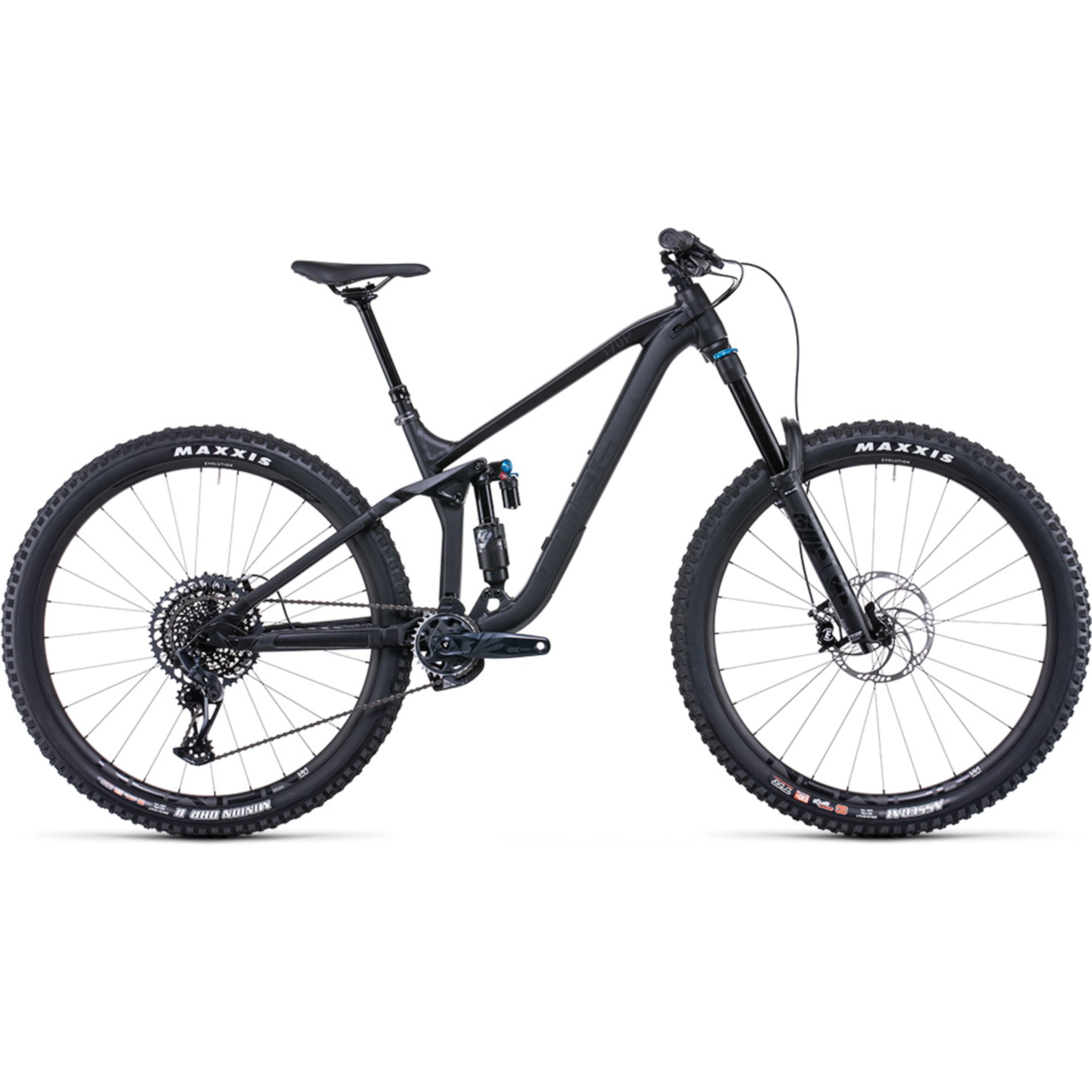

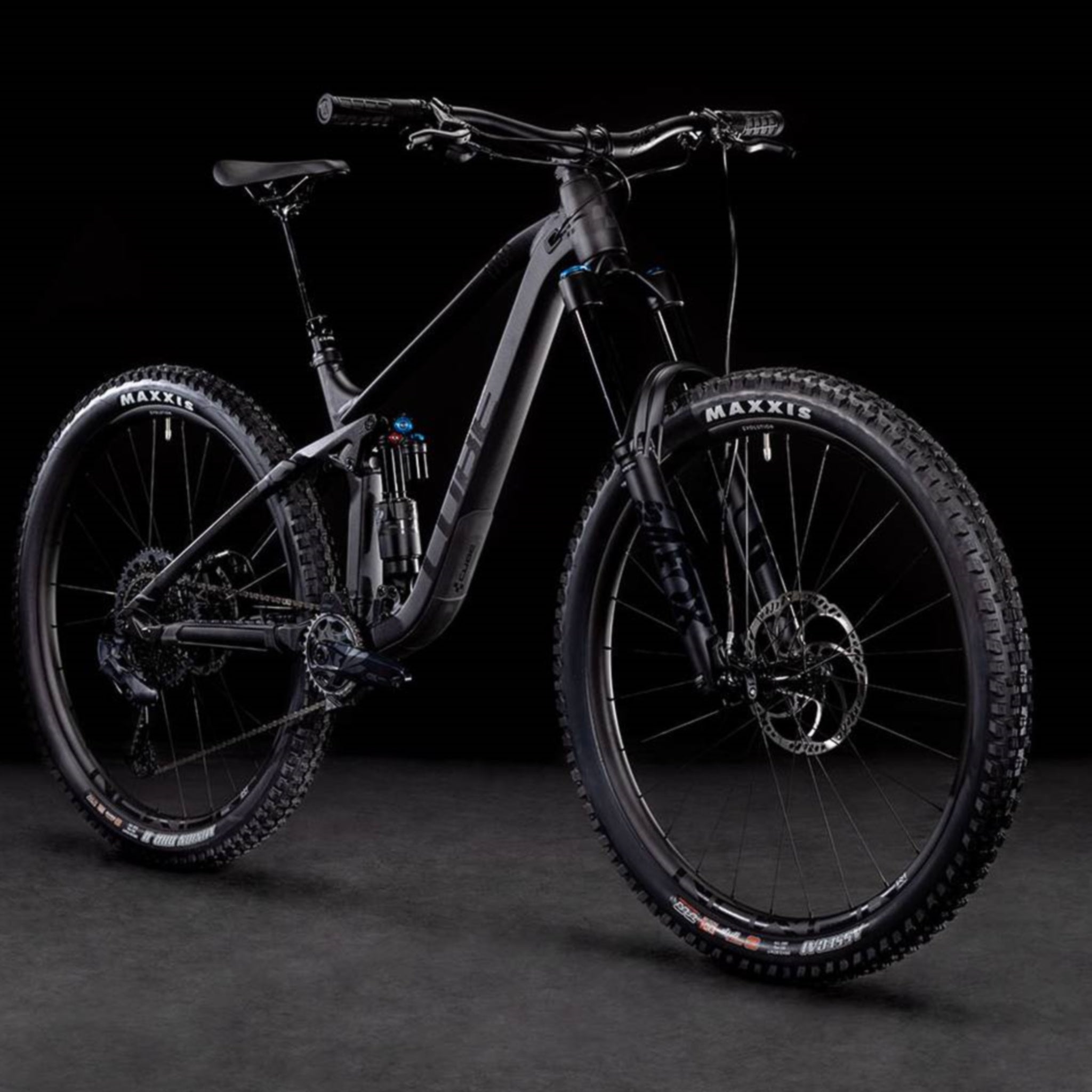

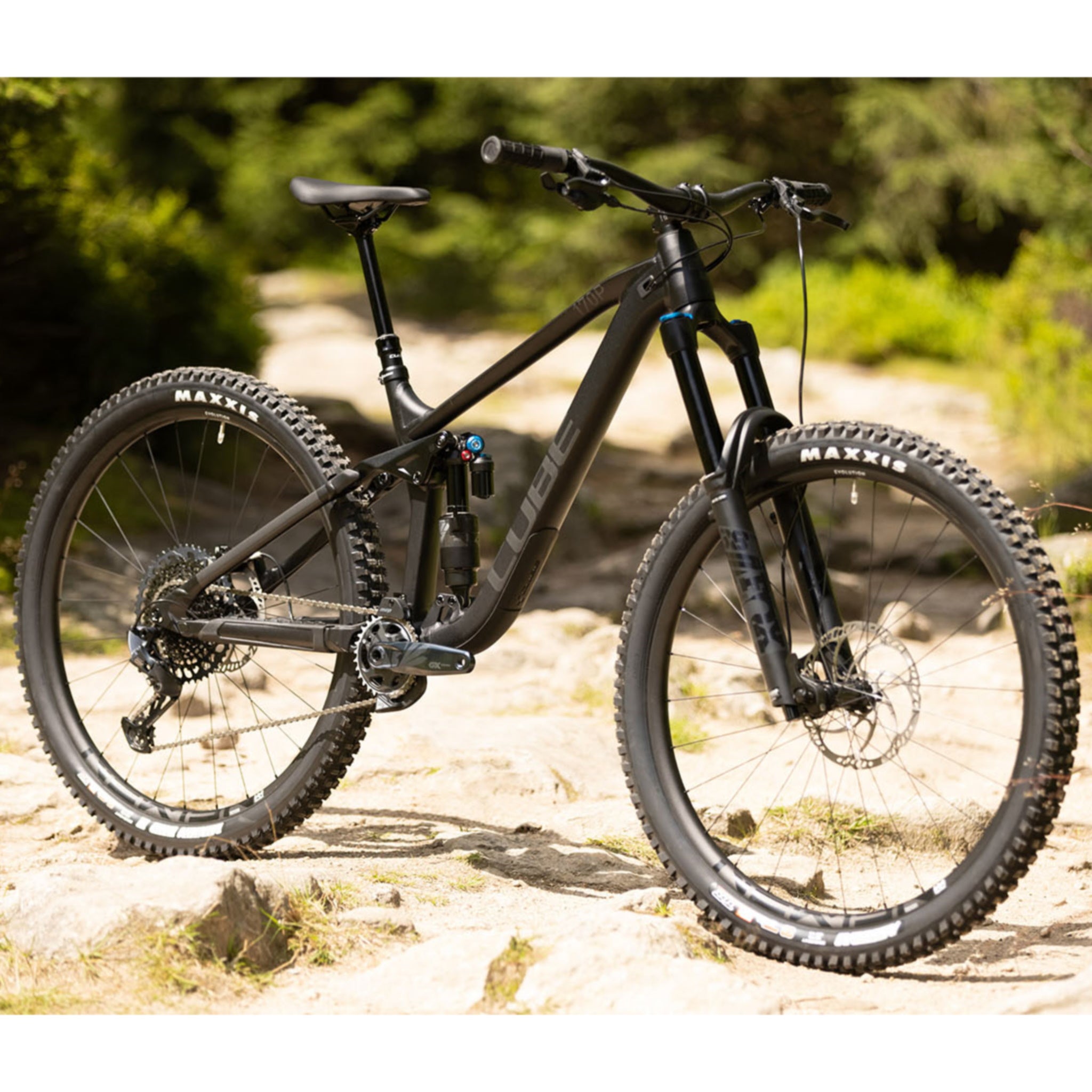

Cube Stereo 170 Pro Enduro Bike 29” Wheels Anodized (2022)

$6,349$6,499.99
Save $150.99
SKU: M8BXGK13

Stock:
Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Check available shipping methods

Click & Collect Available

• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store  More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

99 Bikes Home Delivery Available

Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

Key Features
  • HPA Advanced Hydroformed Alloy Frame
  • Agile Trail Geometry, Cub Four-Bar Suspension System
  • Fox 38 Float Performance GRIP 170mm Fork
  • Fox Float X2 Shock, Low-Speed Rebound & Compression
  • SRAM GX Eagle 1 x 12 Speed Drivetrain
  • Magura MT5 Hydraulic Disc Brakes
  • Durable Newmen Evolution SL 29” wheels
Big wheels, big travel, big fun. The Stereo ONE170 redefines what a big-travel, big-wheeled bike can do. The advanced hydroformed alloy frame is designed around Cube’s proven four-bar suspension system and Agile Trail Geometry, for superb suspension performance and dependable handling in a huge range of trail conditions. New for 2022, Cube reduced the seat tube length to improve standover and increased the reach on larger frame sizes. The shock setup is more progressive and there's an AngleSet so you can tweak the geometry to suit your own preference. The Fox 38 Float fork and Float X2 Performance shock work in perfect symmetry with the revised geometry and kinematics, while the SRAM GX Eagle 1x12 transmission makes light work of any terrain. Magura's powerful MT5 hydraulic disc brakes are optimized for gravity riding, perfect for brake control when bombing techy descents. The Newmen Evolution wheels are designed to be punished and engineered to withstand the toughest enduro terrain.
Axles: 15x110mm/12x148mm
Brakes: Magura MT5, Hydr. Disc Brake (203/180)
Chain: Sram SX Eagle™
Colour (text): black anodized

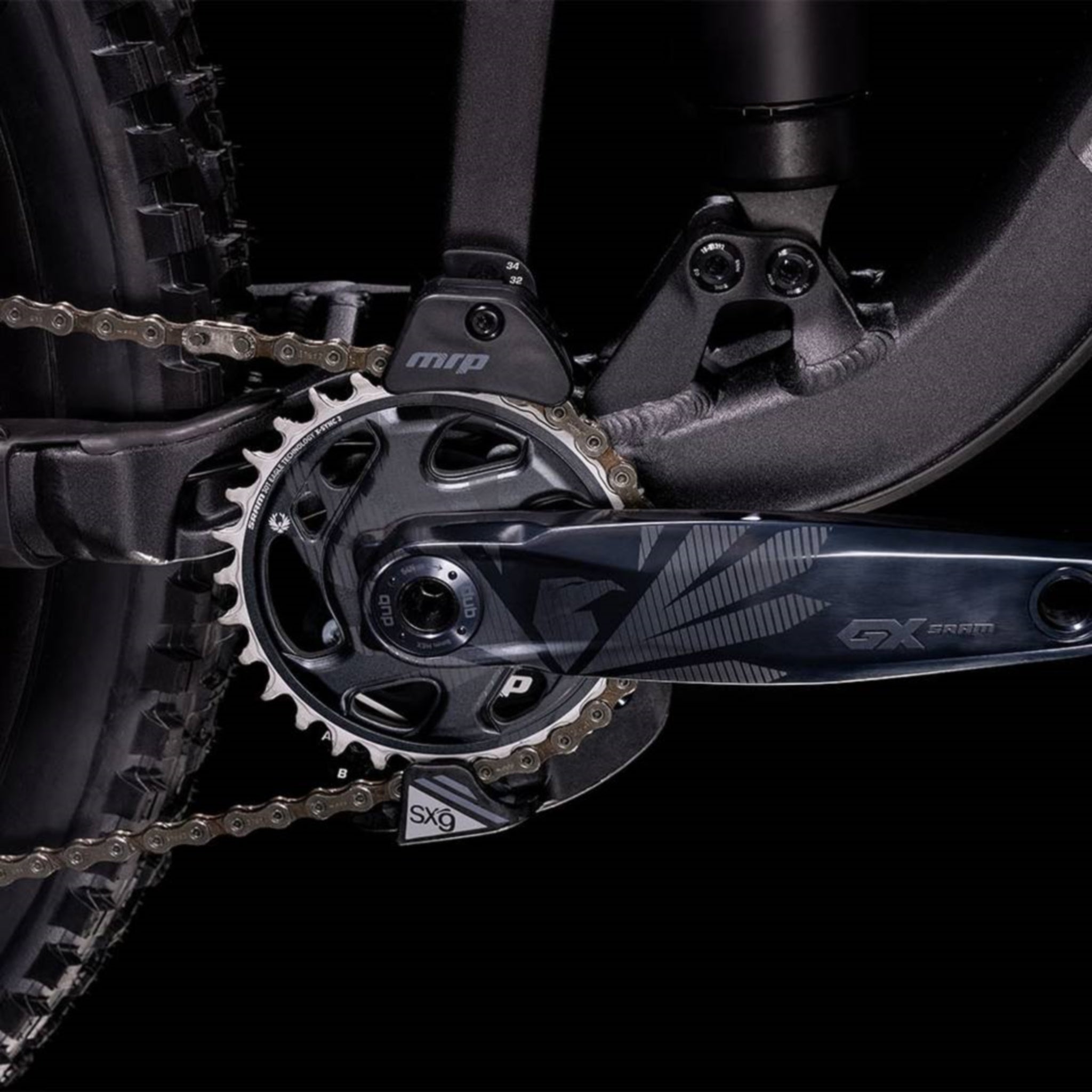

Crankset: Sram GX Eagle™ Boost DUB, 30T, 170mm
Derailleur rear: Sram GX Eagle™, 12-Speed
Fork: Fox 38 Float Performance GRIP, 3-Position w/Micro Adjust, Tapered, 15x110mm, 170mm

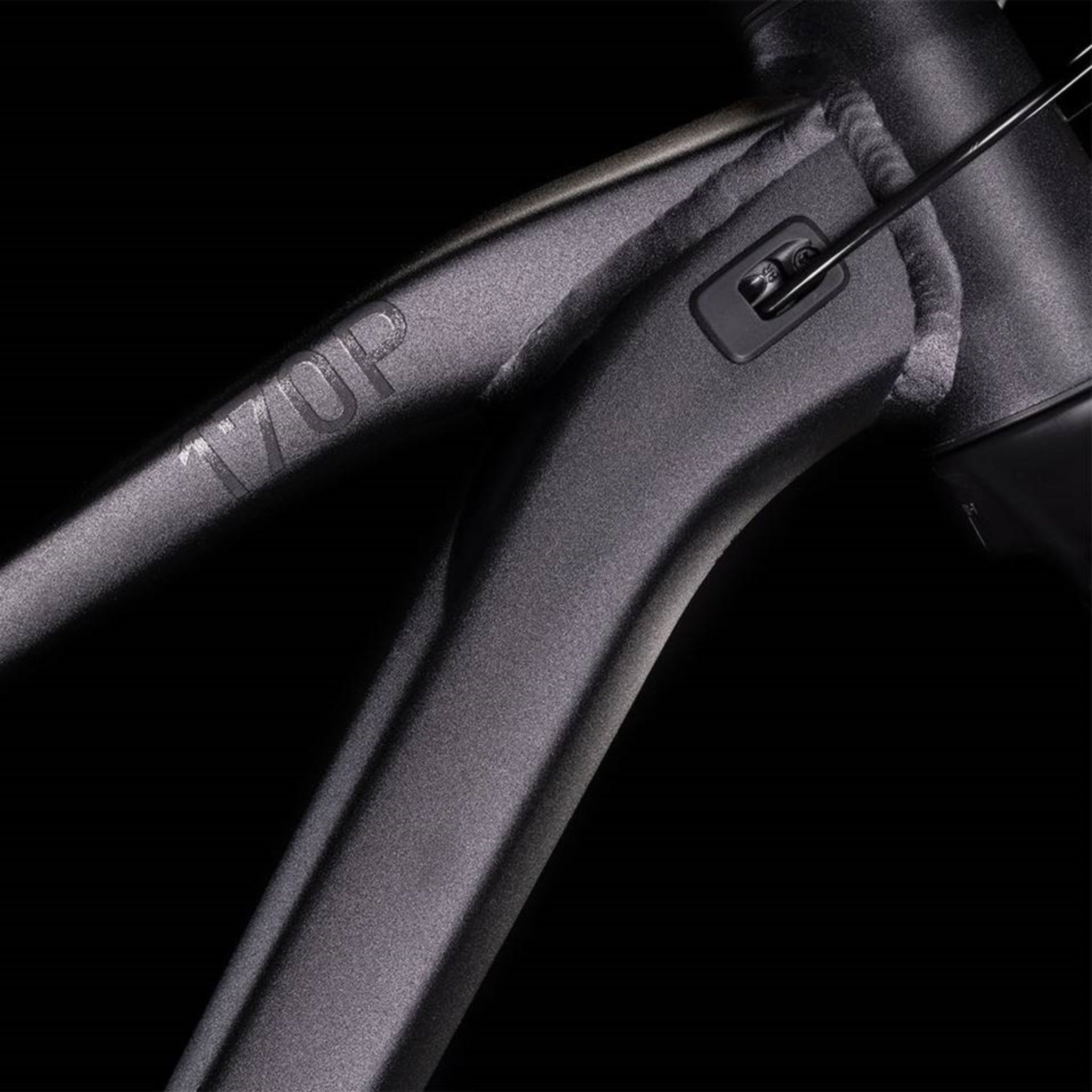

Frame: HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Mount Flip-Chip, ISCG Mount, AXH
Freewheel: Sram XG-1275 Eagle™, 10-52T Cassette
Grip: Natural Fit MTB Stiffler Lock On, Soft Compound
Handlebar: Race Face Chester 35, 780mm
Handlebar stem: Race Face Aeffect R 35

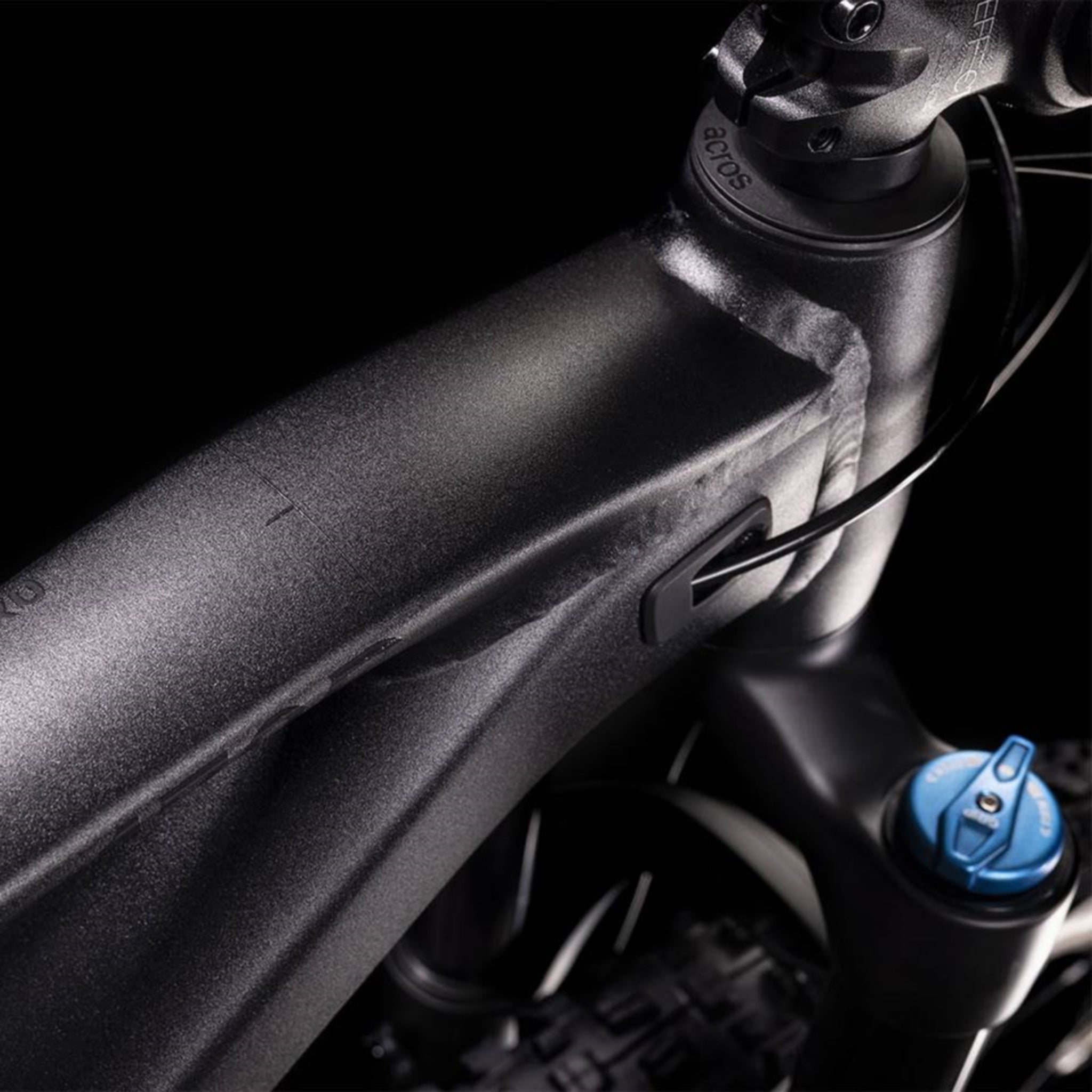

Headset: ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
Rim: Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Rotor front: 203mm
Rotor rear: 180mm
Saddle: Natural Fit Venec Lite
Seat clamp: CUBE Screwlock, 34.9mm
Seat post: CUBE Dropper Post, Lever, Internal Cable Routing, 31.6mm, 150mm

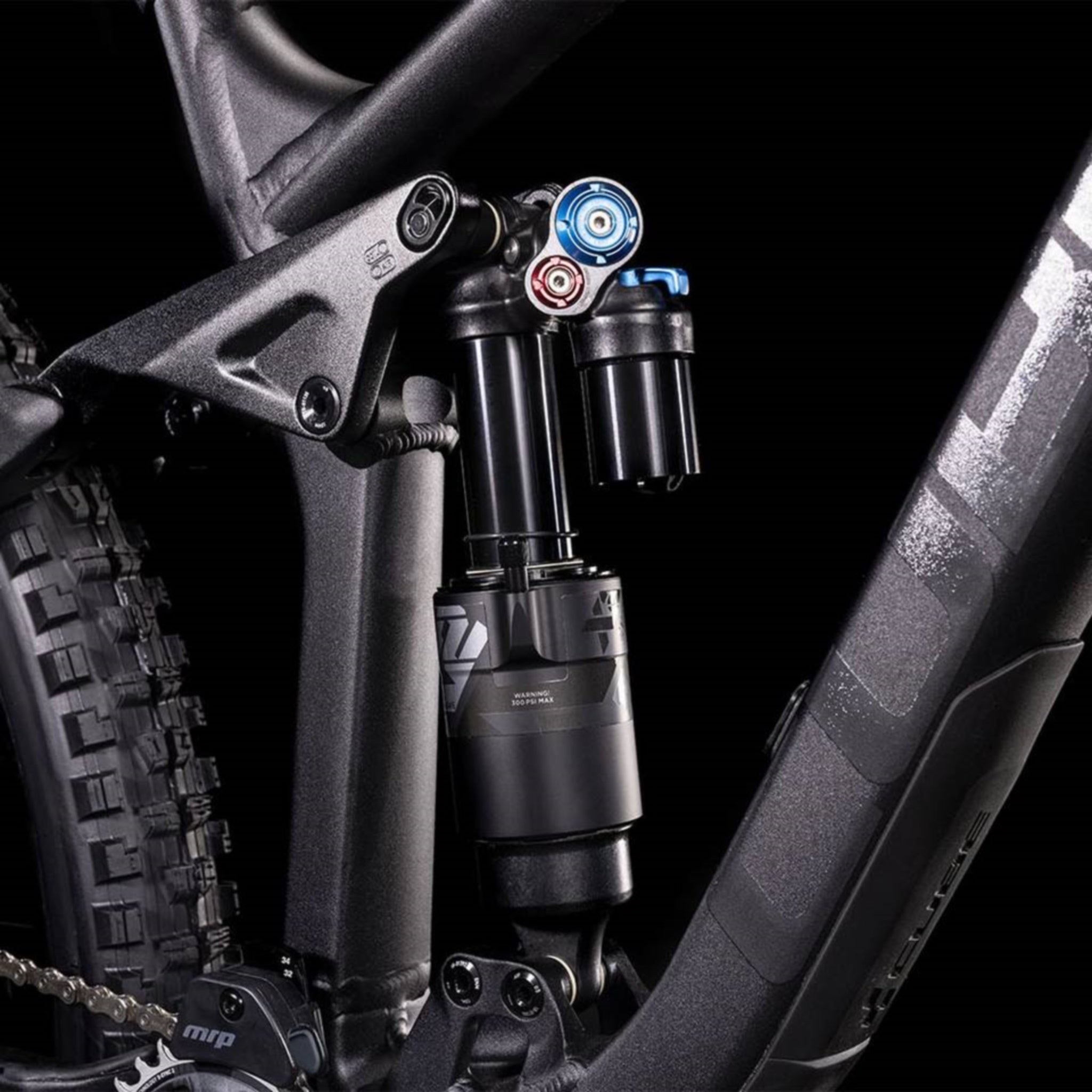

Shock: Fox Float X2, 230x65mm, Low Speed Rebound & Compression w/ 2-Position Lever / Hardware: Top: 40x8mm, Bottom: 20x8mm
Tyre front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT
Tyre rear: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Weight: 15.5kg / Max System Weight (rider + luggage carriers etc.): 115kg
Wheel size: 29"

SIZE

M / 16.5"

L / 16.5"

XL / 18.5"

XXL / 18.5"

SEAT TUBE

420 / 420

420 / 420

470 / 470

470 / 470

TOP TUBE HORIZONTAL

583.22 / 584.77

603.7 / 605.27

626.92 / 628.58

656.38 / 655.2

SEAT TUBE ANGLE

76.71 / 76.5

76.71 / 76.5

76.7 / 76.5

76.7 / 76.5

HEAD TUBE ANGLE

63.8 / 64.4

63.8 / 64.4

63.8 / 64.4

63.8 / 64.4

CHAIN STAYS

434.5 / 434.5

434.5 / 434.5

434.5 / 434.5

434.5 / 434.5

HEAD TUBE

103 / 103

104.5 / 104.5

114.5 / 114.5

134.5 / 134.5

WHEELSBASE

1223.42 / 1215.56

1244.03 / 1236.21

1268.41 / 1260.56

1297.22 / 1289.26

BB-HEIGHT TO HUB

26.6 / 25

26.57 / 25

26.54 / 25

0 / 25

STANDOVER HEIGHT

742.3 / 746.3

737 / 741

754.6 / 758.6

758.9 / 762.9

REACH

445.99 / 444.33

471.94 / 464.33

485.9 / 484.36

505.88 / 504.42

STACK

625.52 / 627.49

626.83 / 628.84

635.78 / 637.86

655.71 / 655.89

Cube Stereo Bike Sizing Chart

Cube Stereo Bike Sizing Chart

CUBE was founded in 1993 in Waldershof, Bavaria by Marcus Puerner. Over the years the company has become a market leader in several European countries in the middle and premium mountain bike and road bike segments. The brand is available through specialist retailers in 67 countries worldwide. The current product portfolio consists of more than 350 different bikes and E-bikes. Ergonomically optimised bikes for women and kids as well as a clothing and accessories line complement the product range.
