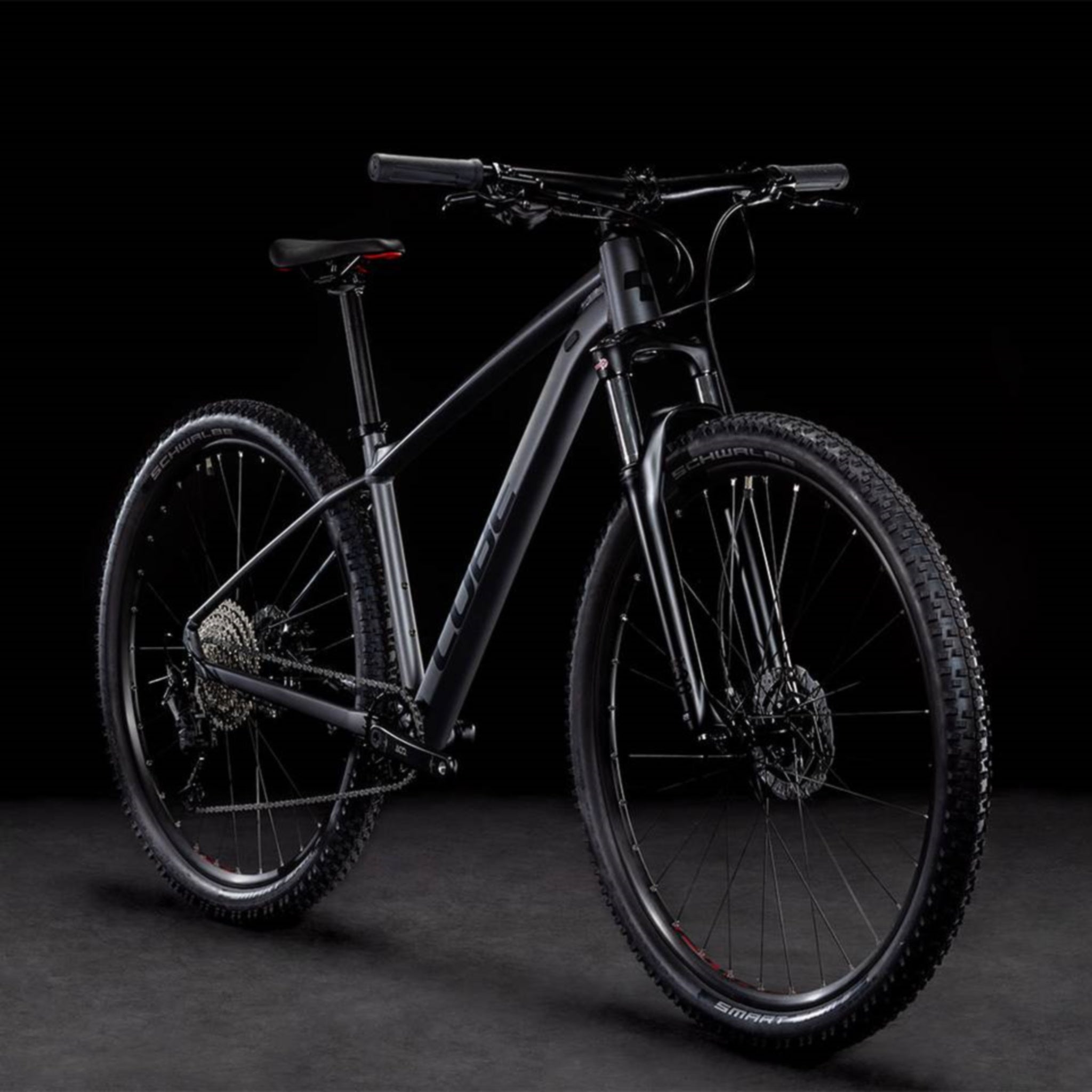

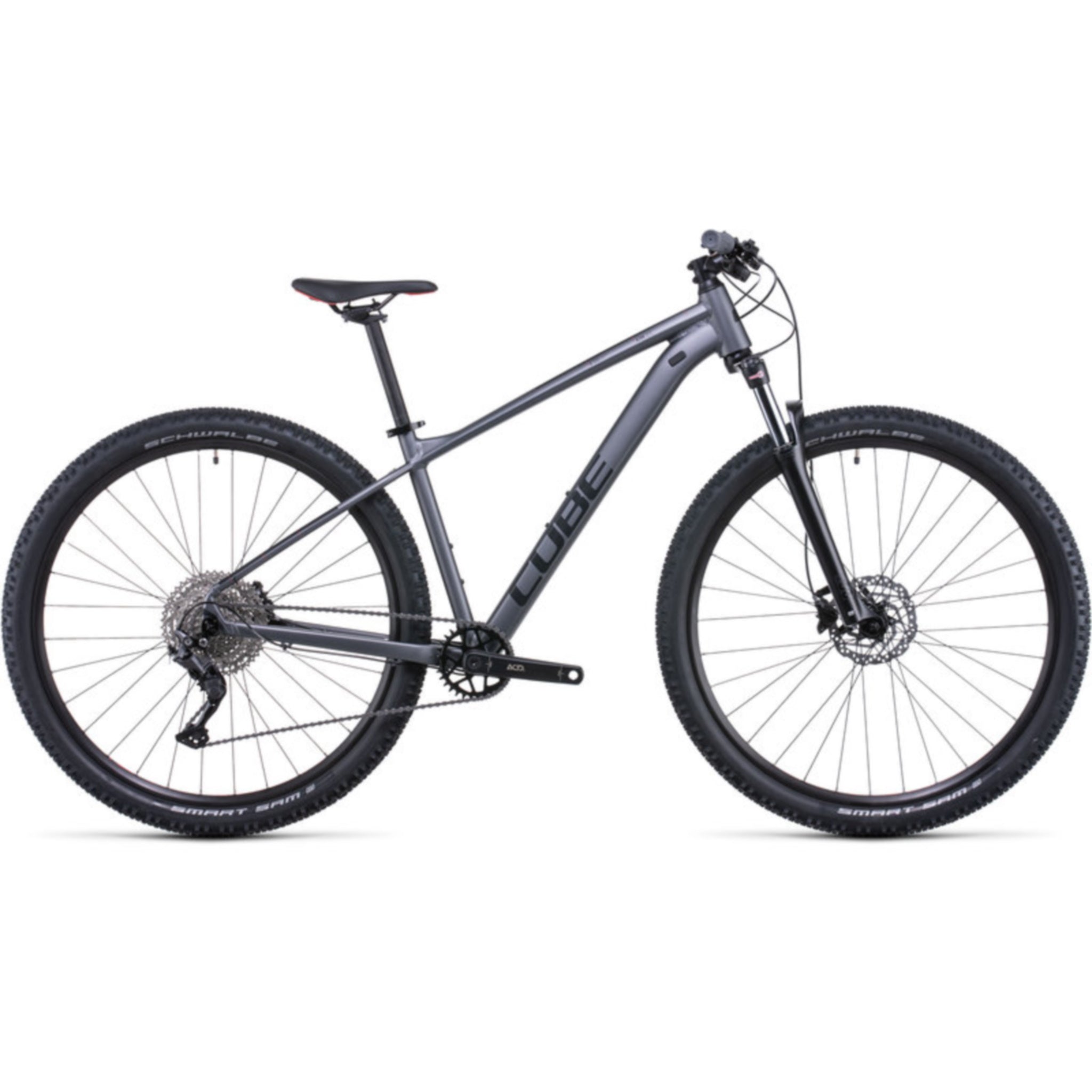

Cube Aim EX Hardtail Mountain Bike Grey 'n' Red (2022)
Yours now with 4 interest free payments of
$284.75 NZD
fortnightly with
More info
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Check available shipping methods
Click & Collect Available
• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
99 Bikes Home Delivery Available
Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
- Lightweight Alloy frame with internal cable routing
- Sleek modern design perfect for cross country, trail and fitness riders
- 1 x 10 Speed Shimano Deore Drivetrain
- 100mm SR Suntour XCM Fork with Lockout
- Shimano Hydraulic Disc Brakes
- Cube Size Split system with 27.5” or 29” wheel sizes
- Integrated mounts for kickstand, mudguards, carrier rack
| Brakes: | Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160) |
|---|---|
| Chain: | KMC X10 |
| Colour (text): | grey´n´red |

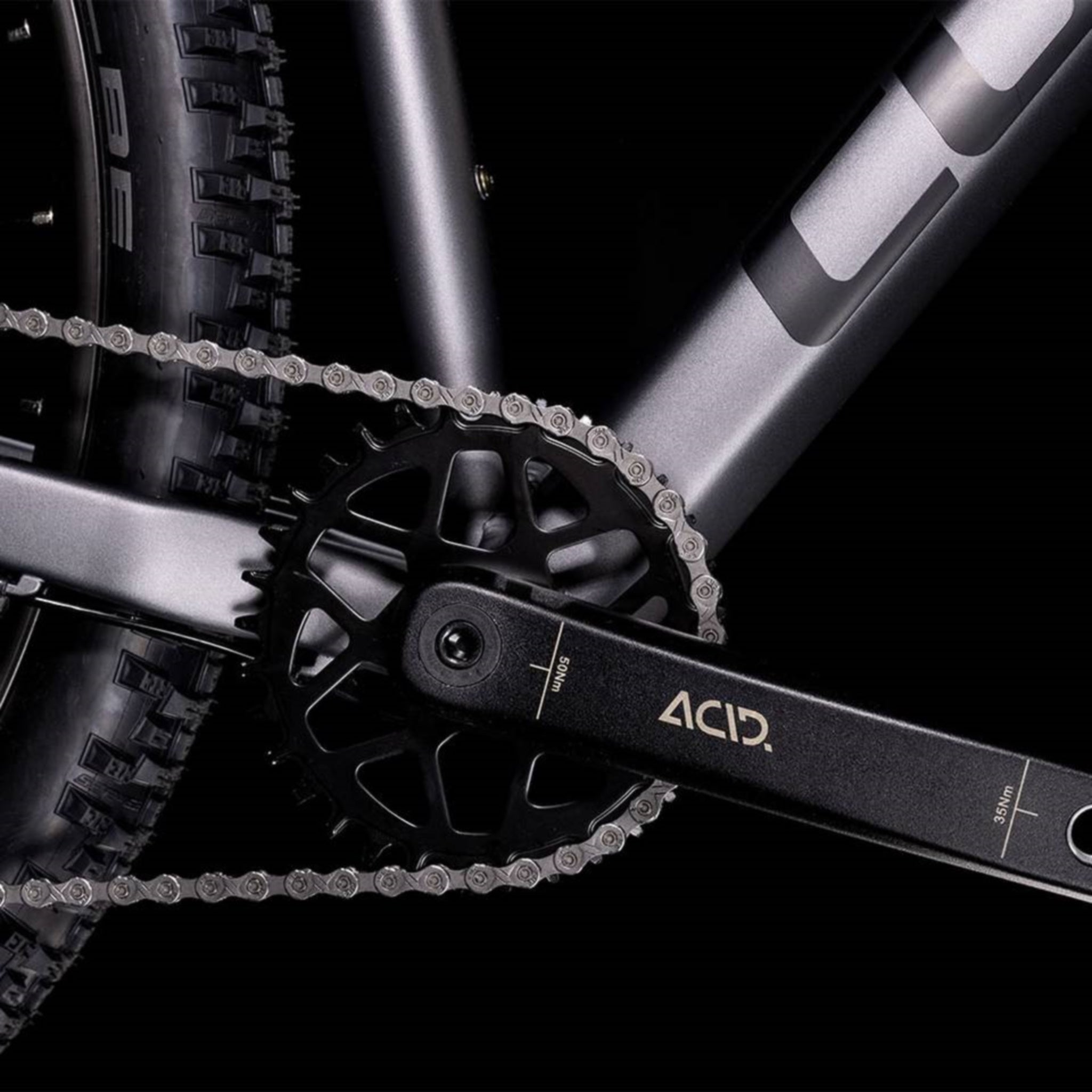

| Crankset: | ACID MTB Alloy 32T |
| Derailleur rear: | Shimano Deore RD-M5120-SGS, 10-Speed |
| Fork: | SR Suntour XCM Disc, 100mm, Remote Lockout |

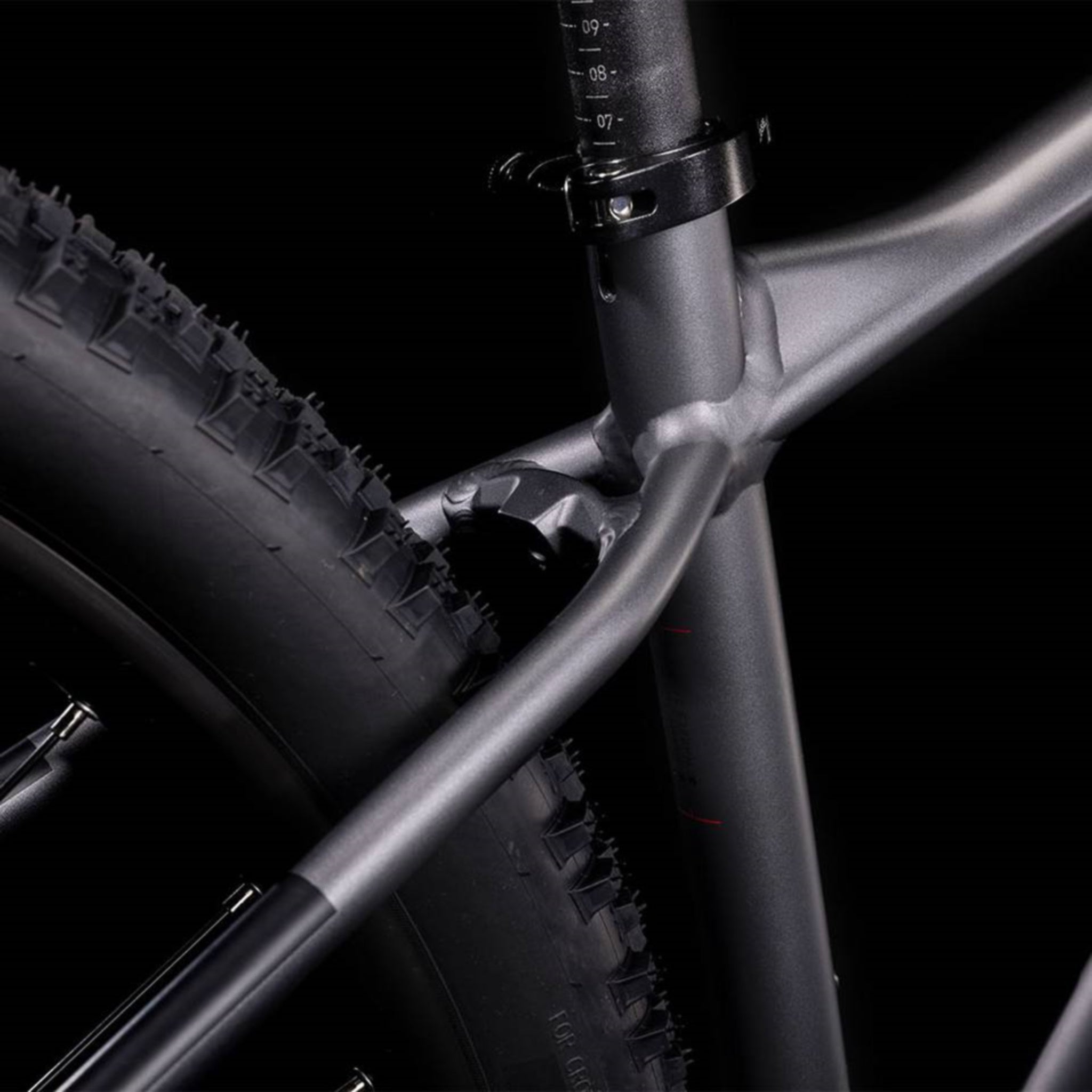

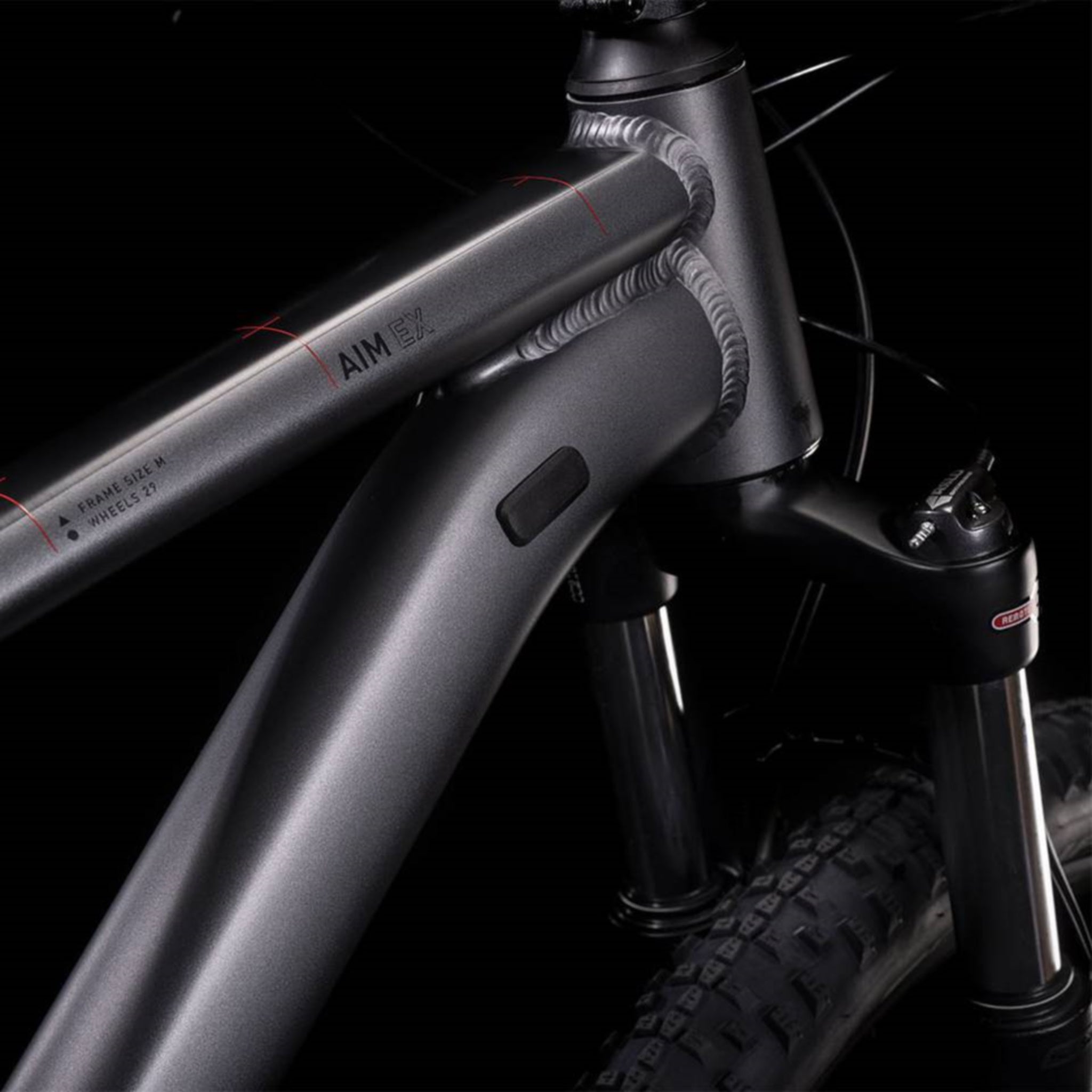

| Frame: | Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount |
| Freewheel: | Sunrace CSM52, 11-46T Cassette |
| Grip: | Natural Fit Performance |
| Handlebar: | CUBE Rise Trail Bar, 680mm |
| Handlebar stem: | CUBE Performance Pro, 31.8mm |
| Headset: | CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated |
| Hubs: | Shimano HB-TX505, QR, Centerlock |
| Pedals: | CUBE PP MTB |
| Rim: | CUBE ZX20, 32H, Disc |
| Rotor front: | 160mm |
| Rotor rear: | 160mm |

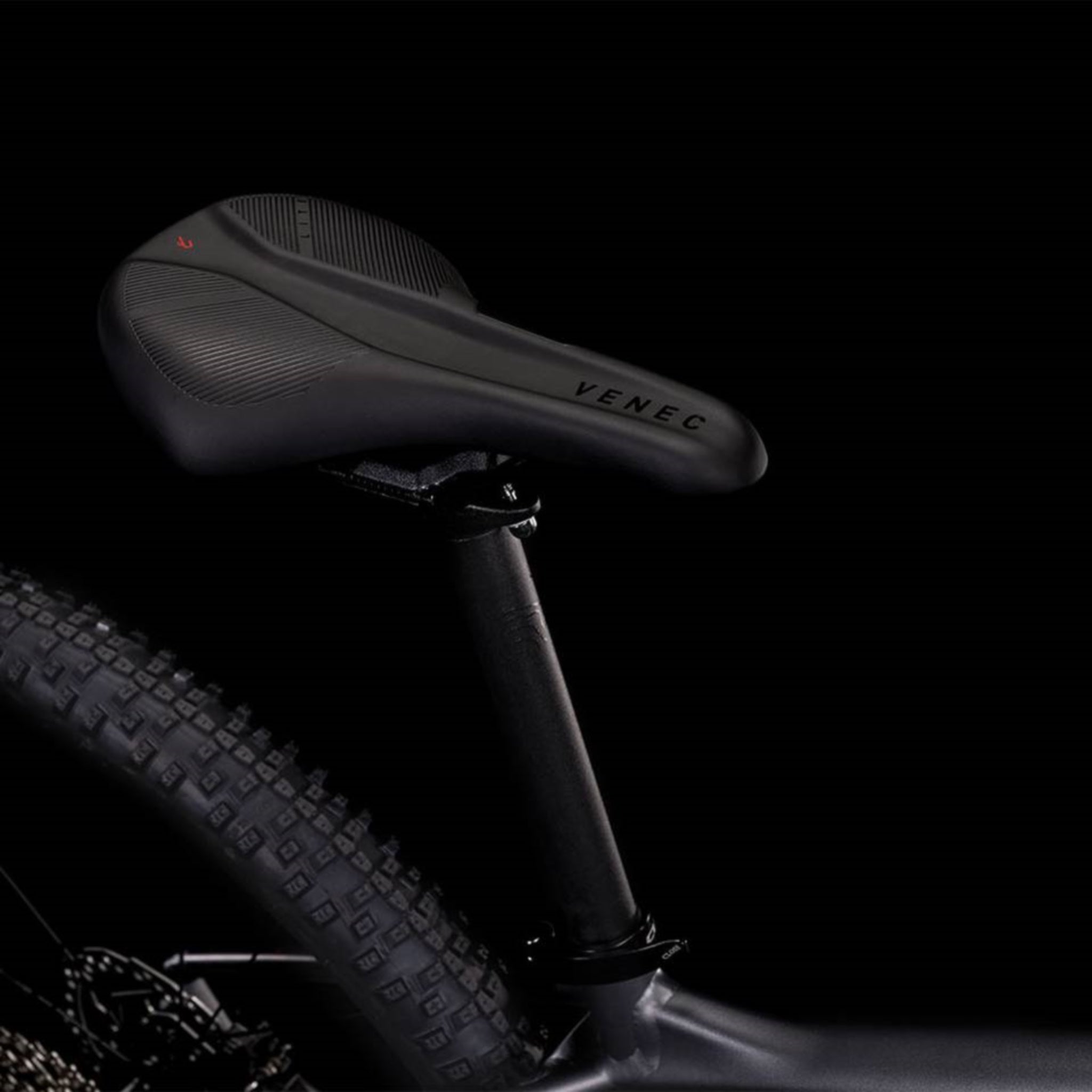

| Saddle: | Natural Fit Venec Lite |
| Seat clamp: | CUBE Varioclose, 31.8mm |
| Seat post: | CUBE Performance Post, 27.2mm |
| Tyre front: | Schwalbe Smart Sam, Active, 2.25 |
| Tyre rear: | Schwalbe Smart Sam, Active, 2.25 |
| Weight: | 13.9kg / Max Rider Weight: 115kg / Max System Weight (including trailer, luggage carrier, other accessories): 150kg |
| Wheel size: | 29" / 27.5" |
| SIZE / WHEEL SIZE | 14" / 27.5 / XS | 16" / 27.5 / S | 18" / 29 / M | 20" / 29 / L | 22" / 29 / XL |
SEAT TUBE | 340 | 370 | 420 | 470 | 515 |
TOP TUBE HORIZONTAL | 555 | 575 | 595 | 615 | 635 |
SEAT TUBE ANGLE | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
HEAD TUBE ANGLE | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 |
CHAIN STAYS | 441 | 441 | 461 | 461 | 461 |
HEAD TUBE | 107 | 109.8 | 109.8 | 120.6 | 140.6 |
WHEELSBASE | 1067.5 | 1096.2 | 1136.5 | 1157.5 | 1174.6 |
BB-HEIGHT TO HUB | 51.5 | 51.5 | 65 | 65 | 65 |
STANDOVER HEIGHT | 707 | 720 | 759 | 792 | 824 |
REACH | 384.4 | 398 | 409.2 | 426.2 | 440.7 |
Cube Aim Bike Sizing Chart
CUBE was founded in 1993 in Waldershof, Bavaria by Marcus Puerner. Over the years the company has become a market leader in several European countries in the middle and premium mountain bike and road bike segments. The brand is available through specialist retailers in 67 countries worldwide. The current product portfolio consists of more than 350 different bikes and E-bikes. Ergonomically optimised bikes for women and kids as well as a clothing and accessories line complement the product range.
