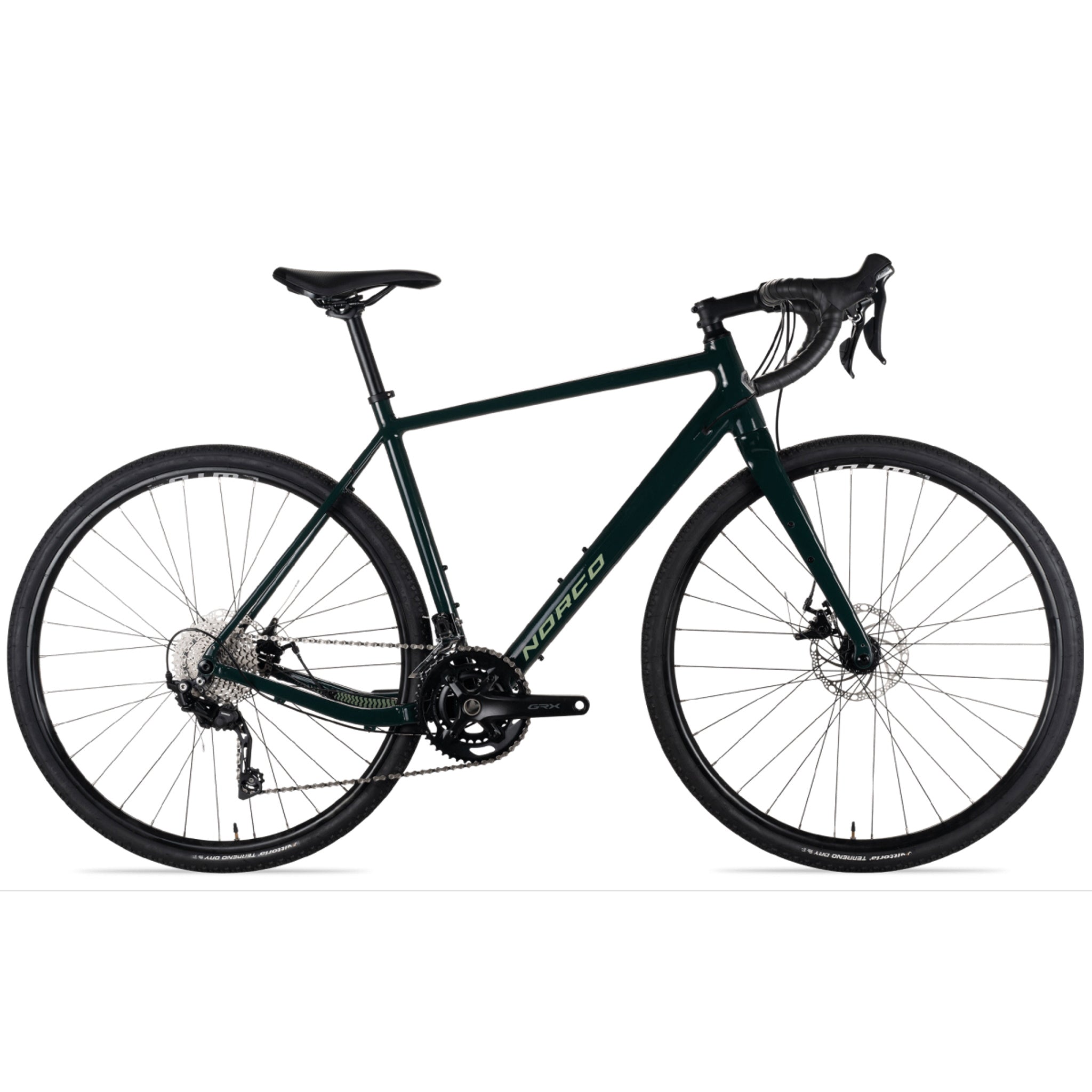

Norco Search XR A2 Gravel Bike Green/Green

Norco Search XR A2 Gravel Bike Green/Green

Brand: Norco

SKU: Select a size

Size: Select a size

XS SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Norco Carbon Fork

Rigid Front Travel

700c Wheel Size

Mechanical Disc Brake

Shimano Tiagra Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Search XR A2 is a do-it-all bike that craves adventure, redefines gravel and thrives off the beaten path. The X6 butted aluminum frame and carbon fork offer lightweight, agile stability, efficient pedaling, and comfortable vertical compliance. The oversized downtube, thru-axle hubs, BB shell and chainstays deliver lateral stiffness for maximum power transfer and control over rough terrain. The smooth welded, lightweight aluminum frame creates a robust, elegant adventure rig, while bent chain stays, thinned seat tube and top tube, and optimized fork design maximize comfort and reduce rider fatigue. With generous tire clearance, rack, fender and multiple bottle mounts, the Search XR A2 allows you to head out for an extended bike-packing excursion. The WTB ST i23 TCS 2.0 tubeless-ready rims, wide range Shimano GRX/Tiagra 2x10 speed drivetrain and Tektro dual piston mechanical disc brakes, mean the Search XR A2 is ready to take on any adventure.

Key Features

Lightweight X6 butted aluminum frame
Carbon fork for agile stability
Generous tyre clearance for versatility
Shimano GRX/Tiagra 2x10 speed drivetrain
Tektro dual piston mechanical disc brakes

Specifications

Product Overview

Product

Norco Search XR A2 Gravel Bike Green/Green

Brand

Norco

Parent SKU

AUBLBPUC

Size SKUs

XS: NOAD2106111823
SM: NOAD2106111824
MD: NOAD2106111825
LG: NOAD2106111826
XL: NOAD2106111827

Matrix Barcodes

XS: 58817516276
SM: 58817516283
MD: 58817516306
LG: 58817516313
XL: 58817516504

Year Model

2023

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

700c

Brake Type

Mechanical Disc Brake

Gears

1 x 10

Fork Material

Carbon

Build

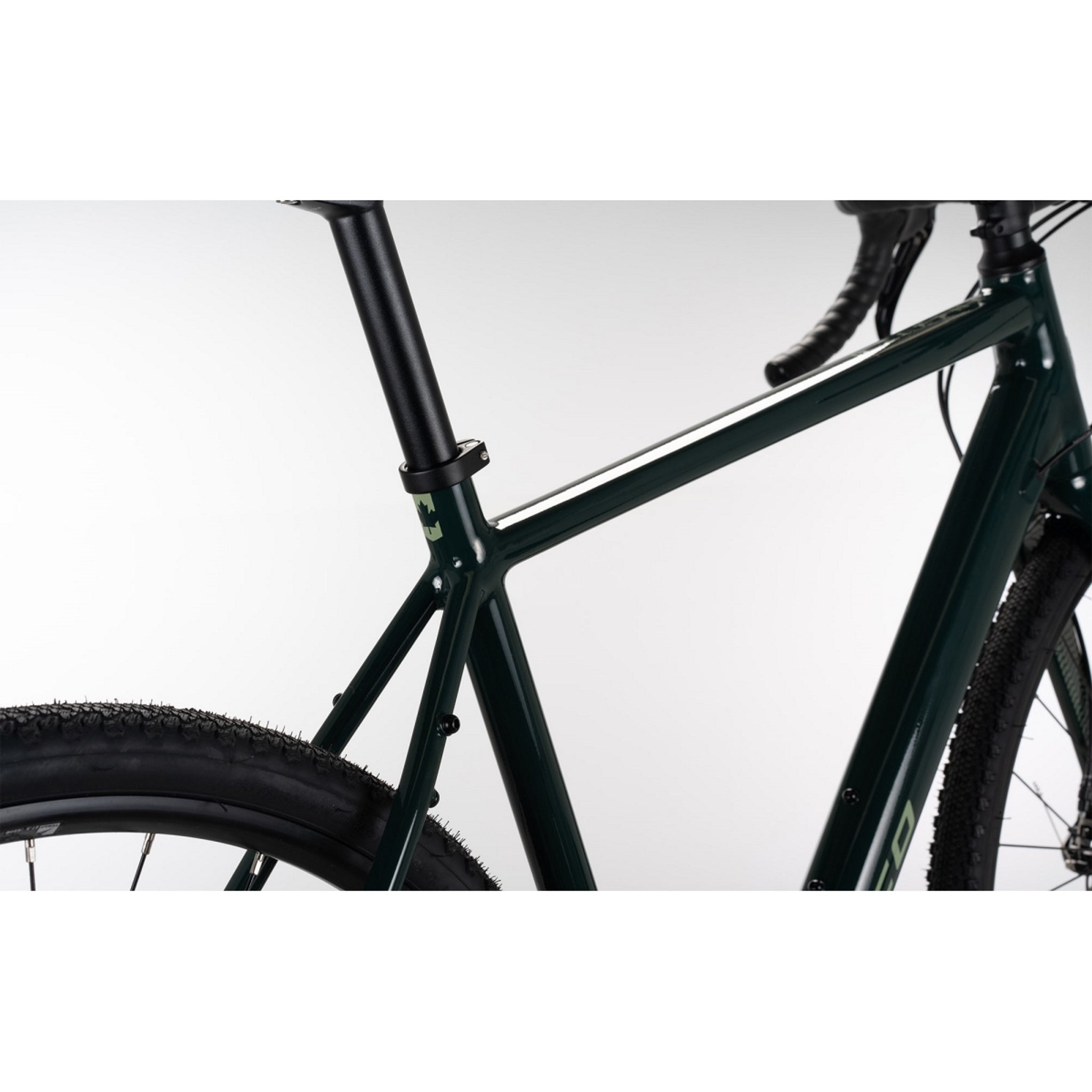

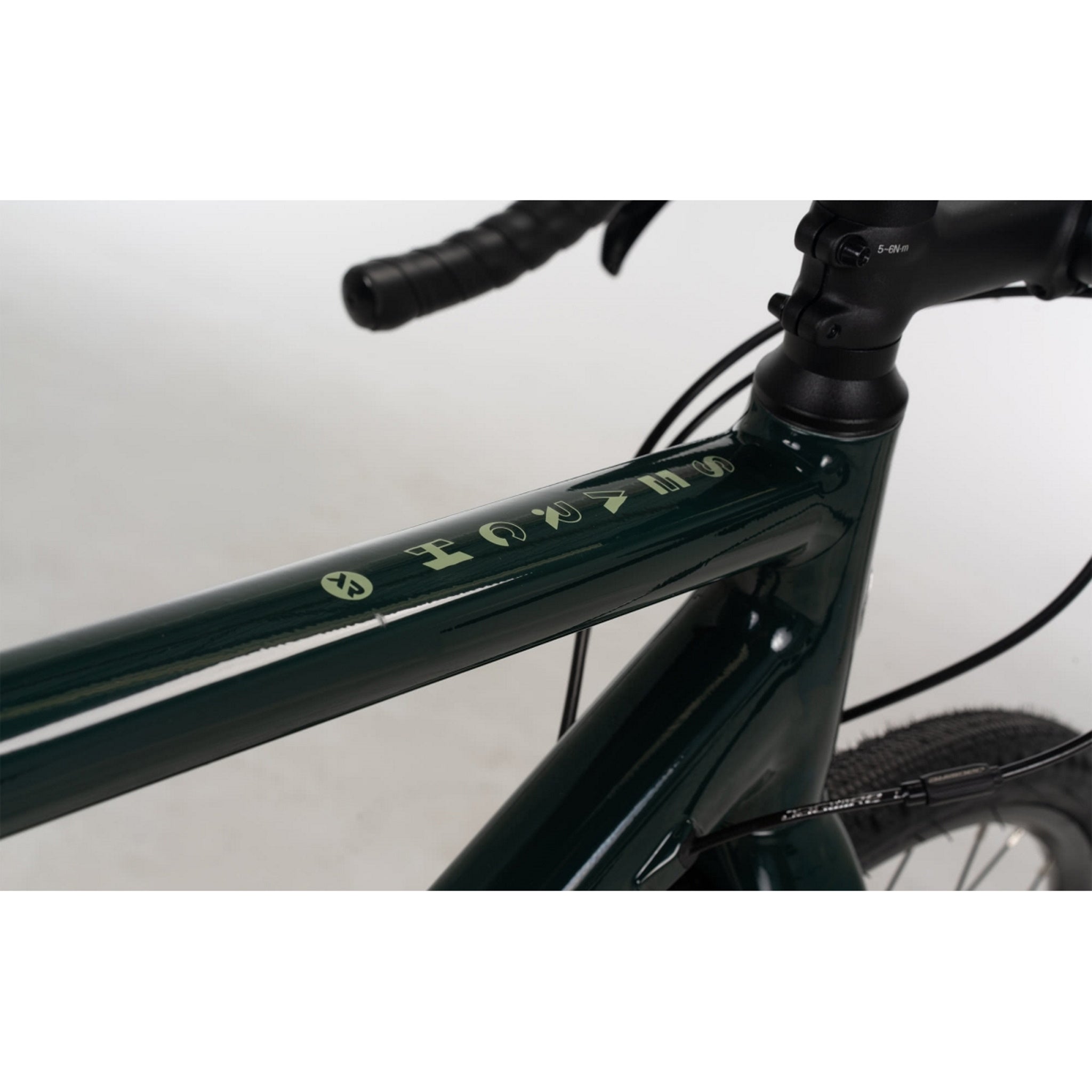

Frame

Butted X6 Aluminum

Fork

Search XR Carbon

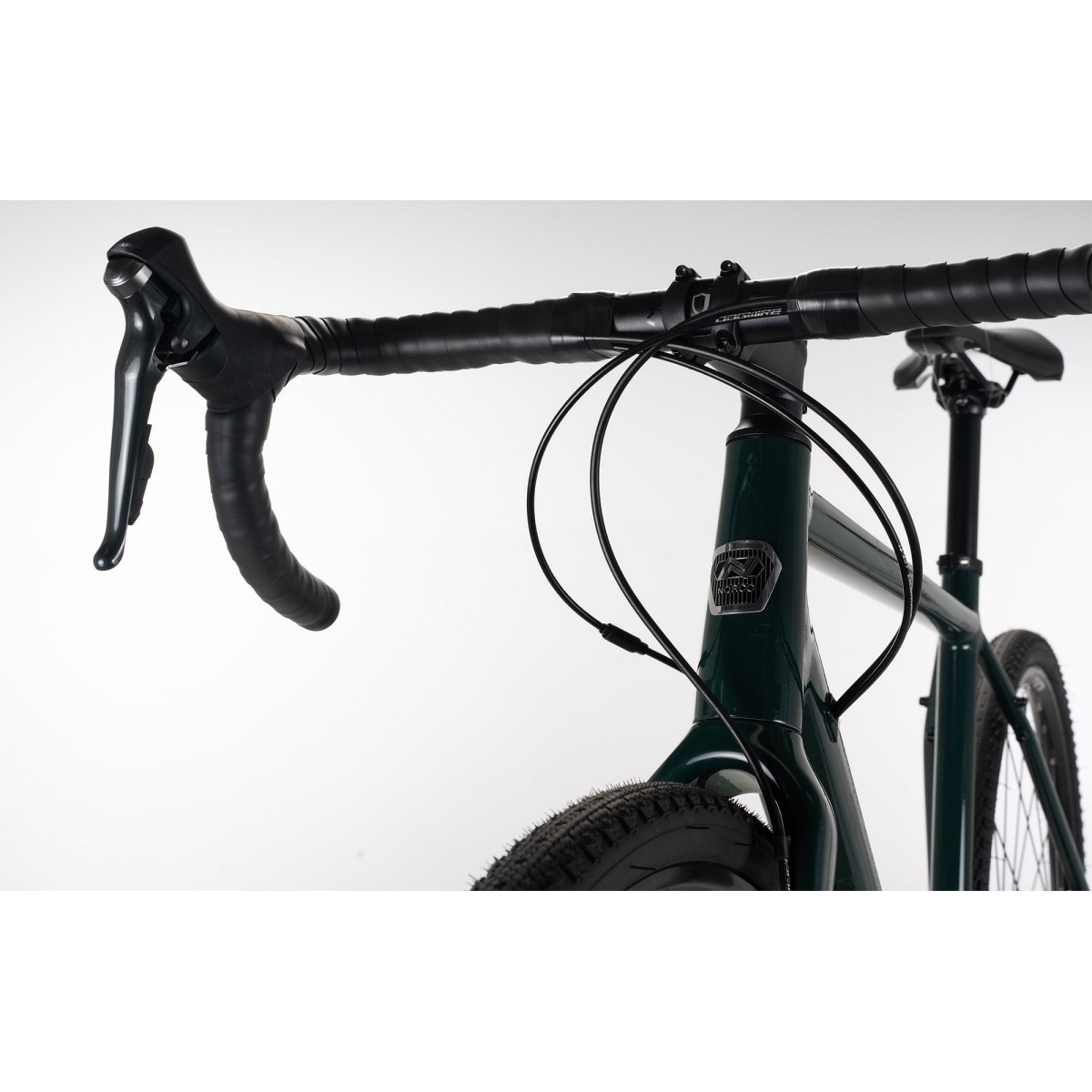

Handlebars

Norco Super Flare Aluminum, 16deg Flare, 42cm (45.5, 48, 50.5), 44cm (53, 55.5), 46cm (58, 60.5)

Headset

Integrated Sealed Bearing

Grips

Norco Griptacular Shockproof Tape

Stem

Norco SL Aluminum

Bottom Bracket

Shimano BB-RS500 PF86

Saddle

Selle Royal Vivo, Mag Rails

Seat Post

Norco Aluminum, 27.2mm

Wheels

Wheel Size

700c

Rims

WTB ST i23 TCS 2.0 32H, 650b (45.5, 48), 700c (50.5-60.5)

Hubs

FRONT: Alloy 12x100mm, 6 Bolt / REAR: Alloy 12x142mm, HG, 6 Bolt

Spokes

Sapim Leader Stainless Black

Groupset

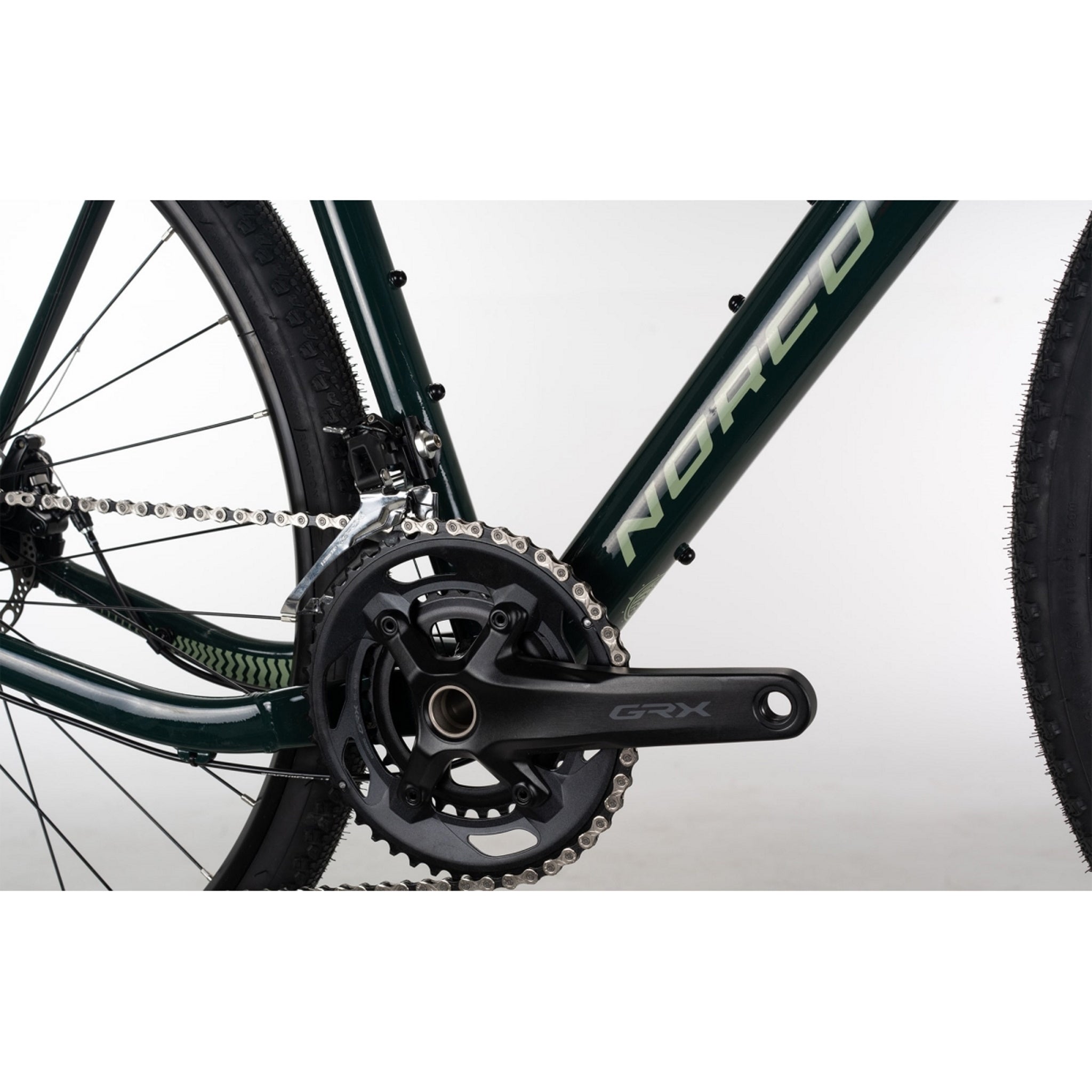

Crankset

Shimano GRX FC-RX600, 46/30T, 170mm (50.5), 172.5mm (53, 55.5), 175mm (58, 60.5)

Chain

KMC X10

Brakes

Tektro MD-C550 Dual-Piston Mechanical Disc

Front Rotor

Tektro 160mm

Rear Rotor

Tektro 160mm

Shifters

Shimano Tiagra ST-4700

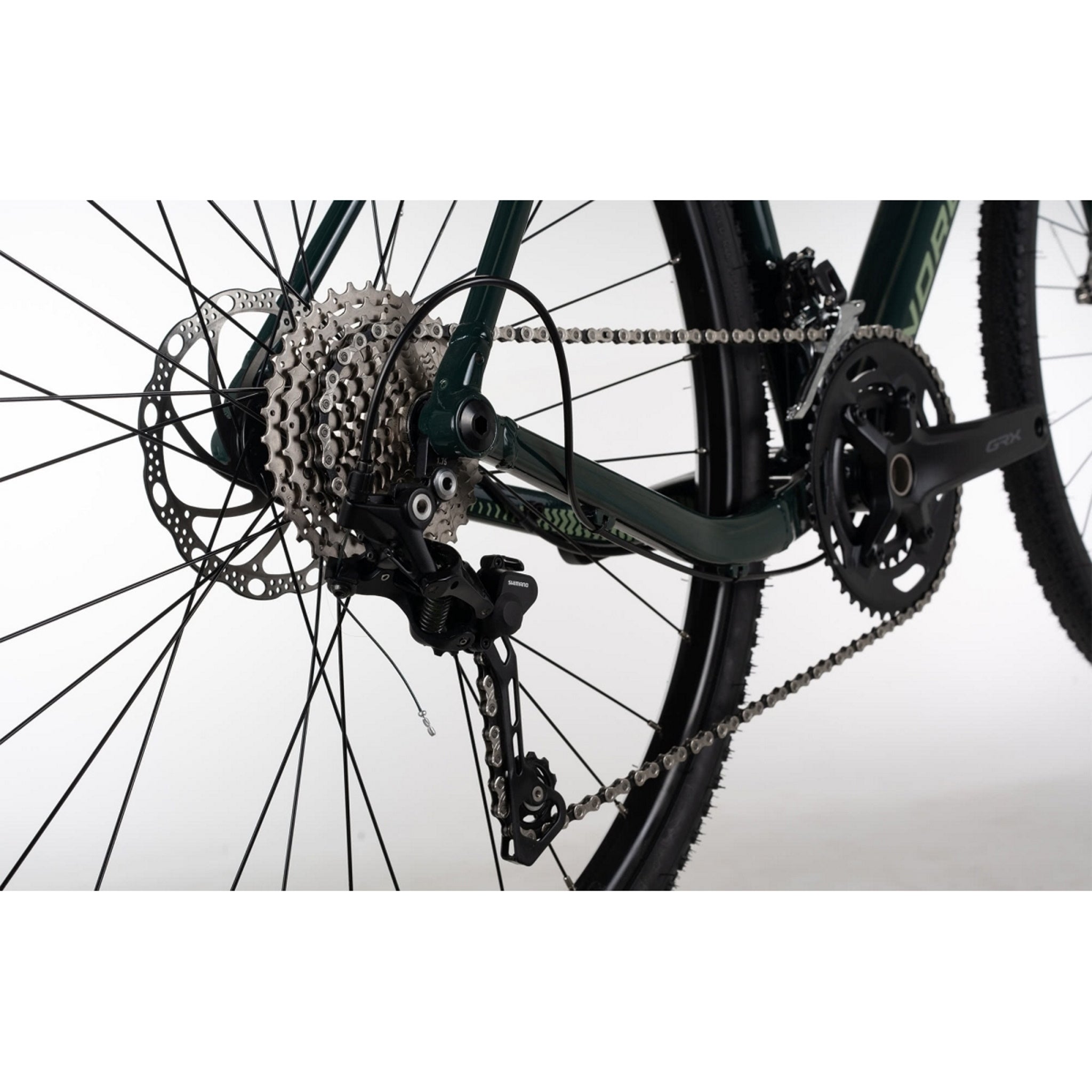

Rear Derailleur

Shimano GRX RD-RX400 Shadow RD+

Cassette

10 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Norco Search XR A2 Gravel Bike Green/Green we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
