Features

Brake type: Hydraulic disc brake
Cassette: 12 speed
Chainset type: Single
Fork brand: Rockshox
Frame material: Carbon
Front travel: 100mm
Gender: Unisex
Groupset: Sram gx eagle
Wheel size: 29

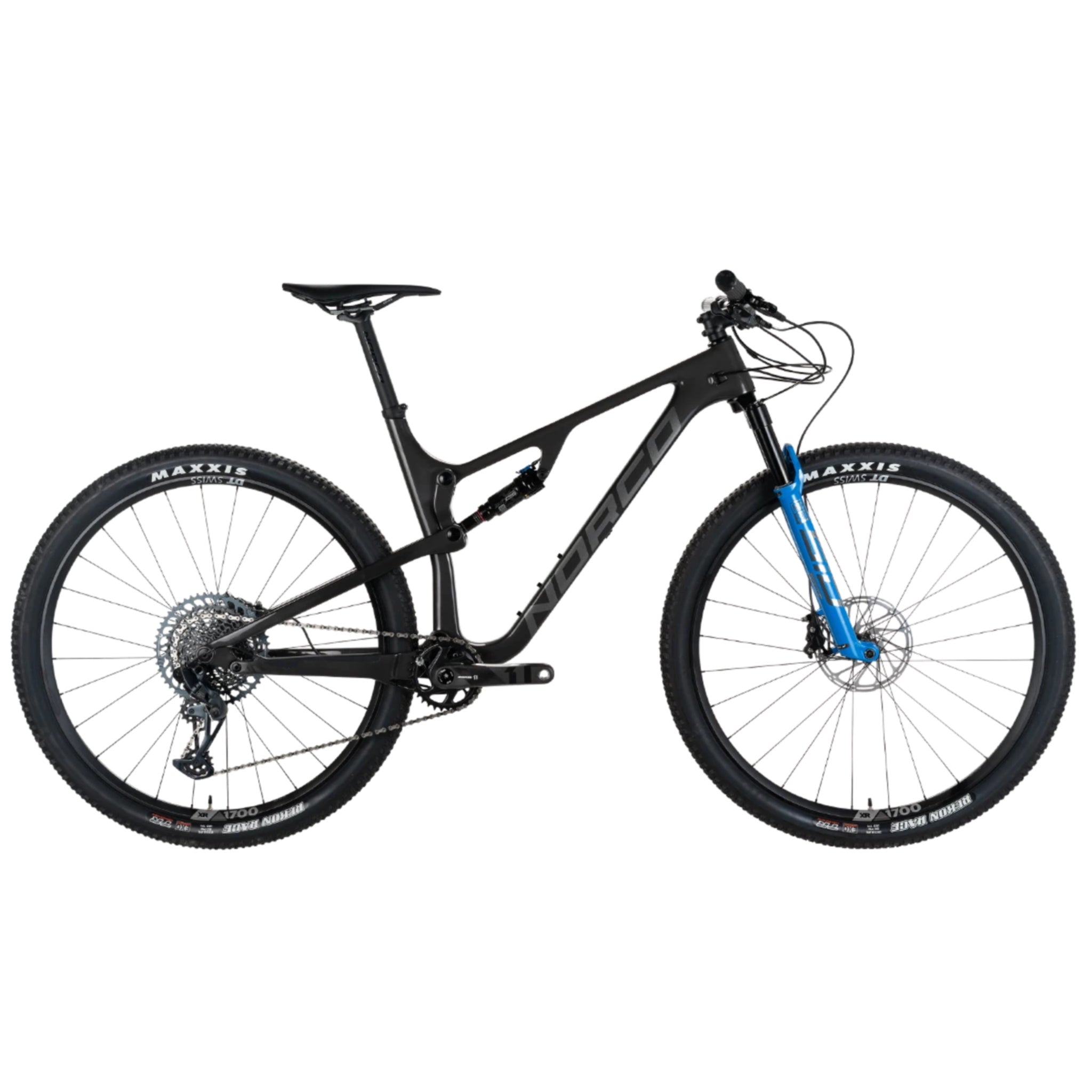

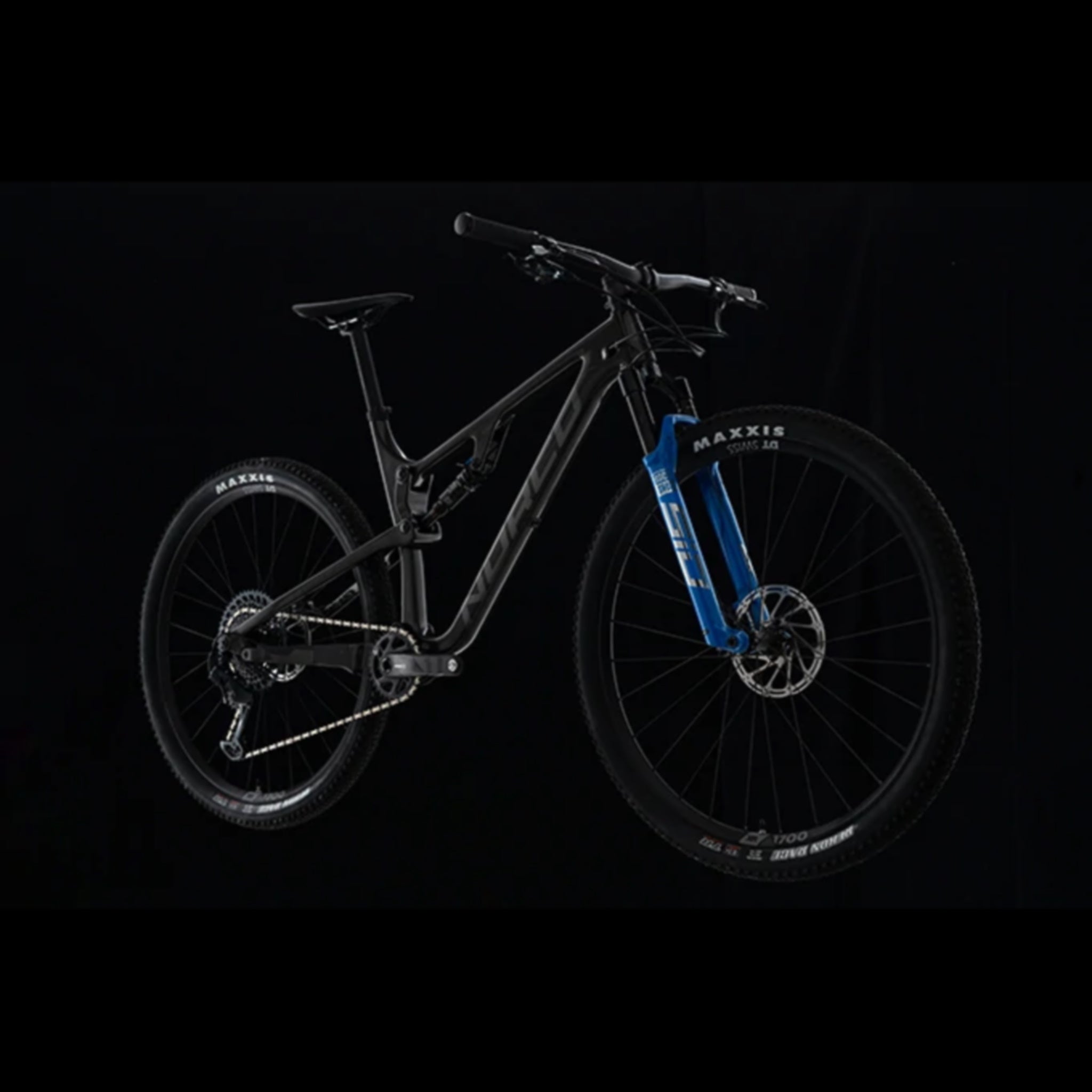

Norco Revolver FS 1 100 Cross-Country Race Bike Black/Silver

$7,279
?

You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

$7,999.99
Buy now, pay later
Clearance
SKU: NODX2160311925 Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Ride Aligned™ XC Hi-Mod Carbon Frame

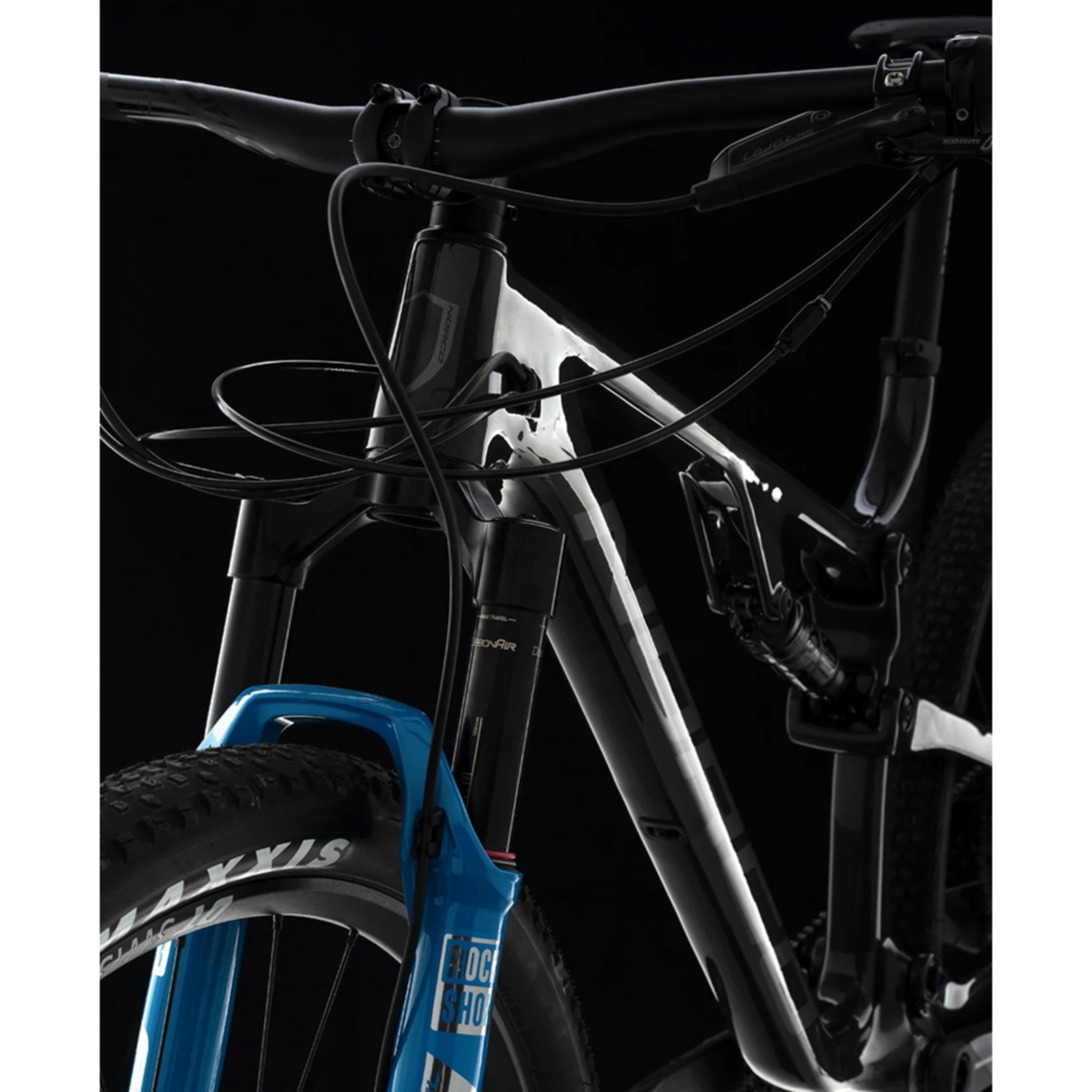

  • RockShox SID SL Ultimate 100mm fork
  • RockShox SIDLuxe Select+ RLR shock, remote lockout

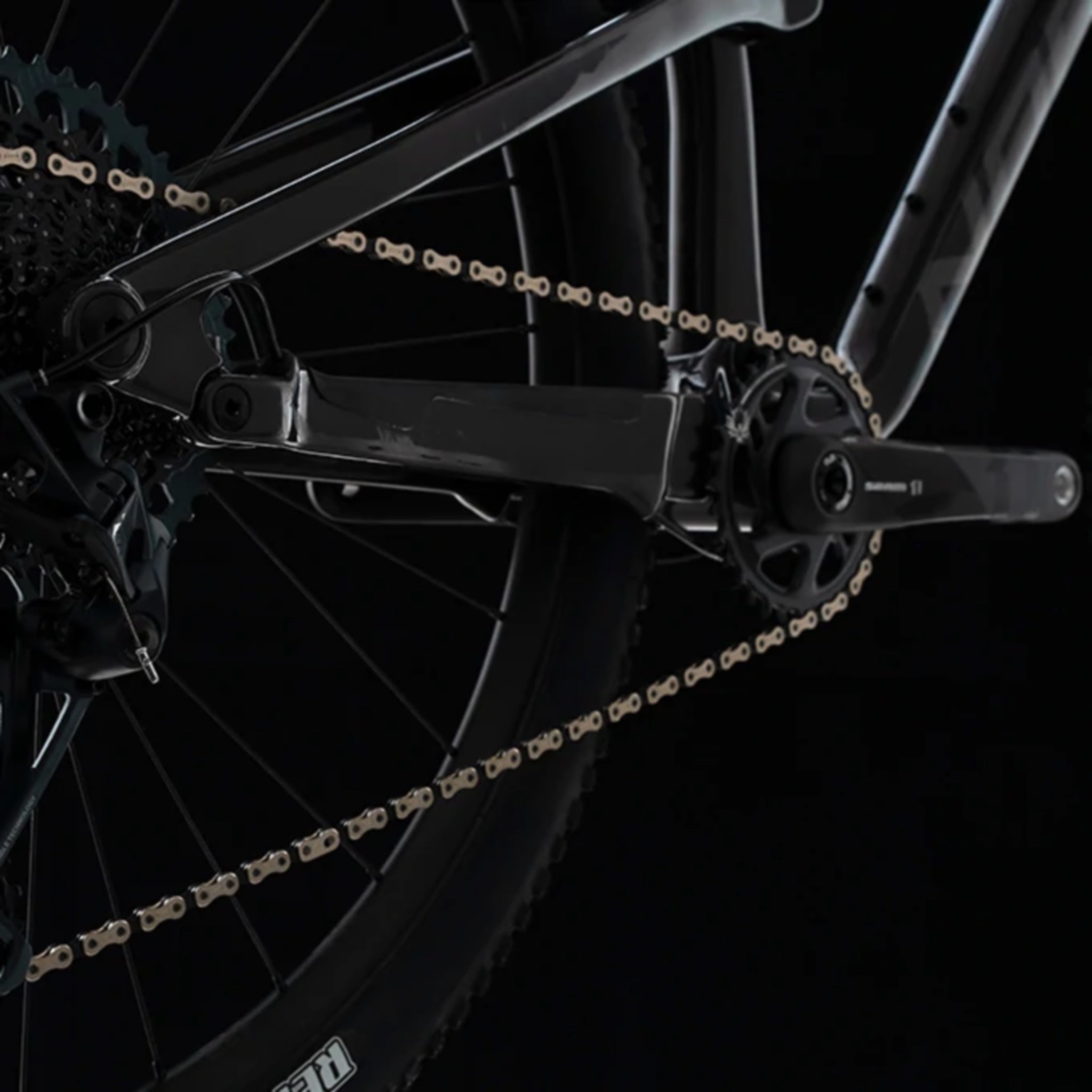

  • SRAM GX Eagle 1 X 12 Speed Drivetrain
  • SRAM Level TLM Hydraulic Disc Brakes
  • DT Swiss XR 1700 Spline 29" Wheelset
  • Maxxis Rekon Race 2.25" 3C/EXO Tubeless Tyres
The Revolver FS 1 100 is a crazy fast, no compromise XC race bike that makes the most of every pedal stroke and charges descents on all types of terrain. The Norco Factory XC Team redefined XC performance with the Revolver FS 1 100, the perfectly dialed hi-mod Carbon frame optimizes pedaling efficiency, while the Ride Aligned™ XC geometry maximizes grip and support with carefully tuned weight distribution, greatly reducing rider fatigue by minimizing the need for weight shifts through varying terrain. A 68.5-degree head angle and 60mm stem creates a low, forward riding position for powerful, efficient pedaling, maximum traction, and a front end that stays on the ground when the going gets steep. Norco’s Ride Aligned™ suspension pairs a RockShox SID SL Ultimate 100mm fork with a RockShox SIDLuxe Select+ RLR shock with remote lockout, ensuring that every precision-tuned millimeter of suspension travel is perfectly utilized on every part of today's technically demanding XC courses.
Axles: FRONT: 15x110mm / REAR: 12x148mm
Bottom bracket: SRAM BB DUB PF92
Brakes: SRAM Level TLM, Organic Pads
Chain: SRAM GX Eagle
Crankset: SRAM X1 Eagle DUB Carbon, 32T, 170mm (S), 175mm (M, L, XL)
Derailleur rear: SRAM GX Eagle
Fork: RockShox SID SL Ultimate, 100mm, 44mm Offset

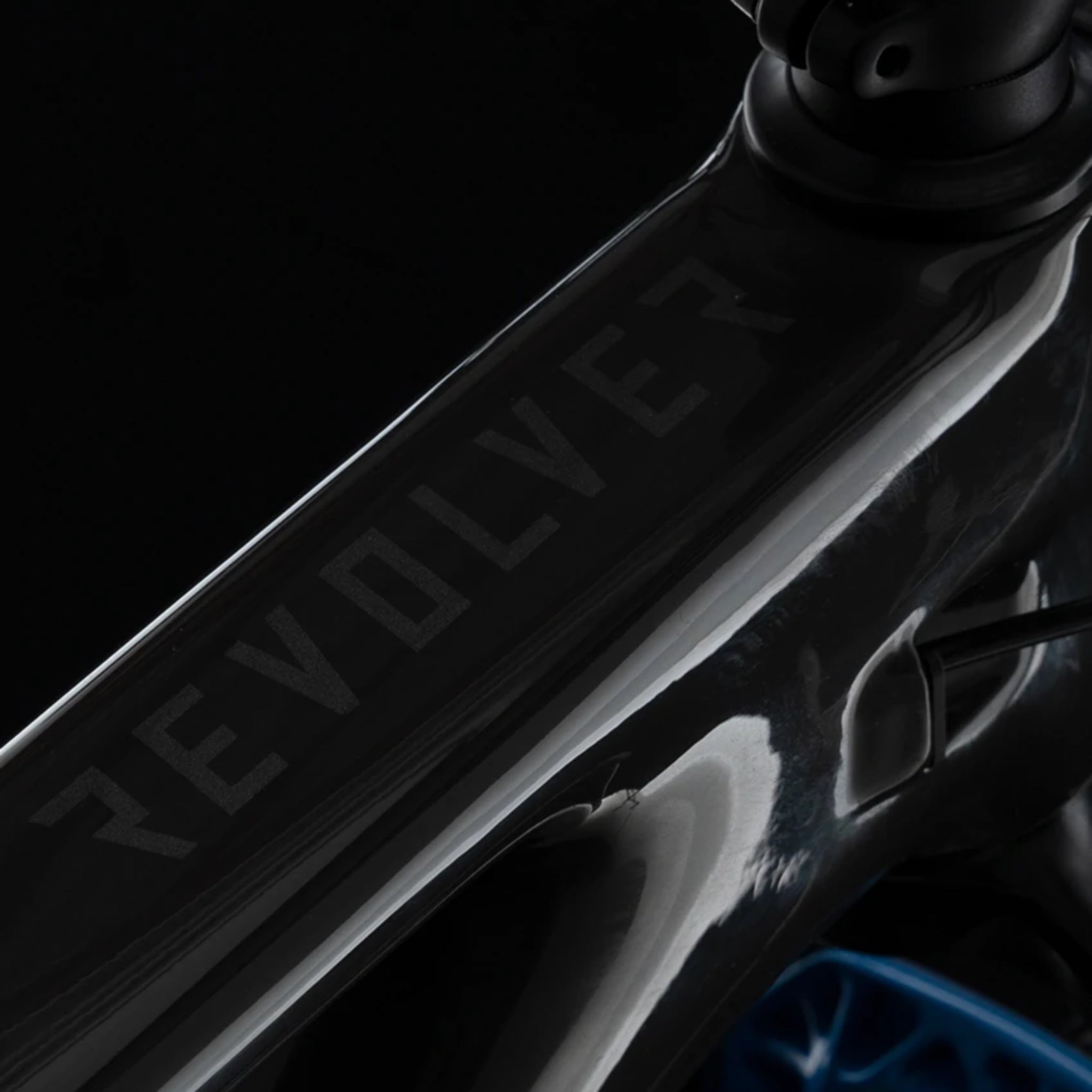

Frame: Hi-Mod Carbon, 100mm
Freewheel: SRAM XG1275 Eagle, 10-52T Cassette
Grip: SRAM

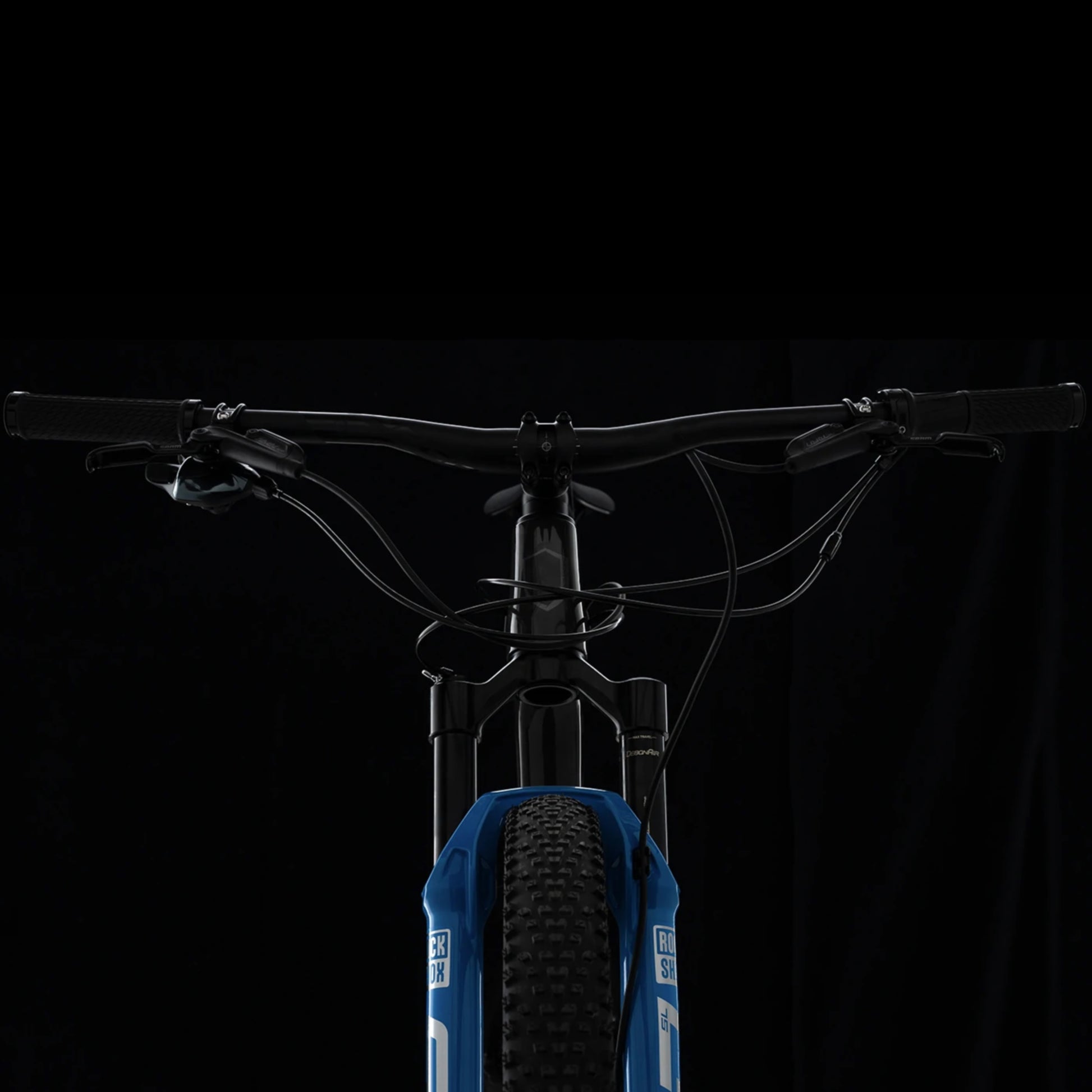

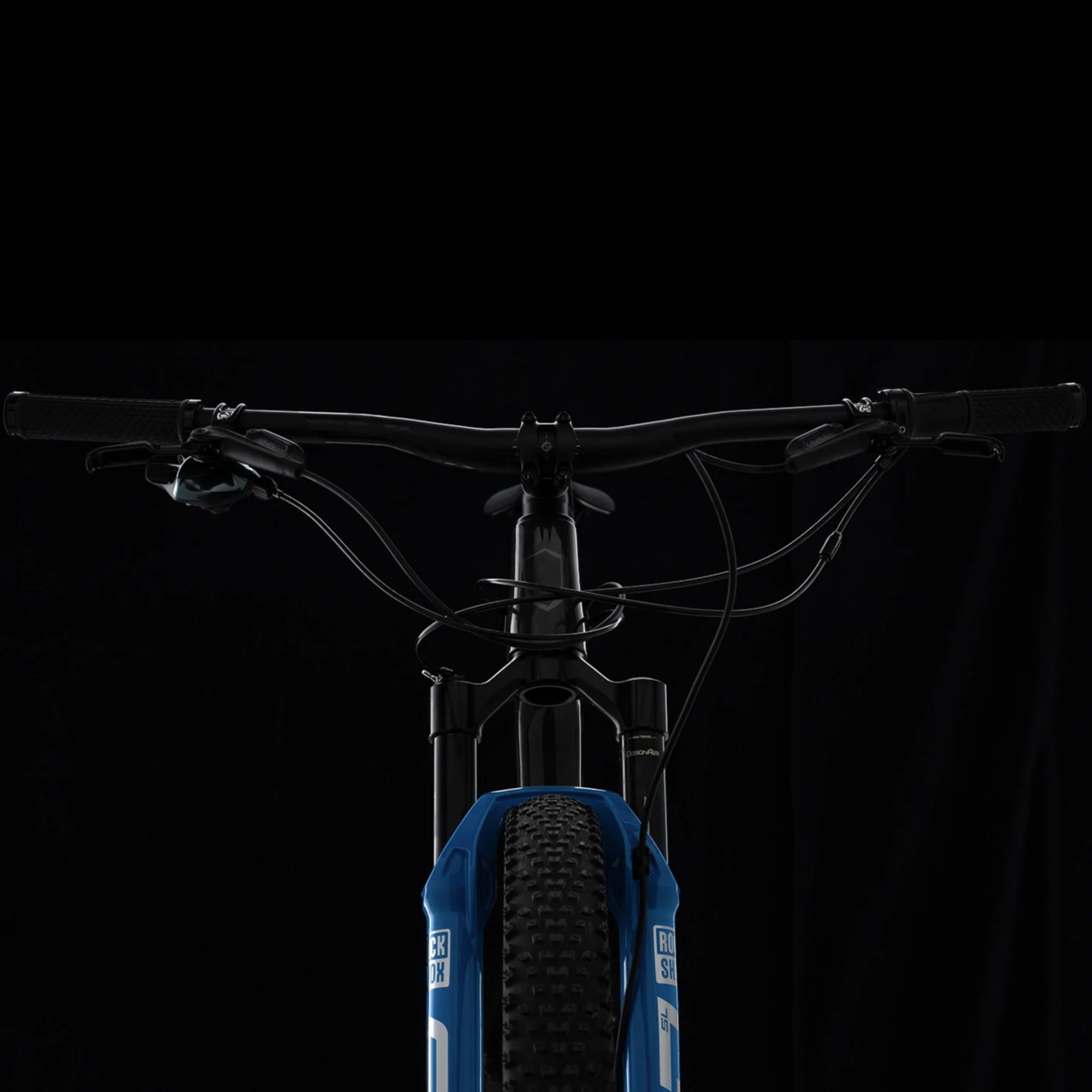

Handlebar: Butted Alloy Lite, 760mm, 15mm Rise
Handlebar stem: Norco SL Alloy Stem, 60mm Length, 31.8mm Clamp
Headset: FSA Internal Cartridge Bearing
Hubs: FRONT: DT Swiss XR 1700 Spline, 15x110mm Boost, 6 Bolt / REAR: DT Swiss XR 1700 Spline, 12x148mm Boost, XD, 6 Bolt
Rim: DT Swiss XR 1700 Spline 29" Wheelset
Rotor front: SRAM Centerline, 180mm

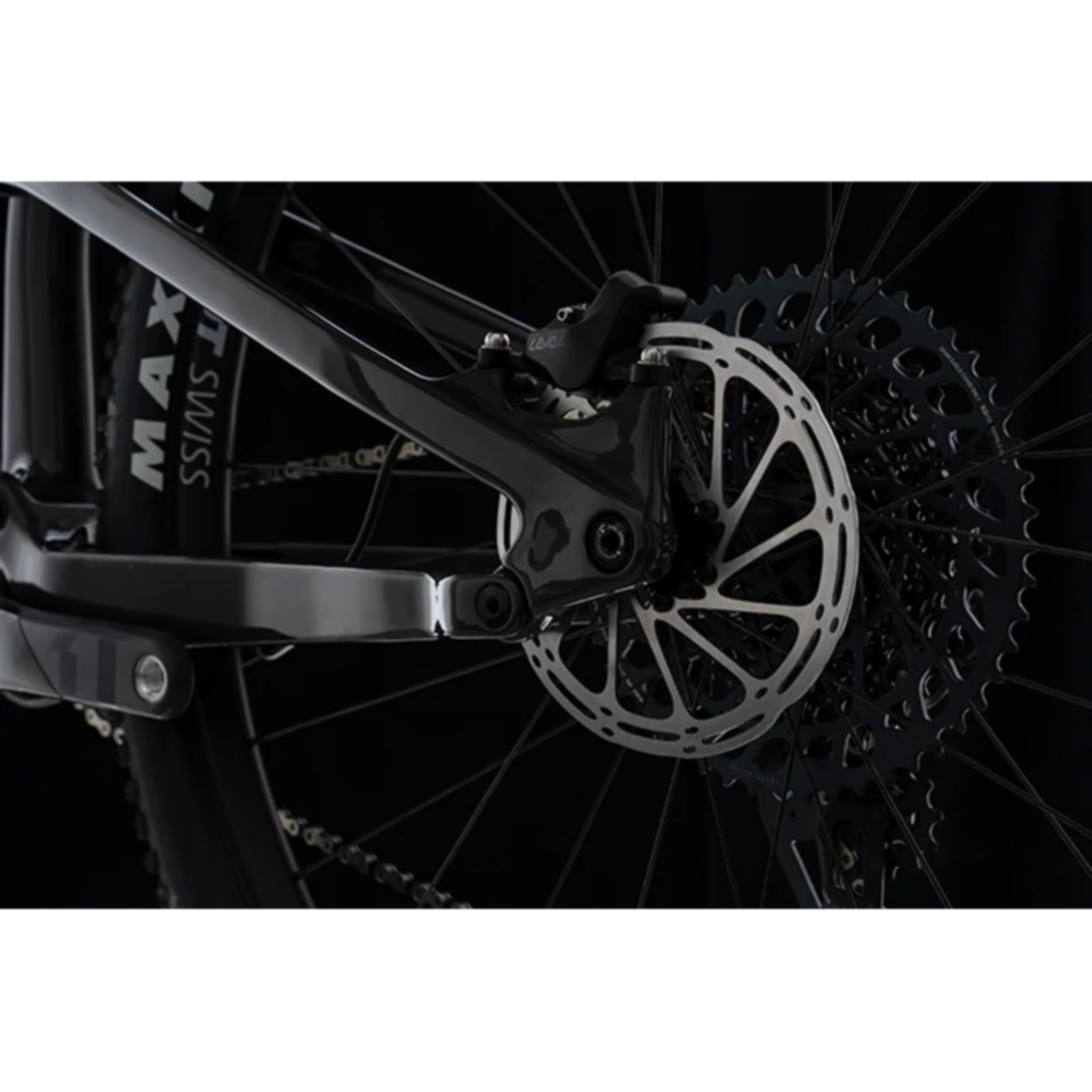

Rotor rear: SRAM Centerline, 160mm
Saddle: Norco SL Race, Chromo Rails, Black
Season: 2023
Seat post: Norco SL Alloy, 31.6mm

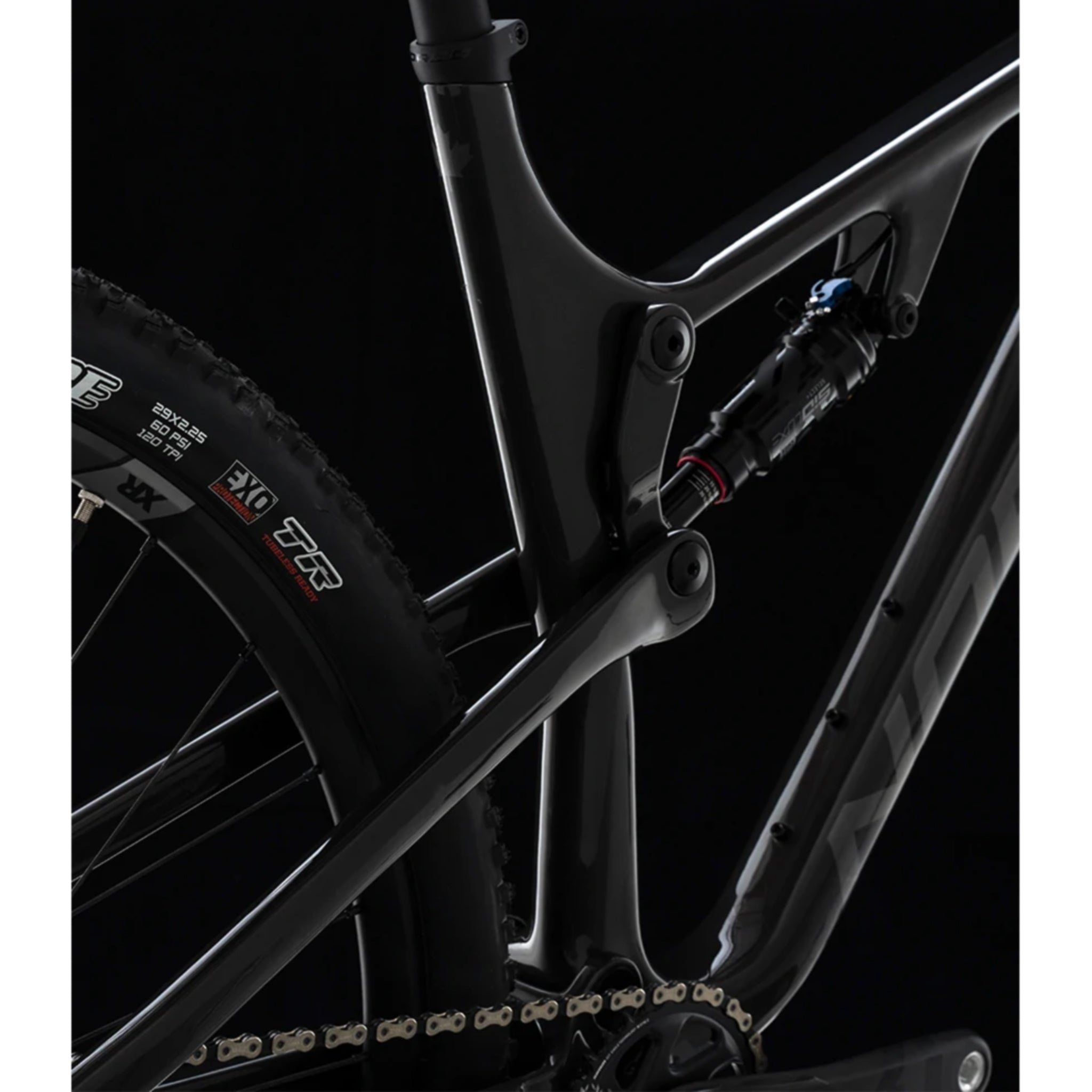

Shock: RockShox SIDLuxe Select+ RLR, Remote, 190x37.5mm
Spokes: DT Swiss Competition Straight Pull
Tyre front: Maxxis Rekon Race 2.25" 3C/TR/EXO / Stan's Universal 35mm Presta Valve Stem
Tyre rear: Maxxis Rekon Race 2.25" 3C/TR/EXO / Stan's Universal 35mm Presta Valve Stem
Wheel size: 29"
S / 16.5"M / 17.5"L / 19"XL / 20"
29"29"29"29"
Travel (mm front/mm rear)
100/100
Reach
430460490520
Stack
579579588597
HTA Head Tube Angle
68.5
OS Fork Offset
51
ST Seat Tube Length
425440485510
STA Effective Seat Tube Angle
76
RC Rear Centre Length
420423.3426.7430
BB Bottom Bracket Drop
40
BBH Bottom Bracket Height
333
HTT Horizontal Top Tube
574604637669
WB Wheelbase
1115114811851222
SOH Standover
700708708717
HT Head Tube Length
9090100110
Trail
92
Recommended Seatpost Drop
125150170170
Maximum Post Insertion
180200250250
Stem Length
60
Crank Length
170175175175
Tire Size
2.0" - 2.35"
Water Bottle Compatible
1 x 750ml

Video is for model reference, actual specs may differ, please refer to specifications tab

Norco Cross Country Bike Sizing Chart

Norco Bicycles was founded in 1964 with the idea of getting more people on bicycles. Over the past 50 years this philosophy has moved from it's Canadian beginnings and can now be found in more than 25 countries. Norco as a business has always focused on the people. Cycling is at the root of Norco and being passionate about the products that they design, and ride has made for continued innovation and world class products. 50 years and counting.
