Features

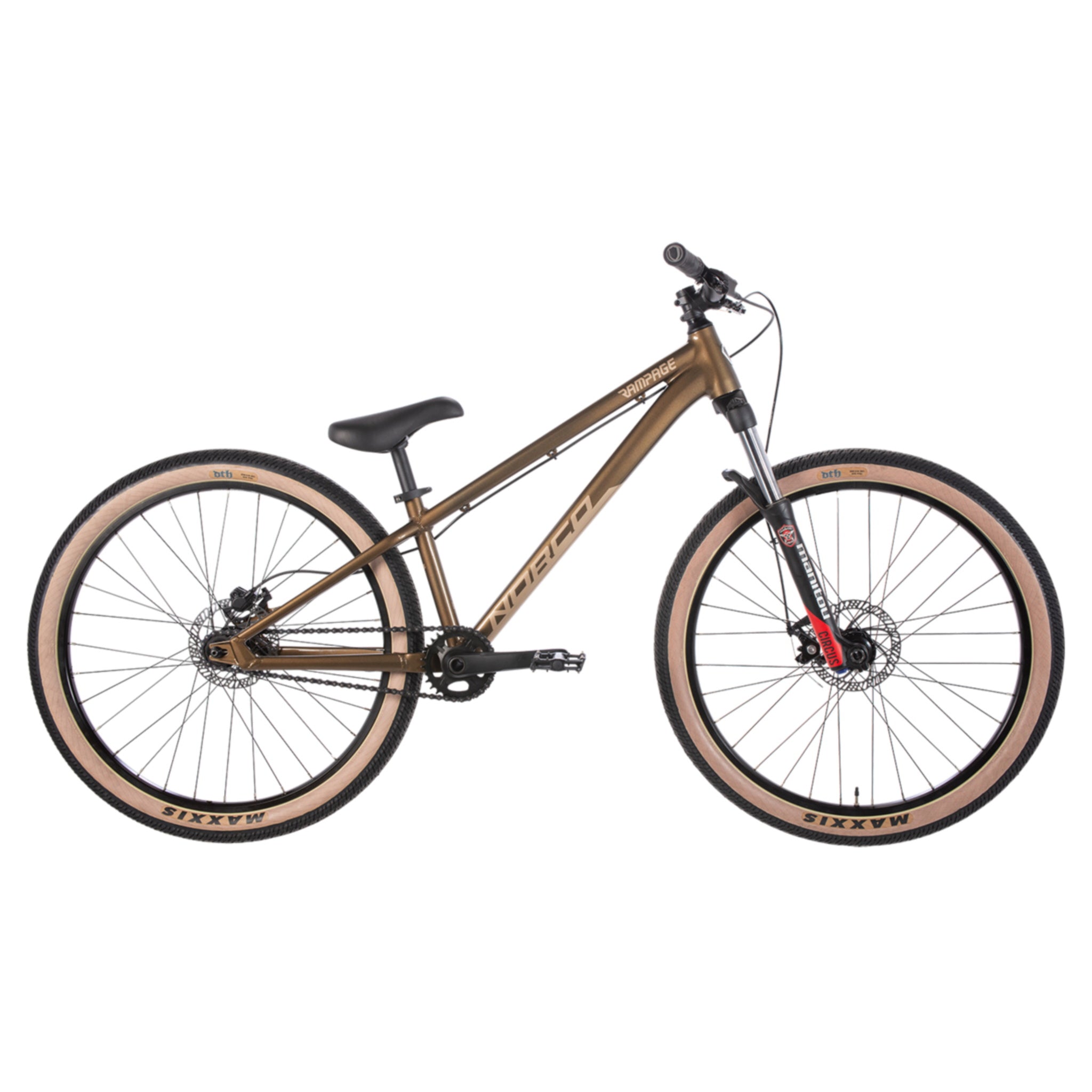

Norco Rampage 1 Dirt Jump Bike Brown/Tan
5% Best Price Guarantee
If you find a cheaper price, we will beat it by 5%*
- Applies to any cheaper price found in New Zealand.
- When the competitor's final price inclusive of any taxes and delivery fees.
- Excludes Garmin products, other exclusions apply.
Perfect Ride Guarantee
If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »
Free Bike Build
We'll build your bike for free when you click and collect at any 99 Bikes store.
First Free Tune-up
Every bike come with a complimentary free tune-up and safety check. Learn more »
- Premium Dirt Jump Bike purpose-built for big air
- Evolved frame design pushes rider potential
- Lightweight aluminum frame built to last
- Handpicked jump-specific components
| Brakes: | FRONT: Tektro MD-280 160mm Mech Disc / REAR: Tektro HD-M286 Hydraulic 160mm |
|---|---|
| Chain: | KMC Z1 natural black 1/2 x 3/32" single speed chain |
| Crankset: | Two Pc Samox 170mm |
| Fork: | Manitou Circus Comp 100mm/15mm |
| Frame: | Aluminum X6 DJ 26" |
| Grip: | Norco Grip w/small flange |
| Handlebar: | Norco 25mm rise 6061 DB alloy 780mm |
| Handlebar stem: | Alloy 45mm Stem 31.8mm bar bore w/4 bolt front clamp |
| Headset: | FSA No 42 ACB 1.5" to 1-1/8" w/black FSA logos |
| Hubs: | FRONT: Novatec 100x15 sealed bearing disc hub / REAR: Novatec alloy sealed bearing 32H, w/14T single speed cassette |
| Pedals: | VP 539 resin BMX flat pedal with metal pins |
| Rim: | Alex MUS 30 |
| Rotor front: | 160mm |
| Rotor rear: | 160mm |
| Saddle: | Norco / Pivotal thick padded with grip cover |
| Season: | 2021 |
| Seat clamp: | Norco Alloy QR |
| Seat post: | Kue Q pivotal stealth II design alloy 27.2 x 200mm 6061 aluminum |
| Spokes: | Stainless Steel 14g - Black |
| Tyre front: | Maxxix DTH folding bead 26"x 2.3 65 PSI |
| Tyre rear: | Maxxix DTH folding bead 26"x 2.3 65 PSI |
| Wheel size: | 26" |
| S | M | L | |
|---|---|---|---|
| Wheel Size | 26" | 26" | 26" |
| Travel (mm front) | 100 | ||
| Reach | 380 | 405 | 430 |
| Stack | 559 | 564 | 569 |
| Head Tube Angle | 69.0 | ||
| Fork Offset | 40 | ||
| Seat Tube Length | 300 | ||
| Effective Seat Tube Angle | 73.0 | ||
| Rear Centre Length | 389 | ||
| Bottom Bracket Rise/Drop | -20 | ||
| Bottom Bracket Height | 322 | ||
| Horizontal Top Tube | 551 | 577 | 604 |
| Wheelbase | 1018 | 1045 | 1072 |
| Standover | 581 | 576 | 577 |
| Head Tube Length | 110 | 115 | 120 |
| Trail | 88 | ||
| Stem Length | 35 | ||
| Crank Length | 170 | ||
| Tire Size | 2.0-2.3" | ||
Norco Rampage Bike Sizing Chart
Norco Bicycles was founded in 1964 with the idea of getting more people on bicycles. Over the past 50 years this philosophy has moved from it's Canadian beginnings and can now be found in more than 25 countries. Norco as a business has always focused on the people. Cycling is at the root of Norco and being passionate about the products that they design, and ride has made for continued innovation and world class products. 50 years and counting.
Click & Collect Available
• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »
No Courier Delivery
• This item is unavailable to be shipped with a courier More info »
Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
