Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

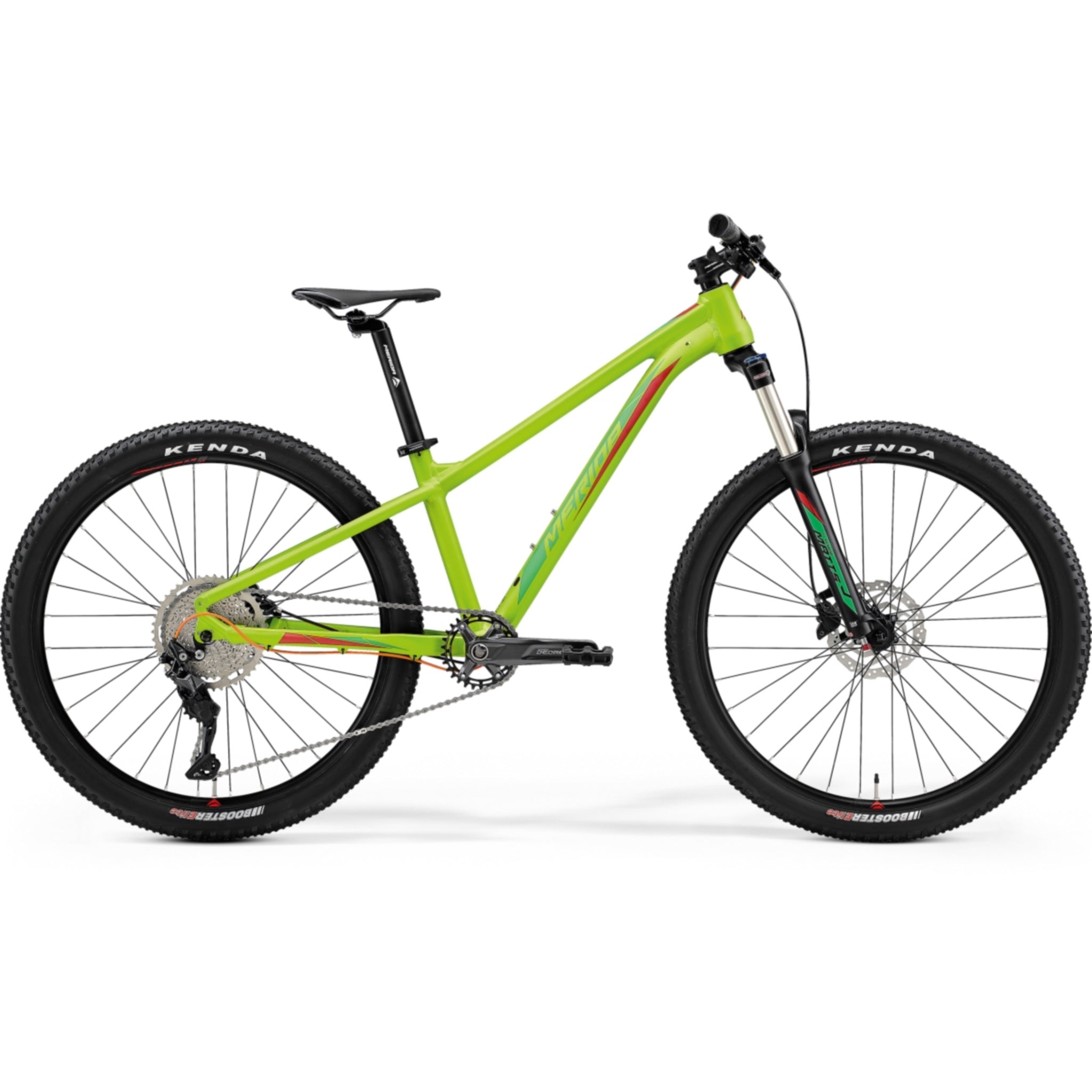

- Lightweight 6061 race light aluminium frame
- XS 13.5'' adults frame with 26'' wheels, upgradeable to 27.5”
- Shimano Deore 1x10 Speed Drivetrain
- Suntour XCR32 LOR 100mm front fork
- Tektro Hydraulic Disc Brakes
|Bottom bracket:||FSA TH-7420ST-W Cartridge Bearing|
|Brakes:||Tektro HD-M275 2 piston|
|Chainwheel:||Shimano Deore M5100 / 30 teeth / 170 mm|
|Colour (text):||SILK GREEN (GREEN/RED)|
|Derailleur rear:||Shimano Deore M5120 Shadow+|
|Fork:||Suntour XCR32 LOR|
|Frame:||MATTS J. 26 Alloy|
|Freewheel:||Shimano Deore M4100 / 11-46 teeth /10 speed|
|Grip:||MERIDA EXPERT JR|
|Handlebar stem:||MERIDA CC|
|Rotor front:||Shimano RT10 160mm|
|Rotor rear:||Shimano RT10 160mm|
|Saddle:||MERIDA EXPERT JR|
|Seat clamp:||MERIDA COMP QR|
|Seat post:||MERIDA CC|
|Shifters:||Shimano Deore M4100|
|Tyre front:||MERIDA K1227 / 26x2.2" fold|
|Tyre rear:||MERIDA K1227 / 26x2.2" fold|
|Weight:||12.13 kg / Max Rider Weight: 135 kg|
|ST seat tube [mm]||343|
|TT top tube [mm]||555|
|CS chain stay length [mm]||430|
|HTA head tube angle [°]||70.5|
|STA seat tube angle [°]||73.3|
|BD bottom bracked drop [mm]||45|
|HT head tube [mm]||95|
|FL fork length [mm]||490|
|R reach [mm]||383|
|S stack [mm]||582|
|WB wheel base [mm]||1045|
|SH stand over height [mm]||636|
Merida Matts Bike Sizing Chart
Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.
The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
