$1501 Off Full Price

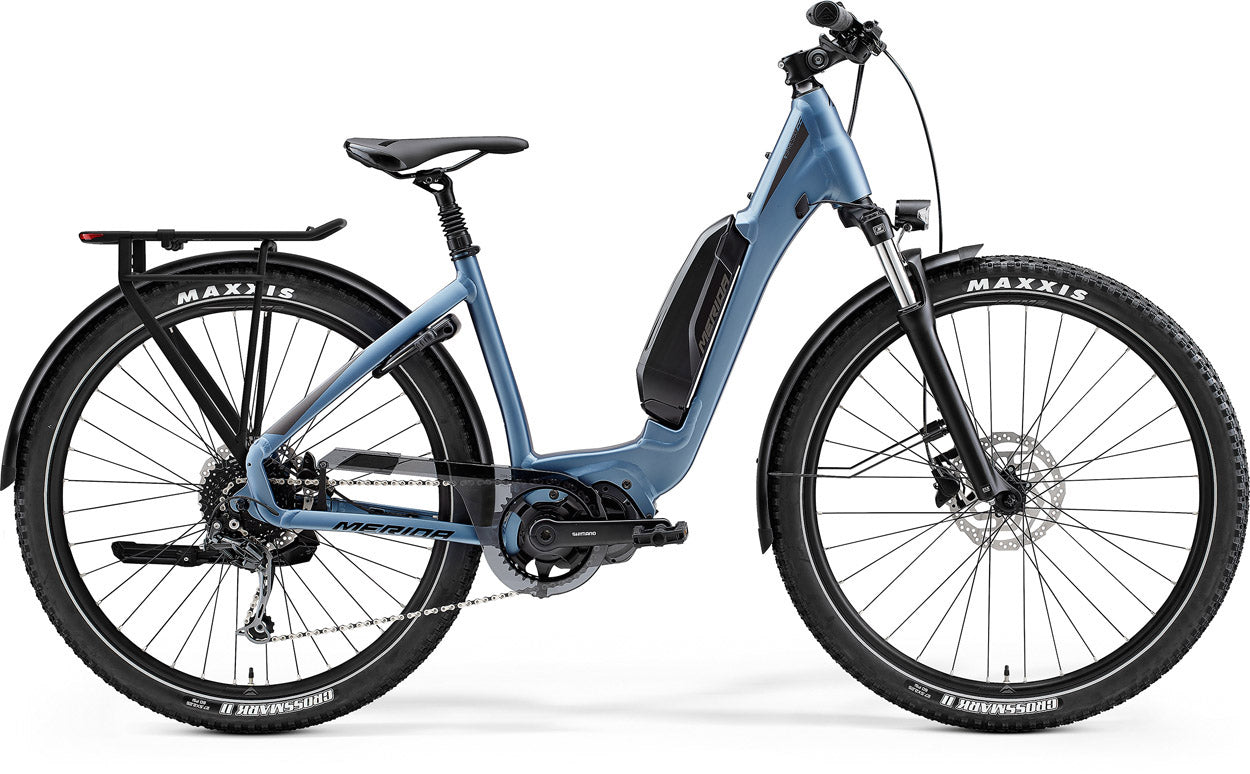

Merida Espresso CC 400 SE EQ Electric Bike 504wh Battery Silk Black/Steel Blue

Merida Espresso CC 400 SE EQ Electric Bike 504wh Battery Silk Black/Steel Blue

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 73 km Range

Shimano STePS E6100 Motor

Alloy Frame/ Suntour Alloy Fork

under 100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eSpresso CC 400 SE EQ is a versatile electric town bike that pairs Shimano’s reliable touring and commuter focused E6100 drive unit with a powerful Shimano E8010 battery, built around a comfort focused frame design. The forged motor bracket and mid-mounted motor offer one of the lowest step-through heights on the market, this provides a low centre of gravity for an extremely stable ride and precise handling. With the addition of a chainguard and full mudguards, wear any clothing without worrying grime or snags. 650b (27.5”) wheels are fitted with big volume Maxxis Crossmark II tyres to provide colossal levels of puncture protection and traction. The 80mm travel Suntour NVX30 front fork means rolling over bumps, curbs and potholes are a breeze. Shimano Hydraulic Disc Brakes offer precise brake control in any weather conditions. Cables are internally routed, and the EQ means this bike comes equipped with lights, a kickstand, rear rack, mudguards and Abus frame lock.

Key Features

Shimano E6100 drive unit
504Wh Shimano E8010 battery
Low step-through frame design
80mm travel front fork
Equipped with lights and rear rack

Specifications

Product Overview

Product

Merida Espresso CC 400 SE EQ Electric Bike 504wh Battery Silk Black/Steel Blue

Brand

Merida

Parent SKU

Z6G6BTKR

Size SKUs

SM: MEEB2166961
MD: MEEB2166972
LG: MEEB2166983

Matrix Barcodes

SM: 4710949798437
MD: 4710949798420
LG: 4710949798413

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

under 100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

504

Battery

Shimano E8010 504Wh / BATTERY LOCK Abus Key

Max. Range (KMs)

Display

Shimano SC-E5000

Build

Frame

eSPRESSO LITE 650 material: aluminium 27,5x2,25 max. wheelsize 135x9mm axle standard external max. 504 Wh

Fork

Suntour NVX30 DS Coil 80mm suspension travel 27,5x2,4" max wheelsize

Handlebars

MERIDA EXPERT TK material: aluminium 660mm width 15mm rise

Headset

MERIDA 2346 Neck

Stem

MERIDA EXPERT CT material: aluminium 31.8mm diameter adjustable 90 mm-XS/S/M, 110 mm-L/XL

Saddle

MERIDA EXPERT TK V-mount

Seat Post

MERIDA EXPERT TK 30.9mm diameter 15mm setback 40mm seatpost suspension travel

Accessories

CARRIER: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light / KICKSTAND: Massload CL-KA100K-Mount

Wheels

Wheel Size

27.5" (650b)

Rims

MERIDA COMP TK 20mm inner width material: aluminium

Hubs

FRONT: Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock / REAR: Shimano TX505 135x9mm width rear hub 36 spoke holes Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FC-E6100 170 mm

Chain

KMC e9S

Brakes

Shimano MT-200 2 piston

Shifters

REAR: Shimano Alivio M3100

Rear Derailleur

Shimano Deore M592 SGS

Cassette

9 Speed

Disclaimer
