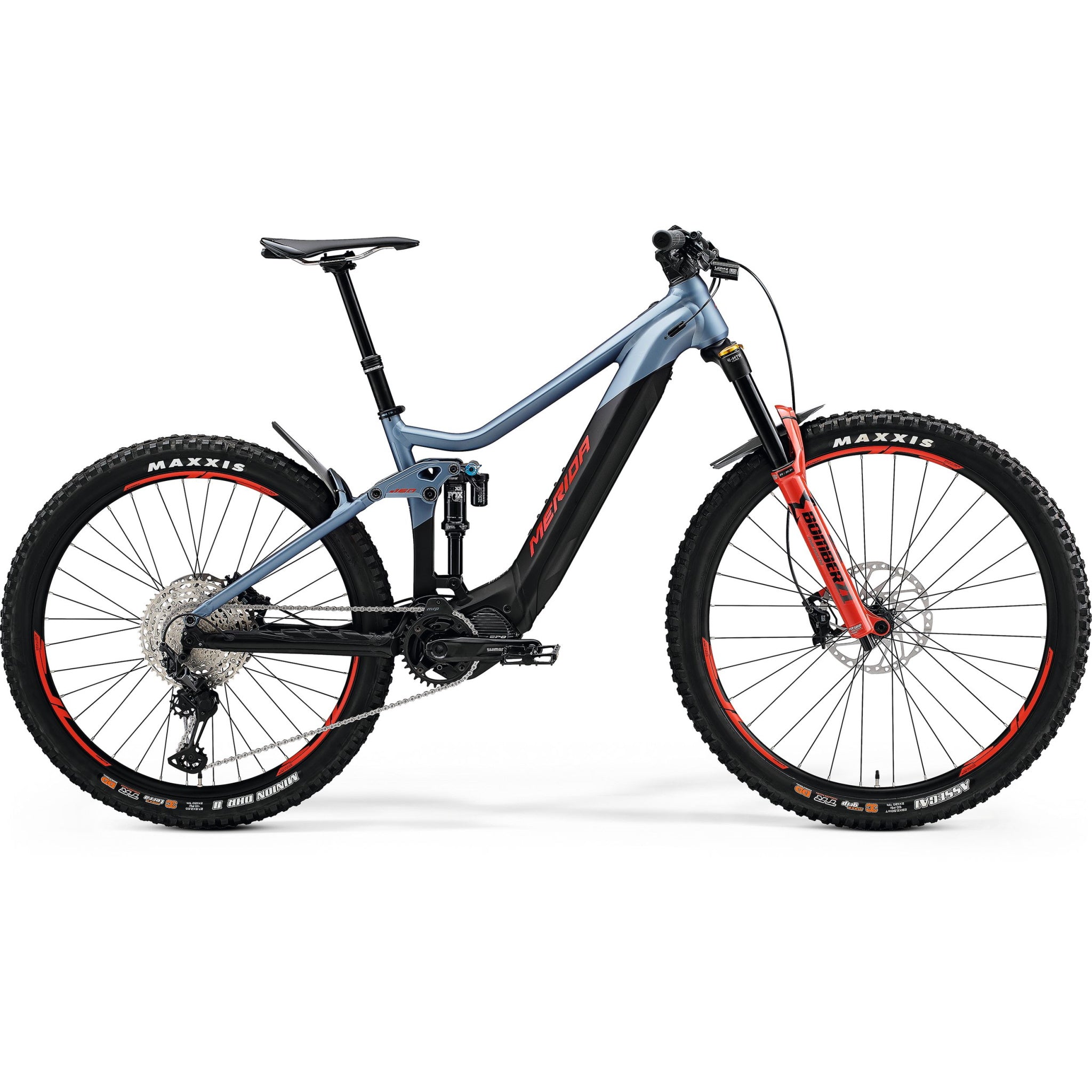

Merida eOne Sixty 700 Electric Enduro Bike 630wh Battery (XS/504wh) Matt Steel Blue/Black

Brand: Merida

SKU: Select a size

Size: Select a size

MD XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 63 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Marzocchi Alloy Fork

160mm Front Travel / 150mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The new eOne Sixty 700 once again takes podium spot against competing e-enduro bikes. Agile and playful on the downhills due to its perfectly tuned MTB geometry. Then, when it’s time to head back up the brand-new Shimano EP8 motor offers a whopping 85Nm of torque, capable of climbing the steepest, roughest trails with ease. The durable yet lightweight Alloy frame seamlessly integrates the long-range, fast-charging Shimano E8036 630Wh battery (XS:E8035/504Wh) into the lower downtube, then ‘thermo gate’ ventilation ports work to dissipate warm air. A Marzocchi Z1 Ebike+ front fork offers 160mm of supple, responsive suspension in a bombproof package, paired with a highly adjustable Fox Float DPX2 performance shock. A mixed Shimano Deore / XT 1x12 speed groupset with Shimano SLX 4 piston hydraulic disc brakes provide high-performance durability, while a 29er front and a 27.5” rear wheel offers up precise steering, maximum traction and fantastic behavior when rolling over obstacles.

Key Features

Agile and playful MTB geometry
Powerful Shimano EP8 motor with 85Nm torque
Long-range 630Wh fast-charging battery
Durable lightweight alloy frame
Responsive Marzocchi Z1 Ebike+ front fork

Specifications

Product Overview

Product

Merida eOne Sixty 700 Electric Enduro Bike 630wh Battery (XS/504wh) Matt Steel Blue/Black

Brand

Merida

Parent SKU

RI8HZYCD

Size SKUs

MD: MEEB2168907
XL: MEEB2168929

Matrix Barcodes

MD: 4710949796754
XL: 4710949796778

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

160mm

Rear Travel

150mm

Weight

24.04 kg weighed with 29" wheels and at frame size M, without pedals, incl. lights

Motor and Battery System

Motor Brand

Shimano

Motor

Shimano EP8 85Nm

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036 630Wh / E8035 504Wh XS / CHARGER: Shimano EC-E8004 4A charging current

Max. Range (KMs)

Display

Shimano SC-E7000

Build

Frame

eONE-SIXTY LITE III material: aluminium 150mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube max. 630 Wh

Fork

Marzocchi Z1 Ebike+ Air 160mm suspension travel Tapered 51mm fork offset 29x2.6" max wheelsize

Shock

FOX Float DPX2 Performance platform

Handlebars

MERIDA EXPERT eTR 780mm width 20mm rise

Headset

MERIDA-8152

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 40 mm all sizes

Pedals

VP VPE-527

Saddle

MERIDA EXPERT CC V-mount

Seat Post

MERIDA EXPERT TR 30.9mm diameter 0mm setback XS: 125mm travel seatpost - S/M 150mm travel seatpost - L/XL 170mm travel seatpost

Seat Clamp

MERIDA EXPERT clamp

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA EXPERT TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

Shimano SLX 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub, 36 spoke holes Centerlock

Spokes

Black stainless

Groupset

Chain

CN-M6100

Brakes

Shimano SLX 4 piston

Front Rotor

Shimano RT64

Rear Rotor

Shimano RTEM600 203 mm

Shifters

Shimano SL -MT500-IL / Shimano DEORE M6100 12

Rear Derailleur

Shimano XT RDM8100 Shadow+ 12

Cassette

12 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.
