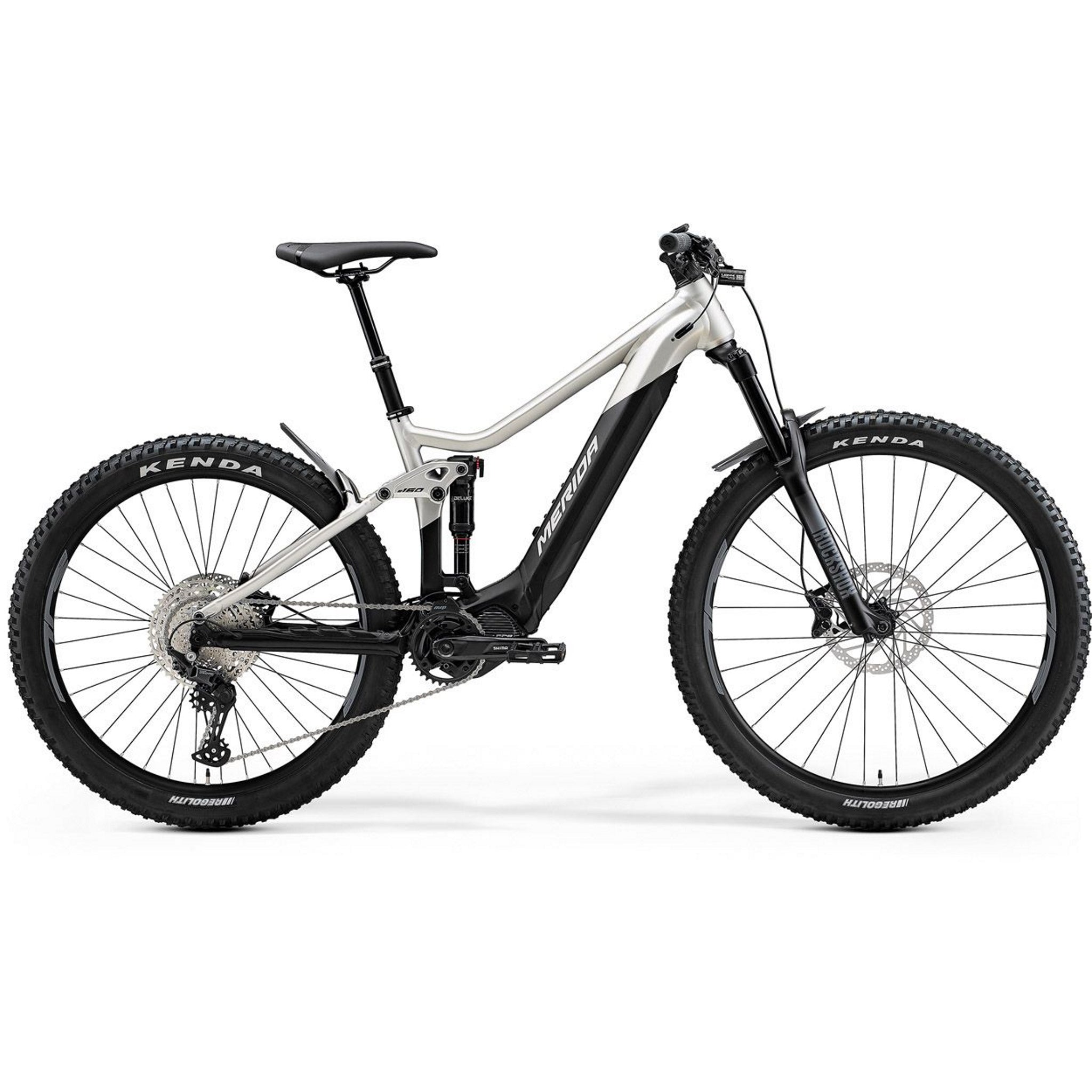

Merida eOne Sixty 500 Electric All-Mountain Bike 630wh Battery (XS/504wh) Matt Titanium/Black


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: MEEB2168844 Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Lightweight aluminum frame, perfectly tuned MTB geometry
  • Rock Shox 35 Gold RL Air 160mm fork
  • Shimano EP8 motor, 85Nm torque
  • Internally mounted 630Wh battery, 504Wh on size XS
  • Assist speeds up to 32 km/h
  • Approx range 30 - 80km on singletrack, 100 - 270km on flat
  • Rock Shox Deluxe Select+ shock
  • Shimano M4100 4 piston hydraulic disc brakes
  • Mullet wheel setup, 29" front 27.5" rear
  • THERMO GATE and WIRE PORT eBike tech
The new eOne Sixty 500 once again takes podium spot against competing e-enduro bikes. Agile and playful on the downhills due to its perfectly tuned MTB geometry. Then, when it’s time to head back up the brand-new Shimano EP8 motor offers a whopping 85Nm of torque, capable of climbing the steepest, roughest trails with ease. The durable yet lightweight Alloy frame seamlessly integrates the long-range, fast-charging Shimano E8036 630Wh battery (XS:E8035/504Wh) into the lower downtube, then ‘thermo gate’ ventilation ports work to dissipate warm air. A RockShox 35 Gold RL fork offers 160mm of supple, responsive front suspension, paired with an adjustable Rock Shox Deluxe Select+ shock. The ebike specific Shimano Deore 11 speed drivetrain with matching 4 piston hydraulic disc brakes provide high-performance durability, while a 29er front and a 27.5” rear wheel offer up precise steering with maximum traction.
Axles: MERIDA EXPERT TR including removeable lever, 6/4mm allen key
Battery: Shimano E8036 630Wh (E8035 504Wh XS) / CHARGER: Shimano EC-E6002 2A charging current
Bottom bracket: included
Brakes: Shimano M4100 4 piston
Chain: HG601-11
Chainwheel: Shimano CRE70B 34 teeth Shimano FCEM600
Derailleur rear: Shimano Deore RDM5100 11
Display: Shimano SC-E5003
Fender: C093-02F + C093-02R
Fork: Rock Shox 35 Gold RL Air 160mm suspension travel Tapered 51mm fork offset 29x2.8" max wheelsize
Frame: eONE-SIXTY LITE III material: aluminium 150mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube max. 630 Wh
Freewheel: Shimano M5100 11-51 teeth 11 speed
Handlebar: MERIDA EXPERT eTR 780mm width 20mm rise
Handlebar stem: MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 40 mm all sizes
Headset: MERIDA-8152
Hubs: Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub 36 spoke holes Centerlock
Motor/drive unit: Shimano EP8 85Nm
Motor drive unit: Shimano EP8 85Nm
Pedals: VP VPE-537
Rim: MERIDA COMP TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)
Rotor front: Shimano RT30 203 mm
Rotor rear: Shimano RTEM300 203 mm
Saddle: MERIDA COMP CC V-mount
Season: 2021
Seat clamp: MERIDA EXPERT clamp
Seat post: MERIDA COMP TR 30.9mm diameter 0mm setback XS 100mm travel seatpost - S/M 125mm travel seatpost - L/XL 150mm travel seatpost
Shock: Rock Shox Deluxe Select+
Spokes: Black stainless
Tyre front: Kenda Regolith 29x2.4" wire
Tyre rear: Kenda Regolith 27.5x2.6" wire
Weight: 23.84 kg weighed with 29" wheels and at frame size M, without pedals, incl. lights
Wheel size: 29" / 27.5" (Mullet Bike)
Electric Dual Suspension Mountain Bike Geometry Diagram


ST Seat Tube

TT Top Tube

CS Chain Stay Length

HTA Head Tube Angle

STA Seat Tube Angle

BD Bottom bracket Drop

HT Head Tube

FL Fork Length

R Reach

S Stack

WB Wheel Base


Wheel Size29" / 27.5"29" / 27.5"29" / 27.5"29" / 27.5"29" / 27.5"
Frame Size4243454741
ST Seat Tube (mm)415.0430.0450.0470.0405.0
TT Top Tube (mm)584.0605.0626.0647.0563.0
CS Chain Stay Length (mm)439.5439.5439.5439.5439.5
HTA Head Tube Angle (°)65.565.565.565.565.5
STA Seat Tube Angle (°)75.575.575.575.575.5
HT Head Tube (mm)115.0120.0125.0130.0110.0
R Reach (mm)420.0440.0460.0480.0400.0
S Stack (mm)633.0638.0642.0647.0633.0
WB Wheel Base (mm)1190.01212.01234.01256.01170.0

Merida Electric Mountain Bike Sizing Chart

99 Bikes Merida Electric Mountain Bike Sizing Chart

Merida Bikes Warranties

Lifetime warranty on all frames

Lifetime warranty on all frames for the entire ownership of the original purchaser. This covers manufacturing and material defects. No exclusions for racing. Rider and equipment weight limit: 120kg for standard bikes; 140kg for e-Bikes. Proof of purchase must be presented. (frames from model year 2015 onwards). *Conditions apply. *The lifespan of a bike is up to ten years.

Forks: Carbon and aluminium rigid forks are guaranteed for 5 years from the date of purchase

Suspension: Rear suspension components are guaranteed for 2 years from the date of purchase

All other MERIDA branded components, including paint and finish, are guaranteed for 1 year from the date of purchase.

The Merida Warranty Excludes:

Componentry which isn’t Merida branded (see below)
Normal wear and tear
Damage caused by accidents, neglect or abuse
Improper assembly
Improper follow-up maintenance; all bikes must be serviced by an authorised MERIDA dealer within 6 months of purchase. Suspension systems must be serviced annually by an authorised dealer
Modification or alteration of the frame or original components

Branded Components

Issues relating to branded original components, such as Shimano or SRAM are the responsibility of the appropriate component manufacturer’s warranty and subject to their terms and conditions.

In the case of branded components failing, please contact your local MERIDA stockist who will liaise with the relevant distributor on your behalf.

If the cause of the fault isn’t initially clear based on the information and photos your MERIDA stockists provides, the defective product may need to be returned to MERIDA Bicycles Ltd for closer inspection.

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
