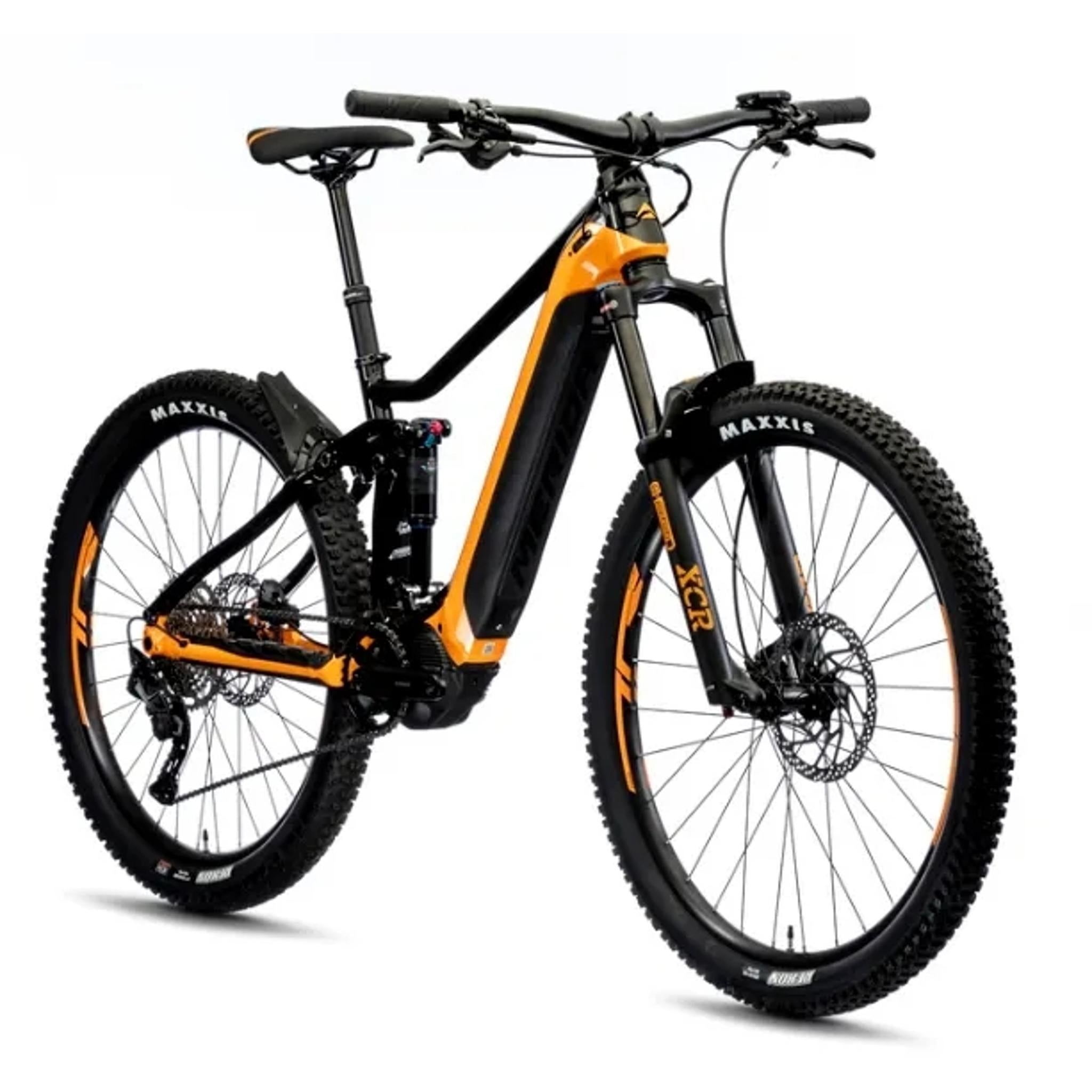

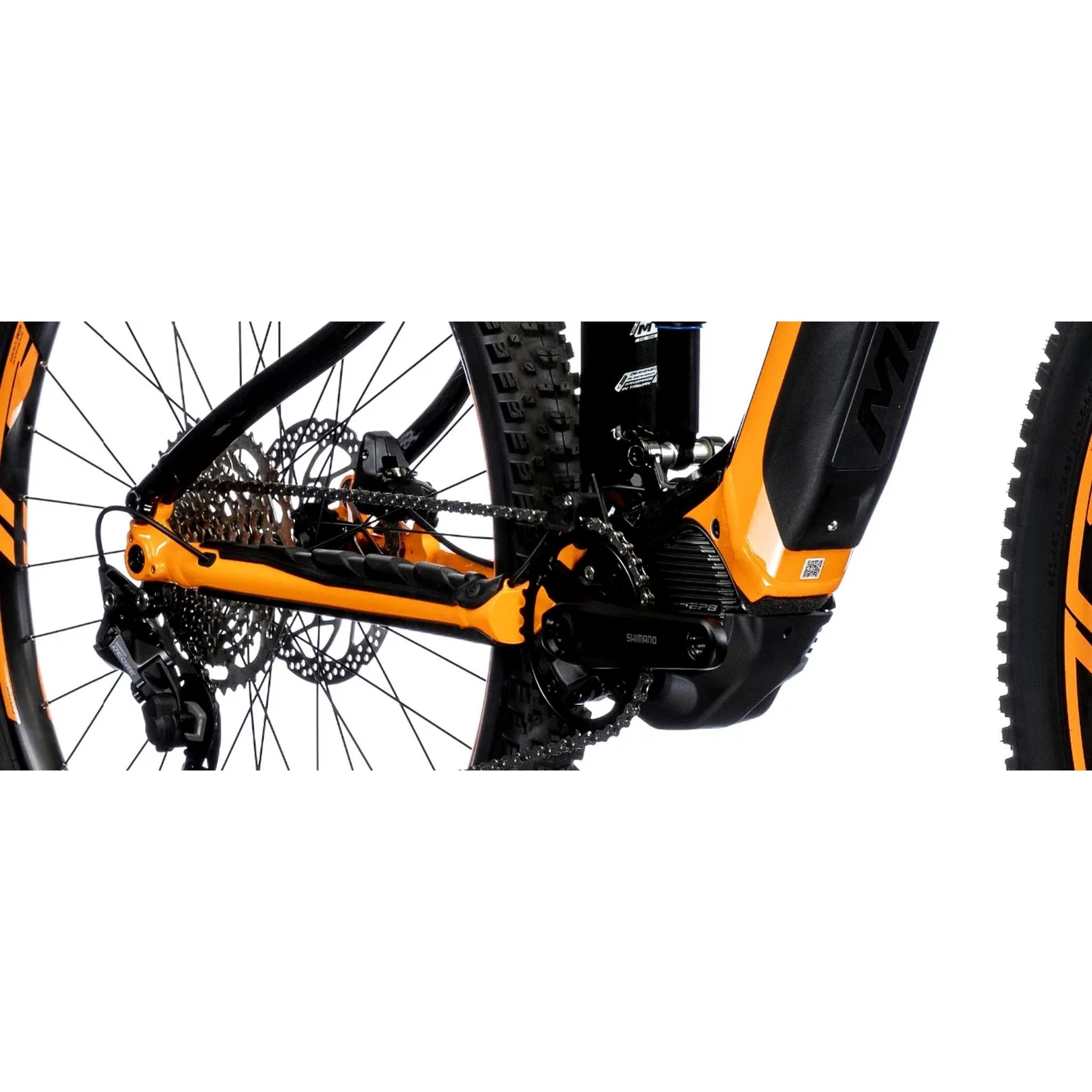

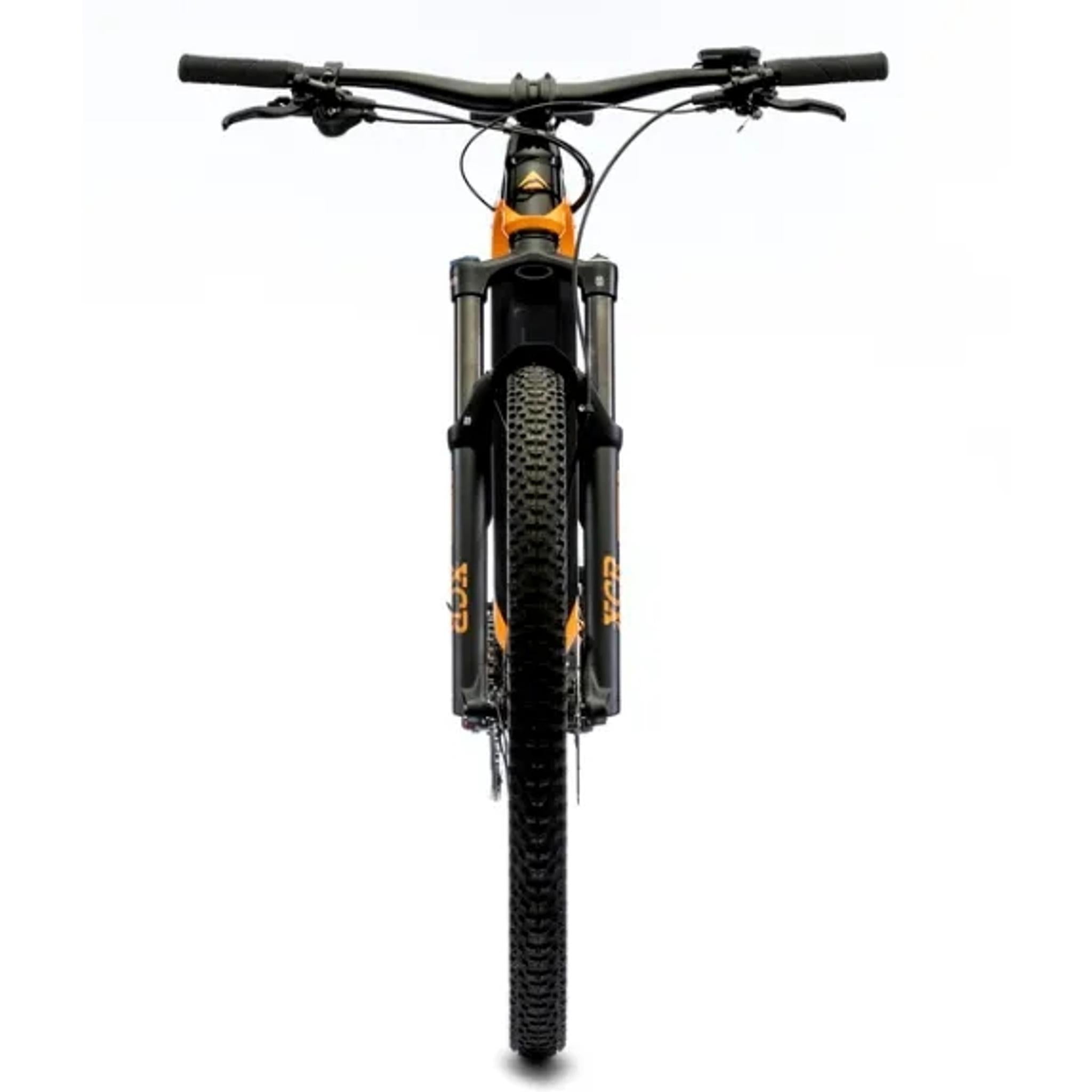

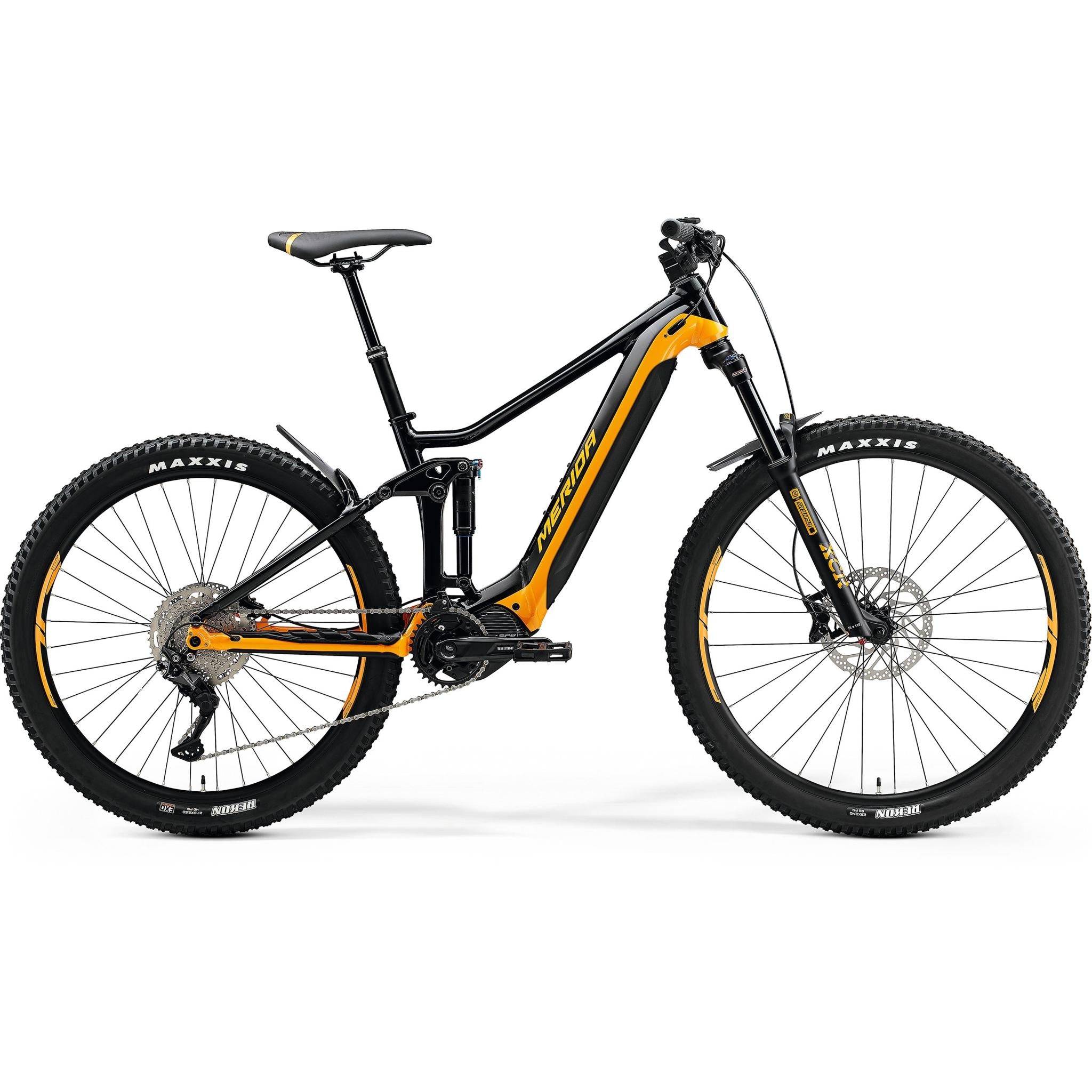

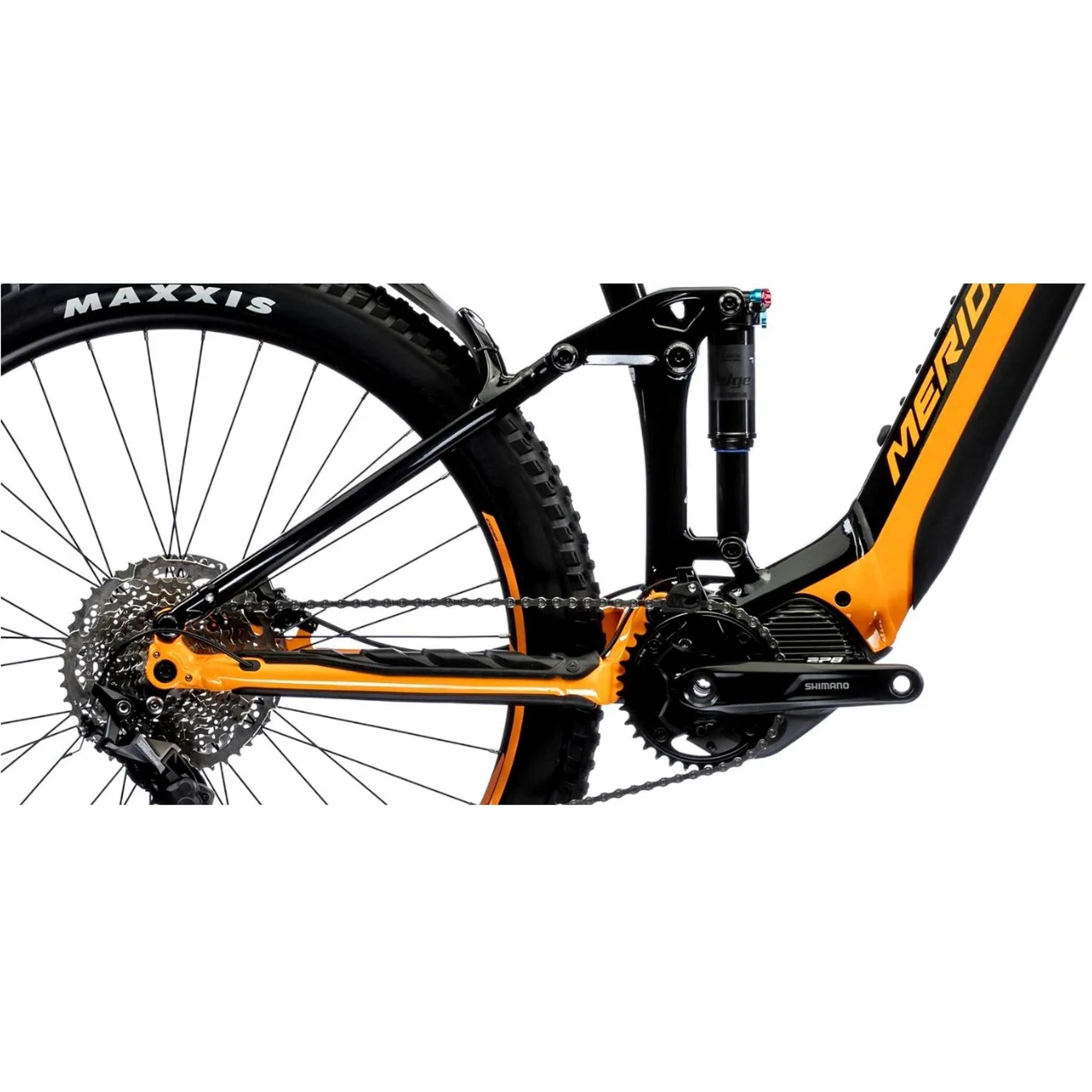

Merida eOne Forty 400 Electric Enduro Bike Black/Orange

Merida eOne Forty 400 Electric Enduro Bike Black/Orange

Brand: Merida

SKU: Select a size

Size: Select a size

SM XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Off-Road Hills & Heavy Loads / 85 Nm Torque

Up to 63 km Range

Shimano STePS EP8 Motor

Alloy Frame/ Suntour Alloy Fork

140mm Front Travel / 130mm Rear

630Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eOne Forty 400 delivers a high performance, mid travel full suspension e-mountain bike ready to do it all. Agile and responsive on the downhills, then when it’s time to head back up the brand-new Shimano EP8 motor provides a whopping 85Nm of torque, as well as software that allows you to set and adjust preferences from your phone. The durable triple butted aluminium frame with smooth welding is hydroformed and seamlessly integrates the long-range, fast-charging Shimano E8036 630Wh battery (SM: E8035/504Wh). A casting motor bracket creates a clean, integrated appearance as well as a strong connection, while a two-component cover protects the battery from impacts and grime. A 140mm/130mm Suntour fork and shock combo, eBike specific Shimano Deore 1x10 speed groupset with matching hydraulic disc brakes provide reliable durability, and an internally routed dropper is already fitted. A 29er front and 27.5” rear wheel provides precise steering with maximum traction.

Key Features

Shimano EP8 Drive Unit for powerful performance
630Wh Battery for extended range
Durable alloy frame for rugged use
Suntour XCR34 Fork with 140mm travel
Shimano M4100 Hydraulic Disc Brakes

Specifications

Product Overview

Product

Merida eOne Forty 400 Electric Enduro Bike Black/Orange

Brand

Merida

Parent SKU

32IIQQDR

Size SKUs

SM: MEEB2168134
XL: MEEB2168167

Matrix Barcodes

SM: 4710949795924
XL: 4710949795931

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29" / 27.5" (Mullet Bike)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

140mm

Rear Travel

130mm

Weight

23.33 kg weighed with 29" wheels and at frame size M, without pedals, incl. lights

Motor and Battery System

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Off-Road Hills & Heavy Loads

Battery Size (Watt-Hours)

630

Battery

Shimano E8036 630Wh / E8035 504Wh S

Max. Range (KMs)

Display

Shimano SC-E5003

Build

Frame

eONE-FORTY LITE III material: aluminium 133mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube max. 630 Wh

Fork

Suntour XCR34 LOR DS Air Boost 140mm Tapered 51mm fork offset 29x2.4" max wheelsize

Shock

SUNTOUR RS-EDGE-TR-LO-R8-M6 lockout

Handlebars

MERIDA EXPERT eTR 780mm width 20mm rise

Headset

MERIDA-8152

Grips

MERIDA EXPERT EC

Stem

MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 50 mm all sizes

Pedals

VP VPE-537

Saddle

MERIDA COMP CC V-mount

Seat Post

MERIDA COMP TR 30.9mm diameter 0mm setback S 100mm travel seatpost - M/L 125mm travel seatpost - XL 150mm travel seatpost

Seat Clamp

MERIDA EXPERT clamp

Wheels

Wheel Size

29" / 27.5" (Mullet Bike)

Rims

MERIDA COMP TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included)

Hubs

FRONT: Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock / REAR: Shimano MT400-B 148x12mm width rear hub 36 spoke holes Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FCEM600 165 mm for all sizes

Chain

CNHG54

Brakes

FRONT: Shimano M4100 4 piston / REAR: Shimano M4100 2 piston

Front Rotor

Shimano RT30 203 mm

Rear Rotor

Shimano RTEM300 180 mm

Shifters

FRONT: Shimano SL -MT500-L clamp band / REAR: Shimano Deore M4100-RC1 clamp band 10

Rear Derailleur

Shimano Deore RDM5120 10

Cassette

10 Speed

Disclaimer
