$854 Off Full Price

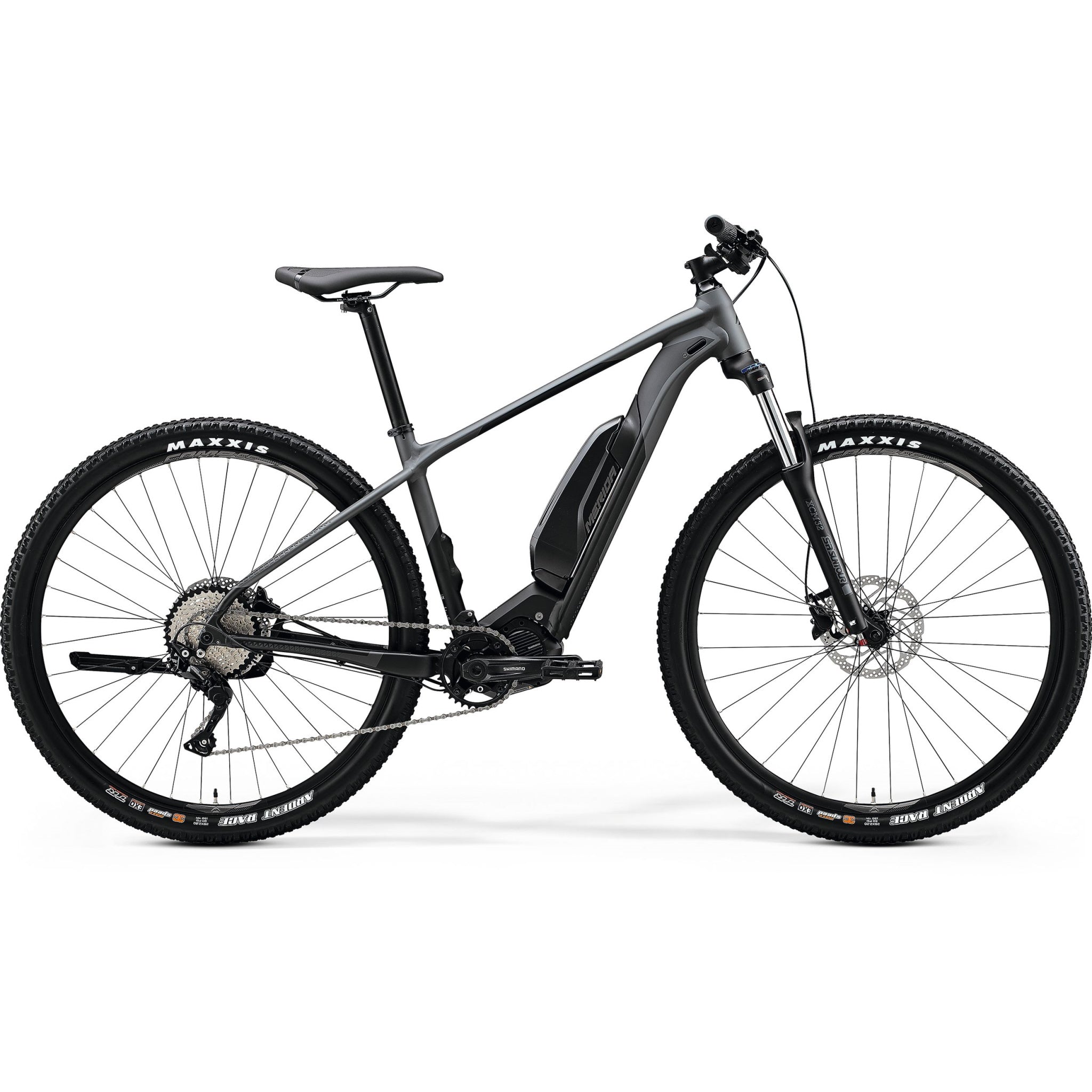

Merida eBig Nine 300 SE Electric Mountain Bike 504Wh Battery Matt Black/Anthracite

Merida eBig Nine 300 SE Electric Mountain Bike 504Wh Battery Matt Black/Anthracite

Brand: Merida

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Moderately Steep Hills / 60 Nm Torque

Up to 61 km Range

Shimano STePS E7000 Motor

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida eBig Nine/Seven models are Ideal for anyone looking for the perfect balance of day-to-day usability and sporty leisure activity, enabling you to combine the daily commute with a sporty trail detour on the way home. The eBig Nine 300 SE is built around a lightweight HFS-hydroforming Prolite 66 triple butted aluminium 29er hardtail frame with powerful Shimano E7000 motor and 502wH E8010 battery. Smooth, reliable shifting with 9 Speed Shimano transmission, paired with powerful Shimano Hydraulic disc brakes to provide precise braking performance in all weather conditions. The casting motor bracket creates an integrated appearance of the motor into the frame as well as provides an extremely strong connection between frame and motor. Smart Entry cable routing offers a clean aesthetic and rattle free running.

Key Features

Lightweight Prolite 66 triple butted Alloy Frame
Suntour XCM32 100mm travel Fork
Shimano E7000 e-MTB motor, 60Nm Torque
Shimano E8010 Battery, 504Wh
Assist speeds up to 32km/hr
Approx. range 30 - 50km on singletrack, 75 - 135km on flat
Shimano 1x9 speed Alivio/Deore Drivetrain

Specifications

Product Overview

Product

Merida eBig Nine 300 SE Electric Mountain Bike 504Wh Battery Matt Black/Anthracite

Brand

Merida

Parent SKU

VD12WJIJ

Size SKUs

MD: MEEB2167360
LG: MEEB2167371

Matrix Barcodes

MD: 4710949797232
LG: 4710949797225

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Black

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

100mm

Weight

24.71 kg weighed at frame size M without pedals

Motor and Battery System

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Moderately Steep Hills

Battery Size (Watt-Hours)

504

Battery

Shimano E8010 504Wh / Battery Lock: Abus key / Charger: Shimano EC-E6002 2A

Max. Range (KMs)

Display

Shimano E5000

Build

Frame

eBIG.NINE LITE, MAT aluminium, 29" WHS, 148x12 AST, external, max. 504 Wh

Fork

Suntour XCM32 DS, Coil, 100mm, Tapered, 47mm fork offset

Handlebars

MERIDA Expert CC, MAT aluminium, 720 WHB, 10 RHB

Headset

Merida 2341 Neck

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT, MAT aluminium, 31.8 DSH, adjustable 90 mm all sizes

Pedals

VP, VPE-537

Saddle

MERIDA EXPERT TK, V-mount

Seat Post

MERIDA Expert, MAT aluminium, 30.9 DSP, 0 SSB

Seat Clamp

Merida Expert clamp

Wheels

Wheel Size

29"

Rims

MERIDA COMP CC, 20 IWR, MAT aluminium

Hubs

FRONT: Shimano MT400-B, 110x15 WHF, 32 SPH, Centerlock / REAR: Shimano MT400-B, 148x12 WHR, 36 SPH, Centerlock

Spokes

Black stainless

Groupset

Crankset

Shimano FC-E8000, 34T 165 mm for all sizes

Chain

HG53

Brakes

Shimano MT-200, 2 piston

Front Rotor

Shimano RT10, 180 mm

Rear Rotor

Shimano RT10, 180 mm

Shifters

Shimano Alivio M3100 9

Rear Derailleur

Shimano Deore RDM592 9

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida eBig Nine 300 SE Electric Mountain Bike 504Wh Battery Matt Black/Anthracite we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida eBig Nine 300 SE Electric Mountain Bike 504Wh Battery Matt Black/Anthracite geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
