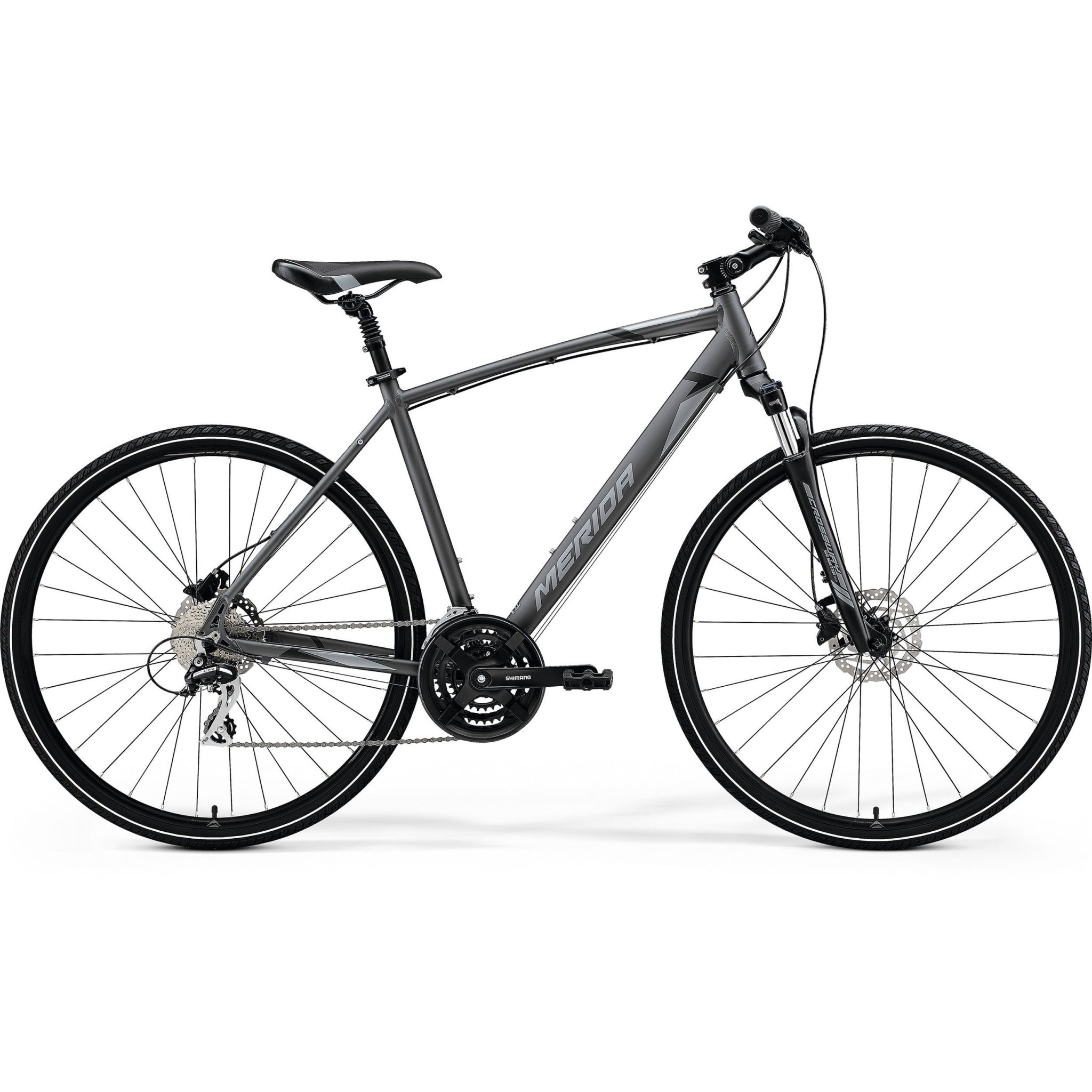

Merida Crossway 20D Hybrid Bike Silk Anthracite/Black

Brand: Merida

SKU: GNM7QN70

Size: SM/MD

SM/MD

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

under 100mm Front Travel

700c Wheel Size

Hydraulic Disc Brake

Shimano Tourney Groupset

3 x 8 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Merida’s outstanding Crossway range blends comfort with all-round functionality. The Crossway 20D is one of the most popular models thanks to its excellent price to component ratio and inclusion hydraulic disc brakes, perfect for fitness rides, daily commuting and jaunts up your local singletrack. Built around a lightweight 6061 double butted and techno formed aluminium frame, which allows for more ergonomic tube profiles. Integrated mounts for a Kickstand, Carrier Rack and Mudguards maximise adaptability options as a daily commuter or holiday tourer. Fast rolling 700c Tyres with reflective strips on the sidewalls adds visibility. The 63mm travel Suntour lockout front suspension will iron out any bumps or curb hops, while an adjustable stem allows any rider to quickly set their most comfortable position. The Shimano Tourney 8x3 speed drivetrain offers a reliable setup with a huge range of 24 gears to tackle any terrain, paired with hydraulic disc brakes for all conditions stopping powe

Key Features

Lightweight 6061 aluminium frame
Hydraulic disc brakes for reliable stopping
63mm travel front suspension for comfort
Shimano Tourney 8x3 speed drivetrain
Fast rolling 700c tyres with reflectivity

Specifications

Product Overview

Product

Merida Crossway 20D Hybrid Bike Silk Anthracite/Black

Brand

Merida

Parent SKU

PSB29HKP

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

700c

Brake Type

Hydraulic Disc Brake

Gears

3 x 8

Fork Material

Alloy

Front Travel

under 100mm

Weight

14 kg weighed with 700C wheels and at frame size M-L, without pedals

Build

Frame

CROSSWAY SPEED material: aluminium 700x42C max. wheelsize 135x9mm axle standard BSA bottom bracket standard

Fork

Suntour NEX HLO Coil 63mm suspension travel lockout 700x50C max. wheelsize

Handlebars

MERIDA CC material: aluminium 660mm width 25mm rise

Headset

FSA TH888/NO.10

Grips

MERIDA EC

Stem

MERIDA TK material: aluminium 25.4mm diameter adjustable 100 mm all sizes

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK 27.2mm diameter 13mm setback 40mm seatpost suspension travel

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

700c

Rims

MERIDA CC 17mm inner width material: aluminium

Hubs

FRONT: Shimano TX505 100x9mm width front hub 32 spoke holes Centerlock / REAR: Shimano TX505 135x9mm width rear hub 32 spoke holes Centerlock

Spokes

Black steel

Groupset

Chain

Sunrace M84

Brakes

Shimano ST-EF505 BR-MT200 brake caliper

Front Rotor

Shimano RT10 160 mm

Rear Rotor

Shimano RT10 160 mm

Shifters

Shimano ST-EF505

Rear Derailleur

Shimano RD-M360

Cassette

8 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 20D Hybrid Bike Silk Anthracite/Black we suggest the following size.

More comfort More speed

SM/MD

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

SM/MD

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Crossway 20D Hybrid Bike Silk Anthracite/Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
