19% Off Full Price

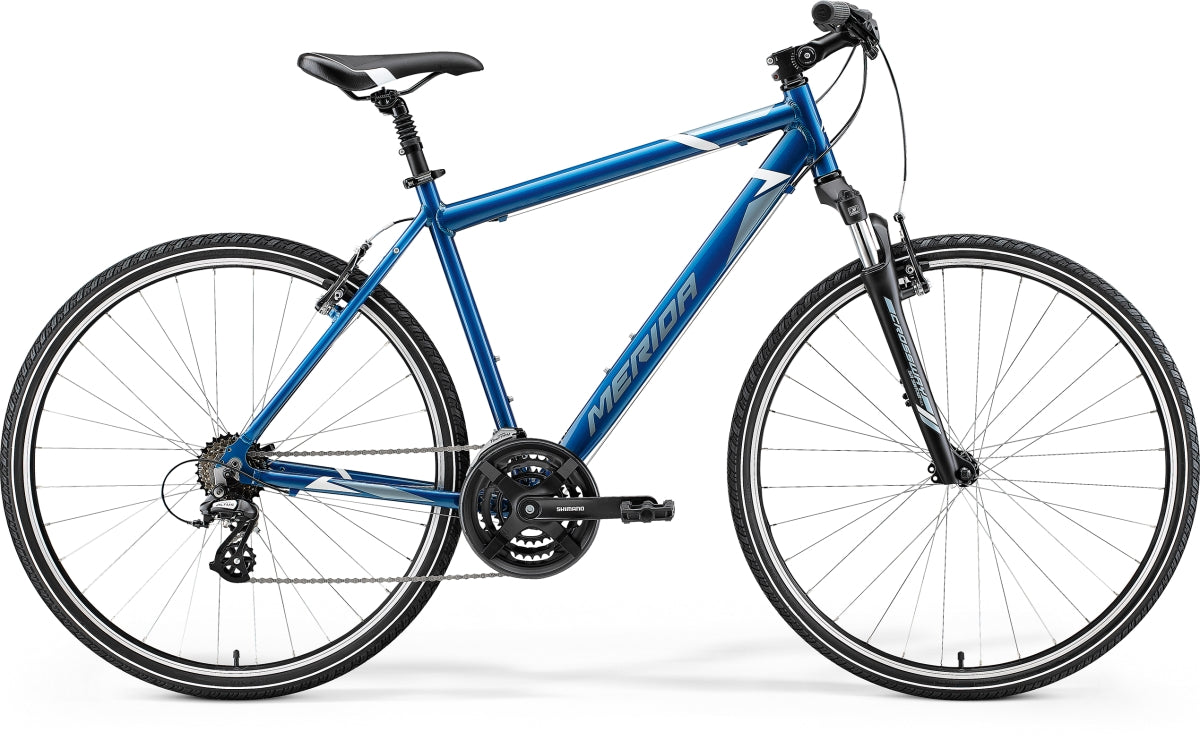

Merida Crossway 10V Hybrid Bike Steel Blue/White

Brand: Merida

SKU: Select a size

Size: Select a size

SM SM/MD MD/LG LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

under 100mm Front Travel

700c Wheel Size

V-Brake

Shimano Tourney Groupset

3 x 7 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Merida’s outstandingly popular Crossway range blends comfort with all-round functionality. The Crossway 10v is the first model in the lineup and is suitable for fitness, commuting and leisure rides. Built around a lightweight 6061 double butted and techno formed aluminum frame, which allows for more ergonomic tube profiles. Hidden mounts for a Kickstand, Carrier Rack and Mudguards maximize adaptability options as an affordable daily commuter or holiday rail trail tourer. Fast rolling 700c Tyres have reflective strips on the sidewalls for added visibility. The 63mm travel Suntour NEX front suspension will iron out any bumps or curb hops on the way, while an adjustable stem allows the rider to adapt the Bike to their most comfortable riding position. The Shimano Altus/Tourney 7x3 speed drivetrain offers a reliable setup with a huge range of 21 gears to tackle any terrain, paired with easy service Promax V-Brakes. Versatile, adaptable and above all comfortable.

Key Features

Lightweight 6061 aluminum frame
63mm travel front suspension
21-speed Shimano Altus/Tourney drivetrain
Fast rolling 700c tyres
Adjustable stem for comfort

Specifications

Product Overview

Product

Merida Crossway 10V Hybrid Bike Steel Blue/White

Brand

Merida

Parent SKU

F98782F1

Size SKUs

SM: MEHB2188534
SM/MD: MEHB2188545
MD/LG: MEHB2188556
LG: MEHB2188567

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Blue

Wheel Size

700c

Brake Type

V-Brake

Gears

3 x 7

Fork Material

Alloy

Front Travel

under 100mm

Weight

13.98 kg weighed with 700C wheels and at frame size M-L, without pedals

Build

Frame

CROSSWAY DT material: aluminium 700x42C max. wheelsize 135x9mm axle standard BSA bottom bracket standard

Fork

Suntour NEX Coil 63mm suspension travel 700x50C max. wheelsize

Handlebars

MERIDA CC material: steel 620mm width 30mm rise

Headset

FSA TH888

Grips

MERIDA EC

Stem

MERIDA TK material: aluminium 25.4mm diameter adjustable 100 mm all sizes

Bottom Bracket

FSA TH-7420ST-W, Cartridge Bearing

Pedals

VP VPE-891

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK 27.2mm diameter 13mm setback 40mm seatpost suspension travel

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

700c

Rims

MERIDA CC 17mm inner width material: aluminium

Hubs

FRONT: Joytech JY-751DSE 100x9mm width front hub 32 spoke holes / REAR: Joytech JY-752DSE 135x9mm width rear hub 32 spoke holes

Spokes

Steel UCP

Groupset

Chain

KMC NS8

Brakes

Promax MTV-117A

Shifters

Shimano ST-EF500

Rear Derailleur

Shimano RD-M310

Cassette

7 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 10V Hybrid Bike Steel Blue/White we suggest the following size.

More comfort More speed

SM/MD

MD/LG

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

SM/MD

MD/LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Crossway 10V Hybrid Bike Steel Blue/White geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
