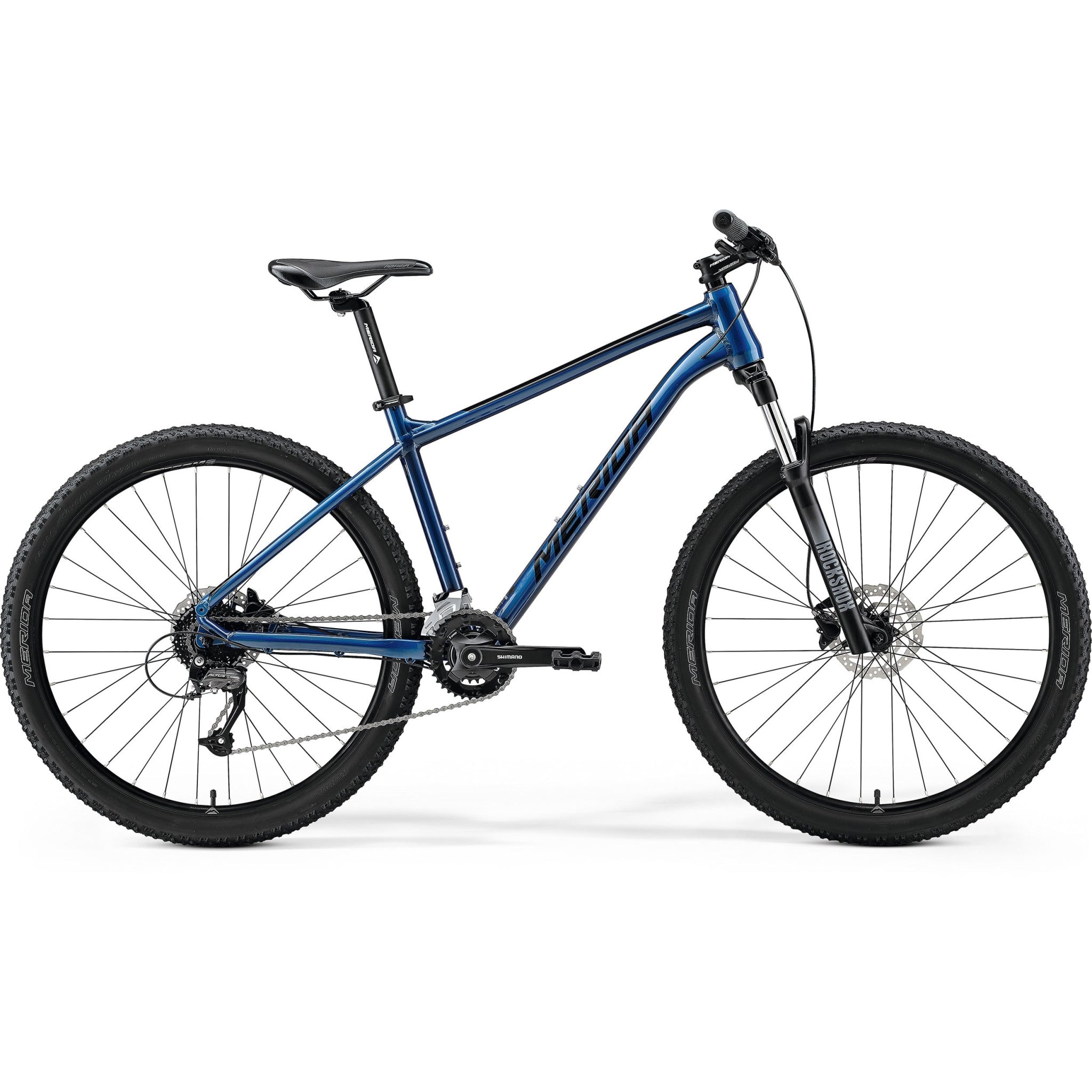

Merida Big Seven 60 X3 Hardtail Mountain Bike Blue/Black (2021)

$899$1,199.99
Save $300.99

Yours now with 4 interest free payments of $224.75 NZD fortnightly with More info

PRICE DROP
SKU: 1XQCHYZ7

Stock:
Low stock

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Check available shipping methods

Click & Collect Available

• Pick-up In-store in 1-2 days* • Only available on items already in-stock at your local store  More info »

No Courier Delivery

• This item is unavailable to be shipped with a courier More info »

99 Bikes Home Delivery Available

Assembled Bikes delivered straight to your door • Available on all Bikes in Auckland & Christchurch • $29 flat rate More info »

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.

The Big Seven 60 X3 is a build designed for the rider ready to enter the world of single-track mountain biking and who needs a versatile bike with modern geometry and reliable, quality components. Packed with class leading features, like smooth welding for a premium finished look, or internal cable routing, which offers a sleek aesthetic as well as a rattle free ride. Merida even designed a clever downtube exit for easy servicing. The Racelite 61 aluminium frame reduces weight and maximizes strength, while the speed focused geometry maximizes pedal power without compromising on comfort. Rolling on 27.5 wheels, a 100mm travel Rock Shox Judy TK front fork will iron out any bumps while the Shimano 3x9 speed drivetrain and Hydraulic disc brakes provide reliable quality and optimal stopping performance. Integrated mounts for fenders, rear carrier rack and a kickstand means this build is also customizable making it an excellent everyday ride that can still thrash a trail on the weekends.
Bottom bracket: Shimano BB-UN100
Brakes: Shimano ST-EF505 BR-MT200 brake caliper
Chain: KMC M99
Chainwheel: Shimano MT101 40-30-22 teeth 170 mm-XS/S, 175 mm-M/L
Crankset: 170 mm-XS/S, 175 mm-M/L
Derailleur rear: Shimano RD-M370
Fork: Rock Shox Judy TK Coil 100mm suspension travel Lockout 42mm fork offset 27.5x2.25" max. wheelsize
Frame: BIG.SEVEN TFS III material: aluminium 27.5x2.25" max. wheelsize 135x9mm axle standard BSA bottom bracket standard
Freewheel: Shimano CS-HG200 11-32 teeth 9 speed
Handlebar: MERIDA CC material: aluminium 690mm width 15mm rise
Handlebar stem: MERIDA CC material: aluminium 31.8mm diameter 6° stem angle 70 mm-XS/S, 80 mm-M, 90 mm-L
Headset: MERIDA M2345
Hubs: Shimano TX505 100x9mm width front hub, 135x9mm width rear hub, 32 spoke holes Centerlock
Rim: MERIDA CC 17mm inner width material: aluminium
Saddle: MERIDA Sport comfort
Seat post: MERIDA CC material: aluminium 30.9mm diameter 15mm setback
Spokes: Black steel
Tyre front: MERIDA K1080 27.5x2.2" wire
Tyre rear: MERIDA K1080 27.5x2.2" wire
Weight: 13.7kg (weighed with 27.5" wheels and at frame size M, without pedals) Max rider weight: 135kg
Wheel size: 27.5" (650b)

Frame SizeXSSML
Tyre Sizes27.5"27.5"27.5"27.5"
Frame Size CM34384448
ST seat tube [mm]340380440480
TT top tube [mm]550570590610
CS chain stay length [mm]430430430430
HTA head tube angle [°]69696969
STA seat tube angle [°]73737373
BD bottom bracked drop [mm]30303030
HT head tube [mm]100115130145
FL fork length [mm]487487487487
R reach [mm]378394409425
S stack [mm]563577591605
WB wheel base [mm]1056107810991120
SH stand over height [mm]649689740778

Merida Big Seven Bike Sizing Chart

Merida is an international bike brand with its headquarters in Taiwan, the R&D department is based near Stuttgart in Germany. To be based in Germany has historical reasons for MERIDA but the precise location was chosen specifically because the region around Stuttgart is one of the hot spots of the automotive and machine building industry which Germany is famous for and attracts a hugely skilled design and engineer labor force.

The Merida team are more than just highly trained and experienced bicycle creators – they simply love everything ‘bike’. Most of their R&D staff are daily bike commuters while others are serious mountain bikers, who regularly compete in Marathon, Enduro and Downhill competitions, or licensed road racers and even ambitious Ironman triathletes. Get the behind the scenes view of the Merida R&D centre and meet some of their key members of staff in the below video.
