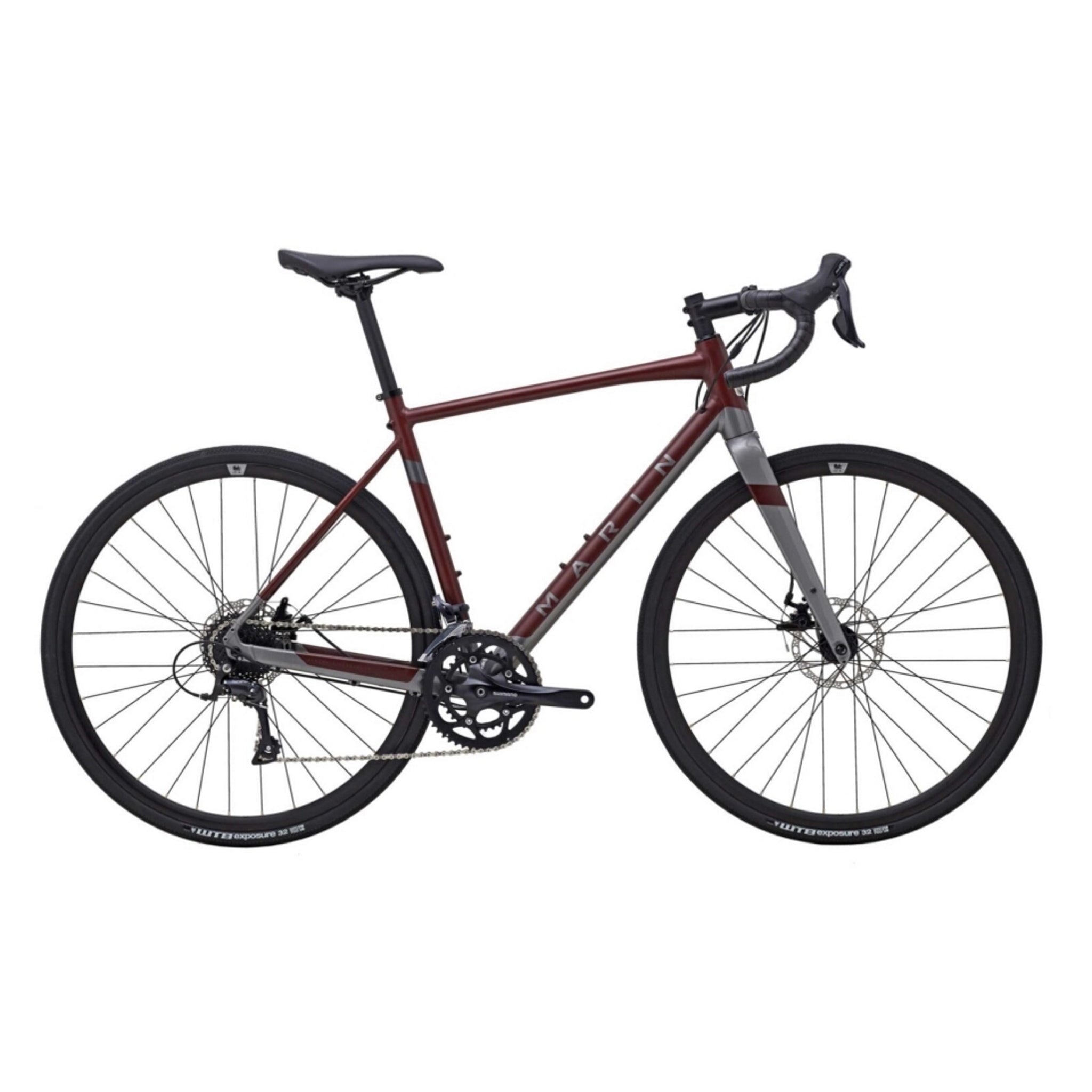

Marin Gestalt 1 Gravel Bike Red

Brand: Marin

SKU: Select a size

Size: Select a size

XS SM XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Marin Carbon Fork

Rigid Front Travel

700c Wheel Size

Mechanical Disc Brake

Shimano Sora Groupset

2 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Gestalt is for the drop bar rider that doesn’t want to stick to pavement and can’t help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour. Built around a series 3 aluminium frame highly formed tubesets and beyond road geometry. A full carbon fork reduces weight and absorbs road chatter. Fitted out with a reliable Shimano Sora 2 x 9 speed drivetrain with easy maintenance Tektro mechanical disc brakes. From the daily commute to winter training or fitted out as a bikepacking rig, the Gestalt is ready for adventure beyond road.

Key Features

Series 3 Aluminium Frame, Beyond Road Geometry
Marin full Carbon Fork
Shimano Sora 2 x 9 speed drivetrain
Tektro Mechanical Disc Brakes
WTB, Exposure Comp, 700C x 32mm Tyres

Specifications

Product Overview

Product

Marin Gestalt 1 Gravel Bike Red

Brand

Marin

Parent SKU

C4OKW6YR

Size SKUs

XS: MAAD212427001
SM: MAAD2132427002

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

700c

Brake Type

Mechanical Disc Brake

Gears

2 x 9

Fork Material

Carbon

Build

Frame

Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork

Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Handlebars

Marin Butted Alloy, Compact 12º Flared Drop

Headset

FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Grips

Marin Perforated Tape

Stem

Marin 3D Forged Alloy

Bottom Bracket

Shimano Octalink V2 Cartridge

Saddle

Marin Beyond Road Concept

Seat Post

Marin Alloy, 27.2mm

Wheels

Wheel Size

700c

Rims

Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible

Hubs

Forged Aluminum Alloy, 32H

Spokes

14g Black Stainless Steel

Groupset

Crankset

Shimano R345 Octalink Compact, 50/34T

Chain

KMC X9

Brakes

Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

Shifters

Shimano Sora 2x9-Speed

Rear Derailleur

Shimano Sora 9-Speed

Cassette

9 Speed
