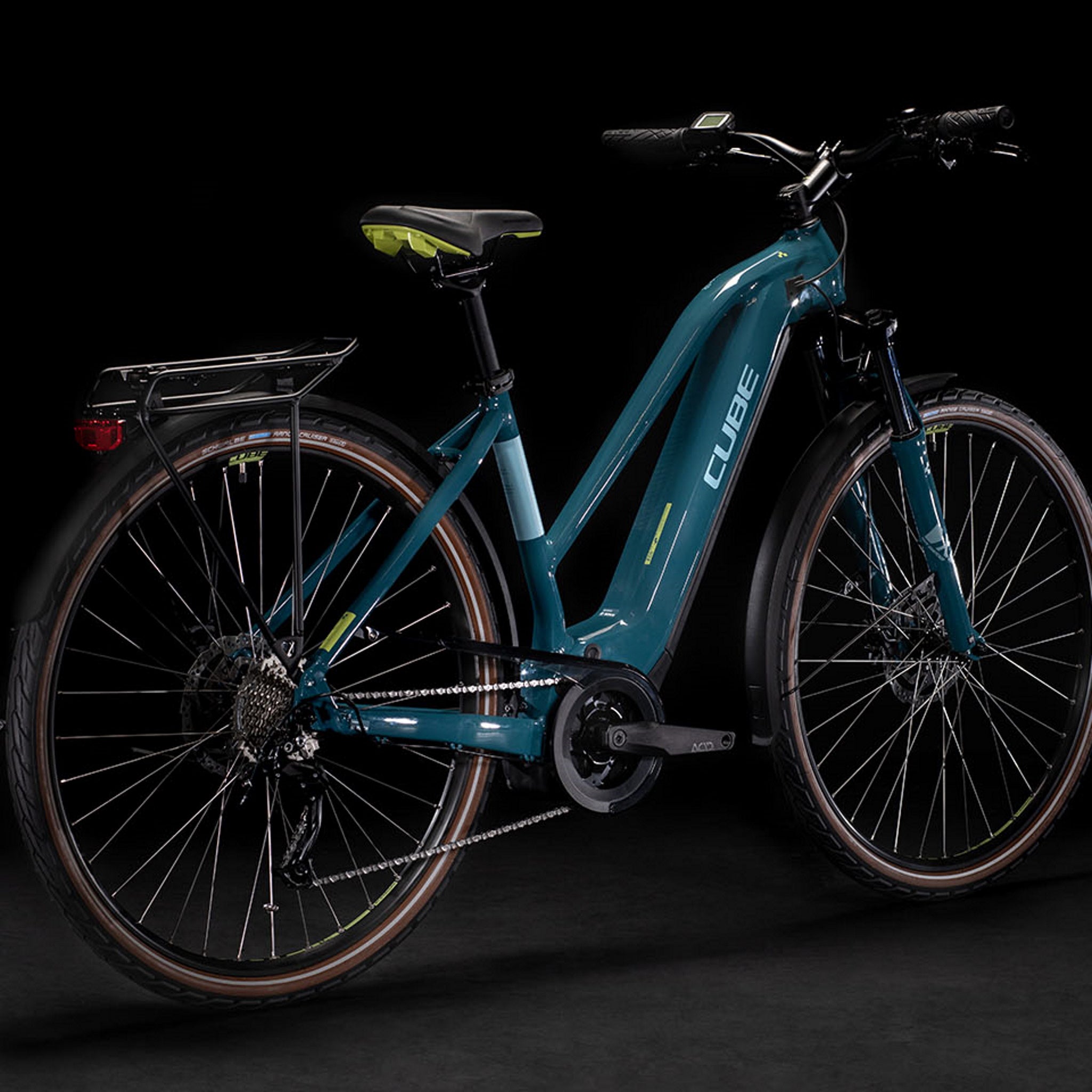

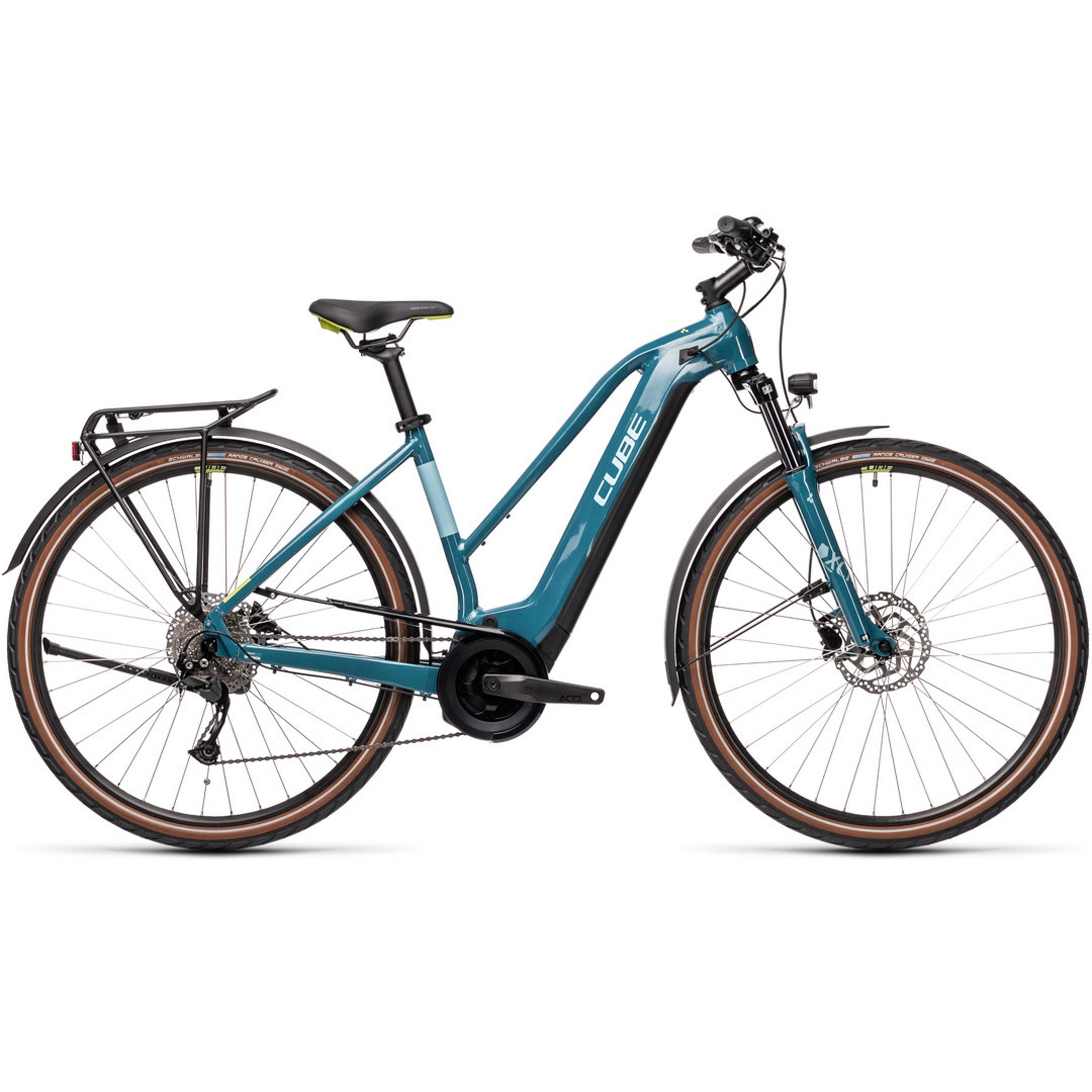

Cube Touring Hybrid One Trapeze Electric Bike 500wh Battery Blue 'n' Green


You automatically get Club Price when buying online. But there are extra benefits if you join Club 99.

Buy now, pay later
SKU: 498210-TP46 Sold out

5% Best Price Guarantee

If you find a cheaper price, we will beat it by 5%*

- Applies to any cheaper price found in New Zealand.

- When the competitor's final price inclusive of any taxes and delivery fees.

- Excludes Garmin products, other exclusions apply.

Perfect Ride Guarantee

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

Free Bike Build

We'll build your bike for free when you click and collect at any 99 Bikes store.

First Free Tune-up

Every bike come with a complimentary free tune-up and safety check. Learn more »

Key Features
  • Superlite Aluminium Frame with Efficient Comfort Geometry
  • 100mm SR Suntour XCM ATB Coil Fork
  • Shimano BR-MT200 Hydraulic Disc Brakes
  • Bosch Active Plus Generation 3 Drive Unit 50Nm
  • Bosch PowerTube 500 Battery
  • Estimated Range 50km

The Cube Touring Hybrid ONE 500 Electric Hybrid Bike will get you anywhere you want to go in comfort and style. Whether it’s the daily commute, a ride to the shops or a longer tour on the weekend. The Efficient Comfort Geometry puts you in a natural, comfortable riding position, while the Trapeze frame offers a low top tube to get your feet planted quickly. Bosch's powerful third-generation Active Plus motor and integrated Powertube 500 battery provides a low centre of gravity which ensures safe, intuitive handling. Reliable 9 speed Shimano gearing, and 100mm travel Suntour XCM ATM Coil Suspension fork allows for the confident control to take your adventures off-road, while Shimano Hydraulic Disc Brakes provide all conditions braking power. Equipped with everything you need in a hybrid, including integrated front and rear lights, full length mudguards, a kickstand and rear rack. The Touring Hybrid One 500 is a dynamic electric hybrid bike that offers all-day comfort and versatility.
Accessories: KICKSTAND: Cubestand Cmpt / MUDGUARD: ACID 65 / CARRIER: ACID Semi-Integrated Carrier, ACID RILink Adapter Compatible / Mini Bell
Battery: Bosch PowerTube 500 / CHARGER: Bosch 2A
Brakes: Shimano BR-MT200, Hydr. Disc Brake (180/180)
Chain: KMC X9
Crankset: ACID E-Crank, 38T (175mm // EE: 170mm)
Derailleur rear: Shimano RD-M3100-SGS, 9-Speed
Display: Bosch Purion
Fork: SR Suntour XCM ATB Coil, 100mm
Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Tapered Headtube, Full Integrated Battery, Semi-Integrated Carrier
Freewheel: Cassette: Shimano CS-HG201, 11-36T
Grip: Cube Performance Grip

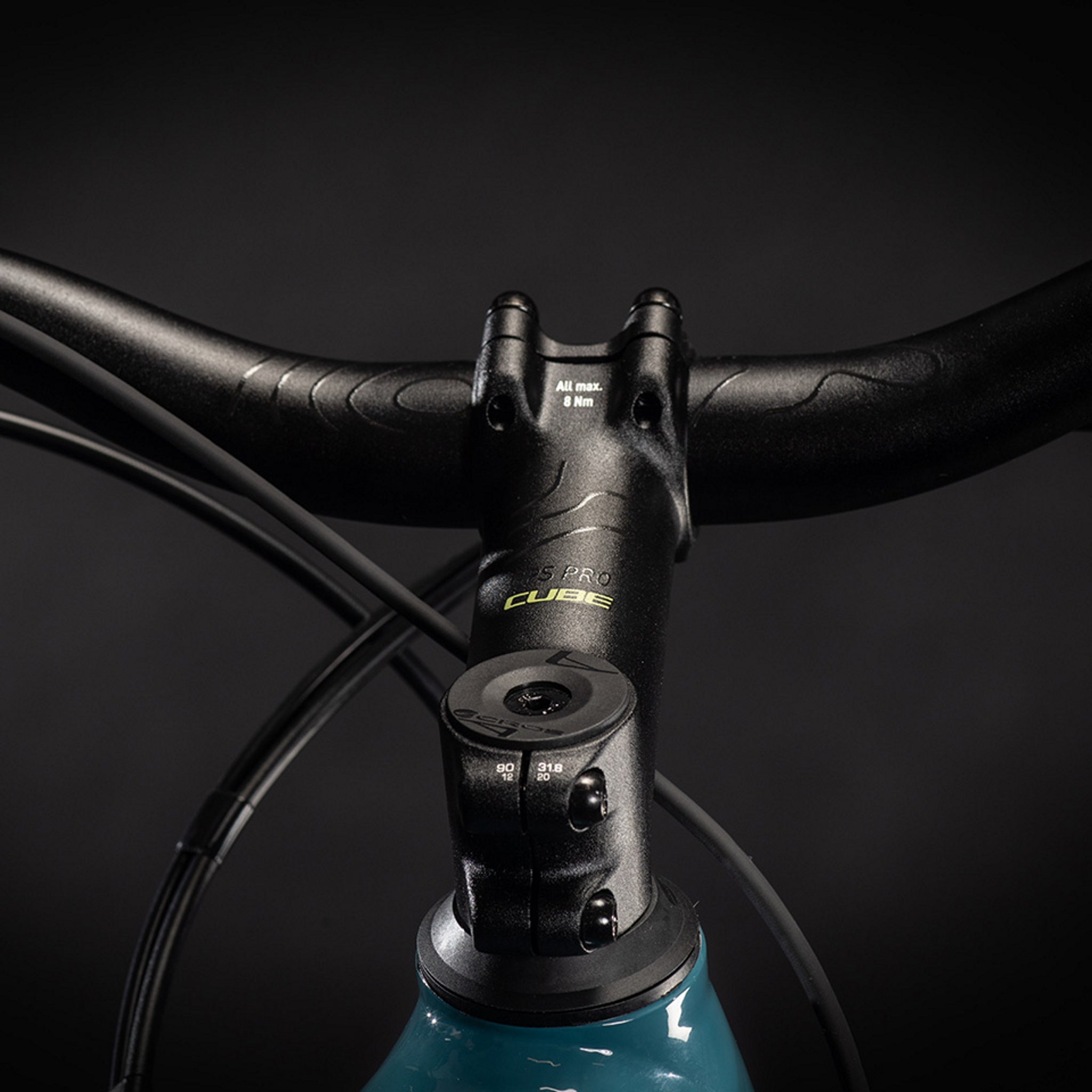

Handlebar: Cube Comfort Trail Bar, 700mm
Handlebar stem: Cube Performance Stem Pro, 31.8mm
Headset: M, L: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Hubs: FRONT: Shimano HB-TX505, QR, Centerlock / REAR: Shimano FH-TX505, QR, Centerlock
Light(s): FRONT: Cube Shiny 50 Lux, 12V, DC / REAR: Cube Edge IC 2.0 Rear LED, 12V, DC
Motor/drive unit: Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Motor drive unit: Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Pedals: ACID PP Trekking
Rim: Cube EX23, 36H, Disc, Tubeless Ready
Saddle: Natural Fit Sequence Comfort
Season: 2021
Seat clamp: Cube Varioclose, 34.9mm
Seat post: Cube Performance Post, 30.9mm
Tyre front: Schwalbe Range Cruiser, 47-622
Tyre rear: Schwalbe Range Cruiser, 47-622
Weight: 24.9 kg
Wheel size: 700c

Frame sizeXS (46cm)S (50cm)M (54cm)
Seat tube440480520
Seat Tube Centre-Centre219240218
Top Tube Horizontal571582593
Seat Angle737373
Head Tube Angle697070
Head Tube (length)140150165
BB Height to Hub axle-60-60-60
Standover Height (50mm from BB)626647631
Standover Height (80mm from BB)653672658
Wheel Size282828

Cube Touring Hybrid Bike Sizing Chart

Cube Touring Hybrid Bike Sizing Chart

Cube Bikes Warranties


Your CUBE bike is guaranteed against any manufacturing defect for 2 years from the date of sale. In addition, we offer our customers the following warranty in the event of frame breakage outside the legal warranty period as follows:

For all rigid frames and forks from model year 2012, we guarantee from the date of sale at the Reseller: 6-Year Aluminium, Carbon, 3-Year Alu-Carbon Guarantee.

If a breakage occurs during this period (from the date of sale), we will replace the frame with the same or similar. This warranty applies only to the frame. The cost of the components necessary for the operation of the frame (eg seat post, derailleur, handlebars and stem, suspension fork, etc.), even if a replacement of the frame requires the replacement of all or part of these components, remains payable client.

EXCLUSIONS: for Fritzz, Hanzz, Two15, for all dirt bikes and all frame exchanges, additional parts are not included in this extended warranty. Here, the 2-year limited warranty applies.

We reserve the right to repair defective frames or parts or replace them with the corresponding updated model.

A condition of the warranty is the normal use of the bicycle in accordance with the manufacturer’s stipulations.

Modification work outside the legal warranty period (2 years) will not be carried out or reimbursed free of charge by us. We therefore ask that the customer be fully aware of this stipulation when concluding the sales contract in order to avoid possible misunderstandings later.

BOSCH warranty:

All warranties on Bosch eBike components are handled by Bosch. The warranty period lasts 24 months from the date of sale of the e-Bike to the final consumer. If the end consumer’s e-Bike is intended for commercial use (eg rental company, courier), the warranty period is 12 months.

Damage resulting from misuse. This includes, but is not limited to, the use of a Pedelec bike in a bike park or similar, overexertion by jumps or any modification of the original Bosch system, such as speed adjustment.

Special case: Carbon Frames and Carbon Forks:

We offer you and your customer a CCR service (CUBE Crash Replacement Service) = exchange service for damaged carbon frames and forks. This exchange service is intended to provide a simple and economical exchange service to your customer following an accident resulting in damage to the carbon frame/forks.

Excluded from warranty and warranty are all forms of damage due to misuse or use not in accordance with the manufacturer’s specifications (e.g. use of a standard frame as a mountain bike, mounting of dual forks crown, extended suspension travel, jump overload, etc.) and any defects due to normal wear and tear. The warranty extension does not apply to Fritzz, Hanzz, Two15 models, all off-road bikes and carbon frames and all mounted components required by a frame exchange.

Click & Collect Available

• In-stock items usually ready in 4 hours* • Online Only items usually ready in 1-3 working days More info »

Courier Delivery Available

• $9.99 for orders $99 & under • Free for orders over $99 • $35 for bikes & bulky items 10kg+ More info »

For just $5, you can join Club 99 and you’ll gain access to exclusive benefits that will ensure you make the most of your bike purchase both in store and online. The ride starts with Club 99.

Please note, due to challenges in the product supply chain, bike specifications are subject to change without notice. Specifications listed below may not match exactly as shown in the photo.
