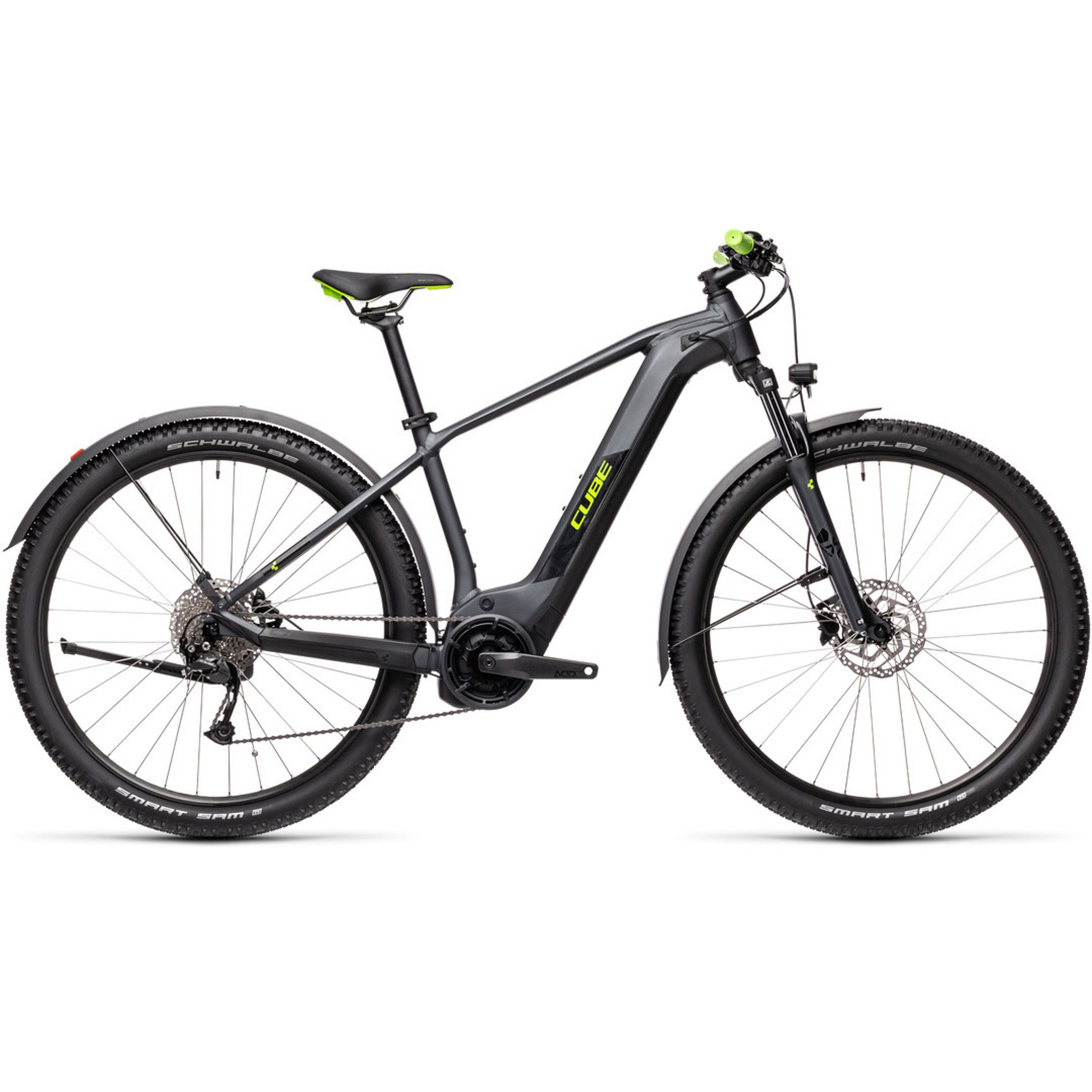

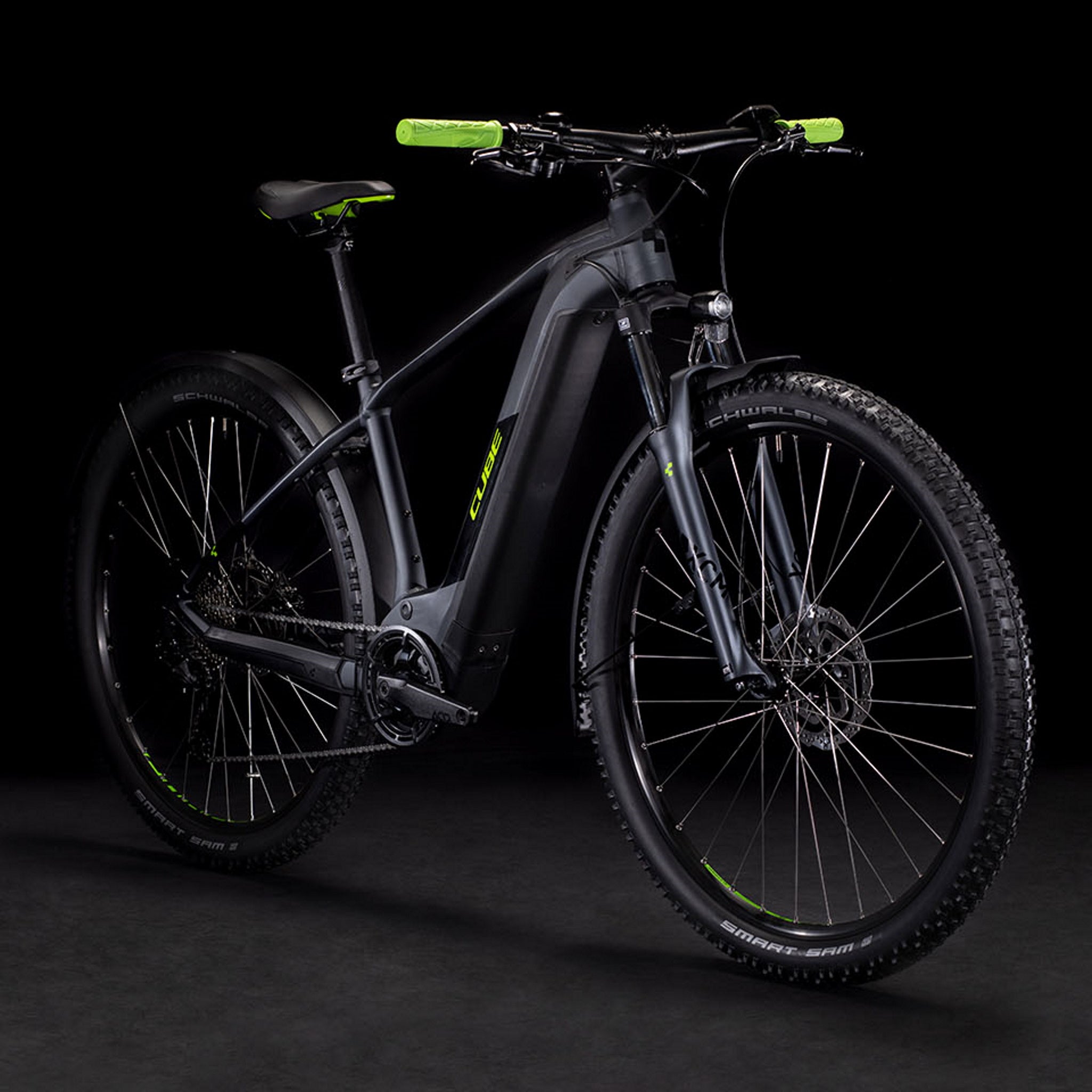

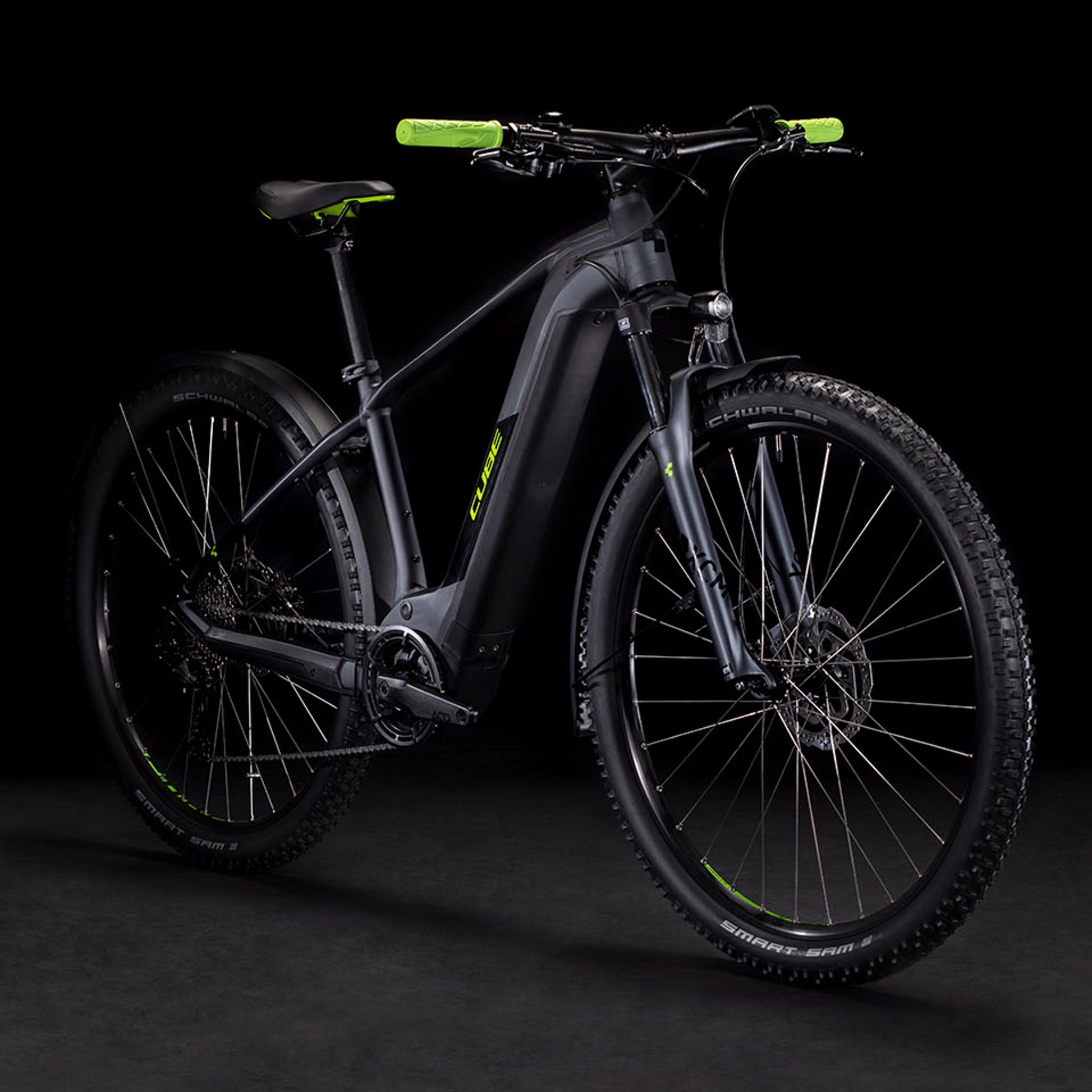

Cube Reaction Hybrid Performance Allroad Electric Bike 500wh Battery Iridium 'n' Green

Cube Reaction Hybrid Performance Allroad Electric Bike 500wh Battery Iridium 'n' Green

Brand: Cube

SKU: ABFYVIPN

Size: XS

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills / 65 Nm Torque

Up to 69 km Range

Bosch Performance Gen 3 Motor

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

500Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Form follows function was the philosophy when Cube made the Reaction Hybrid Performance Allroad; designed so that your weekend trail bike can double up as weekday transport. The result is a versatile and practical hybrid electric bike with an elegantly integrated Powertube frame that conceals a powerful Bosch PowerTube 500 Battery and offers internally routed cables for minimal maintenance and a clean aesthetic. The Bosch Performance Generation 3 drive unit is paired with a reliable 9 speed Shimano drivetrain and powerful Shimano hydraulic disc brakes. 100mm travel of Suntour front suspension will swallow bumpy roads and forest trails with ease, reducing rider fatigue. Fully equipped with practical accessories including mudguards, lights, a kickstand and mounts for racks. Rolling on Schwalbe Smart Sam tyres for their excellent all-round properties, and with Cube’s size split system, sizes XS and S roll on 27.5” and M+ roll on 29ers, so there is a perfect fit for any rider.

Key Features

Powerful Bosch PowerTube 500 Battery

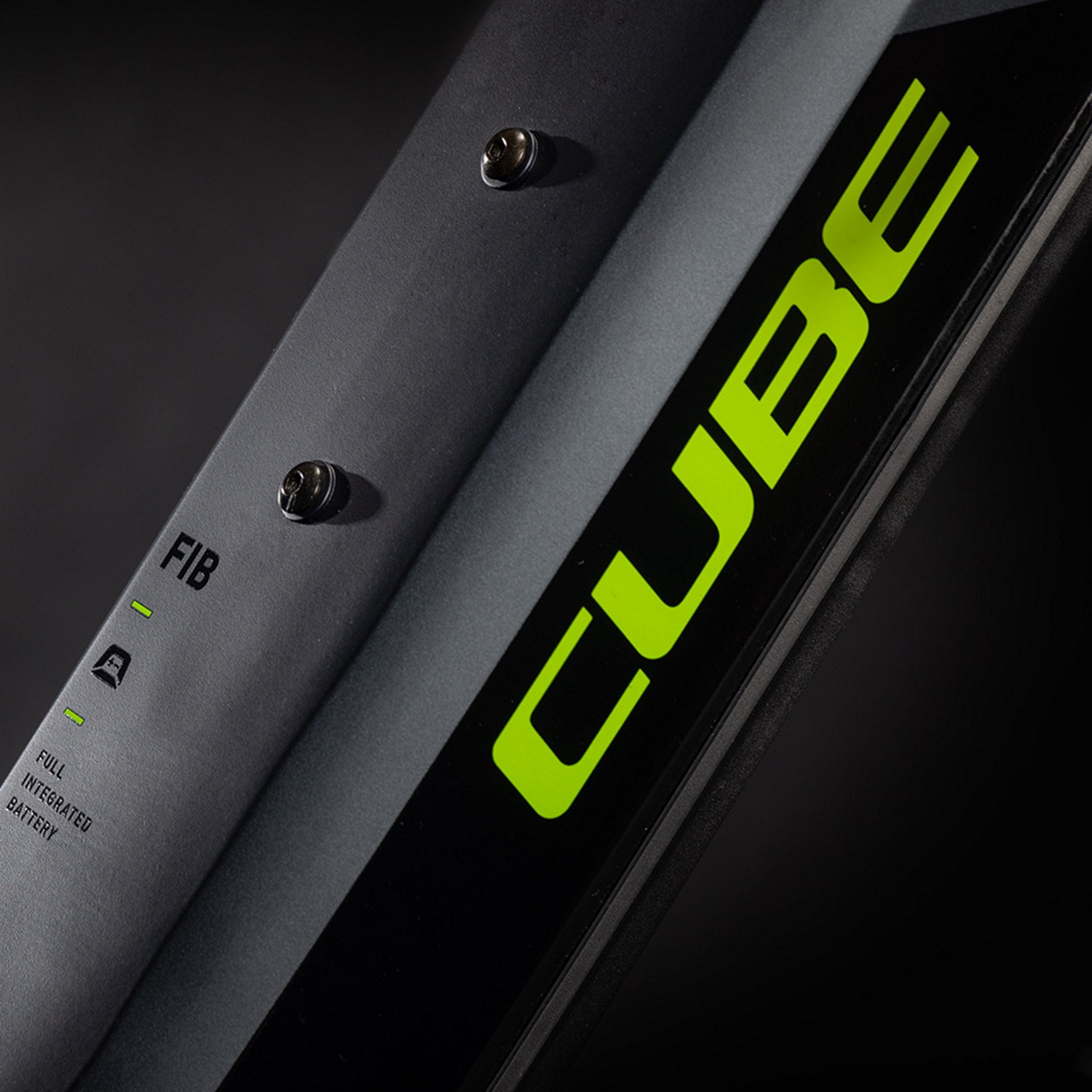

Elegant integrated frame design
Reliable 9-speed Shimano drivetrain
100mm Suntour front suspension

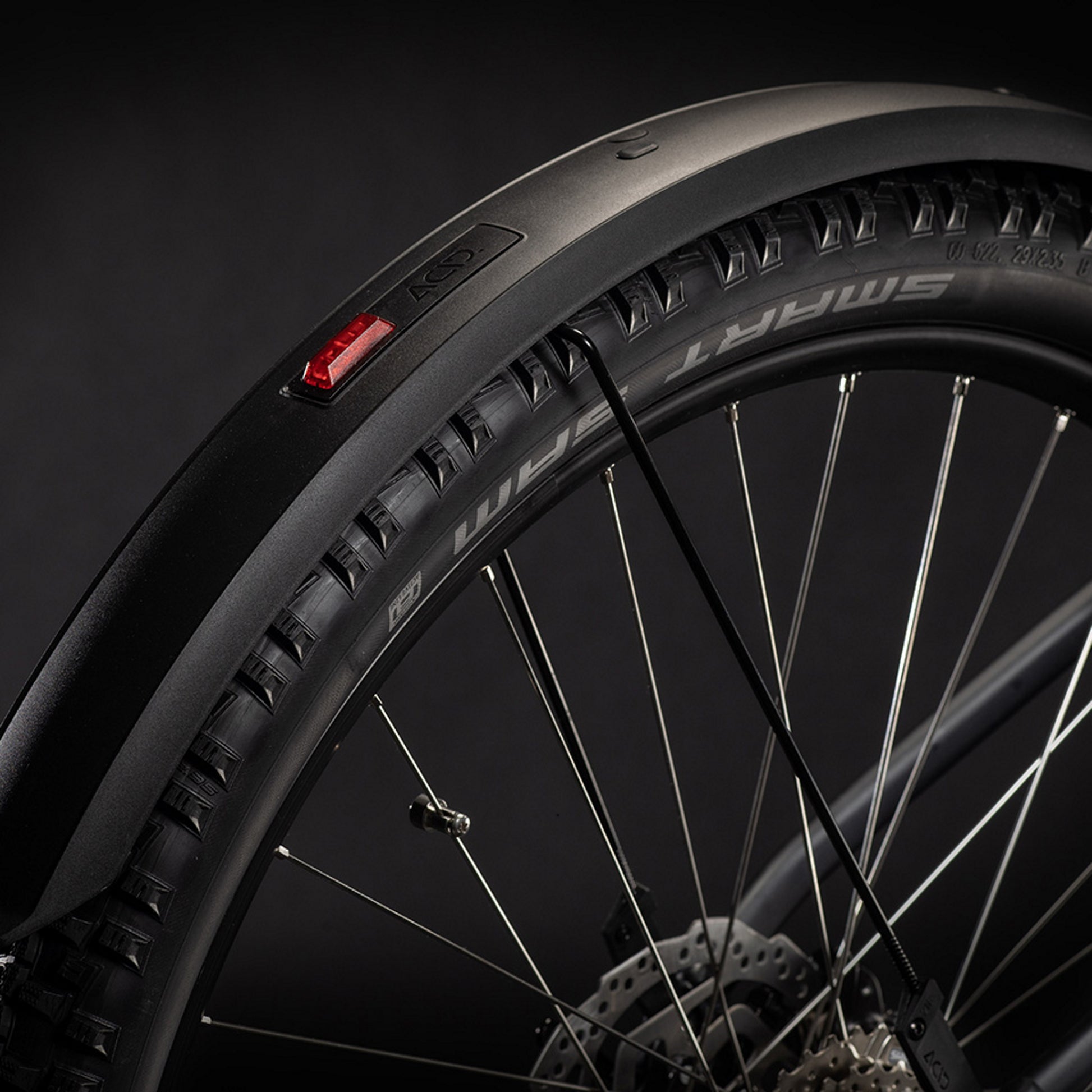

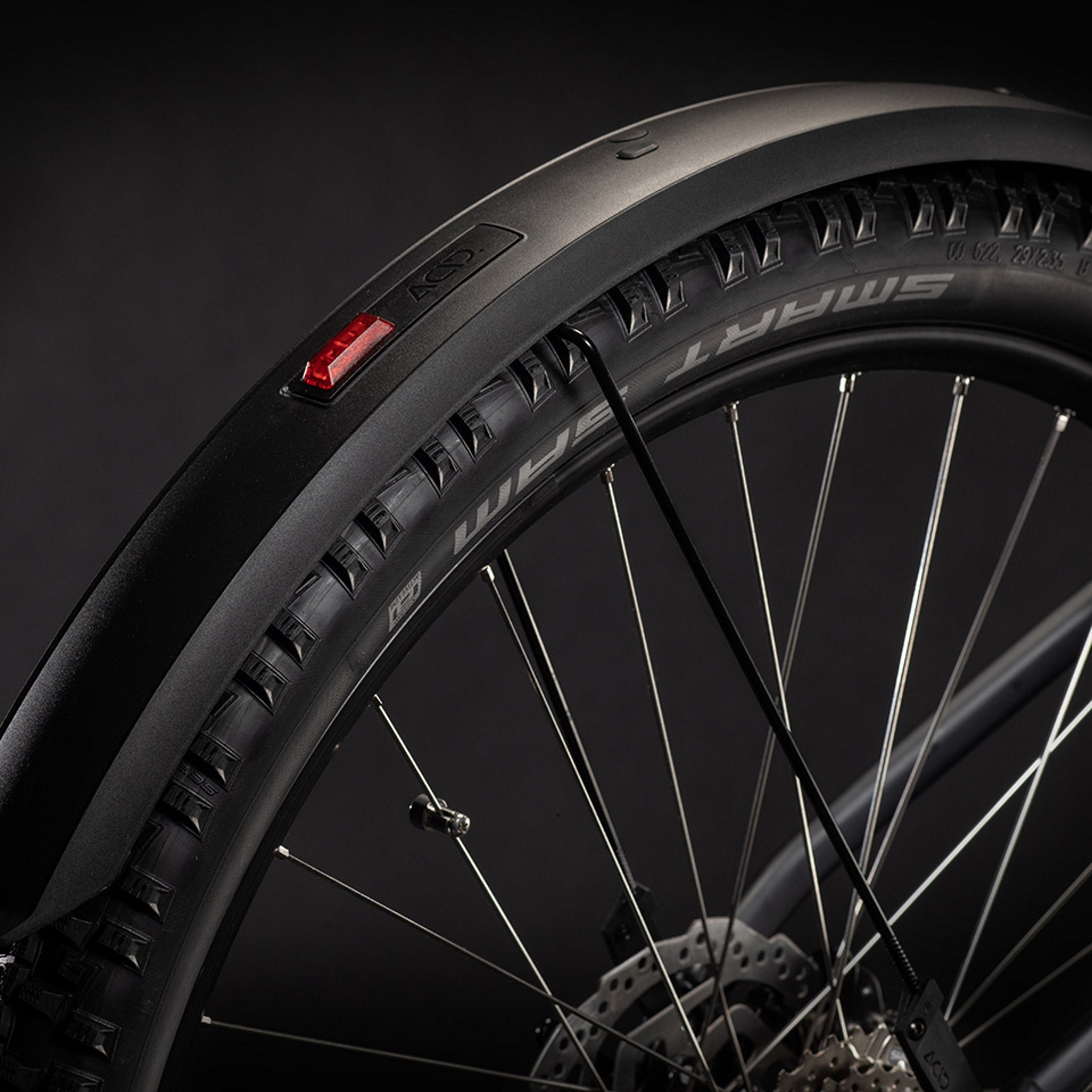

Fully equipped with practical accessories

Specifications

Product Overview

Product

Cube Reaction Hybrid Performance Allroad Electric Bike 500wh Battery Iridium 'n' Green

Brand

Cube

Parent SKU

U5YZ7PL2

Year Model

2021

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

100mm

Weight

24.2kg

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Bosch

Torque (Nm)

Motor Climbing Ability

Steep Hills

Battery Size (Watt-Hours)

500

Battery

Bosch PowerTube 500

Max. Range (KMs)

Display

Bosch Purion

Build

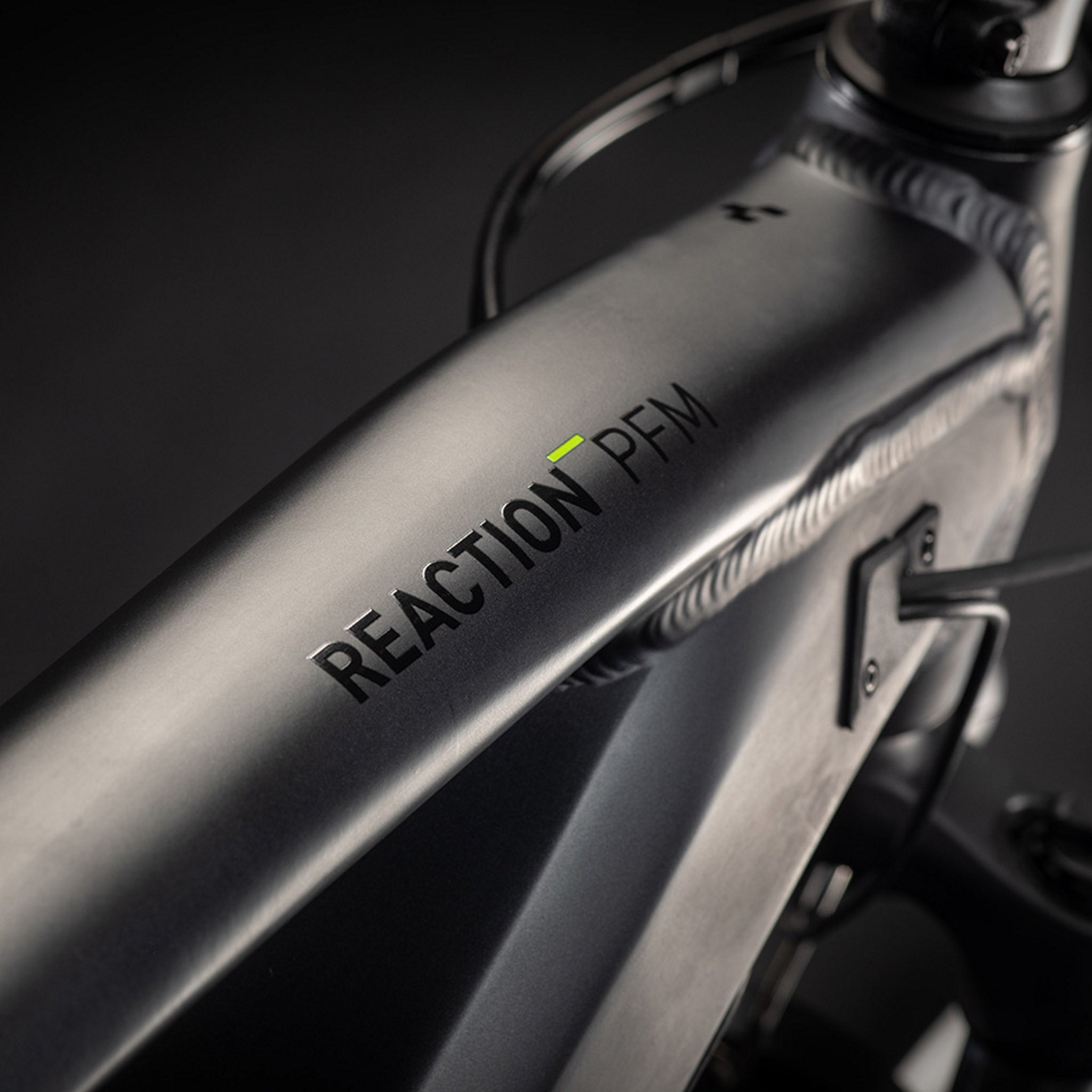

Frame

Aluminium Superlite, Gravity Casting, Agile Ride Geometry, Tapered Headtube, Internal Cable Routing, Full Integrated Battery, Kickstand/Fender/Carrier Mounting Points

Fork

SR Suntour XCM ATB Coil, 100mm

Handlebars

CUBE Rise Trail Bar, 720mm

Headset

27.5: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // 29: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

Grips

CUBE Performance Grip

Stem

CUBE Performance Stem Pro, 31.8mm

Pedals

CUBE PP MTB

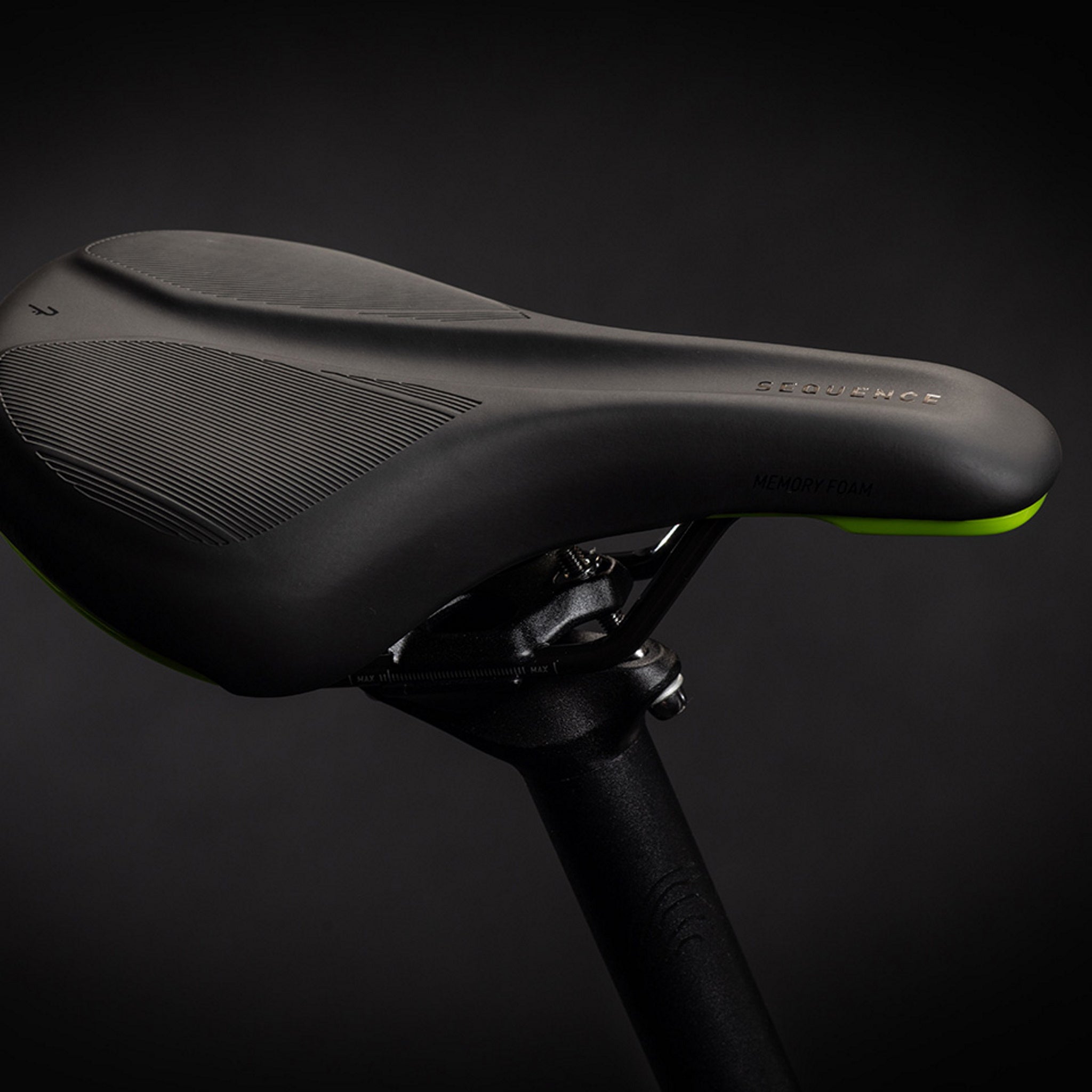

Saddle

Natural Fit Sequence

Seat Post

CUBE Performance Post, 30.9mm

Seat Clamp

CUBE Varioclose, 34.9mm

Accessories

KICKSTAND: CUBEstand Cmpt / BELL: Mini Bell

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

CUBE EX23, 32H, Disc, Tubeless Ready

Hubs

FRONT: Shimano HB-TX505, QR, Centerlock / REAR: Shimano FH-TX505, QR, Centerlock

Groupset

Crankset

ACID E-Crank, 38T, 175mm

Chain

KMC X9

Brakes

Shimano BR-MT200, Hydr. Disc Brake (180/180)

Shifters

Shimano SL-M3100-R, Rapidfire-Plus

Rear Derailleur

Shimano RD-M3100-SGS, 9-Speed

Cassette

9 Speed

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:
