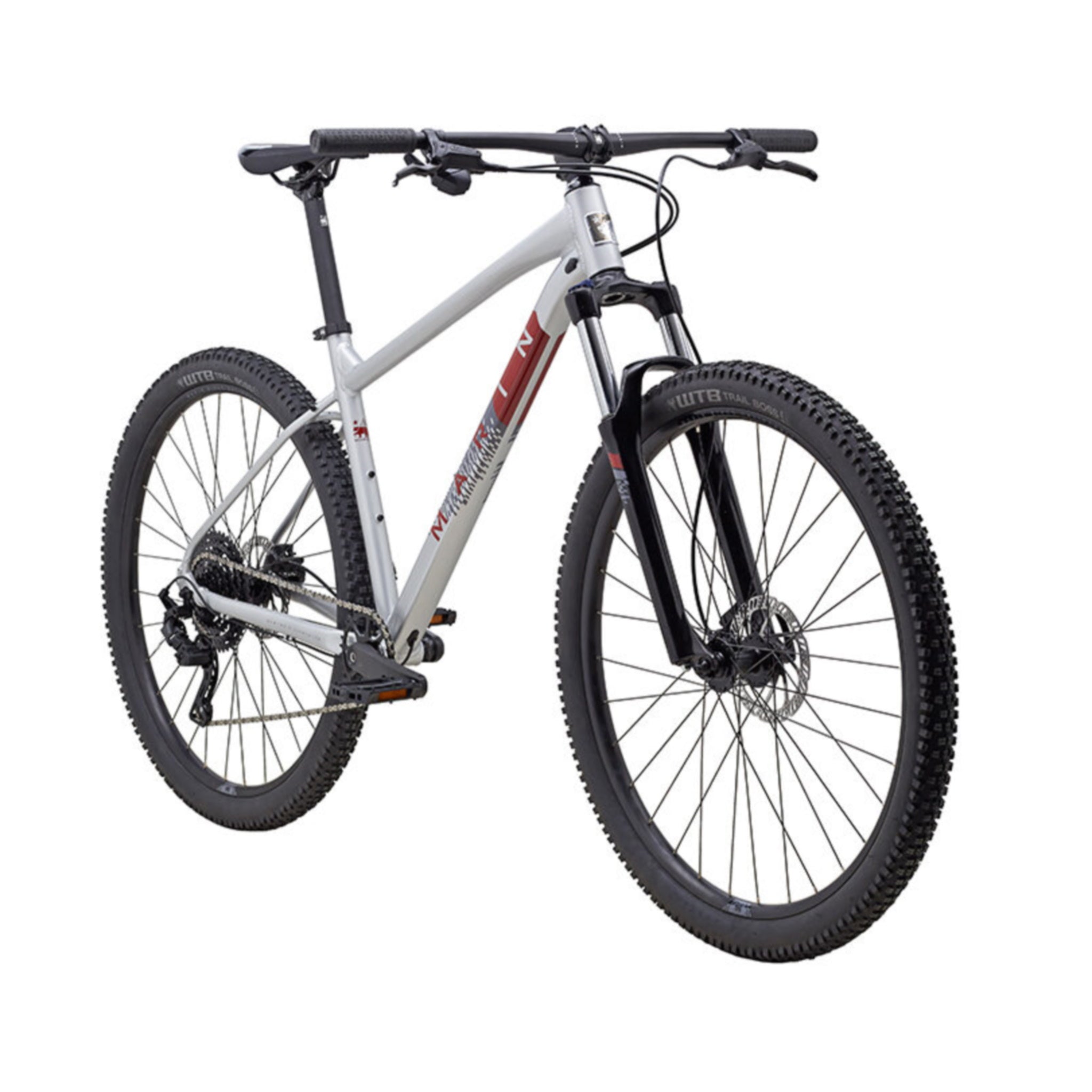

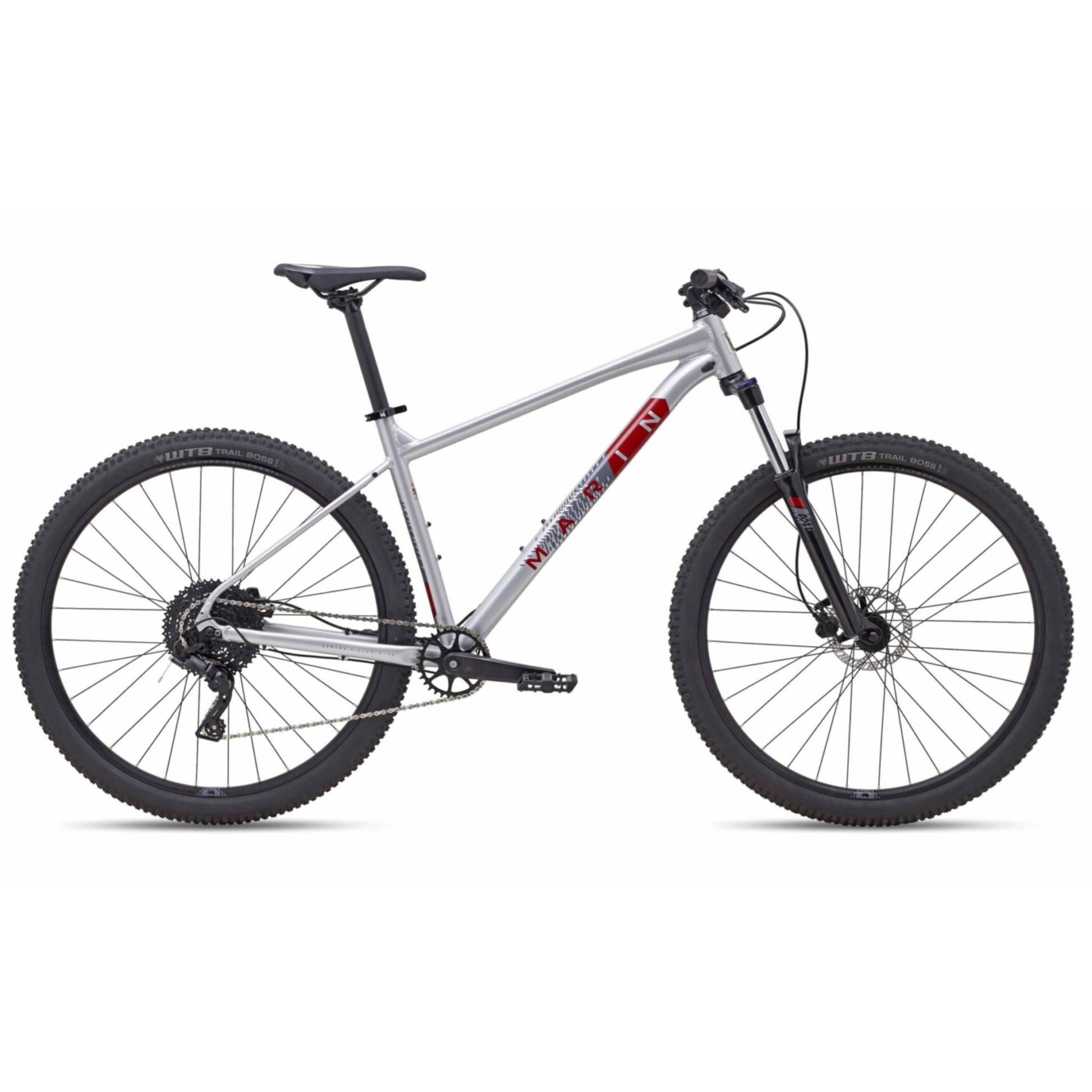

Marin Bobcat Trail 4 Hardtail Mountain Bike 29" Wheels Silver

Marin Bobcat Trail 4 Hardtail Mountain Bike 29" Wheels Silver

Brand: Marin

SKU: Select a size

Size: Select a size

MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

120mm Front Travel

29" Wheel Size

Hydraulic Disc Brake

MICROshift Advent Groupset

1 x 9 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Bobcat Trail family of hardtail mountain bikes are designed for the rider looking for a capable singletrack machine. All Bobcat Trail models feature Marin Trail geometry, offering a long-ish reach, low standover, slack head tube, and steep seat tube angles, giving riders confidence and predictable handling to have a blast on the trail. The Bobcat Trail 4 is built around a series 2 6061 butted and hydroformed alloy frame, fitted with a 120mm travel SR Suntour XCM HLO-DS suspension fork with remote lockout. Internal cable routing minimizes servicing needs and routing for a dropper post is provided for future upgrades. Fastback seatstays add vertical compliance without sacrificing power transfer and feature rack mounts for extended trail adventures. The Trail specific MicroSHIFT Advent 1x9 speed drivetrain provides a modern gear ratio and is paired with Tektro hydraulic disc brakes for high performance brake control in any trail conditions.

Key Features

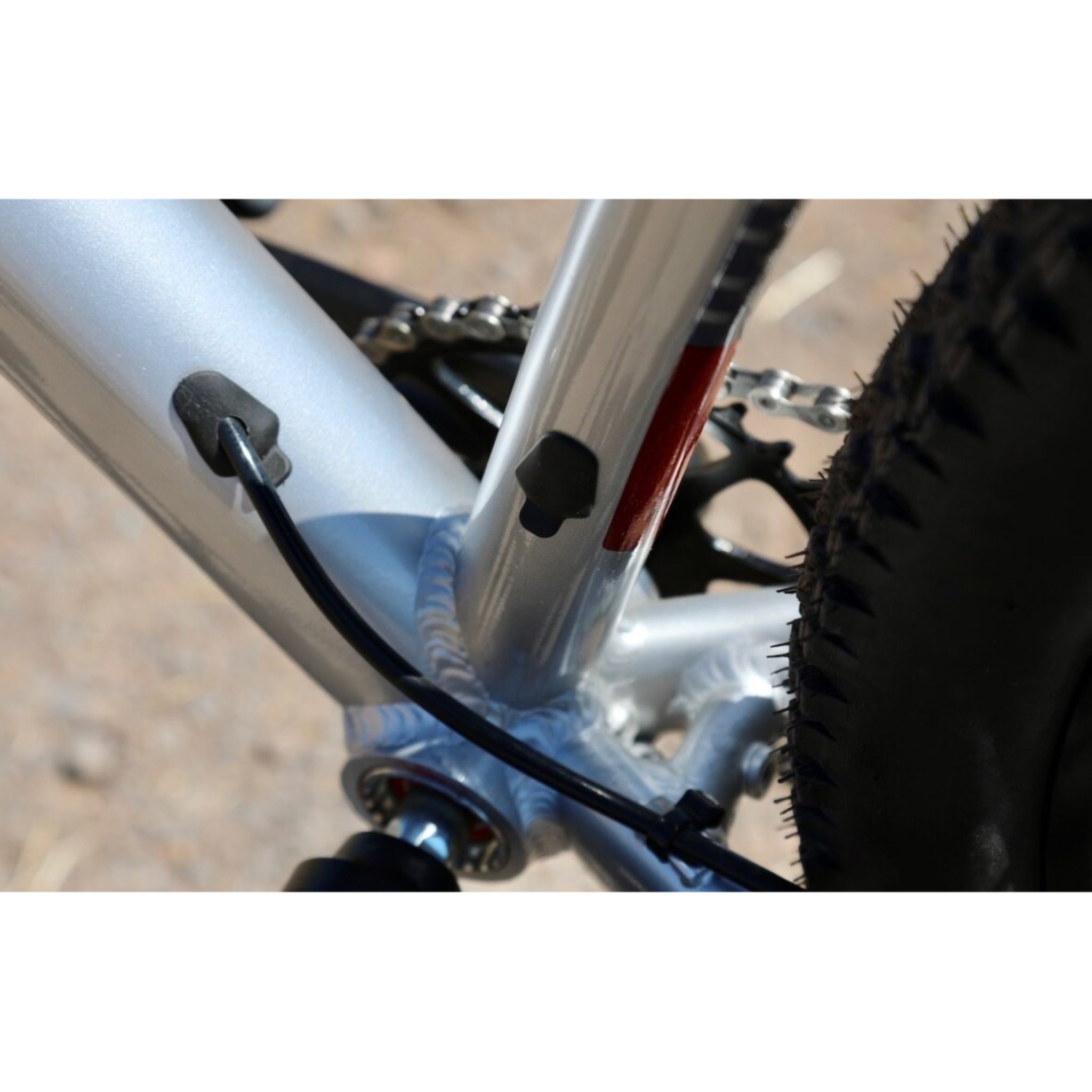

Series 2 6061 Alloy frame, internal cable routing
SR Suntour XCM HLO-DS, 120mm fork, hydraulic lockout

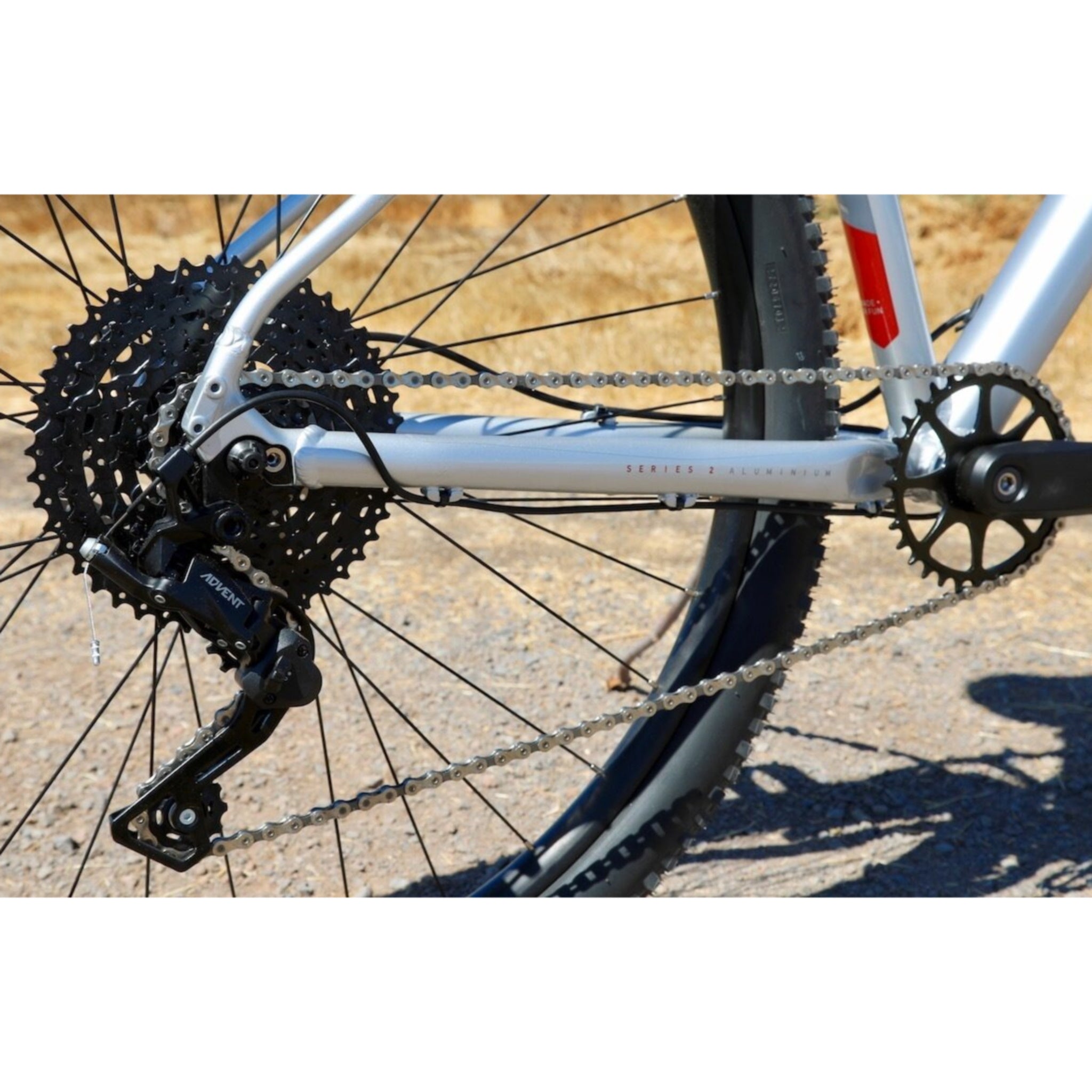

MicroSHIFT Advent 1x9 speed drivetrain

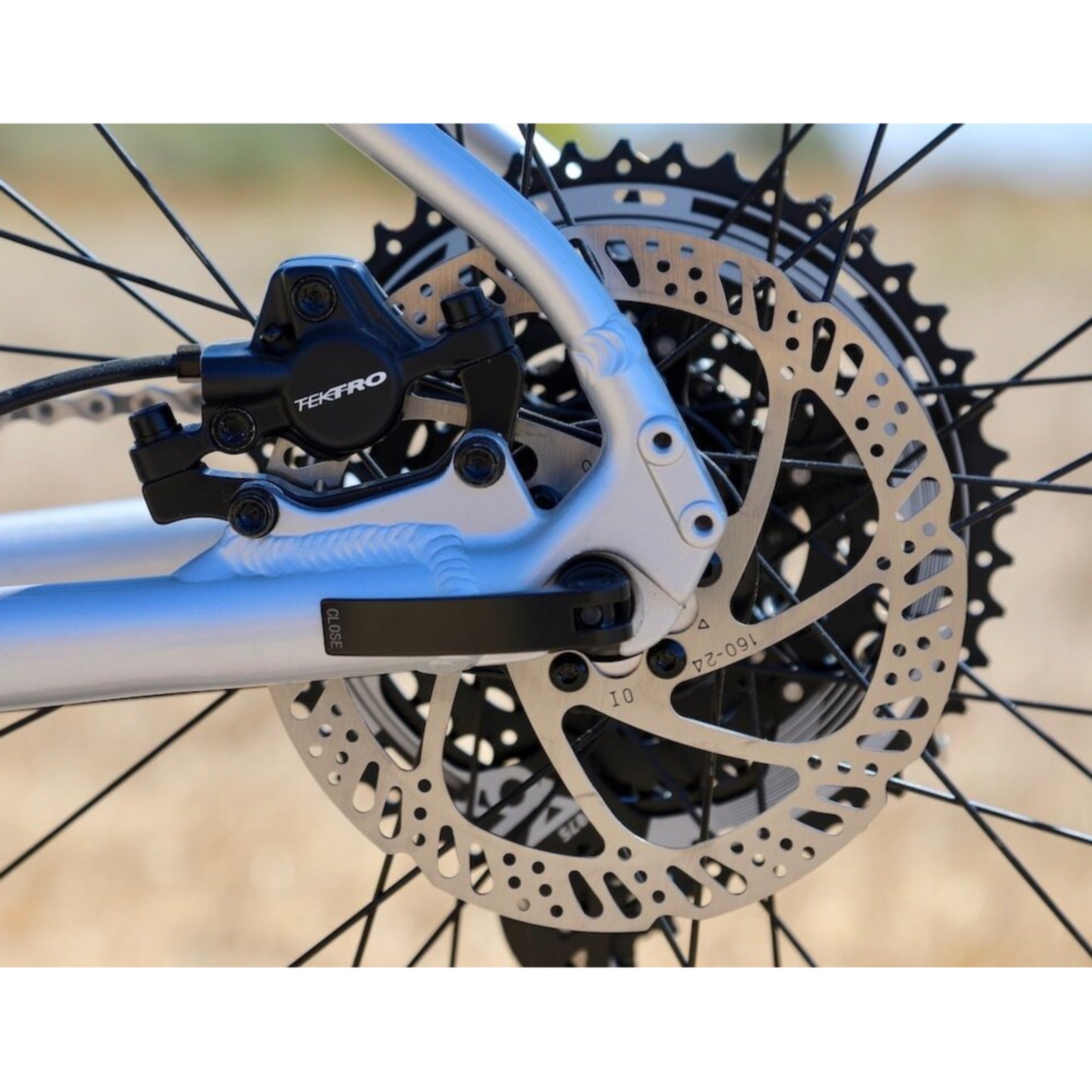

Tektro M275 hydraulic disc brakes
27.5” or 29” wheels depending on the frame size
Dropper post routing ready

Specifications

Product Overview

Product

Marin Bobcat Trail 4 Hardtail Mountain Bike 29" Wheels Silver

Brand

Marin

Parent SKU

9COEZTZD

Size SKUs

MD: MAHA39001
LG: MAHA39002
XL: MAHA39003

Matrix Barcodes

MD: 843346114020
LG: 843346114037
XL: 843346114044

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Silver

Wheel Size

29"

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Fork Material

Alloy

Front Travel

120mm

Build

Frame

Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

Fork

SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset

Handlebars

Marin 31.8 Riser, 12mm Rise, 780mm Width

Headset

FSA No.10-P

Grips

Marin MTB, Closed End

Stem

Marin Alloy, 31.8mm Clamp, 45mm

Bottom Bracket

Sealed Cartridge Bearings, Square Taper

Pedals

Nylon Platform

Saddle

Marin MTB

Seat Post

Marin Alloy, 30.9

Wheels

Wheel Size

29"

Rims

Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

Hubs

Forged Alloy, Disc, 32H

Spokes

14g Black Stainless Steel

Groupset

Crankset

Alloy Crank, Steel Narrow-Wide Chainring, 32T

Chain

KMC X9

Brakes

Tektro M275 Hydraulic Disc

Front Rotor

180mm

Rear Rotor

160mm

Shifters

MicroSHIFT Advent 9 Trail

Rear Derailleur

MicroSHIFT Advent 9, Clutch

Cassette

9 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Bobcat Trail 4 Hardtail Mountain Bike 29" Wheels Silver we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Marin Bobcat Trail 4 Hardtail Mountain Bike 29" Wheels Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
