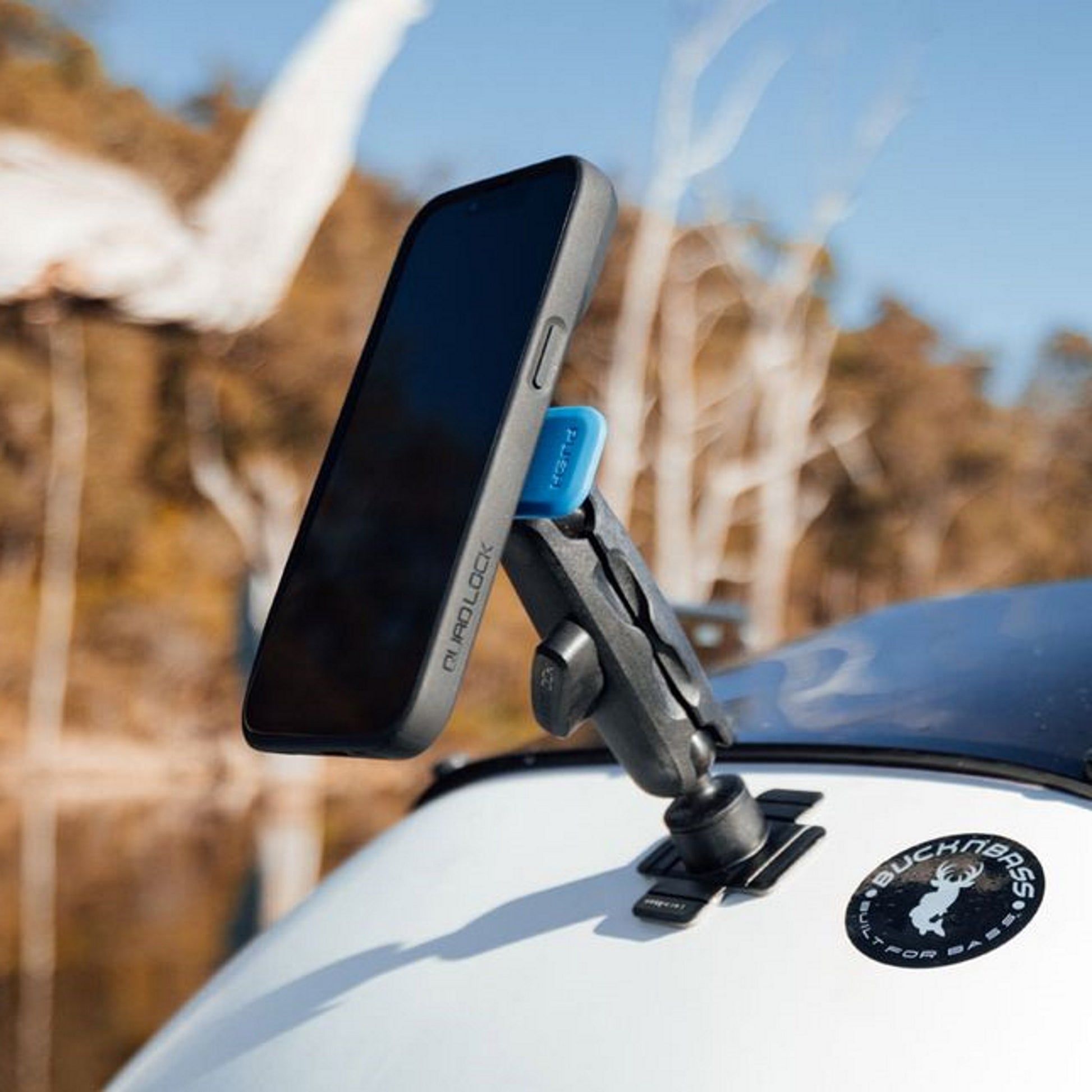

The Flexible Adhesive Base is suitable for mounting to flat or curved surfaces. Using a super secure 3M Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface. A 10mm Spacers and x2 Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM. Made from tough, nylon construction, the Flexible Adhesive Base is 60mm x 60mm with a height of 18.3mm. Each tab is 28mm wide and has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner. The adhesive used is the renowned, 3M Adhesive for extra strong grip. Compatible with all Quad Lock 360 ARMs and HEADs.
The Flexible Adhesive Base can be attached to a number of different flat and curved surfaces, however, it is not intended for severely curved surfaces (eg. 180 degrees).
The 3M™ VHB Adhesive will adhere to smooth, non-textured, non-porous surfaces such as:
- Un-coated Glass (eg. windshield)
- Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. plastic car dash, console)
- Metals
- Fibreglass
- Sealed wood
Recommended applications:

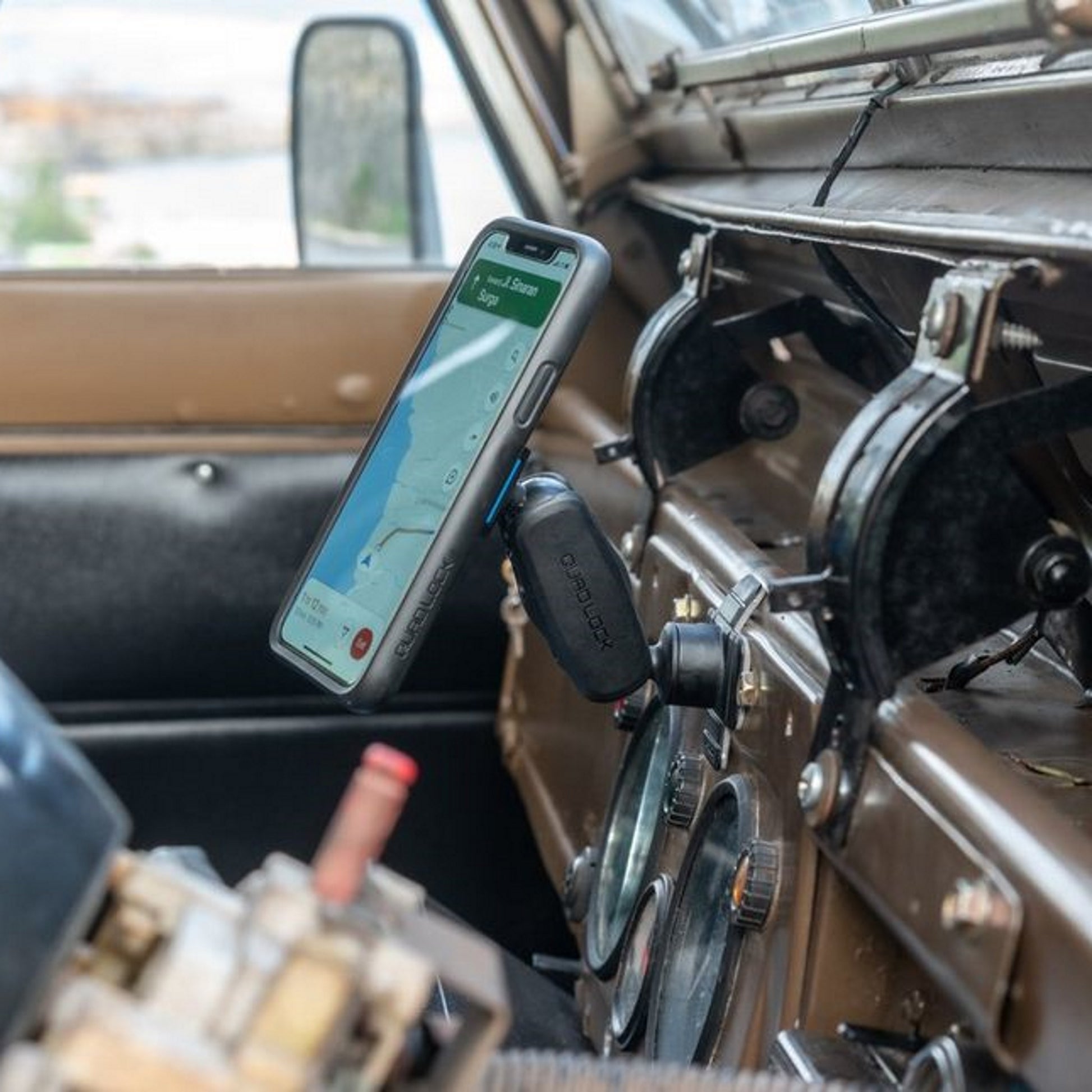

- Interior of cars / 4x4

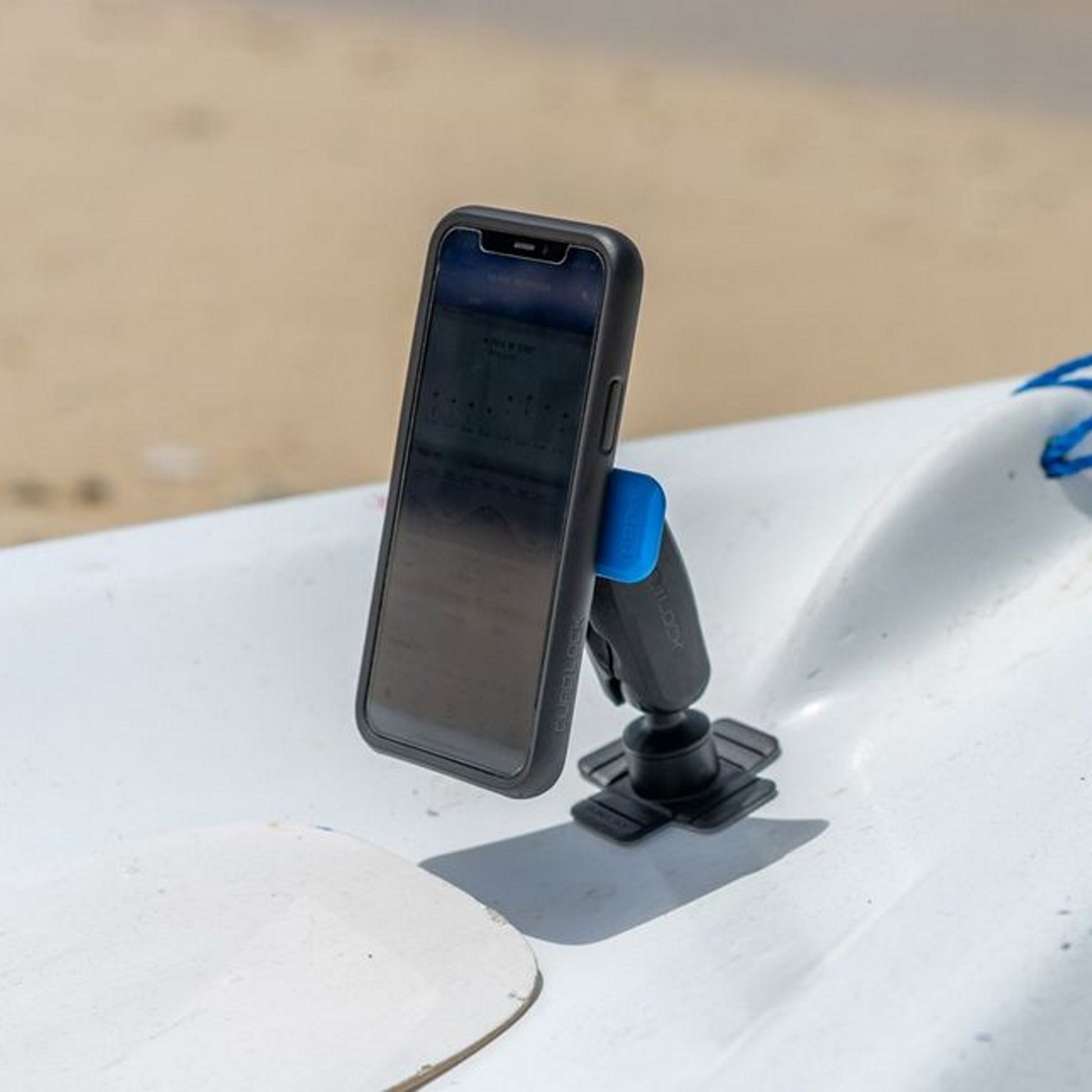

- Boats
- Caravans
- Any low vibration element
It is not recommended for the following substrates:
- Rubber, TPU, TPE
- Leather
- Silicone
- Soft touch coating or paint
- Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
- Unsealed wood
Although possible, we do not recommend using the Flexible Adhesive Base on the following vehicles.
- Motorcycles
- Scooters
- ATVs
- Anything that causes high vibrations or receives constant exposure from outdoor elements
Please ensure the substrate is thoroughly cleaned and dry before applying the Flexible Adhesive Base.
The 3M™ VHB ™ tape is a single use adhesive and is not reusable. Ensure mount position does not obstruct vehicle safety features such as airbags.
