$721 Off Full Price

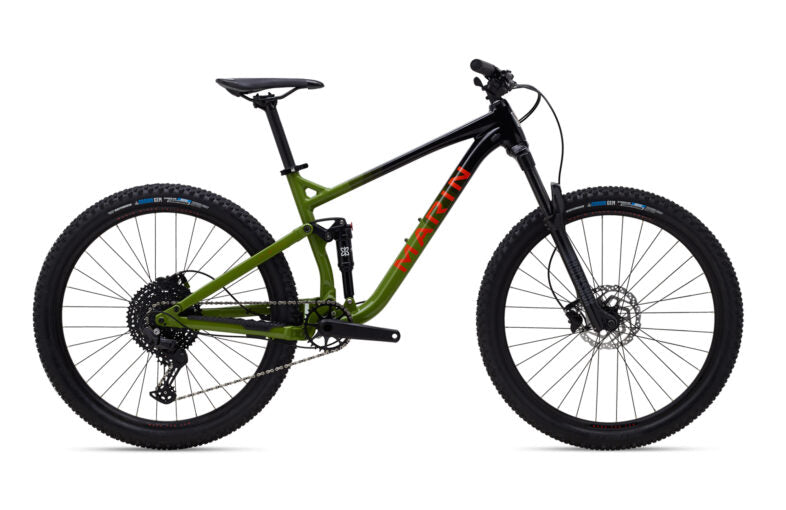

Marin Rift Zone 1 Trail Bike Gloss Black/Green with Orange

Marin Rift Zone 1 Trail Bike Gloss Black/Green with Orange

Brand: Marin

SKU: Select a size

Size: Select a size

MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ RockShox Alloy Fork

130mm Front Travel / 120mm Rear

27.5" (650b) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 12 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Rift Zone is Marin’s most speed oriented MultiTrac bike, created for the rider looking for the speed and roll over capabilities of 29” wheels in a trail capable package. Long, low, and slack trail geometry is more aggressive than an XC race bike for more control at top speed, and more fun while chasing seconds. The Rift Zone 1 features a Series 3 aluminium frame, with detailed forgings, highly manipulated tubes, and full internal cable routing through the front triangle with Marin’s all-new internal cable routing grommets, which provide a cleaner and rattle free cable set up as well as giving the rider a high-performing upgrade worthy platform. The acclaimed MultiTrac suspension system is fine-tuned to offer a balanced ride capable of absorbing big hits while maintaining an efficient pedaling platform.

Key Features

Speed-oriented MultiTrac bike design
29" wheels for enhanced roll over
Long, low, and slack trail geometry
Series 3 aluminium frame construction
Full internal cable routing for cleanliness

Specifications

Product Overview

Product

Marin Rift Zone 1 Trail Bike Gloss Black/Green with Orange

Brand

Marin

Parent SKU

L7693NTQ

Size SKUs

MD: MADA2132408003
LG: MADA2132408004

Matrix Barcodes

MD: 843346113450
LG: 843346113467

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Green

Wheel Size

27.5" (650b)

Brake Type

Hydraulic Disc Brake

Gears

1 x 12

Fork Material

Alloy

Front Travel

130mm

Rear Travel

120mm

Build

Frame

Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs

Fork

RockShox Recon Silver RL 27.5", 130mm Travel, Solo Air, Compression and Rebound Adjustment, Alloy Tapered Steerer, Fast Black Uppers, 110x15mm Boost Spacing, Maxle Stealth, 37mm Offset

Shock

X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

Handlebars

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Headset

FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”

Grips

Marin MTN, Closed End

Stem

Marin 3D Forged Alloy, 35mm

Bottom Bracket

External Sealed Cartridge Bearing

Saddle

Marin Speed Concept

Seat Post

Marin Alloy, 30.9mm

Accessories

Closed 9-12 Thru-Axle QR System

Wheels

Wheel Size

27.5" (650b)

Rims

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hubs

REAR: Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body / FRONT: Shimano HF-MT400B, 110x15mm, Centerlock

Tyres

Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready

Spokes

14g Black Stainless Steel

Groupset

Crankset

Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Chain

KMC X-11 Silver and Black

Brakes

Shimano BR-MT201 Hydraulic Disc, 180mm Rotor

Shifters

Shimano Deore, 11-Speed, SL-5100R

Cassette

12 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Marin Rift Zone 1 Trail Bike Gloss Black/Green with Orange we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Marin Rift Zone 1 Trail Bike Gloss Black/Green with Orange geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

27.5" (650b)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
