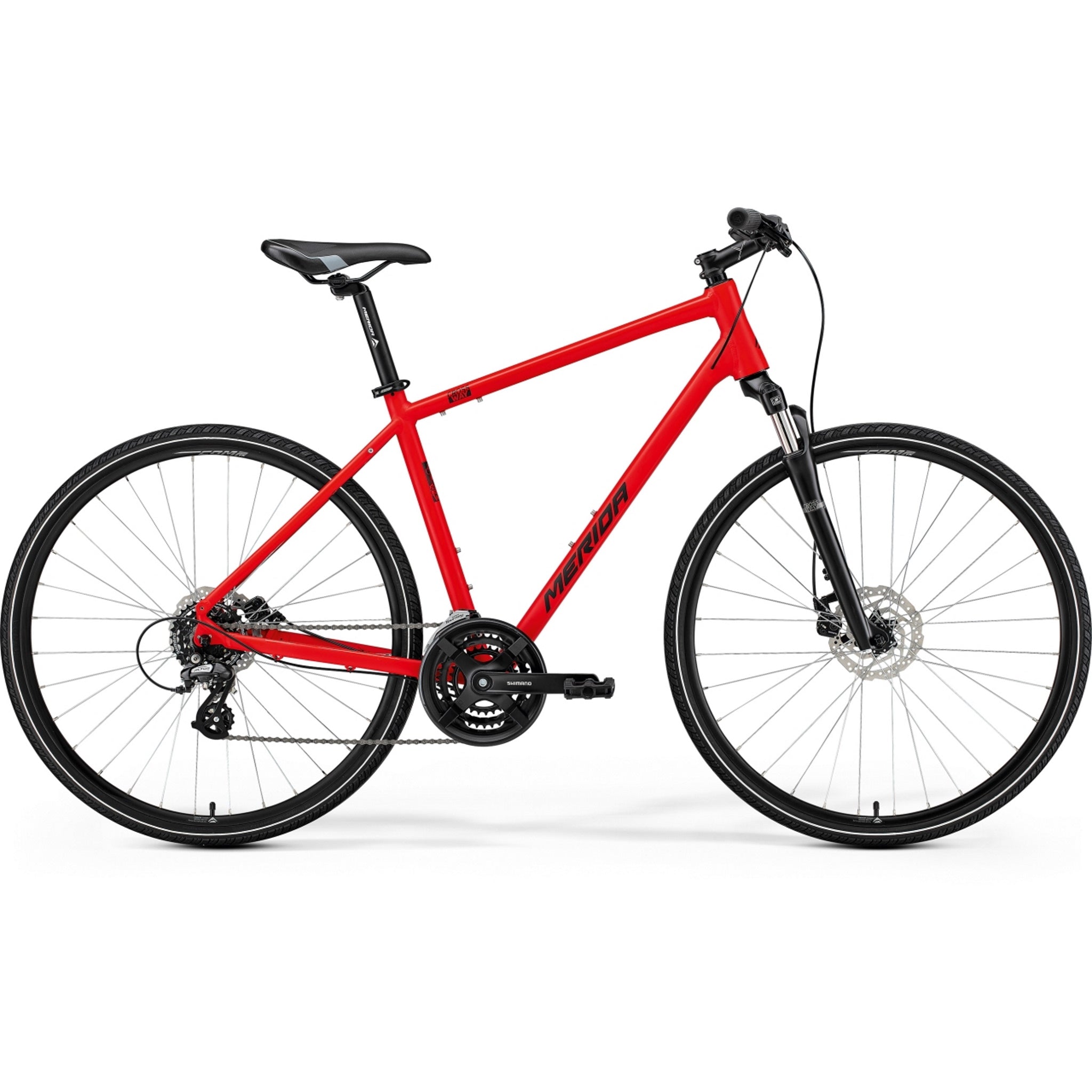

Merida Crossway 10 Hybrid Bike Matt Race Red

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

under 100mm Front Travel

700c Wheel Size

Mechanical Disc Brake

Shimano Tourney Groupset

3 x 7 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

A perfect blend of comfort, enjoyment and all-round functionality, suitable for fitness training, commuting and leisurely rides through forests and on tracks. The Crossway is made from high-quality, lightweight aluminium, with the ability to mount mudguards, racks and kickstands, the perfect choice for everyday riding. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment, they offer the perfect blend of comfort, enjoyment and all-round functionality.

The Crossway 10 is an entry level trekking/hybrid bike at an attractive price point. But even Merida’s entry level models offer up premium features like a Lightweight 61 racelite aluminium frame with slim but durable techno formed tube profiles, internal cable routing and smooth welding, as well as integrated mounting points for commuter accessories. Equipped with easy to modulate Shimano mechanical disc brakes and Suntour 63mm travel suspension fork, just enough travel to smooth out the bumps without slowing you down. The reliable Shimano drivetrain offers up a broad 3 x 7 gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. The Crossway 10 is your reliable companion around town and cross country.

Key Features

Lightweight aluminum frame for easy handling
Versatile tyres for on-road and off-road
Comfortable geometry for long rides
Reliable disc brakes for all-weather stopping
Integrated rack mounts for added convenience

Specifications

Product Overview

Product

Merida Crossway 10 Hybrid Bike Matt Race Red

Brand

Merida

Parent SKU

H2THYILU

Size SKUs

SM: MEHB2500987
MD: MEHB2500988
LG: MEHB2500989
XL: MEHB2500990

Year Model

2025

Product Features

Frame Material

Alloy

Colour

Red

Wheel Size

700c

Brake Type

Mechanical Disc Brake

Gears

3 x 7

Fork Material

Alloy

Front Travel

under 100mm

Build

Frame

CROSSWAY TFS III; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR

Fork

Suntour NEX DS; Coil; 63 STR; 700x50C max. WHS

Handlebars

MERIDA CC; MAT steel; 620 WHB; 30 RHB

Headset

MERIDA M2345

Grips

MERIDA EC

Stem

MERIDA COMP TK; MAT aluminium; 25.4 DSH; 7 ASD 100 mm all sizes

Bottom Bracket

Shimano BB-UN101 73-123

Saddle

MERIDA Cross Sport

Seat Post

MERIDA TK;30,9 DSP; 10 SSB;

Seat Clamp

MERIDA COMP QR

Wheels

Wheel Size

700c

Rims

MERIDA CC; 17 IWR; MAT aluminium

Hubs

FRONT: Shimano TX505; 100x9 WHF; 32 SPH; Centerlock / REAR: Shimano TY505-7; 135x9 WHR; 32 SPH; Centerlock

Spokes

Steel UCP

Groupset

Crankset

Shimano TY301; 48-38-28 ATC; MAT Aluminium 170mm-XXS/XS/S, 175mm-M up

Chain

Sunrace CNM84

Brakes

Shimano BR-M375

Front Rotor

Shimano RT10; 160 mm

Rear Rotor

Shimano RT10; 160 mm

Shifters

FRONT: Shimano ST-EF500-L / REAR: Shimano ST-EF500-7R

Rear Derailleur

Shimano RD-M310-7

Cassette

7 Speed

Frequently Asked Questions

What is the Merida Crossway 10 Hybrid Bike used for?

The Merida Crossway 10 Hybrid Bike is used for commuting, fitness rides, and leisure cross-country outings—anywhere you want a comfortable, efficient ride on road or light trails.

Why choose the Merida Crossway 10 Hybrid Bike?

Choose the Merida Crossway 10 Hybrid Bike for its lightweight aluminium frame, versatile 700c x 40 mm tyres, reliable Shimano drivetrain and mechanical disc brakes, plus integrated mounts for practical commuting accessories.

Who is the Merida Crossway 10 Hybrid Bike designed for?

The Merida Crossway 10 Hybrid Bike is designed for riders seeking a comfortable, all-round hybrid—beginners to casual cyclists who want a dependable bike for daily use and weekend adventures.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Crossway 10 Hybrid Bike Matt Race Red we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Lightweight comfort and confidence

A high-quality, lightweight aluminium frame and upright geometry make long rides effortless and comfortable. Smooth welding and internal routing keep the bike feeling premium and easy to handle.

All-terrain readiness

40 mm tyres on 700c wheels plus a Suntour 63 mm suspension fork soak up bumps while keeping speed on road and trail. Shimano components and mechanical disc brakes deliver reliable shifting and stopping in varied conditions.

Built for everyday utility

Integrated rack and mudguard mounts let you equip the bike for commuting or light touring with ease. Practical features like a broad gear range and durable construction make it dependable day-to-day.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida Crossway 10 Hybrid Bike Matt Race Red geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

700c

Stack

631

645

667

695

Reach

393

399

406

418

Top Tube Length

580

590

610

630

Seat Tube Length

470

510

550

590

Seat Tube Angle

73.5

73.0

Fork Length

468

Head Tube Length

140

155

175

205

Head Tube Angle

140.0

155.0

175.0

205.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

748

782

817

854

Minimum Seat Height

Maximum Seat Height
