Cube Aim EX Hardtail Mountain Bike Desert 'n' Black

Cube Aim EX Hardtail Mountain Bike Desert 'n' Black

Brand: Cube

SKU: VZ8ETHMI

Size: XS

XS XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

100mm Front Travel

29" / 27.5" (Varies by Frame Size) Wheel Size

Hydraulic Disc Brake

Shimano Deore Groupset

1 x 10 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

Completely revised for 2022, the Cube Aim EX pushes it’s sleek, elegant and understated aesthetic to a whole new level. It doesn’t just look great either, the lightweight double butted alloy frame incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. A flat disc mount integrates seamlessly with Cube’s kickstand mount and integrated mounting points for mudguards and a rear carrier. The SR Suntour XCM front fork provides 100mm of travel and offers a remote lockout for efficient hill climbs. Shimano Hydraulic Disc Brakes ensure responsive braking performance in any conditions, while the reliable Shimano Deore 1x10 speed drivetrain provides a modern gear ratio with a wide range and less parts to maintain or become damaged. With Cube’s size split system, every frame is perfectly proportioned, with sizes XS and S kitted with 27.5” wheels, and sizes M, L and XL roll on 29ers, ensuring that every rider can find their ideal frame fit.

Key Features

Lightweight Alloy frame with internal cable routing
Sleek modern design perfect for cross country, trail and fitness riders
1 x 10 Speed Shimano Deore Drivetrain
100mm SR Suntour XCM Fork with Lockout

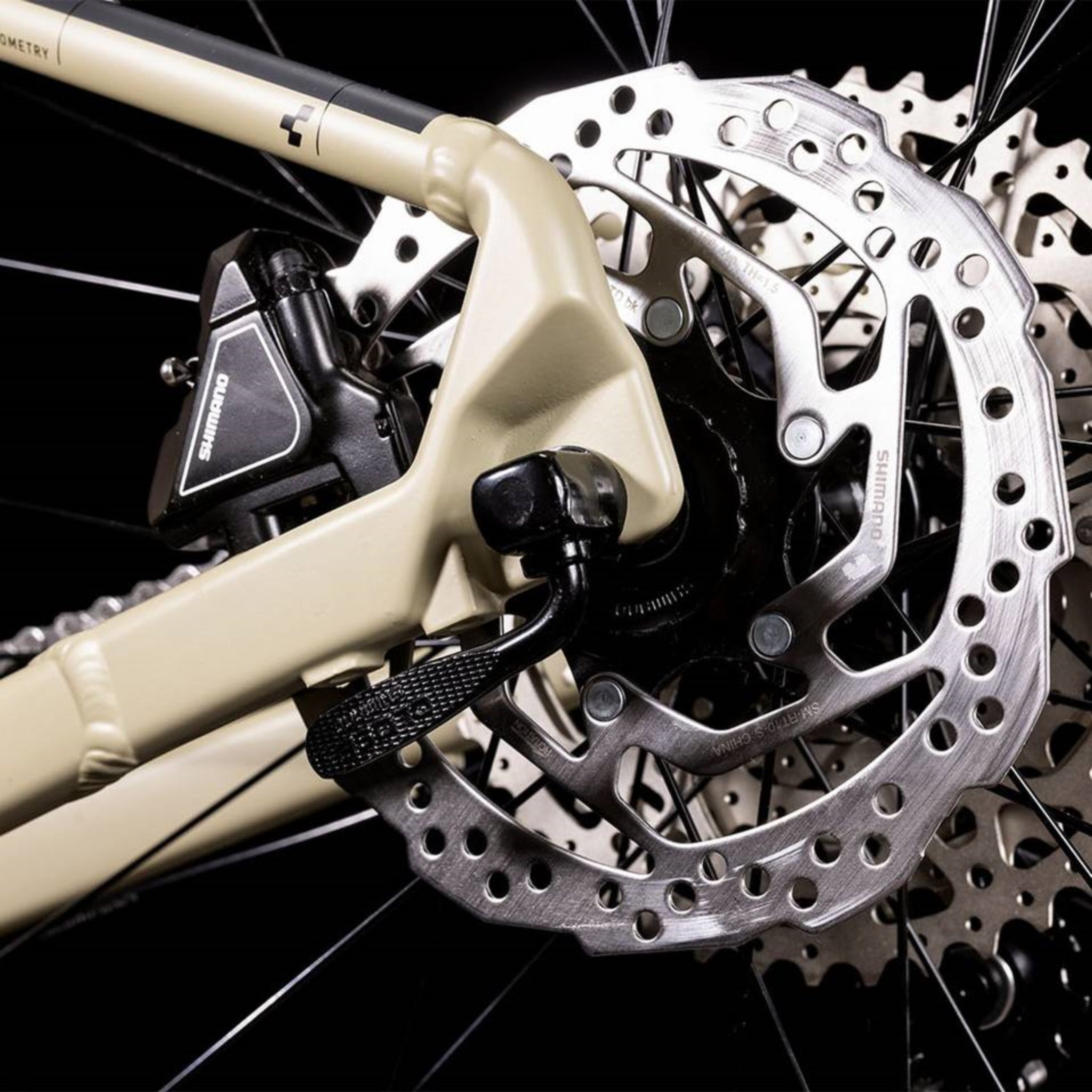

Shimano Hydraulic Disc Brakes
Cube Size Split system with 27.5” or 29” wheel sizes
Integrated mounts for kickstand, mudguards, carrier rack

Specifications

Product Overview

Product

Cube Aim EX Hardtail Mountain Bike Desert 'n' Black

Brand

Cube

Parent SKU

FDMWPFP6

Size SKUs

XS: 501460-0014
XL: 501460-0022

Matrix Barcodes

XS: 4054571355591
XL: 4054571355638

Year Model

2022

Product Features

Frame Material

Alloy

Wheel Size

29" / 27.5" (Varies by Frame Size)

Brake Type

Hydraulic Disc Brake

Gears

1 x 10

Fork Material

Alloy

Front Travel

100mm

Weight

13.9kg / Max Rider Weight: 115kg / Max System Weight (including trailer, luggage carrier, other accessories): 150kg

Build

Frame

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

Fork

SR Suntour XCM Disc, 100mm, Remote Lockout

Handlebars

CUBE Rise Trail Bar, 680mm

Headset

CUBE FPH868, Top 1 1/8", Bottom 1 1/2", Semi-Integrated

Grips

Natural Fit Performance

Stem

CUBE Performance Pro, 31.8mm

Pedals

CUBE PP MTB

Saddle

Natural Fit Venec Lite

Seat Post

CUBE Performance Post, 27.2mm

Seat Clamp

CUBE Varioclose, 31.8mm

Wheels

Wheel Size

29" / 27.5" (Varies by Frame Size)

Rims

CUBE ZX20, 32H, Disc

Hubs

Shimano HB-TX505, QR, Centerlock

Groupset

Crankset

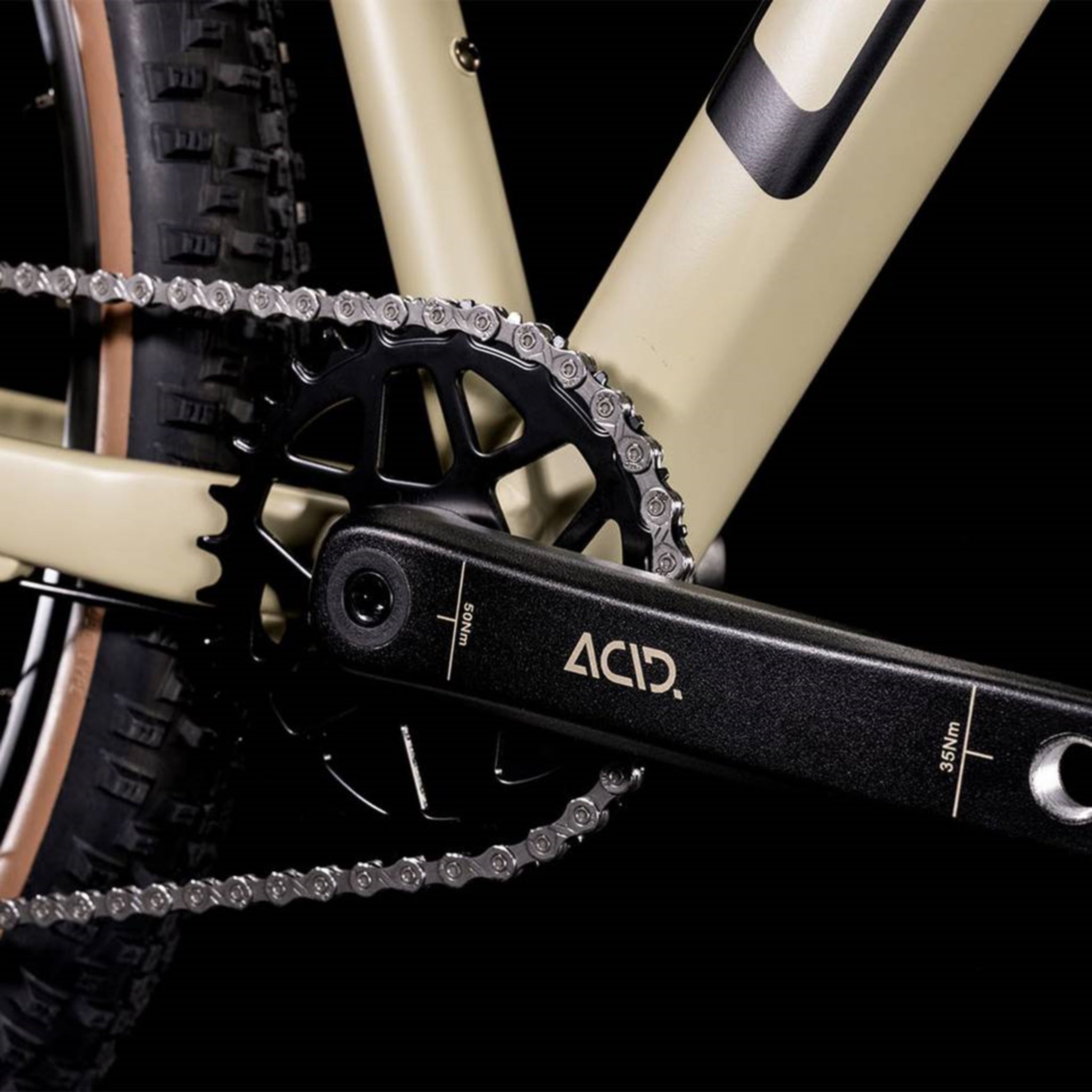

ACID MTB Alloy 32T

Chain

KMC X10

Brakes

Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)

Shifters

Shimano Deore SL-M4100, Rapidfire-Plus

Cassette

10 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Cube Aim EX Hardtail Mountain Bike Desert 'n' Black we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: XS

Legend

Available size

Current size

Unavailable size

Suggested sizing

Cube Aim EX Hardtail Mountain Bike Desert 'n' Black geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29" / 27.5" (Varies by Frame Size)

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
