$901 Off Full Price

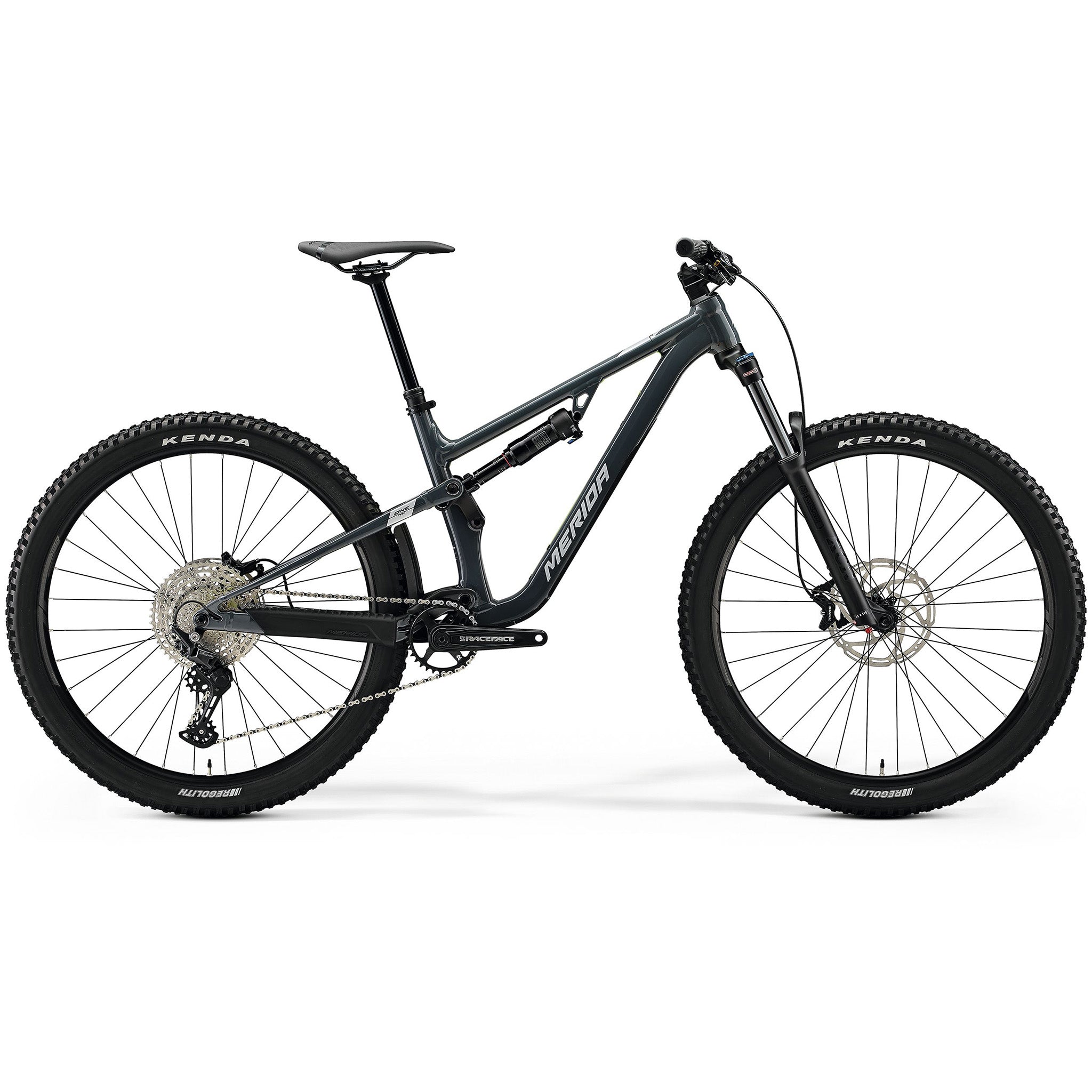

Merida One Forty 400 Trail Bike Grey/Silver

Brand: Merida

SKU: Select a size

Size: Select a size

SM MD LG XL

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Alloy Frame/ Suntour Alloy Fork

140mm Front Travel / 140mm Rear

29" Wheel Size

Caliper Brakes

Shimano Deore Groupset

1 x 11 Speed

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The ONE-FORTY 400 brings an unheard of level of climbing and descending performance into a high-value package built around our all-new aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from SR Suntour and RockShox get the job done without fuss. The new ONE-FORTY is the ultimate trail bike, made for the toughest trails in the world. It’s the pinnacle of modern trail riding, with a super-steep 80° seat angle, low front end and bottom bracket allow it to clear the most technical climbs, while longer reach figures across all sizes and a well-balanced 65° head angle mean it’s still more than capable of any descent. With our new sizing system, riders can run a longer or shorter reach frame independently of their height, with suspension that becomes more progressive as you size up to better cope with heavier/harder riders.

Key Features

High-performance aluminium frame
Ground-breaking geometry for optimal handling
Wide-range 11-speed Shimano drivetrain
Dropper post for adjustable seat height
No-nonsense suspension from SR Suntour/RockShox

Specifications

Product Overview

Product

Merida One Forty 400 Trail Bike Grey/Silver

Brand

Merida

Parent SKU

DJB3NC6K

Size SKUs

SM: MEDA2270770
MD: MEDA2270781
LG: MEDA2270792
XL: MEDA2270800

Matrix Barcodes

SM: 4710949850999
MD: 4710949850982
LG: 4710949850975
XL: 4710949851002

Year Model

2022

Product Features

Frame Material

Alloy

Colour

Grey

Wheel Size

29"

Brake Type

Caliper

Gears

1 x 11

Fork Material

Alloy

Front Travel

140mm

Rear Travel

140mm

Weight

16.88 kg

Weight Limit

135 kg

Build

Frame

ONE-FORTY LITE III, 143mm 29", Aluminium, 29x2.5" Max Tyre Width, 148x12, BSA Bottom Bracket

Fork

Suntour XCR34 LOR DS, Air, 140mm, Tapered, 51mm fork offset, 29x2.4" Max Tyre Width

Shock

Rock Shox Deluxe Select+, lockout

Handlebars

MERIDA TEAM TR, Aluminium, 780mm Wide, XS/S 18mm Rise, M/L/XL 30mm Rise

Headset

MERIDA-8151 1-1/8"-1.5" cartridge bearing set

Grips

MERIDA COMP EC

Bottom Bracket

Race Face BSA 68/73 – 24mm

Saddle

MERIDA COMP SL, V-mount

Seat Post

MERIDA EXPERT TR II, 34.9mm, 0° Setback, XS: 125 SPT - S: 150 SPT - M/L/XL: 200 SPT

Seat Clamp

MERIDA EXPERT

Wheels

Wheel Size

29"

Rims

MERIDA COMP TR, 29mm Inner Width, Aluminium, Tubeless ready (tubeless tape and valves not included)

Hubs

Front: Shimano MT400-B, 110x15, 32H, Centerlock, Rear: Shimano MT400-B, 148x12, 32H, Centerlock

Tyres

Kenda Regolith, 29x2.4", wire

Spokes

Black stainless

Groupset

Crankset

Race Face Ride, 32T

Chain

KMC X11

Brakes

TEKTRO HD-M745, 4 piston

Front Rotor

Tektro TR203-35, 203 mm

Rear Rotor

Tektro TR203-35, 203 mm

Shifters

Front: Shimano SL -MT500-IL, Rear: Shimano Deore M5100

Cassette

11 Speed

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida One Forty 400 Trail Bike Grey/Silver we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Merida One Forty 400 Trail Bike Grey/Silver geometry diagram

Legend

ST Seat Tube
STA Seat Tube Angle
R Reach
TT Top Tube
BD Bottom Bracket Drop
S Stack
CS Chain Stay Length
HT Head Tube
WB Wheel Base
HTA Head Tube Angle
FL Fork Length

Wheel Size

29"

Stack

Reach

Top Tube Length

Seat Tube Length

Seat Tube Angle

Fork Length

Head Tube Length

Head Tube Angle

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

Minimum Seat Height

Maximum Seat Height
