$1300 Off Full Price Clearance

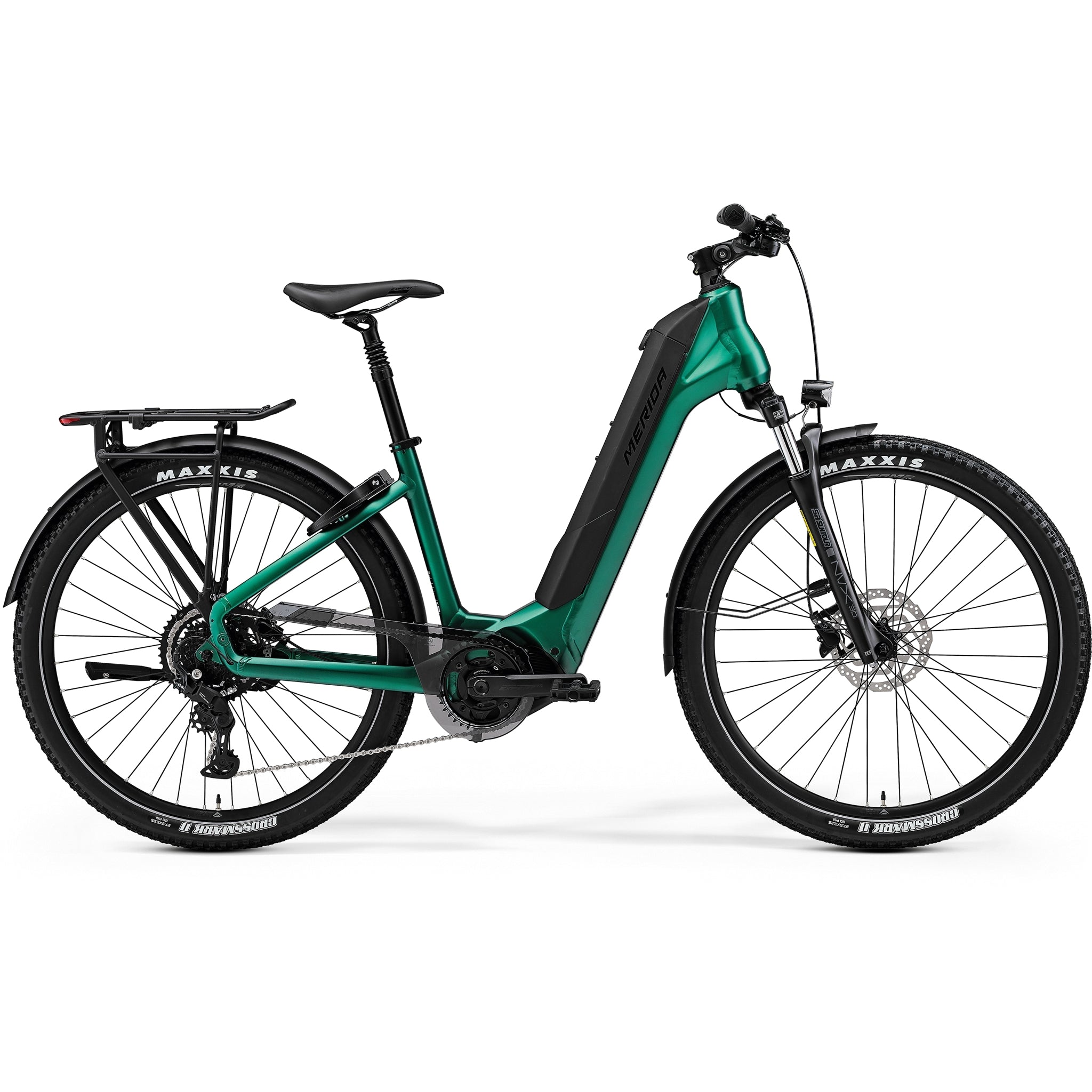

Merida Espresso CC 400 EQ Electric Hybrid Bike 504Wh Battery Silk Evergreen

Brand: Merida

SKU: Select a size

Size: Select a size

XS SM MD LG

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

REQUEST A PRICE BEAT

Pick up Delivery

Your store:

No location set

No click & collect information available for this location.

Click & Collect:

In Store

Select a size to view stock availability at this store.

$9.90 Not available

Select a size to view stock availability at this location.

Steep Hills & Heavy Loads / 85 Nm Torque

Up to 59 km Range

Shimano STePS EP6 Motor

Alloy Frame/ Suntour Fork

under 100mm Front Travel

504Wh Battery

Have a Question? Ask an expert on 0800 000 283

Product Details

Description

The Merida Espresso CC 400 EQ Electric Hybrid Bike is crafted for city riders and weekend explorers, blending robust performance with essential urban features. Equipped with a powerful Shimano EP6 motor and a 504Wh battery, this bike provides ample power and range for everyday commutes or leisure rides. With Shimano hydraulic disc brakes, front suspension, and Maxxis Crossmark tires, the Espresso CC 400 EQ offers a stable, comfortable ride on various terrains, while integrated lights, fenders, and a rear carrier add versatility for all-season commuting.

Key Features

Shimano EP6 motor with 85Nm torque
504Wh battery for long-distance rides
Suntour 80mm suspension for smooth control
Shimano hydraulic disc brakes 180mm rotors
Integrated lights and rear carrier for commuting

Specifications

Product Overview

Product

Merida Espresso CC 400 EQ Electric Hybrid Bike 504Wh Battery Silk Evergreen

Brand

Merida

Parent SKU

LRBRU45M

Size SKUs

XS: MEEB2500252
SM: MEEB2500253
MD: MEEB2500254
LG: MEEB2500255

Year Model

2025

Product Features

Frame Material

Alloy

Frame Style

Step-Through

Colour

Green

Brake Type

Hydraulic Disc Brake

Gears

1 x 9

Front Travel

under 100mm

Motor and Battery System

Drive Type

Mid Drive

Motor Brand

Shimano

Torque (Nm)

Motor Climbing Ability

Steep Hills & Heavy Loads

Battery Size (Watt-Hours)

504

Battery

Shimano EN805-L; 504Wh

Max. Range (KMs)

Display

Shimano SC-EN500

Build

Frame

eSPRESSO CC LITE III; MAT aluminium; 27,5x2,25" max. WHS; 135x9 AST; internal

Fork

Suntour NVX30 DS; Coil; 80 STR; 27,5x2,4" max WHS

Handlebars

MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB

Headset

MERIDA-8254

Grips

MERIDA EXPERT TK

Stem

MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable

Pedals

VP VPE-891

Saddle

MERIDA EXPERT TK II; V-mount

Seat Post

JD-SP79; 30.9 DSP; 15 SSB; 40 SST

Seat Clamp

MERIDA EXPERT

Accessories

Carrier: MERIDA MIK HD Carrier with Spring clip & Spanninga rear light; Fender: Sunnywheel SW-FA-311-65(MSB); Kickstand: Atranvelo ED-100-PC; Frame Lock: Abus 4650 XL

Wheels

Hubs

F: Shimano QC300; 100x9 WHF; 32 SPH; Centerlock | R: Shimano QC300; 135x9 WHR; 32 SPH; Centerlock

Tyres

Maxxis Crossmark II; 27.5x2.25"; wire; reflecting line

Spokes

Black stainless

Groupset

Crankset

Samox NWP203 ; 38 ATC; MERIDA EXPERT TK; 165mm

Chain

Shimano LG500

Brakes

Shimano MT-200; 2 piston

Front Rotor

Shimano RT10; 180 mm

Rear Rotor

Shimano RTEM300M; 180 mm

Shifters

Shimano CUES U4000

Rear Derailleur

Shimano CUES U4000

Cassette

9 Speed

Frequently Asked Questions

What is the Merida Espresso CC 400 Electric Hybrid Bike used for?

The Merida Espresso CC 400 EQ Electric Hybrid Bike is used for urban commuting, errands, and leisure weekend rides—where reliable power, comfort, and practicality matter.

Why choose the Merida Espresso CC 400 Electric Hybrid Bike?

Choose the Merida Espresso CC 400 EQ Electric Hybrid Bike for its strong Shimano EP6 motor and 504Wh battery, confident suspension and brakes, plus integrated commuter features that simplify daily use.

Who is the Merida Espresso CC 400 Electric Hybrid Bike designed for?

The Merida Espresso CC 400 EQ Electric Hybrid Bike is designed for city riders and weekend explorers who want an accessible, comfortable e-bike with practical commuting features.

Disclaimer

Please Note: Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas. Please ride responsibly and follow your local laws. We do not recommend modifying your electric bike or electric scooter.

Find Your Size

Step 1: Measure your height

Take off your shoes
Stand with your back straight against a wall
Balance a book on your head to mark your height on the wall
Measure your height by the distance from the floor to the mark

Your height:

Find Your Size

Step 2: Adjust your inseam

Based on your height, we’ve calculated a starting point.
You can measure your inseam by tucking a book between your legs so there is pressure but it isn’t uncomfortable.
Inseam typically falls with 5cm of the average.

Your inseam:

Find Your Size

Your results

For the Merida Espresso CC 400 EQ Electric Hybrid Bike 504Wh Battery Silk Evergreen we suggest the following size.

More comfort More speed

Height: --

Inseam: --

Adjusted Height: --

Find Your Size

We have saved your measurements.

Recommended sizes will now be highlighted on the page.

PERFECT RIDE GUARANTEE

If you don't love it, you can swap it, up to 30 days from purchase!* Learn more »

FREE BIKE BUILD

We'll build your bike for free when you click and collect at any 99 Bikes store.

FIRST FREE TUNE-UP

Every bike comes with a complimentary free tune-up and safety check. Learn more »

Range

Calculate your range

E-Bike Range Estimator

Free Test Rides

Come into your local store to test ride an E-Bike today

Find a store

Shop Our E-bikes

Shop our collection of electric bikes

Shop Now

Powerful mid‑drive performance

Shimano EP6 motor delivers smooth, responsive support with 85Nm of torque for effortless climbs. The 504Wh battery provides long-range confidence for day-to-day rides and weekend escapes.

Confident, comfortable control

Suntour 80mm suspension and Maxxis tires absorb bumps for a stable, comfortable ride across mixed urban terrain. Shimano hydraulic disc brakes with 180mm rotors give strong, reliable stopping power in all conditions.

Ready-for-commute practicality

Integrated lights, full fenders, and a rear carrier make gear-carrying and all-season commuting simple. Thoughtful accessories and step‑through frame design add everyday convenience and accessibility.

Not sure what sized bike is best?

Answer a few short questions and we'll make a recommendation on which size is best for you.

Your selected size: -

Legend

Available size

Current size

Unavailable size

Suggested sizing

Stack

656

661

666

675

Reach

385

399

417

435

Top Tube Length

580

595

615

635

Seat Tube Length

380

430

480

530

Seat Tube Angle

73.5

Fork Length

476

Head Tube Length

170

175

180

190

Head Tube Angle

170.0

175.0

180.0

190.0

Handlebar Height

Bottom Bracket Drop

Chainstay Length

Wheelbase

Standover Height

403

402

Minimum Seat Height

Maximum Seat Height
