- Trail-ready LITE aluminium frame with P-FLEX technology
- Progressive geometry and AGILOMETER sizing
- 130 mm travel front and rear with SR Suntour air sprung suspension
- Tough and precise Shimano CUES 10-speed drivetrain
- Strong and controllable Shimano hydraulic disc brakes
- MERIDA dropper seat post
- Fast rolling Maxxis Rekon 29 x 2.4” tyres, Merida COMP rims

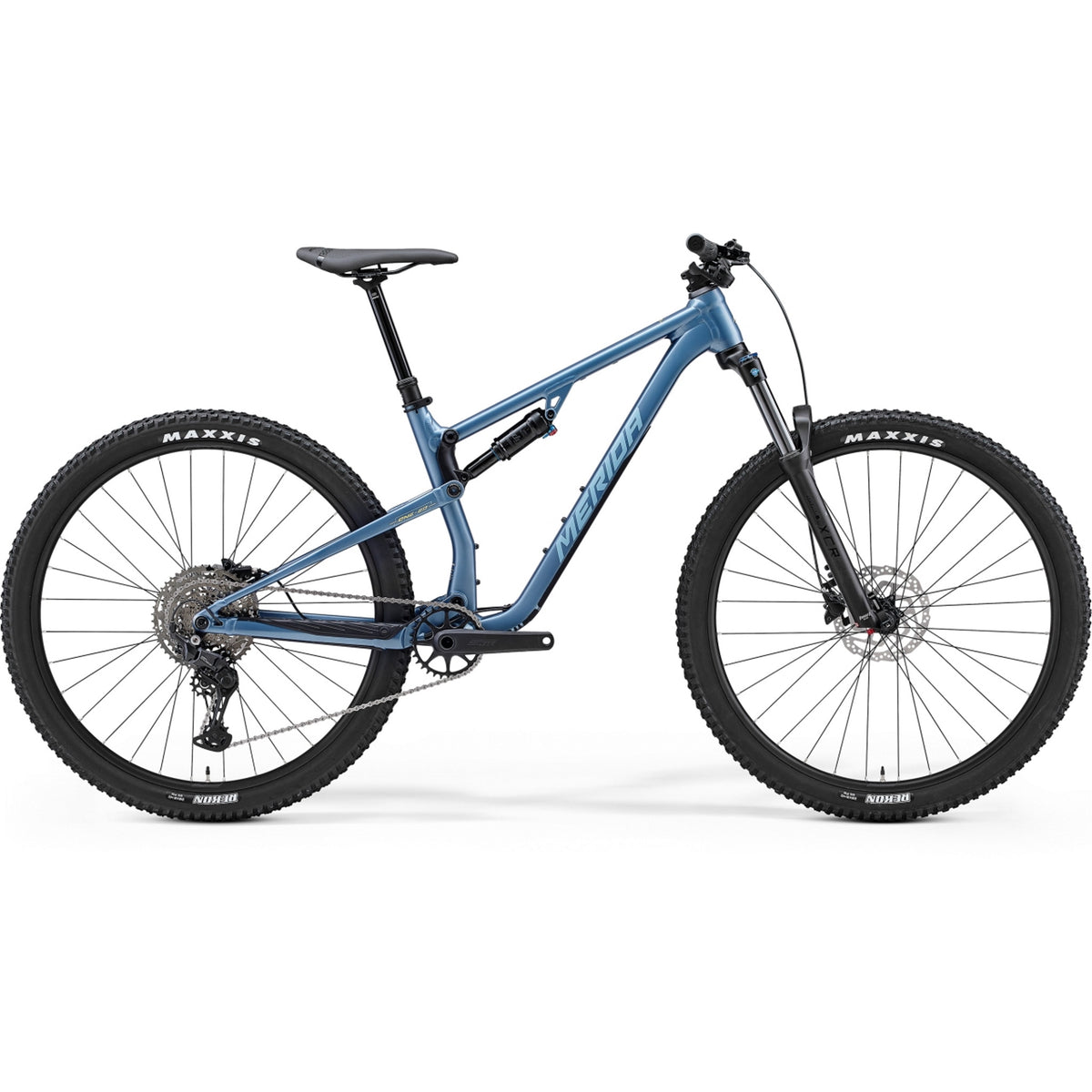

The One Twenty is a bike that doesn't need to be shoehorned into a category. Short travel trail, downcountry - call it whatever you want, but this is a fun mountain bike for doing fun mountain bike things. Light enough to climb all day but planted on the descents - and the perfect balance everywhere else. Whether you're into flowing singletrack sessions or big mileage in the mountains, the One Twenty is Merida’s do-it-all Swiss Army Knife of a bike. The high-value, high-quality LITE aluminium frame is paired with Merida’s progressive geometry concept but tweaked it to suit a fun, short-travel machine and, thanks to the Agilometer sizing concept from their award-winning One Sixty and One Forty range, you can pick stable or agile handling independently of bike fit. The hardest part will be getting the smile off your face.
Axles: | MERIDA COMP TR including removeable lever, 6/4 mm allen key |
---|---|
Brakes: | Shimano MT200 2 piston |
Cassette: | Shimano CUES LG400 11-48 teeth 10 speed |
Chain: | Shimano LG500 |
Colour: | SILK STEEL BLUE (BLUE/LIME) |
Colour (text): | SILK STEEL BLUE (BLUE/LIME) |
Crankset: | MERIDA Expert TR 32 teeth 170 mm on all sizes |
Derailleur rear: | Shimano CUES U6000 GS |
Fork: | Suntour XCR34 2CR Air 130 mm suspension travel Tapered lockout 44 mm fork offset 29x2.4" max. wheelsize |
Frame: | ONE-TWENTY LITE V 130 mm suspension travel material: aluminium 29x2.5" max. wheelsize 148x12 mm axle standard BSA bottom bracket standard |
Grip: | MERIDA COMP EC |
Handlebar: | MERIDA COMP TR material: aluminium 780 mm width 20 mm rise |
Handlebar stem: | MERIDA EXPERT TR material: aluminium 35 mm diameter 0° stem angle 40 mm |
Headset: | Acros ICR MERIDA EXTERNAL neck Upper and lower IPS sealing |
Hubs: | FRONT: Shimano TC500-B 110x15 mm width front hub 32 spoke holes Centerlock / REAR: Shimano TC500-HM-B 148x12 mm width rear hub 32 spoke holes Centerlock |
Rim: | MERIDA COMP CC II 25 mm inner width material: aluminium tubeless ready |
Rotor front: | Shimano RT10 180 mm |
Rotor rear: | Shimano RT10 180 mm |
Saddle: | MERIDA COMP SL V-mount |
Seat clamp: | MERIDA EXPERT |
Seat post: | MERIDA EXPERT TR II Diameter: 34.9 mm Setback: 0 mm Travel: 150 mm XSHORT/SHORT, 170 mm MID, 200 mm LONG/XLONG |
Shock: | SR Suntour Edge Plus 2CR lockout |
Spokes: | Black stainless |
Tyre front: | Maxxis Rekon 29x2.4" wire |
Tyre rear: | Maxxis Rekon 29x2.4" wire |
Weight: | 16.5 kg weighed at frame size M |
Wheel size: | 29" |
Frame Size | XShort | Short | Mid | Long | XLong |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 400 | 410 | 425 | 445 | 470 |
TT top tube [mm] | 548 | 569 | 590 | 611 | 632 |
CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
HTA head tube angle [°] | 66 | 66 | 66 | 66 | 66 |
STA seat tube angle [°] | 78.5 | 78.5 | 78.5 | 78.5 | 78.5 |
BD bottom bracked drop [mm] | 40 | 40 | 40 | 40 | 40 |
HT head tube [mm] | 95 | 100 | 105 | 110 | 115 |
FL fork length [mm] | 541 | 541 | 541 | 541 | 541 |
R reach [mm] | 425 | 445 | 465 | 485 | 505 |
S stack [mm] | 604 | 609 | 613 | 618 | 622 |
WB wheel base [mm] | 1155 | 1177 | 1199 | 1221 | 1243 |
SH stand over height [mm] | 748 | 750 | 752 | 754 | 756 |
Merida Dual Suspension Bike Sizing Chart
